2014 Kobelco SK2008

1/9

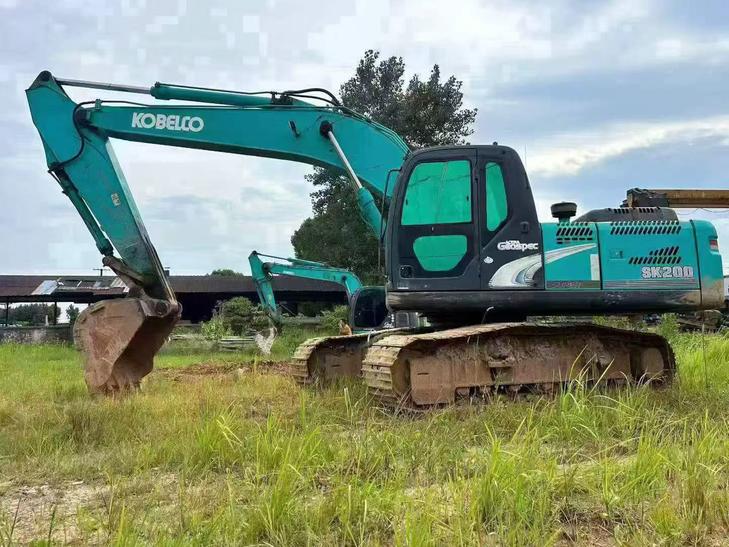

Buy Kobelco SK2008 Used Excavator / 1
Buy Kobelco SK2008 Used Excavator / 2
Buy Kobelco SK2008 Used Excavator / 3
Buy Kobelco SK2008 Used Excavator / 4
Buy Kobelco SK2008 Used Excavator / 5
Buy Kobelco SK2008 Used Excavator / 6
Buy Kobelco SK2008 Used Excavator / 7
Buy Kobelco SK2008 Used Excavator / 8
Buy Kobelco SK2008 Used Excavator / 9

Product Description

2014 Kobelco SK200-8 excavator available in Jiangxi, China. This unit features the reinforced heavy-duty undercarriage and represents a well-maintained example from Kobelco's proven -8 generation. The machine has been inspected and is ready for immediate deployment across earthmoving, demolition, and general construction applications.

  • Year: 2014
  • Model: SK200-8 (20-ton class)
  • Location: Jiangxi Province, China
  • Condition: Inspected, operational
  • Test operation available upon request

The SK200-8 series is known for fuel efficiency, hydraulic response, and parts availability across Asia-Pacific markets. This unit is suited for contractors seeking reliable mid-size excavation capacity with established service networks. Viewing and trial operation can be arranged at the Jiangxi site.

SpecificationsValue
No.1137808
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94(Standard)
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
