2016 Kobelco SK2008

1/9
Buy Kobelco SK2008 Used Excavator / 1

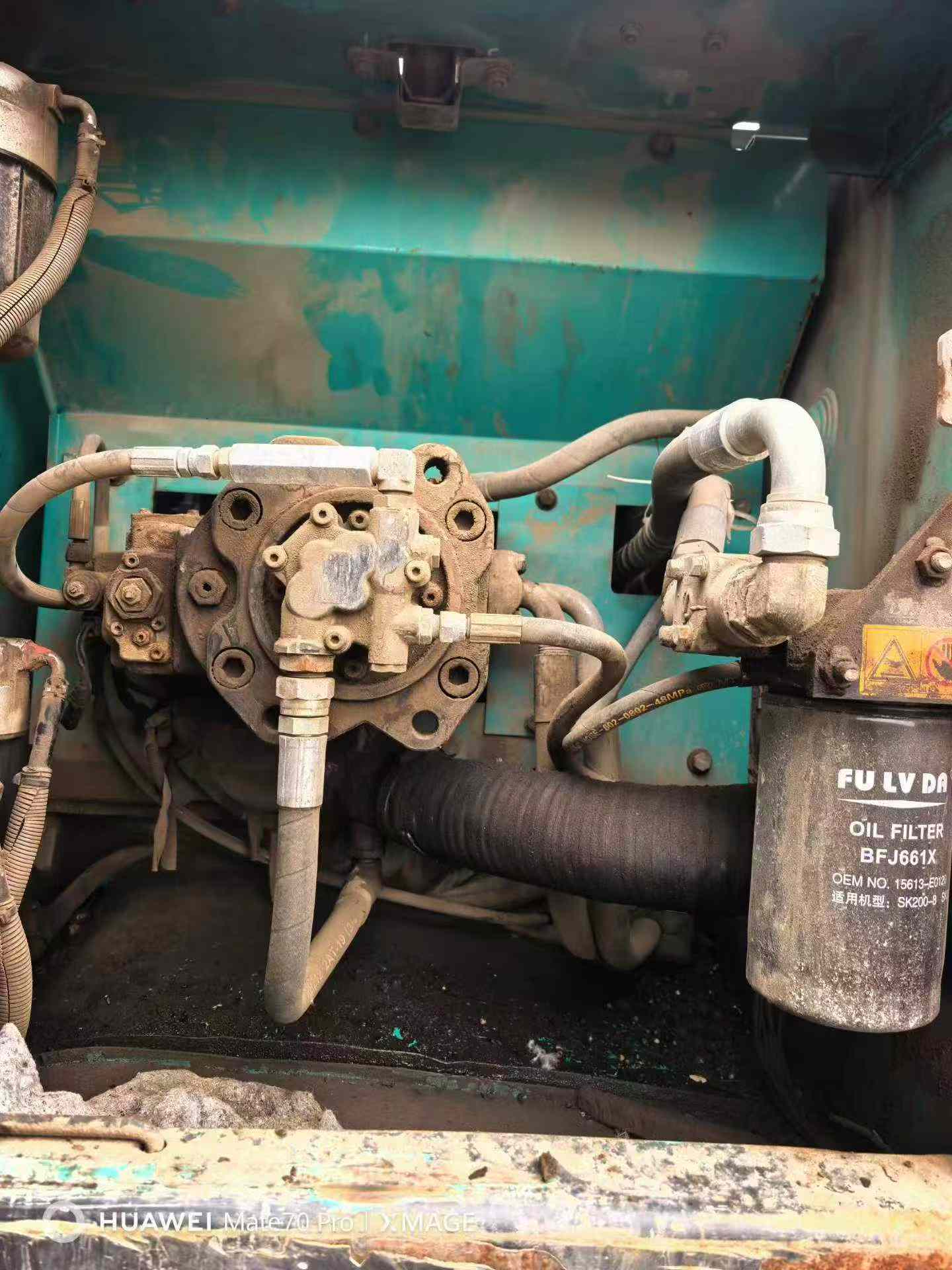

Buy Kobelco SK2008 Used Excavator / 2

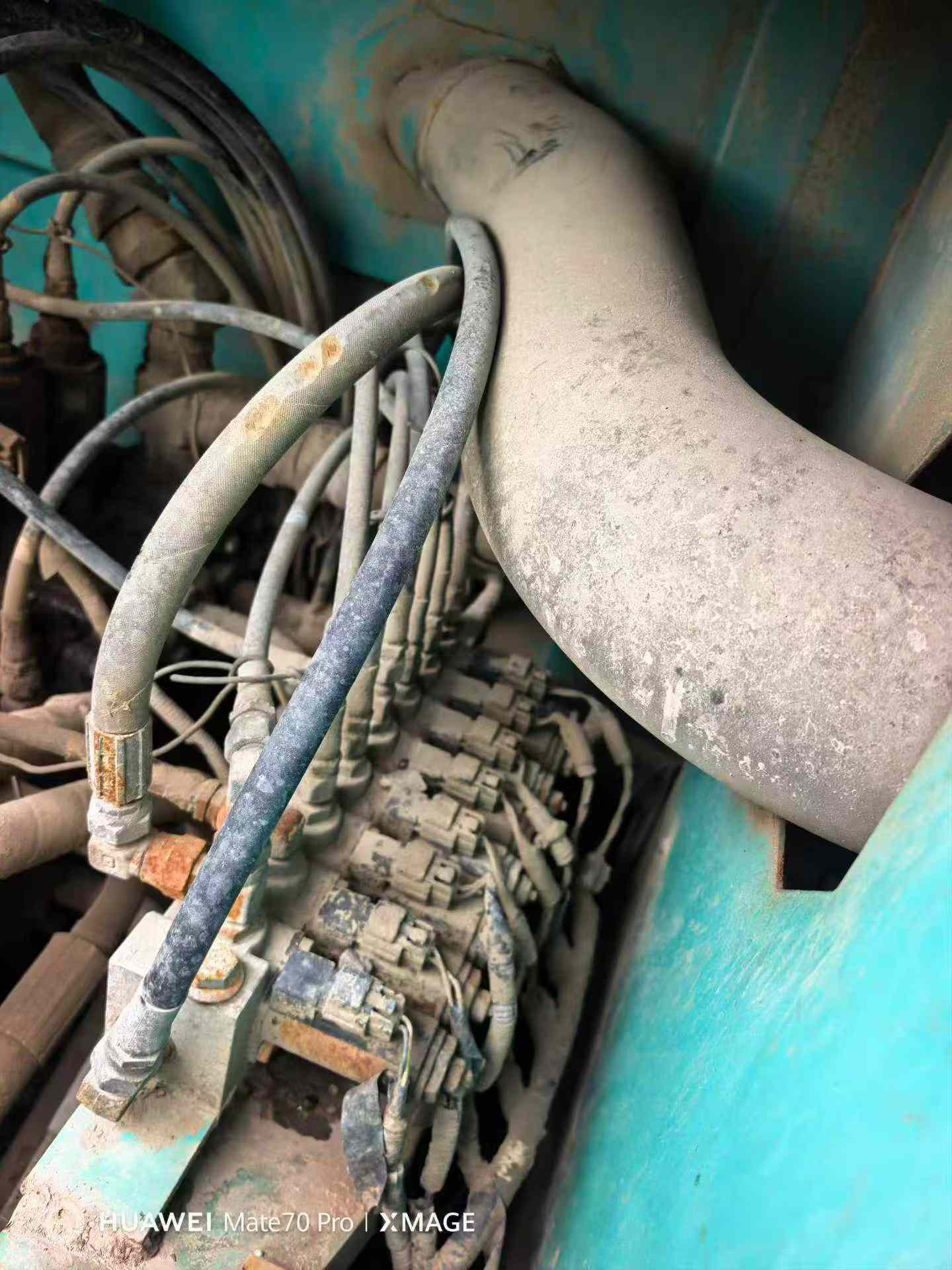

Buy Kobelco SK2008 Used Excavator / 3

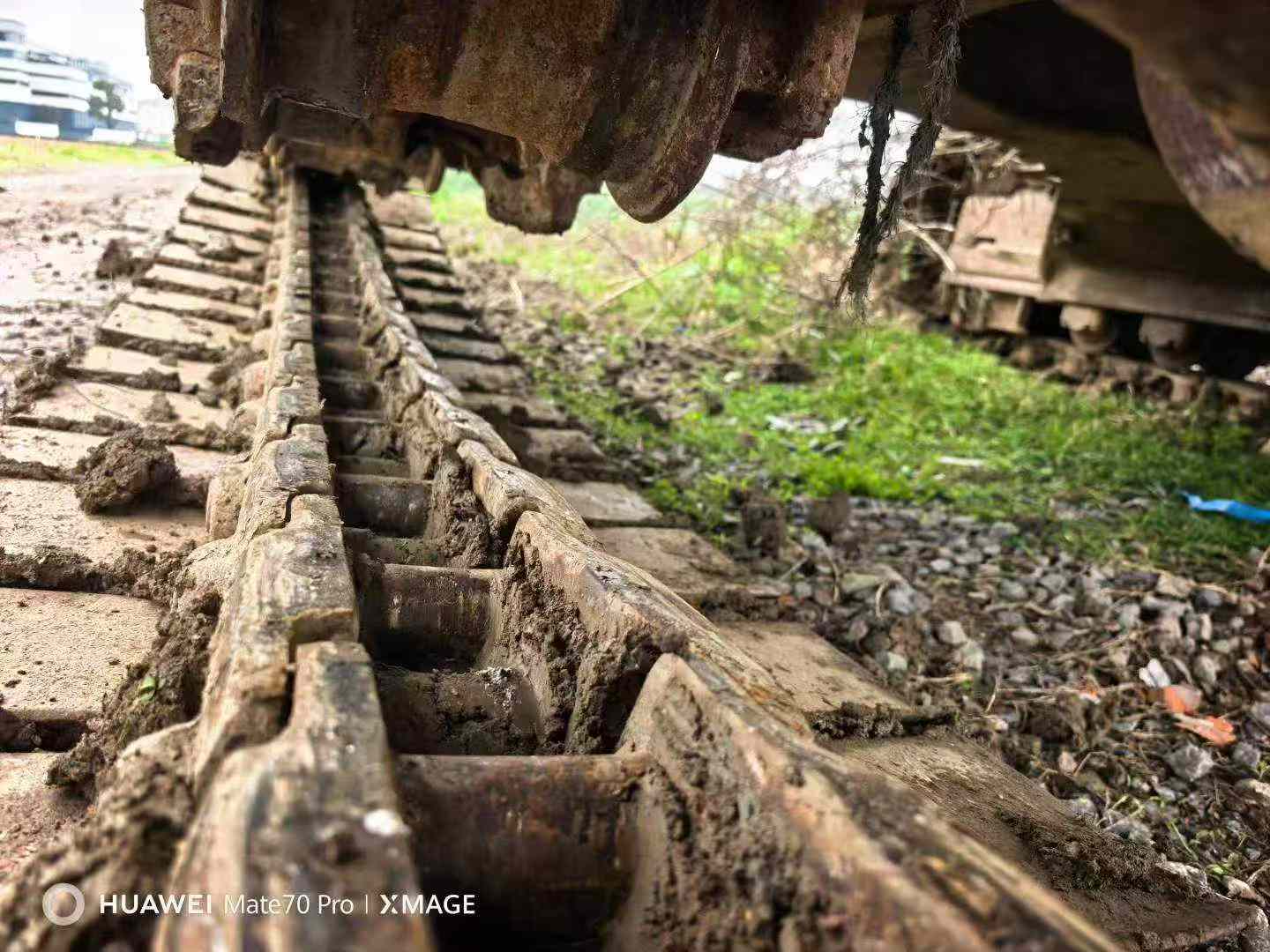

Buy Kobelco SK2008 Used Excavator / 4

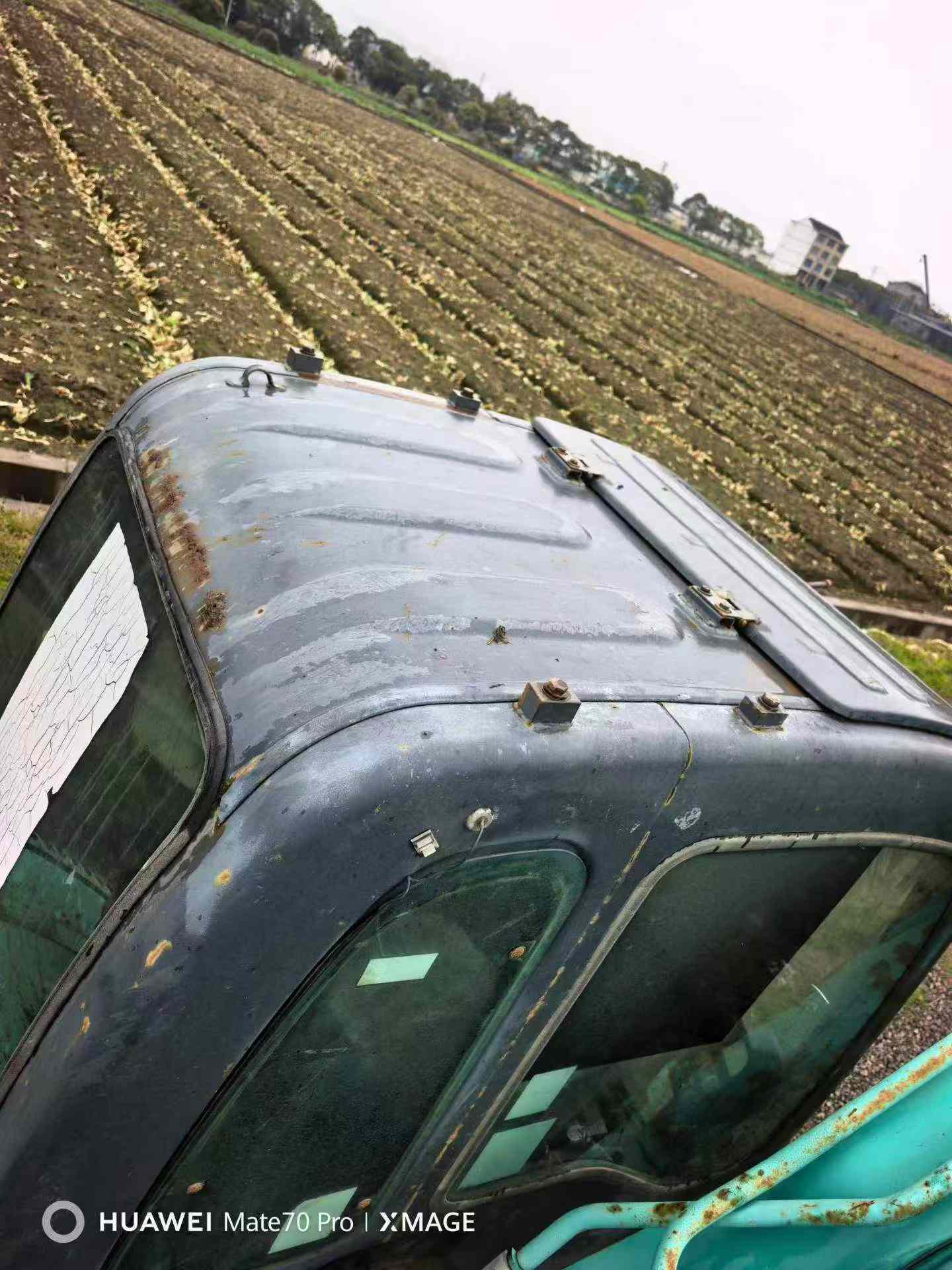

Buy Kobelco SK2008 Used Excavator / 5

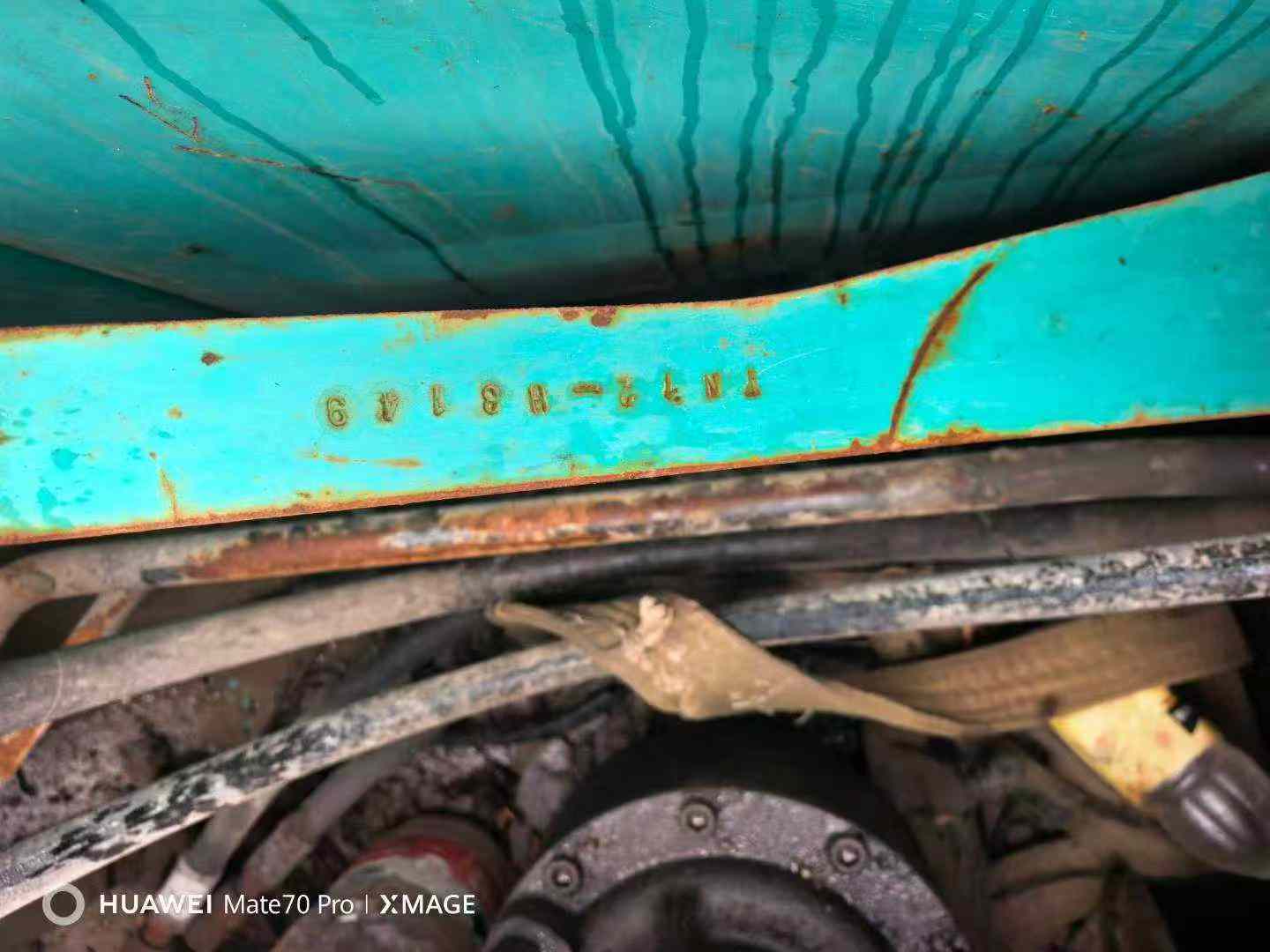

Buy Kobelco SK2008 Used Excavator / 6

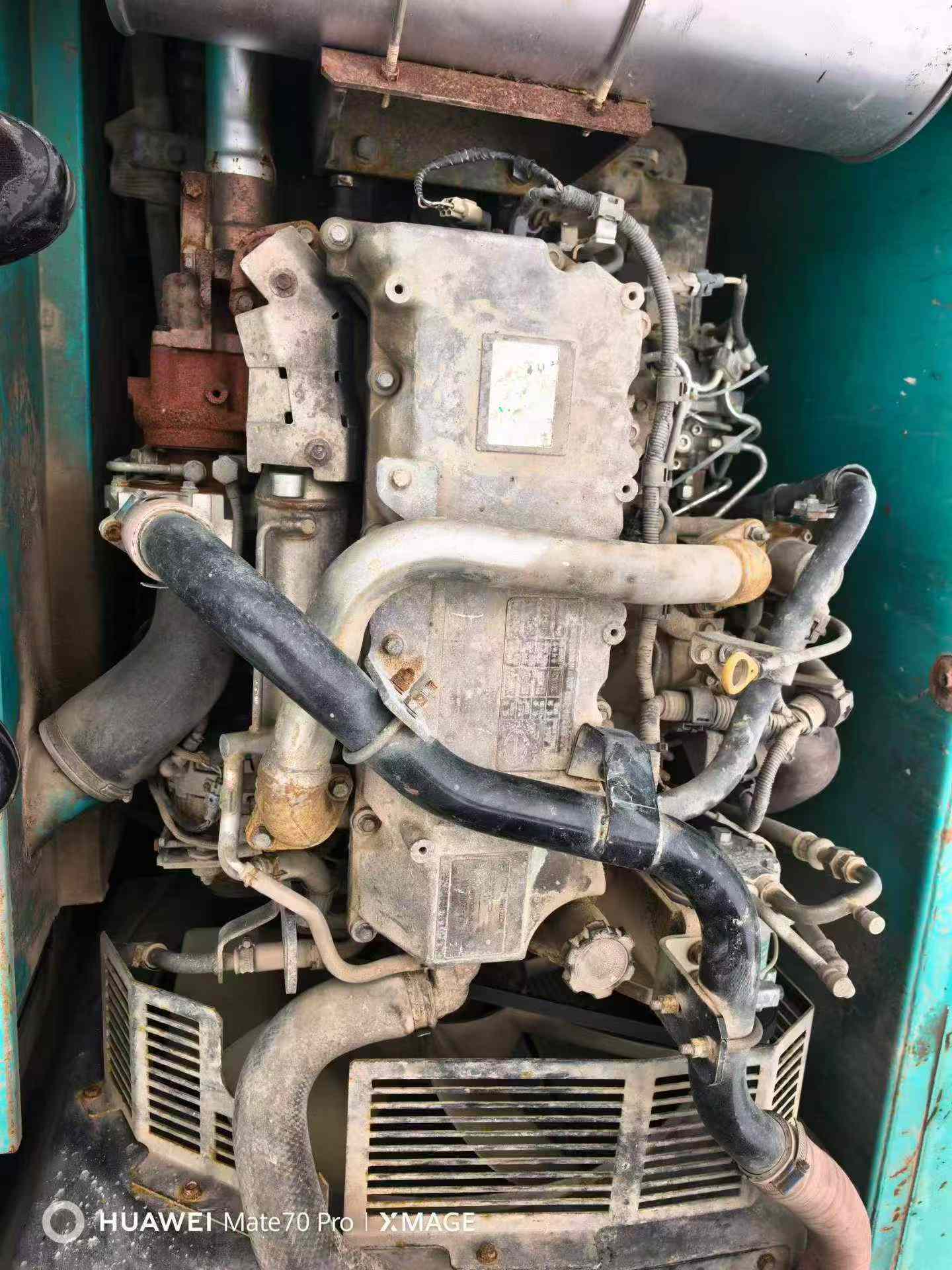

Buy Kobelco SK2008 Used Excavator / 7

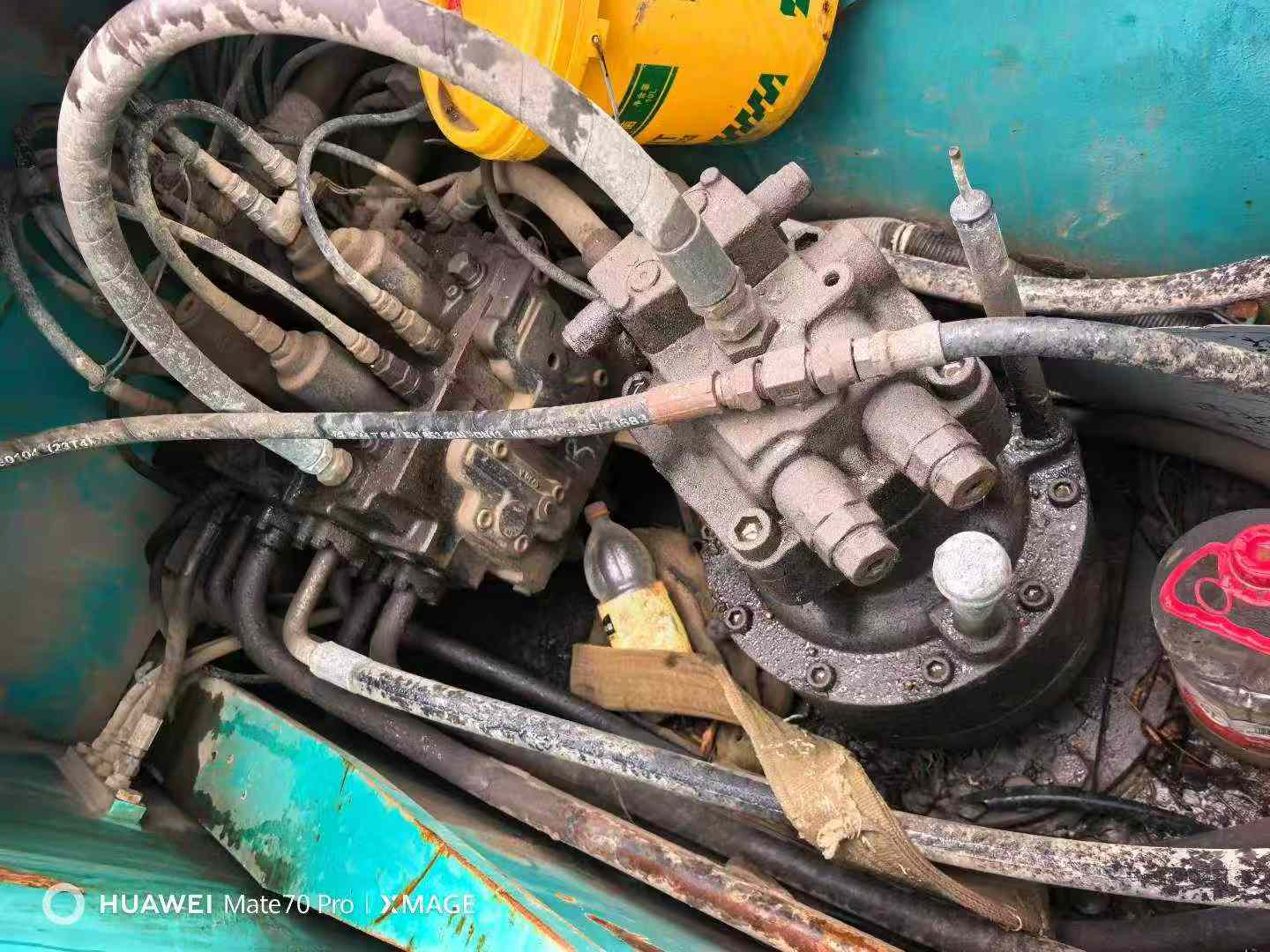

Buy Kobelco SK2008 Used Excavator / 8

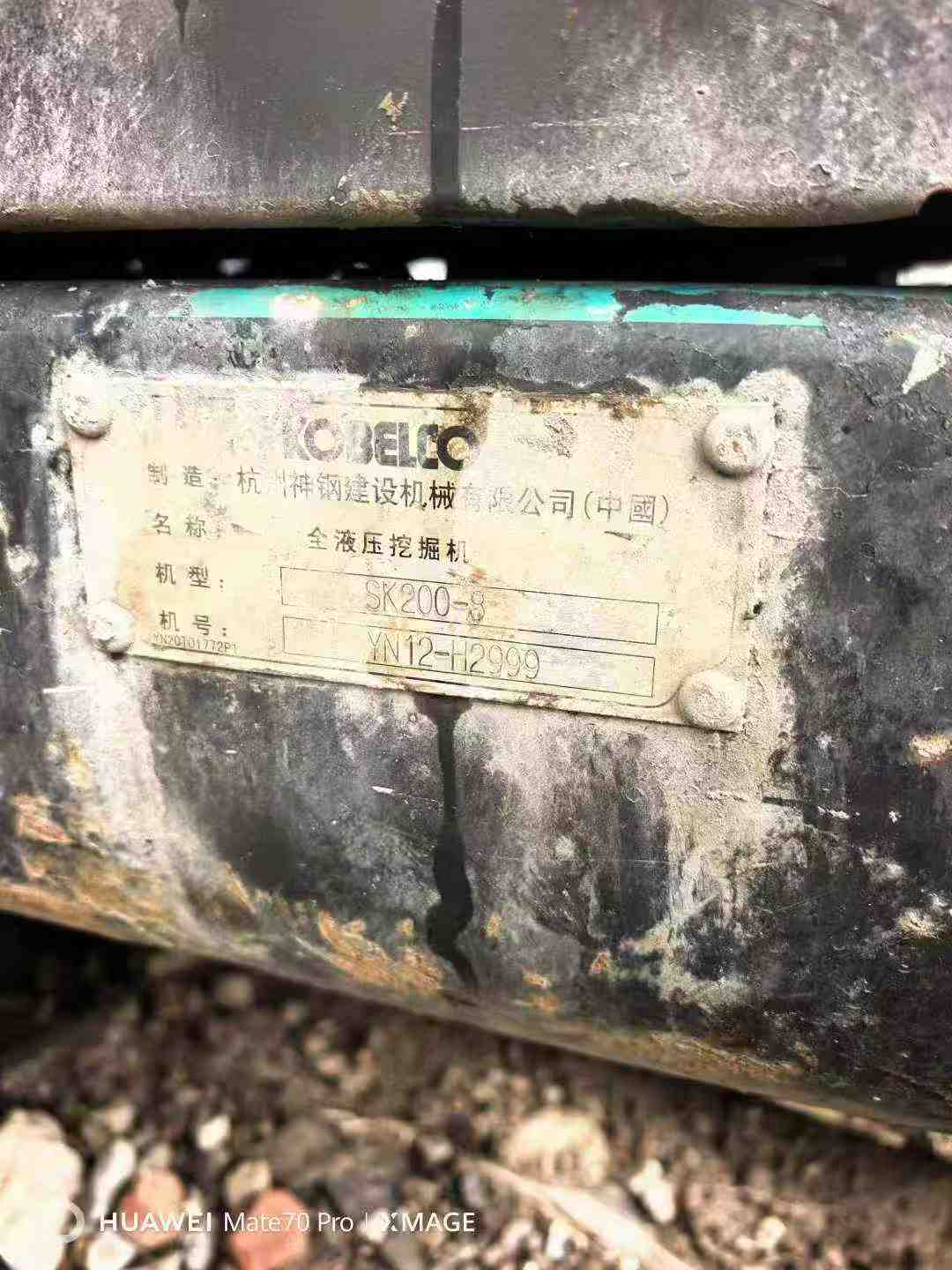

Buy Kobelco SK2008 Used Excavator / 9

Product Description

Built for endurance, this 2016 Kobelco SK200超8 excavator delivers proven performance across demanding jobsites. With over seven years of operational history, this machine demonstrates the legendary durability that defines Kobelco's engineering standards. Currently located in Hangzhou, Zhejiang, it represents a workhorse solution for contractors requiring reliable hydraulic excavation power without compromise.

  • Year: 2016
  • Model: Kobelco SK200超8
  • Location: Hangzhou, Zhejiang, China
  • Status: Field-tested and operationally proven

Designed for heavy-duty applications, this SK200超8 combines fuel efficiency with robust structural integrity. Its track record speaks to quality manufacturing—a machine built to withstand years of rigorous use while maintaining operational standards. For operations demanding dependable excavation capacity, this proven unit offers immediate deployment capability backed by Kobelco's reputation for long-term reliability.

SpecificationsValue
No.1042546
Tonnage (tons)20
Working weight (kg)20600
Bucket capacity (m³)0.8
Rod length (mm)2.94(Standard)
Country of originHangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J05E
Rated power (kw/rpm)114/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)112 x 130
Number of cylinders (PCS)4
Displacement (L)5.123
Working formDirect injection, four stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)46
Rotation speed (rpm)12.5
Climbing ability (%)70/35 °
Bucket digging force (kN)143
Rod digging force (kN)102
Travel speed (km/h)3.6/6.0
Maximum flow of main pump (l/min)2 x 220 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)29
Control Hydraulic Circuit (Mpa)5
Hydraulic crushing pipeline is standardis
Main pump typeDual variable displacement axial piston pump ×2+ pilot gear pump ×1
Working Hydraulic Circuit (Mpa)34.3
Bucket cylinders - Number × diameter × stroke (mm)120 x 1080
Bucket rod cylinders - Number × diameter × stroke (mm)135 x 1558
Boom cylinders - Number × diameter × stroke (mm)120 x 1355
Fuel Tank (L)370
Hydraulic Tank (L)146
Engine Oil changes (L)22
Coolant (L)22
Total transport length (mm)9450
Total transport width (mm)2800
Total transport height (mm)2980
Counterweight ground clearance (mm)1060
Minimum ground clearance (mm)450
Minimum turning radius of front working device (mm)3540
Back end turning radius (mm)2750
Total track length (mm)4170
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3370
Maximum digging radius (mm)9900
Maximum digging depth (mm)6700
Maximum excavation height (mm)9720
Maximum unloading height (mm)6910
Maximum vertical digging depth (mm)6100
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9730
Maximum effective digging depth (mm)6520
see more

Overview

No.1042546

Brand Name:

Kobelco

Model Number:

SK2008

Year:

2016

Location:

Zhejiang China

Pub Date
