Product Description

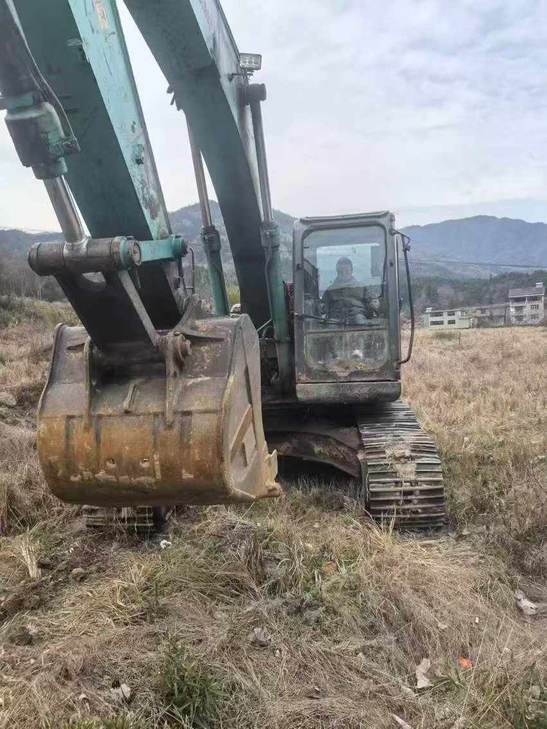

Strengthen your excavator fleet with this reliable 2016 Kobelco SK210LC-8, a proven 20-ton workhorse built for commercial contractors managing multiple job sites. Powered by a Hino J05E engine delivering 114 kW at 2000 rpm, this machine combines Japanese engineering with the versatility today's busy operations demand. Currently located in Lishui, Zhejiang, it's ready to serve as your critical backup unit or primary addition during peak season.
- Operating weight: 21,200–21,900 kg with 1.0 m³ bucket capacity
- Maximum digging reach: 9,000 mm / Maximum digging depth: 6,700 mm
- Water-cooled turbocharged engine with intercooling for sustained performance
- 370L fuel tank supports extended shifts without frequent refueling
- Transport dimensions: 9,450 mm (L) × 2,990 mm (W) × 2,980 mm (H)
- 12.5 rpm rotation speed and 70% grading ability handle diverse terrain
With over 6,500 operating hours logged across foundation work, trenching, and site preparation, this SK210LC-8 offers the redundancy fleet managers need when primary units are down or project timelines compress. Immediate availability for inspection.
| Specifications | Value |
|---|---|
| No. | 1032969 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21200-21900 |
| Bucket capacity (m³) | 1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 114/2000 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.123 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 34-44 {0.35-0.45} |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 (35 °) |
| Maximum tractive force (kN) | 229{23,300} |
| Travel speed (km/h) | 6.0/3.6 |
| Fuel Tank (L) | 370 |
| Hydraulic Tank (L) | 146 |
| Total transport length (mm) | 9450 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4450 |
| Track plate width (mm) | 600/700/800 |
| Maximum digging radius (mm) | 9000 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum vertical digging depth (mm) | 6100 |
| Maximum excavation radius of stop surface (mm) | 5270 |
| Maximum effective digging depth (mm) | 6520 |
