Product Description

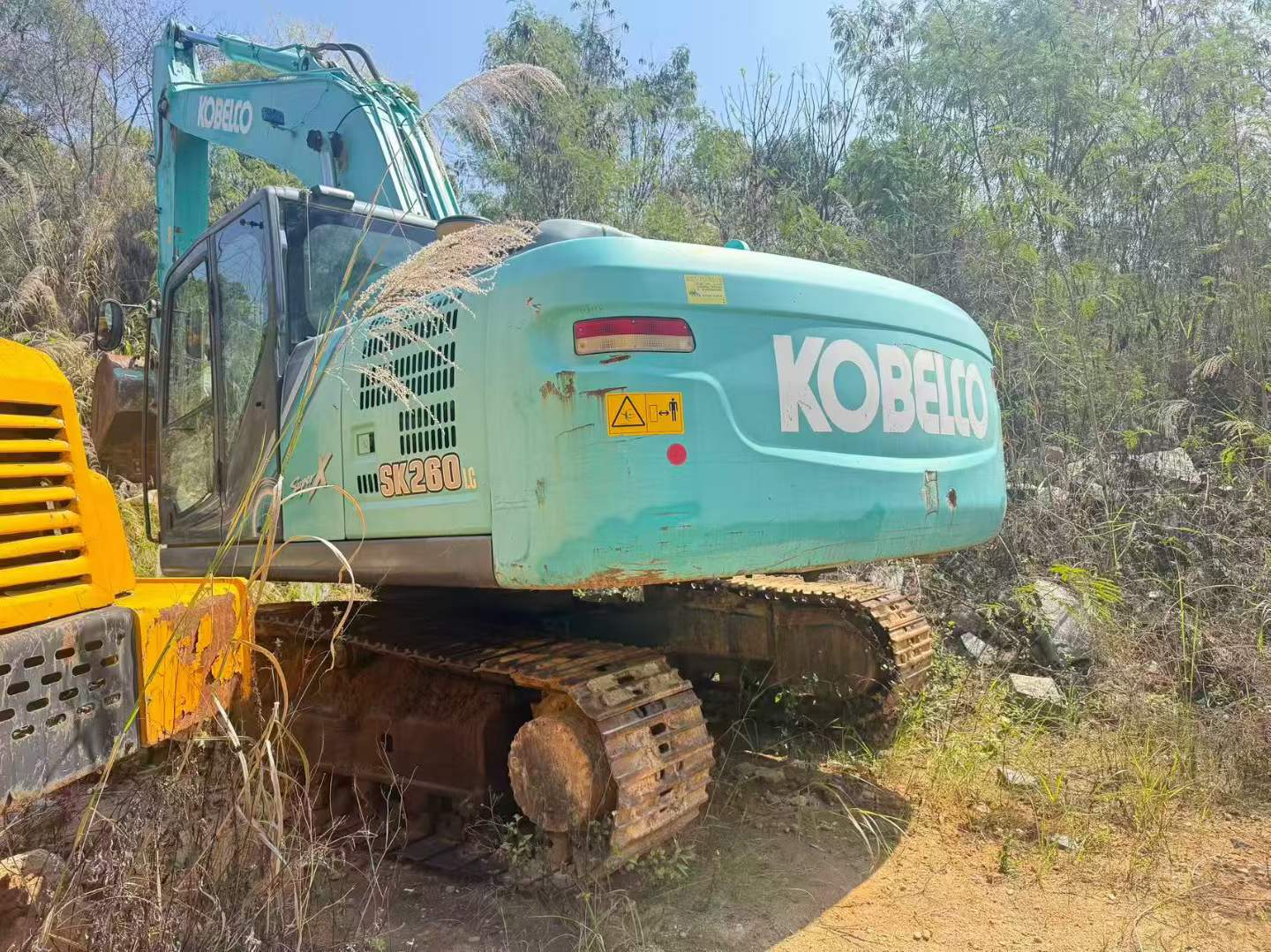

Powered by a robust Hino J05E engine delivering 131 kW at 2100 rpm, this 2020 Kobelco SK260LC-8 combines Japanese engineering precision with field-proven hydraulic performance. The dual variable displacement axial piston pump system supplies 2 × 246 l/min flow, operating at 34.3 MPa working pressure to generate exceptional digging forces: 170 kN bucket force and 119 kN arm force. With a 25,200 kg working weight and 1.3 m³ bucket capacity, this 26-ton excavator handles demanding earthmoving operations with authority.
Key technical specifications include:
- Maximum digging reach: 10,310 mm with 7,000 mm depth capability
- Water-cooled turbocharged engine with intercooling, 5.123 L displacement
- 11 rpm swing speed with 70% grading ability (35°)
- Dual travel speeds: 3.6/5.8 km/h for versatile site mobility
- Factory-equipped hydraulic breaker circuit as standard
- 460 L fuel capacity supporting extended operational shifts
Currently located in Kunming, Yunnan, this joint-venture manufactured machine represents the SK260LC-8 series' reputation for hydraulic efficiency and structural durability in medium-class excavation applications.
| Specifications | Value |
|---|---|
| No. | 1028612 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.3 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 131/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 170 |
| Rod digging force (kN) | 119 |
| Travel speed (km/h) | 3.6/5.8 |
| Maximum flow of main pump (l/min) | 2 x 246 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Total transport length (mm) | 10120 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3020 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3850 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6880 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6820 |
