Product Description

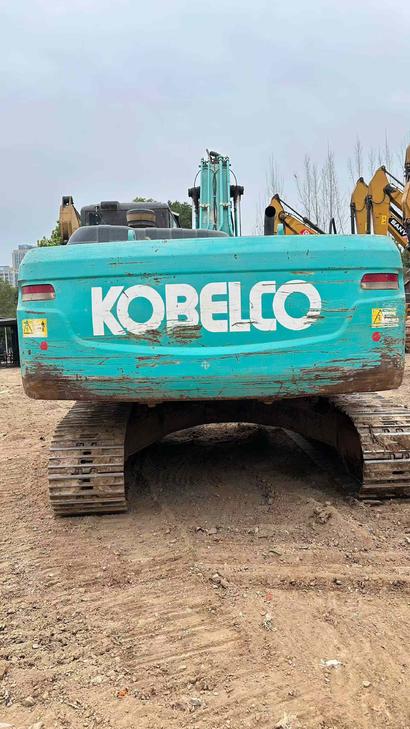

Built in 2020, this SK260LC-8 exemplifies Kobelco's reputation for engineering reliability in the 26-ton excavator class. Powered by a proven Hino J05E engine delivering 131 kW at 2100 rpm, this machine combines water-cooled efficiency with turbocharged performance that contractors depend on for demanding jobsites. Currently located in Sichuan, it offers immediate availability for operations across Asia and beyond.
Kobelco's strategic advantage in the used equipment market centers on three critical factors: widespread parts availability through established dealer networks, consistent resale values that protect your investment, and a service infrastructure refined over decades. This SK260LC-8 features a 1.3 m³ bucket capacity, 10,310 mm maximum digging reach, and 7,000 mm digging depth—specifications that translate directly to productivity and profitability.
- Dual variable displacement hydraulic pumps (2 × 246 l/min) for precise control
- Factory-installed hydraulic crushing circuit for immediate attachment versatility
- 3,850 mm track ground length ensures stability on challenging terrain
- 460-liter fuel tank reduces refueling downtime on extended shifts
Purchasing pre-owned
| Specifications | Value |
|---|---|
| No. | 1042813 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.3 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 131/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 170 |
| Rod digging force (kN) | 119 |
| Travel speed (km/h) | 3.6/5.8 |
| Maximum flow of main pump (l/min) | 2 x 246 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Total transport length (mm) | 10120 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3020 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3850 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6880 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6820 |
