Product Description

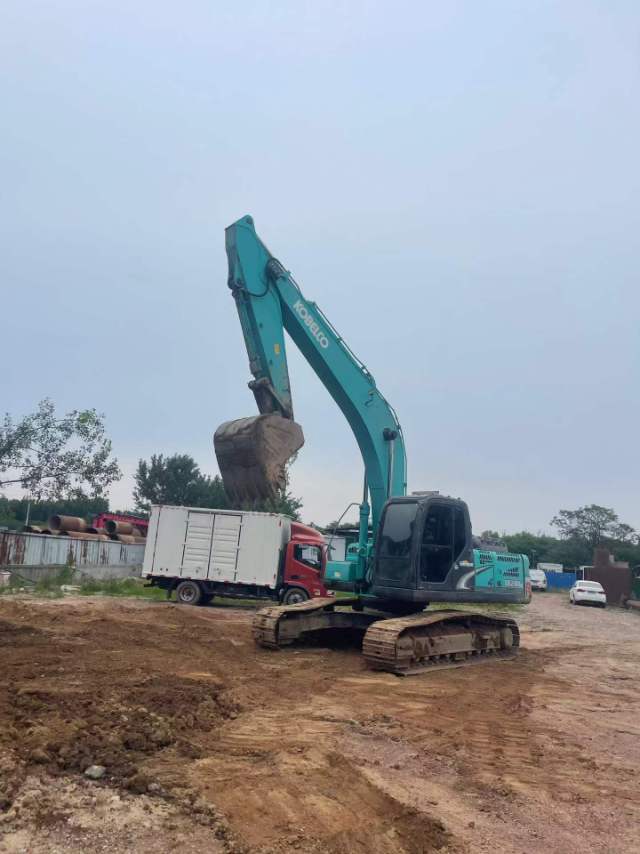

Discover the 2020 Kobelco SK260LC-8, a premium excavator available in Peking, China. This machine has been exclusively used for earthmoving tasks and has never engaged in hammering operations, ensuring its components remain in excellent condition. The original paint and air conditioning system are intact, contributing to a well-maintained appearance and comfortable operation. Noteworthy features include a leak-free major assembly and superior performance, with no black smoke or emissions, underscoring its reliability and efficiency. A visually appealing undercarriage, supported by detailed images and video, further enhances its appeal. This excavator comes with a warranty, providing additional assurance of its quality and operational readiness.
- Year: 2020
- Brand: Kobelco
- Model: SK260LC-8
- Location: Peking, China
- Exclusive earthmoving use, no hammering history
- Original paint and functioning air conditioning
- Leak-free major components
- No black smoke, clean emissions
- Includes warranty
| Specifications | Value |
|---|---|
| No. | 1130366 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25200 |
| Bucket capacity (m³) | 1.3 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J05E |
| Rated power (kw/rpm) | 131/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 170 |
| Rod digging force (kN) | 119 |
| Travel speed (km/h) | 3.6/5.8 |
| Maximum flow of main pump (l/min) | 2 x 246 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.5 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Dual variable displacement axial piston pump ×2+ pilot gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Total transport length (mm) | 10120 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3200 |
| Counterweight ground clearance (mm) | 1090 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3020 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3850 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6880 |
| Maximum vertical digging depth (mm) | 6150 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6820 |
