Product Description

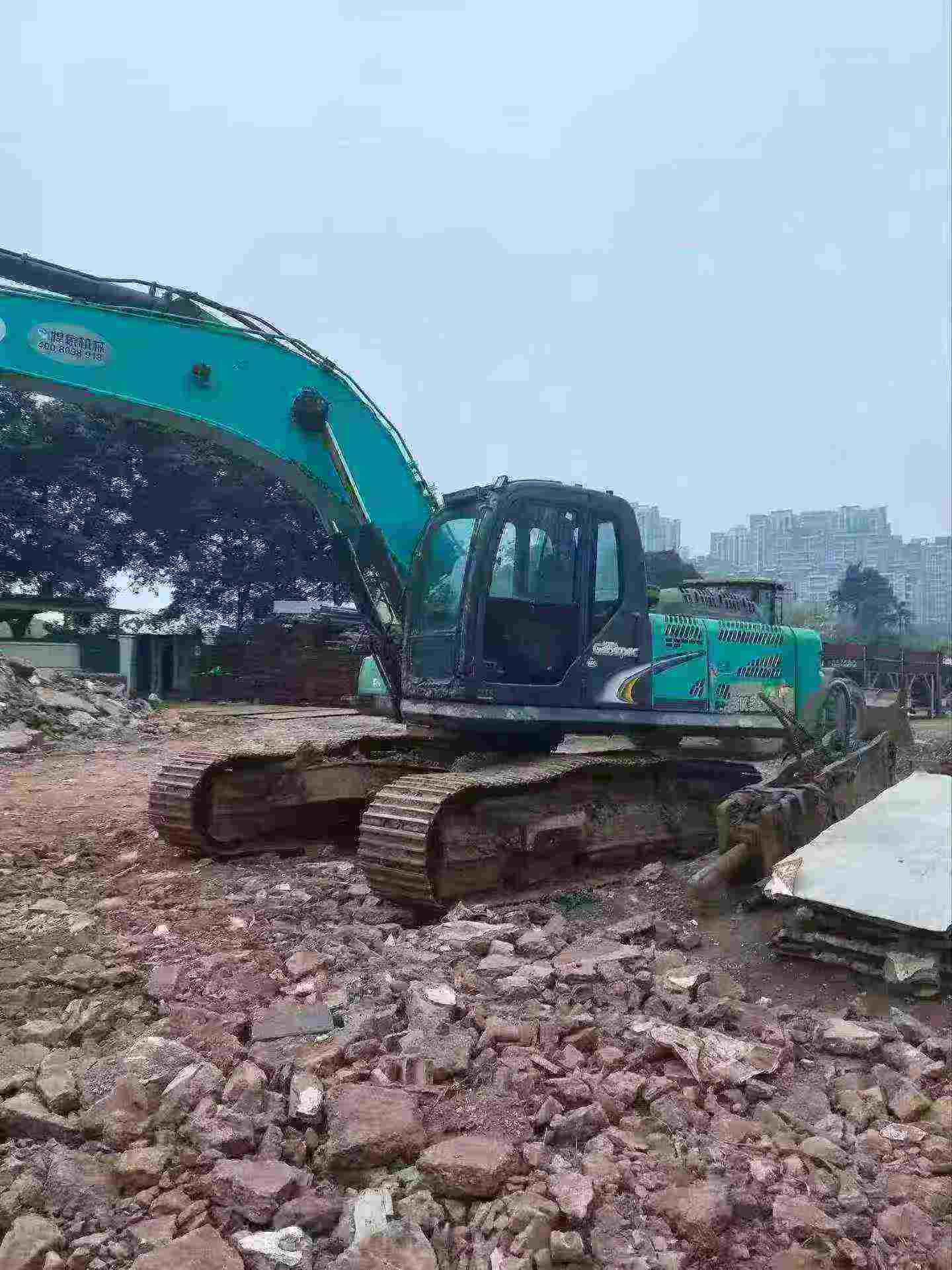

Discover the reliability and efficiency of the 2015 Kobelco SK270D, a robust excavator designed for demanding construction and excavation tasks. Located in Sichuan, China, this used machine is immediately available, ensuring you can quickly integrate it into your fleet. Priced at RMB 130,000, this model offers a cost-effective solution without compromising on performance or durability.
- Year: 2015
- Brand: Kobelco
- Model: SK270D
- Location: Sichuan, China
- Price: RMB 130,000
| Specifications | Value |
|---|---|
| No. | 1057317 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27000 |
| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | Standard 2.98/ Short forearm 2500 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

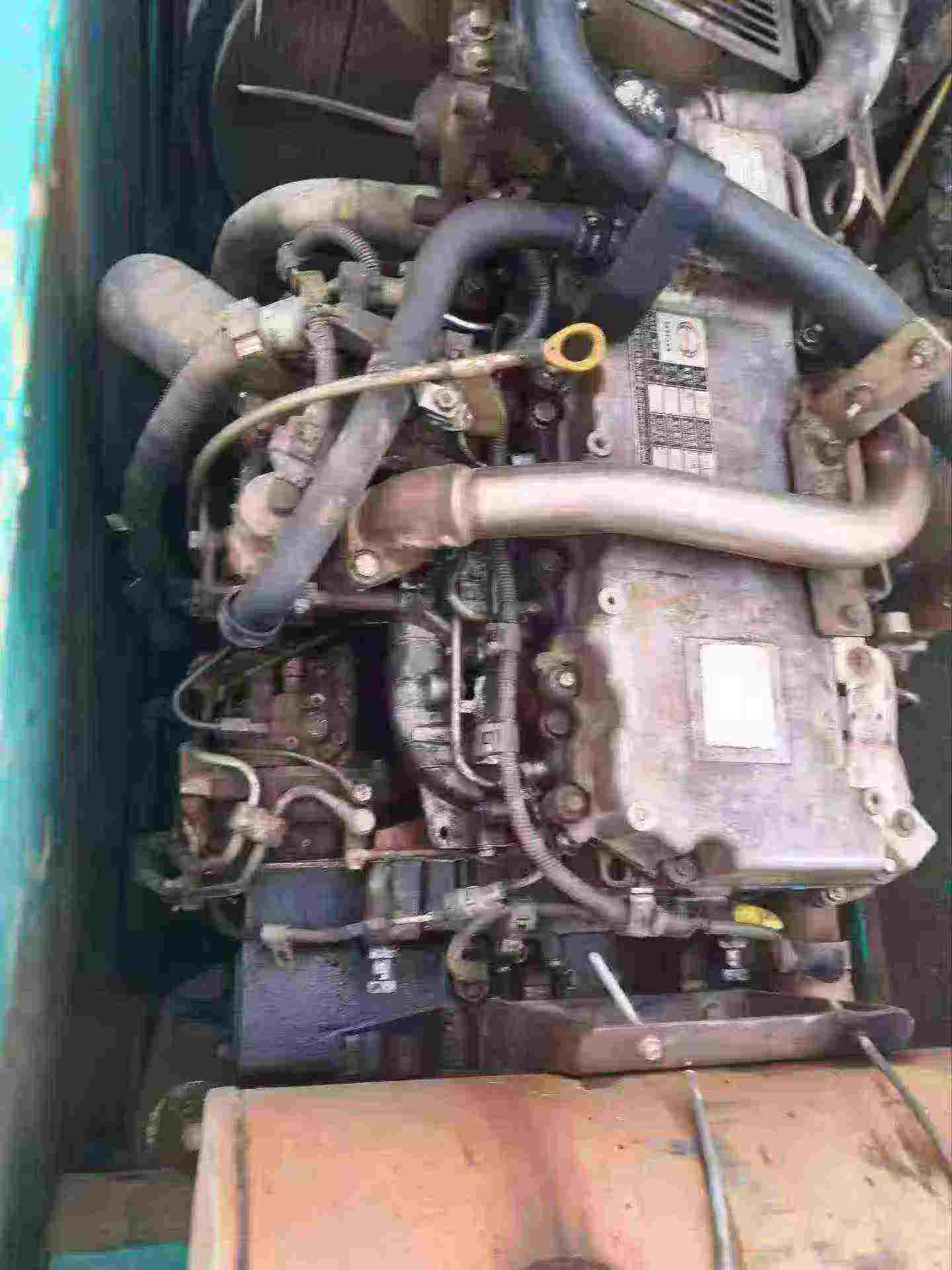

| Engine type | Hino J05E |
| Rated power (kw/rpm) | 137/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112*130 |
| Maximum torque (N.m/rpm) | 654/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Ground specific pressure (Kpa) | 54 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 170/ Supercharging 187 |
| Rod digging force (kN) | 119/ Supercharged 131 |
| Maximum tractive force (kN) | 244 |
| Travel speed (km/h) | 6.2/3.9 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*246+20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |

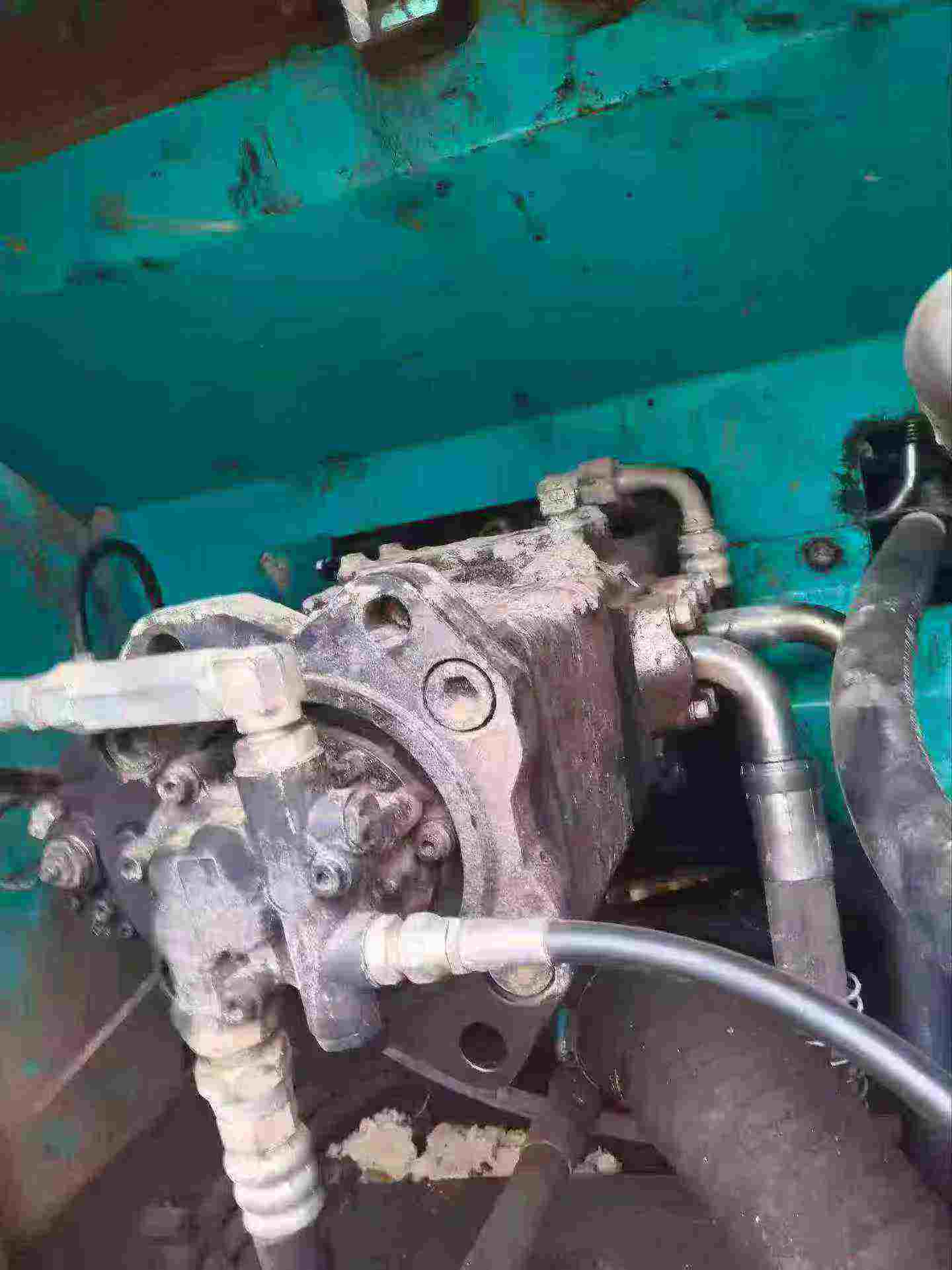

| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 10230 |
| Total transport width (mm) | 3230 |
| Total transport height (mm) | 3200 (to the top of the boom) |
| Full cab height (mm) | 3143 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3120 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4680 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3230 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 6990 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 6170 |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6800 |
