Product Description

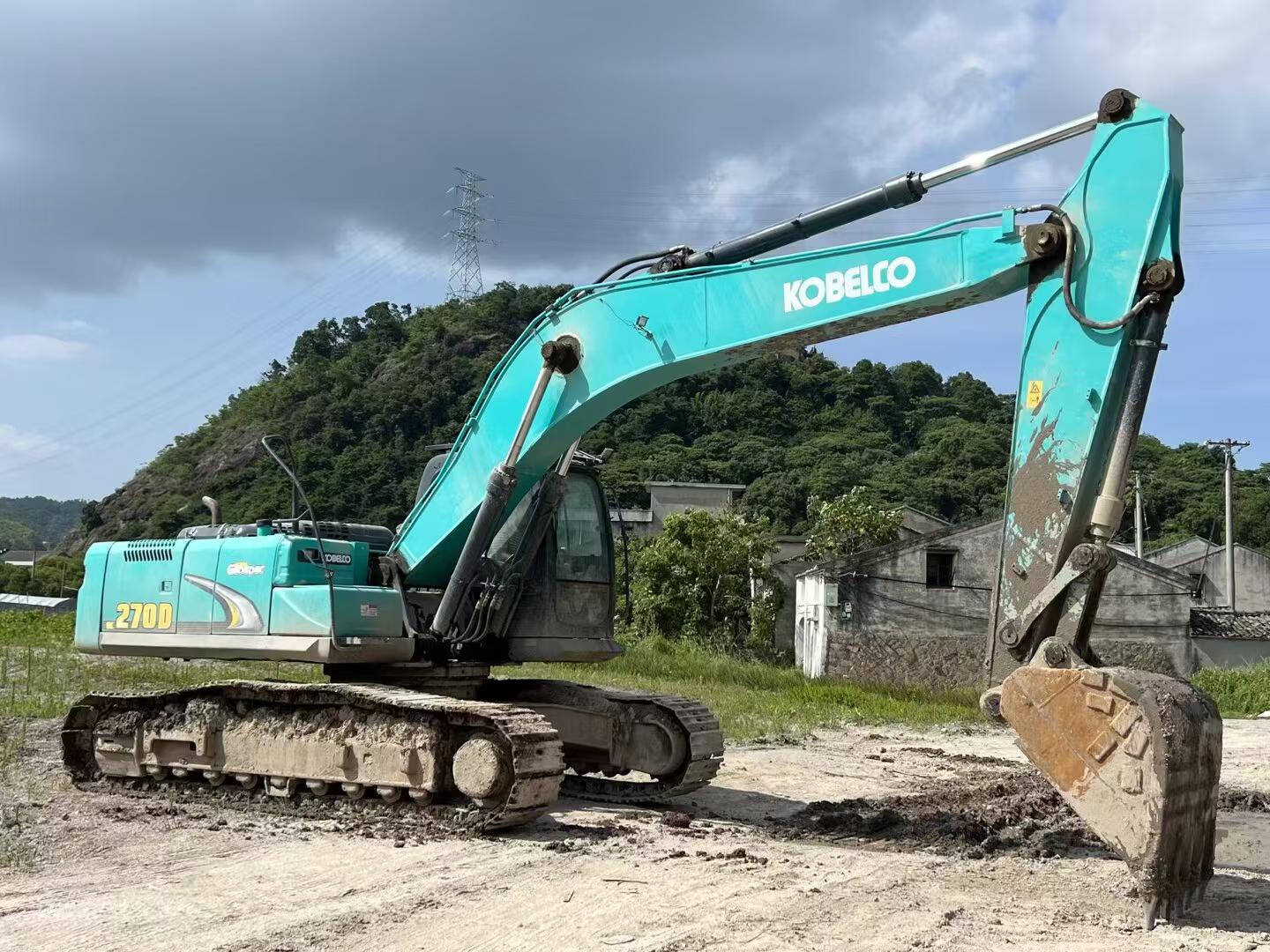

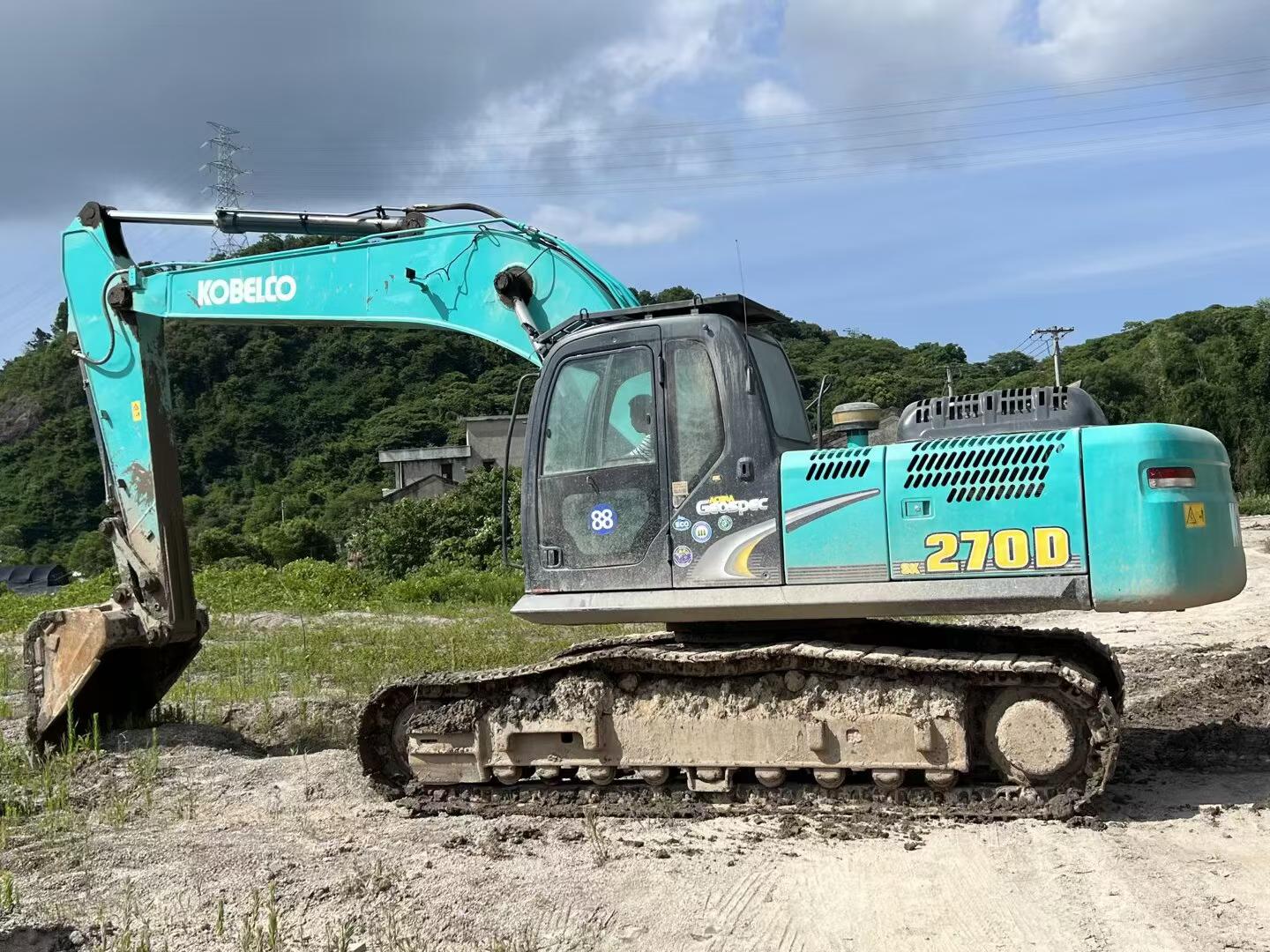

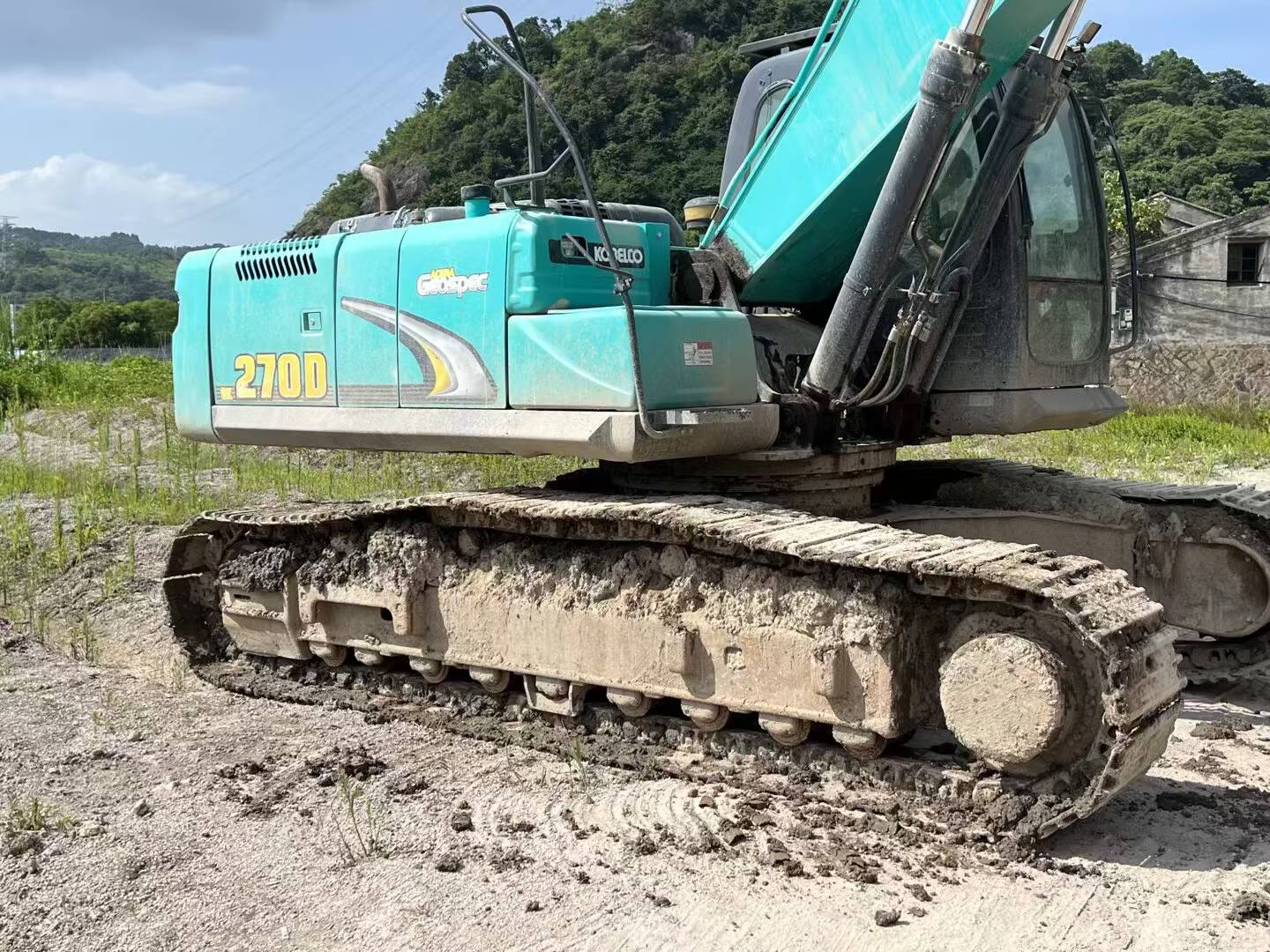

Strengthen your excavation fleet with this 2016 Kobelco SK270D, a proven 27-ton workhorse built for demanding job sites. Powered by a reliable Hino J05E engine delivering 137 kW at 2100 rpm, this machine combines robust performance with fuel-efficient operation. Its 1.3 m³ bucket capacity and 10,310 mm maximum digging radius handle medium to heavy-duty applications with confidence, while dual variable axial piston pumps ensure responsive hydraulic power when cycling between tasks.
Currently located in Wenzhou, Zhejiang, this SK270D serves as an ideal backup unit or fleet expansion asset for contractors managing multiple projects simultaneously. Key operational advantages include:
- 170 kN bucket digging force (187 kN supercharged) for challenging ground conditions
- 6,990 mm maximum digging depth with standard 2,980 mm arm configuration
- Water-cooled turbocharged engine with intercooling for sustained performance

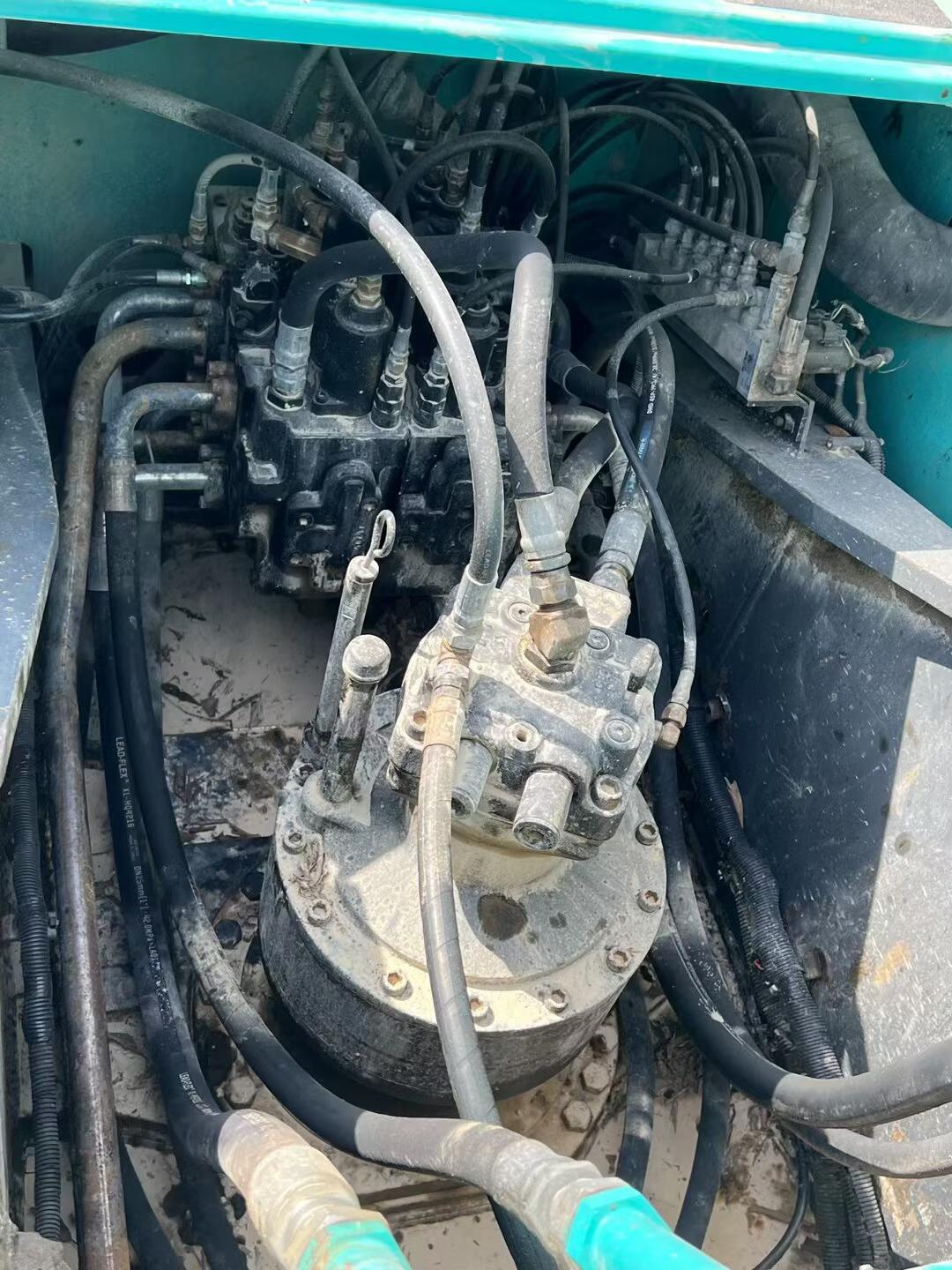

- Two-speed hydraulic travel motors providing 6.2 km/h high-speed transport
- 460-liter fuel capacity minimizing refueling downtime during extended shifts
Reduce equipment bottlenecks and maintain project momentum with this dependable mid-size excavat
| Specifications | Value |
|---|---|
| No. | 1034934 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27000 |
| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | Standard 2.98/ Short forearm 2500 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

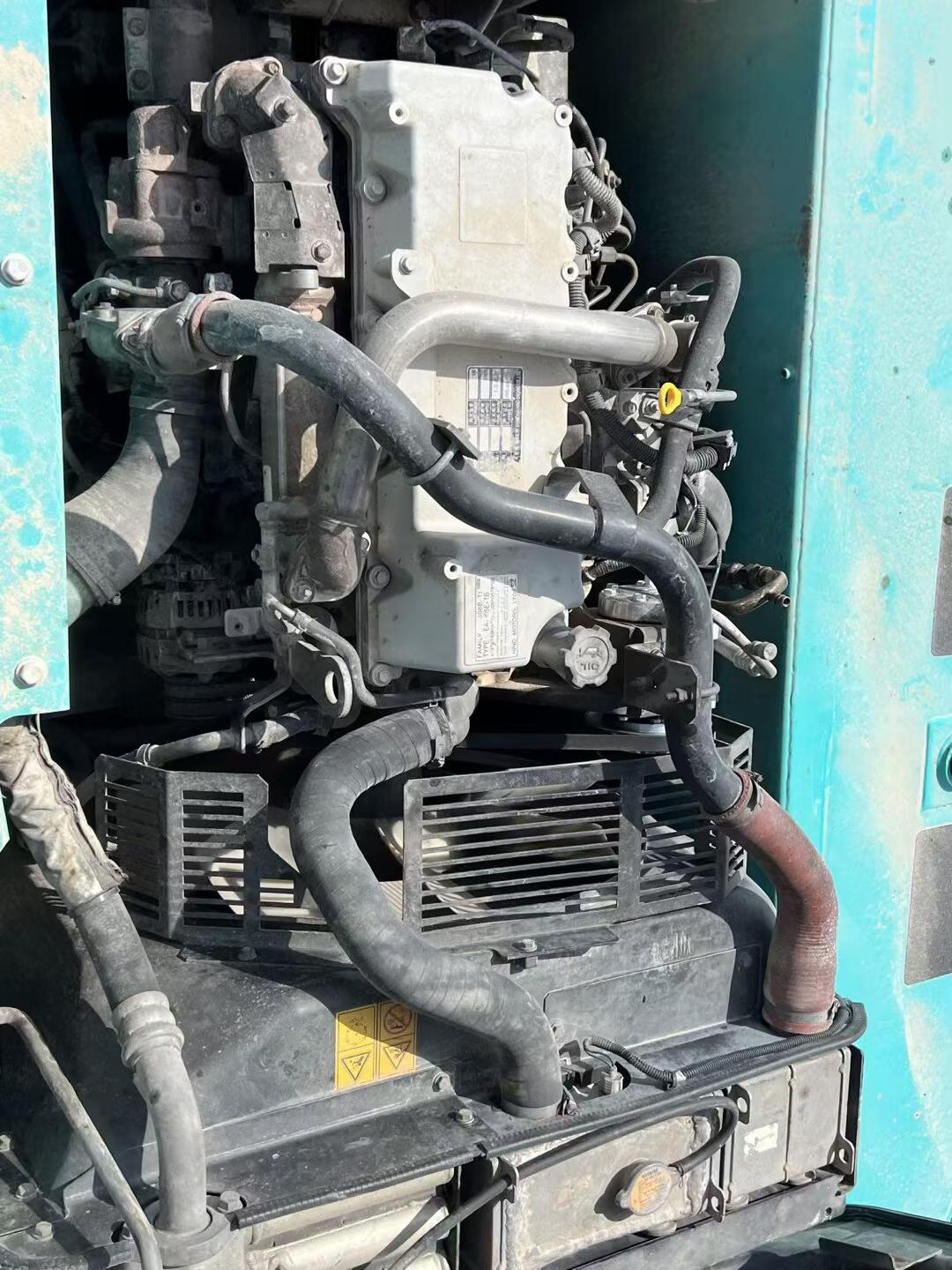

| Engine type | Hino J05E |
| Rated power (kw/rpm) | 137/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112*130 |
| Maximum torque (N.m/rpm) | 654/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Ground specific pressure (Kpa) | 54 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 170/ Supercharging 187 |
| Rod digging force (kN) | 119/ Supercharged 131 |
| Maximum tractive force (kN) | 244 |
| Travel speed (km/h) | 6.2/3.9 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*246+20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |

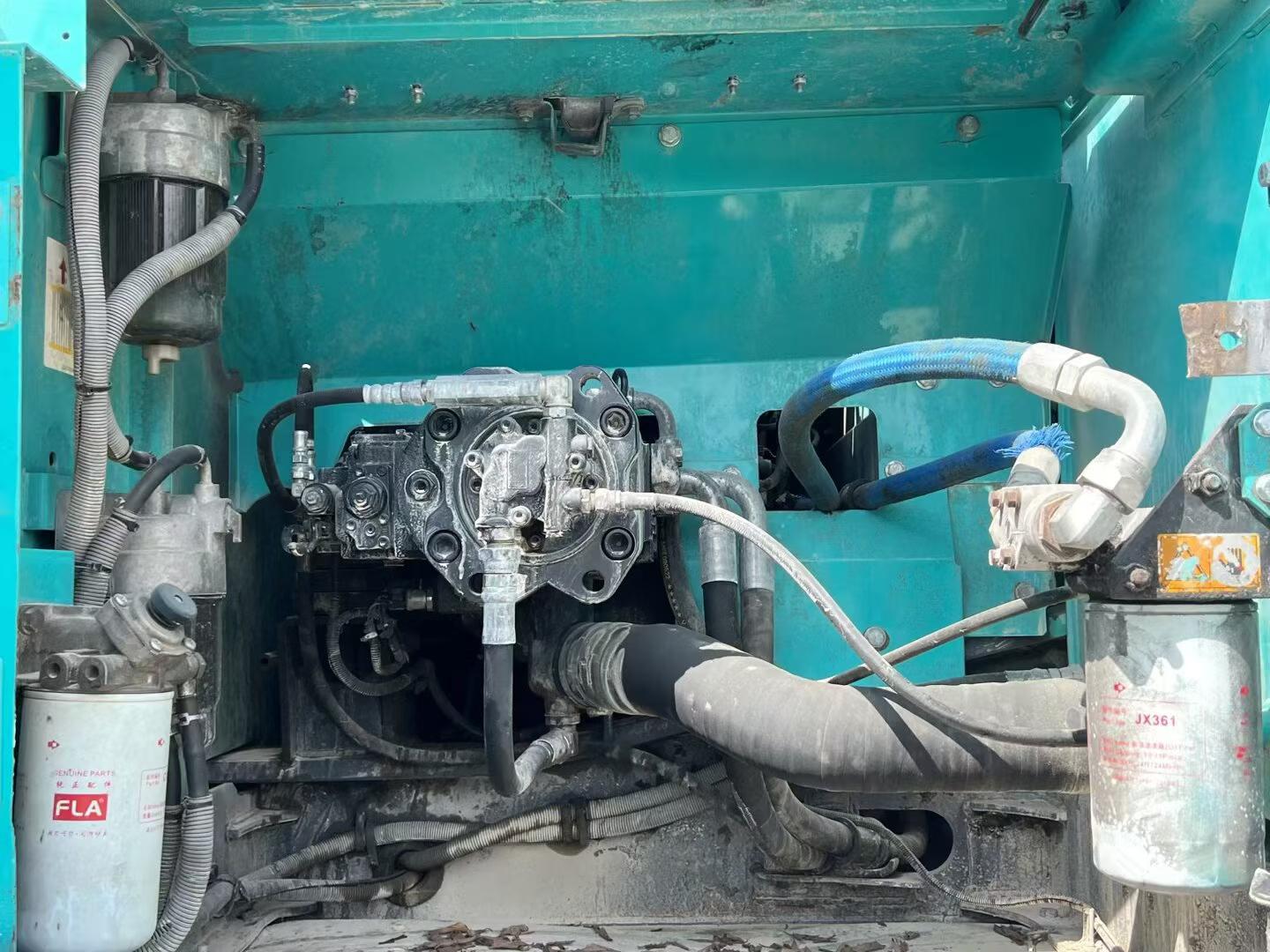

| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 10230 |
| Total transport width (mm) | 3230 |
| Total transport height (mm) | 3200 (to the top of the boom) |
| Full cab height (mm) | 3143 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3120 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4680 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3230 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 6990 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 6170 |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6800 |
