Product Description

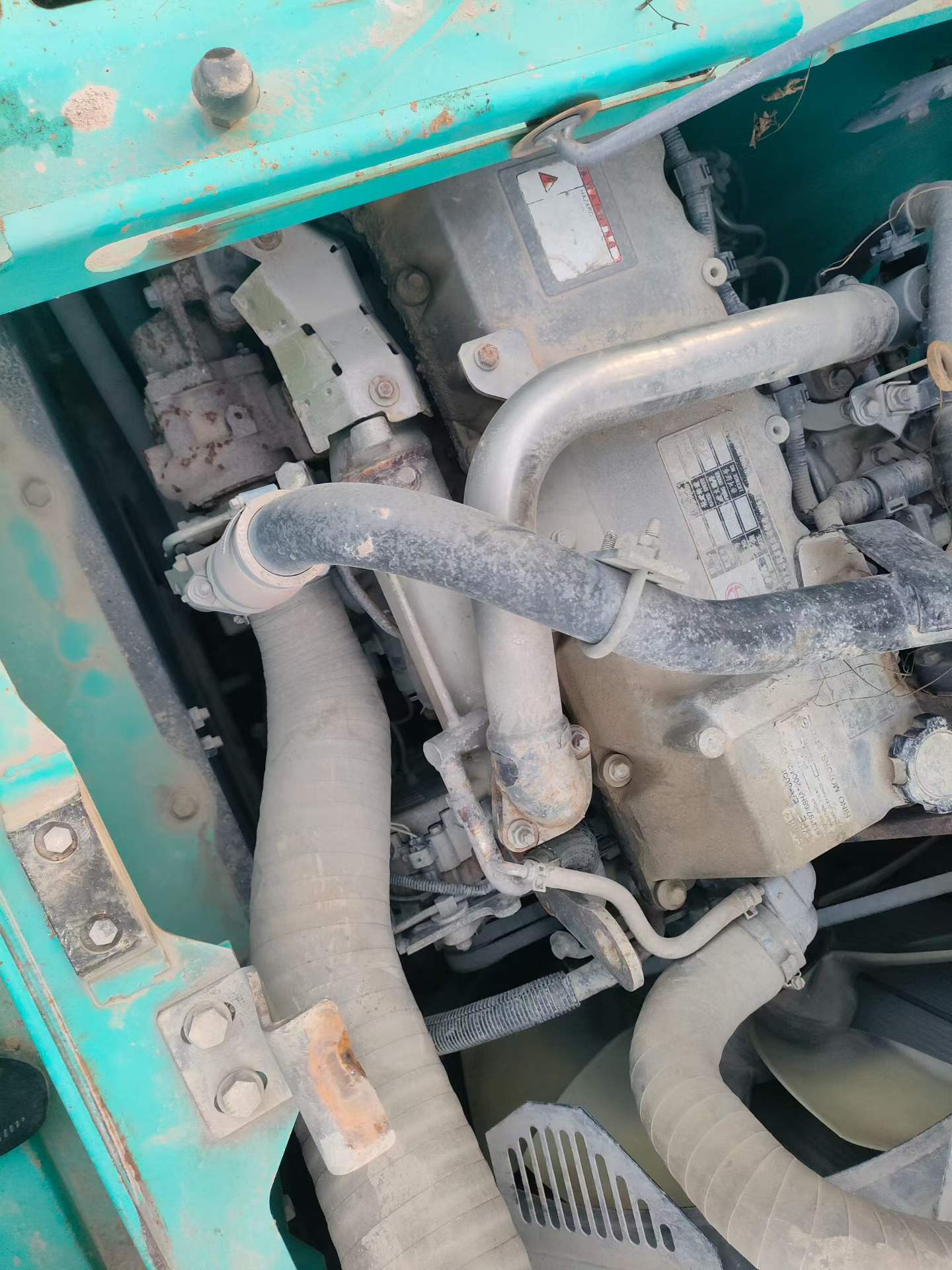

With a working weight of 27,000 kg and a bucket capacity of 1.3 m³, this 2017 Kobelco SK270D excavator is an ideal addition to any contractor's fleet. Equipped with a Hino J05E engine, it delivers a rated power of 137 kW at 2100 rpm, ensuring robust performance on the job site. The water-cooled, 4-cylinder engine features direct injection, turbocharging, and built-in intercooling, providing reliable operation even under demanding conditions.
- Maximum digging force: 170 kN (Supercharged: 187 kN)
- Travel speed: 6.2 km/h (High), 3.9 km/h (Low)
- Ground specific pressure: 54 Kpa
- Maximum tractive force: 244 kN
- Fuel tank capacity: 460 L
Located in 福建省福州市, this excavator is ready to integrate into your fleet, offering the reliability and efficiency needed for continuous operation. Its versatile capabilities make it a valuable asset for both primary and backup roles, ensuring that your projects stay on schedule and within budget.
| Specifications | Value |
|---|---|
| No. | 993009 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27000 |
| Bucket capacity (m³) | 1.3 |
| Rod length (mm) | Standard 2.98/ Short forearm 2500 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

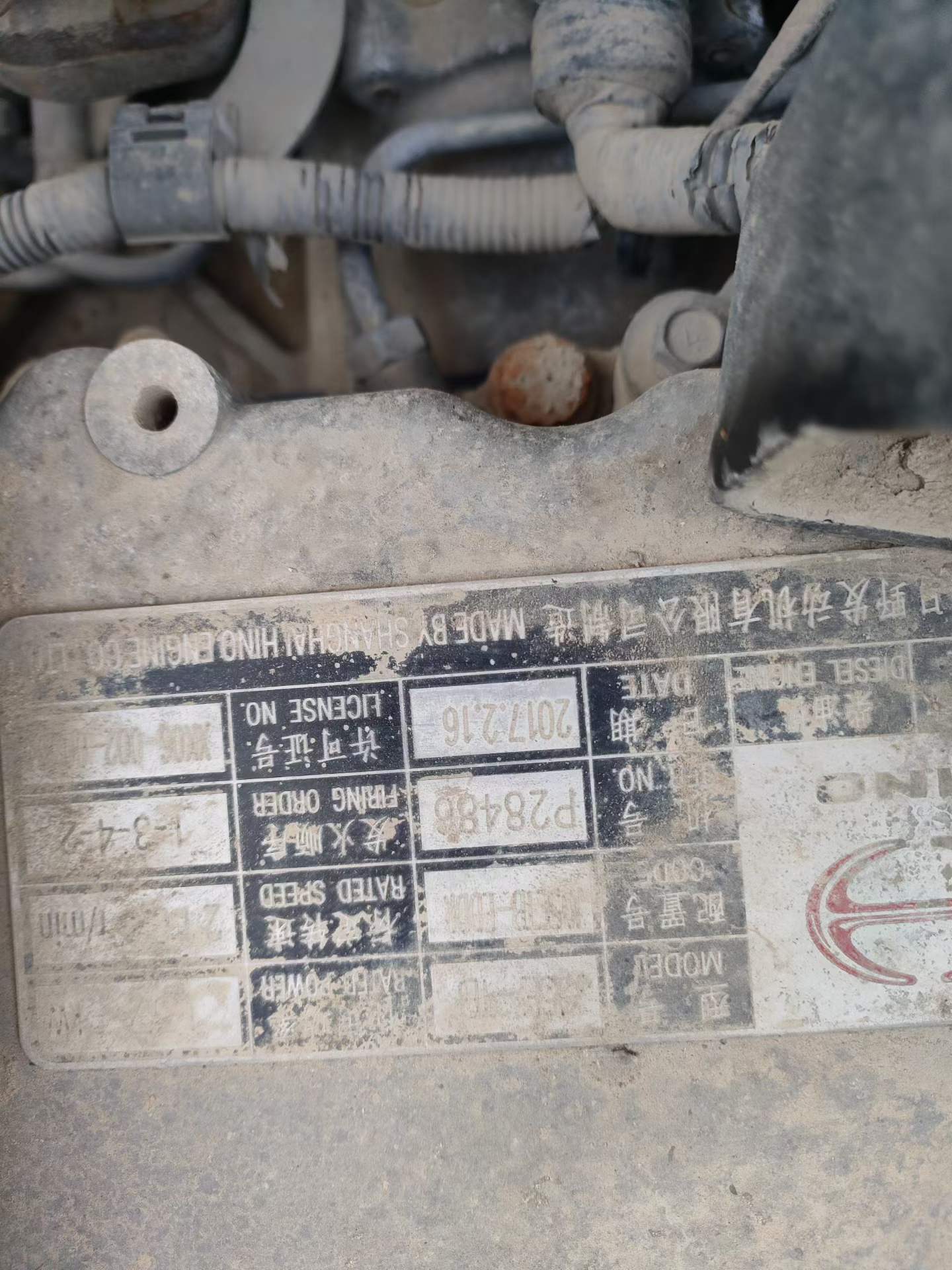

| Engine type | Hino J05E |
| Rated power (kw/rpm) | 137/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112*130 |
| Maximum torque (N.m/rpm) | 654/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.123 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Ground specific pressure (Kpa) | 54 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 170/ Supercharging 187 |
| Rod digging force (kN) | 119/ Supercharged 131 |
| Maximum tractive force (kN) | 244 |
| Travel speed (km/h) | 6.2/3.9 |

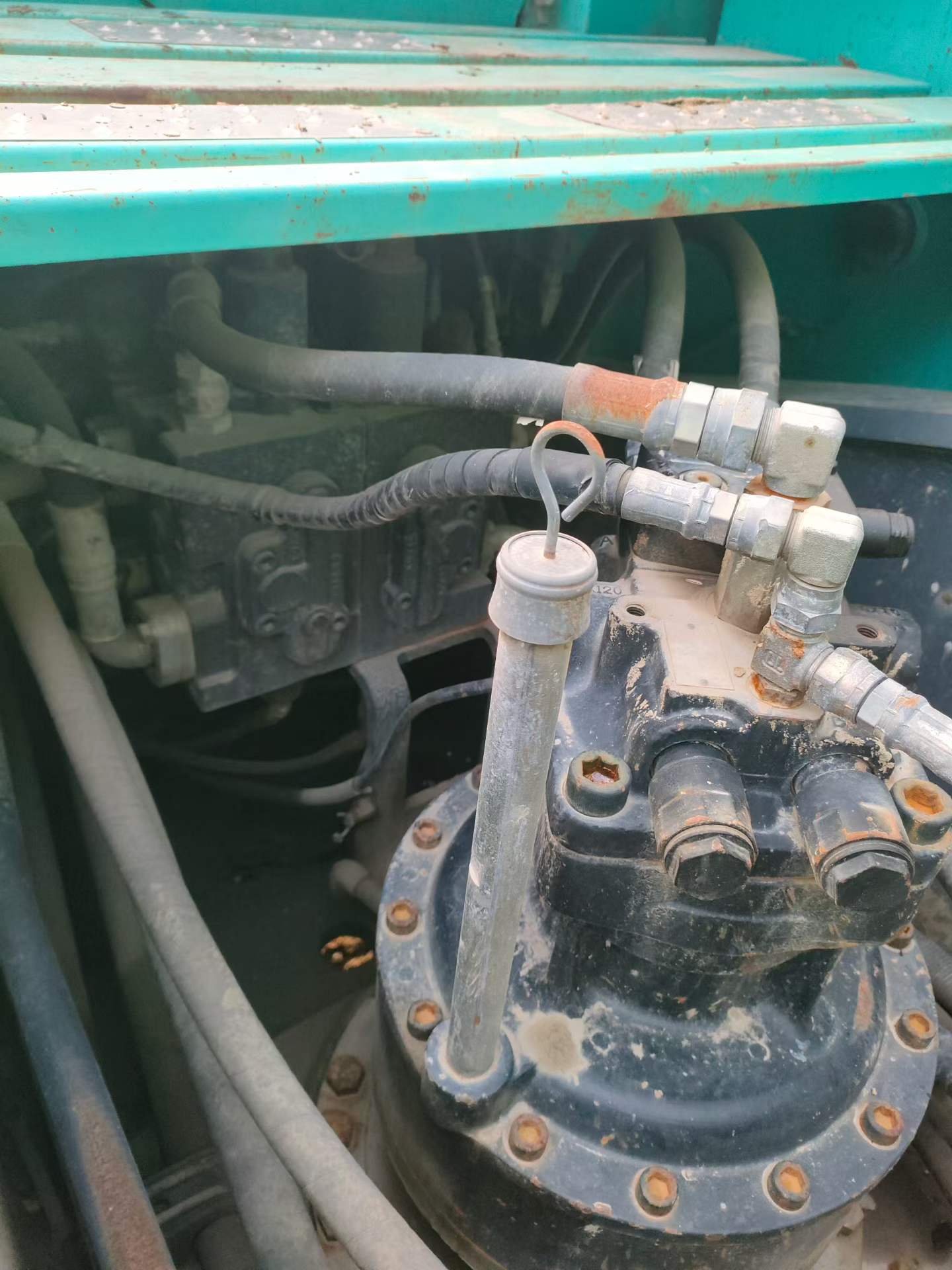

| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*246+20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |

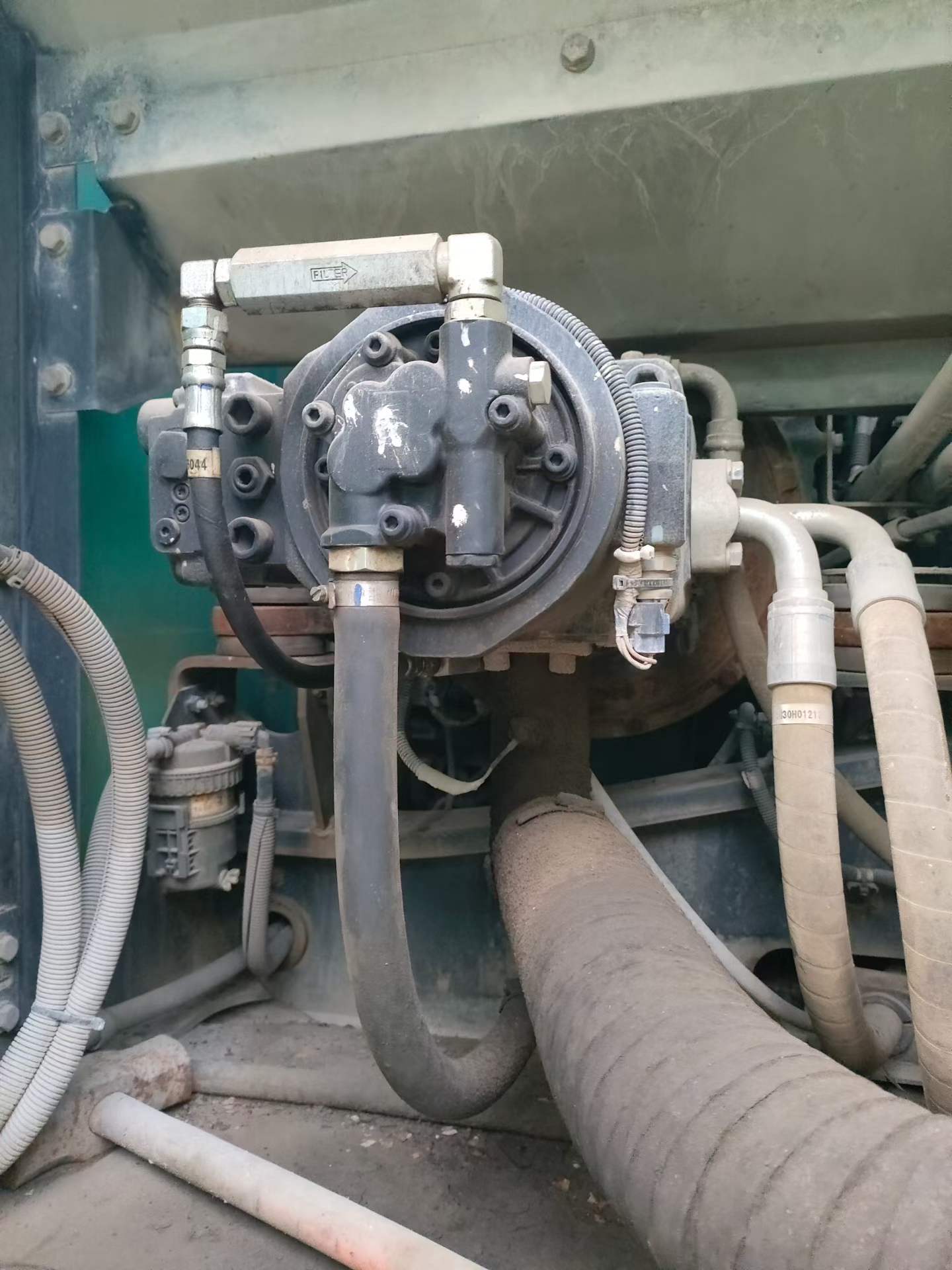

| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 460 |
| Hydraulic Tank (L) | 170 |
| Engine Oil changes (L) | 21 |
| Coolant (L) | 20 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 10230 |
| Total transport width (mm) | 3230 |
| Total transport height (mm) | 3200 (to the top of the boom) |
| Full cab height (mm) | 3143 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3910 |
| Back end turning radius (mm) | 3120 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4680 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3230 |
| Maximum digging radius (mm) | 10310 |
| Maximum digging depth (mm) | 6990 |
| Maximum excavation height (mm) | 9760 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 6170 |
| Maximum excavation radius of stop surface (mm) | 10140 |
| Maximum effective digging depth (mm) | 6800 |
