Product Description

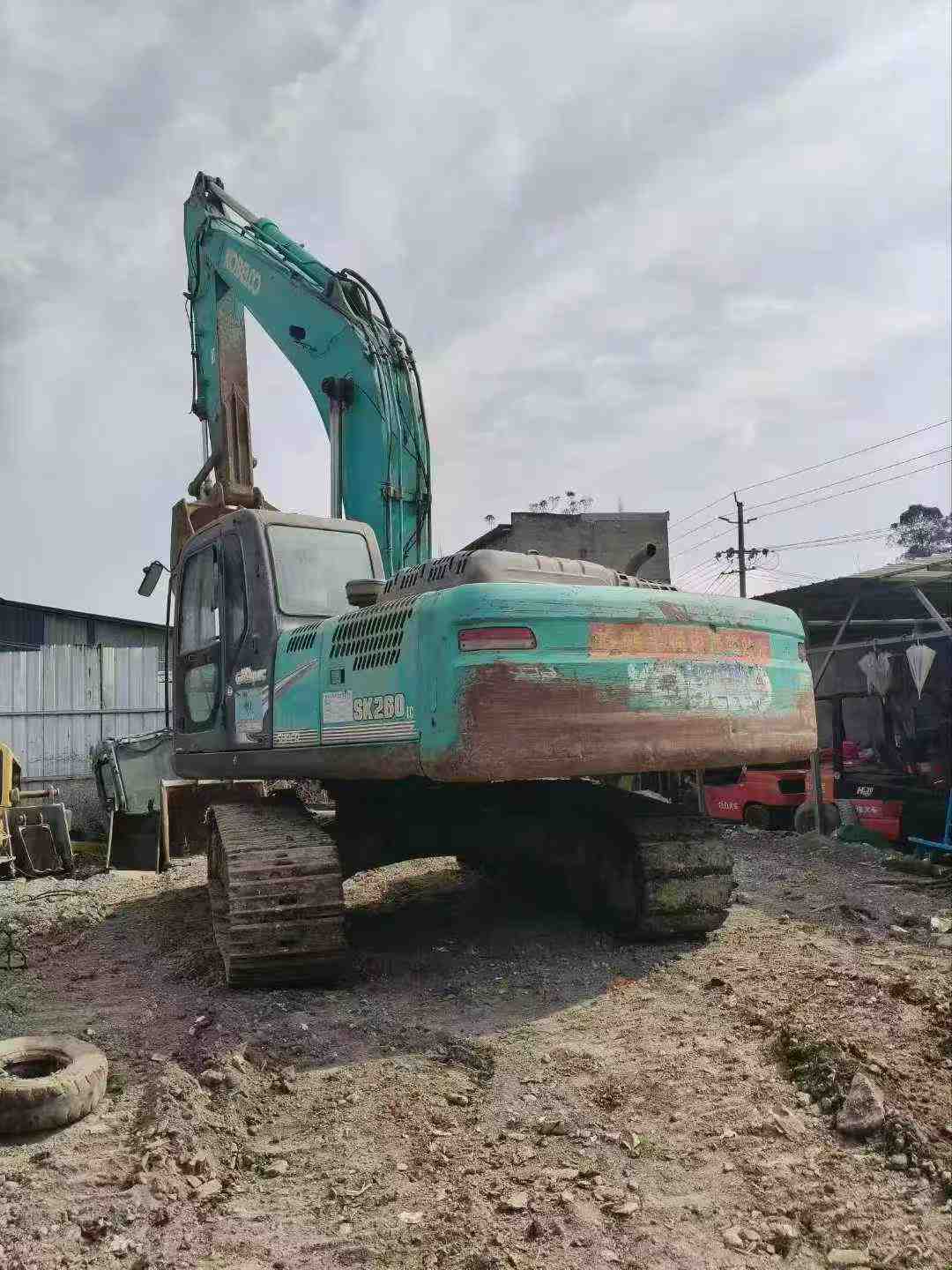

Built for durability and backed by Kobelco's proven engineering, this 2014 SK280LC-12 excavator delivers reliable performance in the 28-ton class. Powered by a robust Cummins B7 engine producing 180kW at 2000rpm, this machine combines fuel efficiency with the muscle needed for demanding excavation work. Currently located in Luzhou, Sichuan, it represents a smart investment for contractors seeking proven technology without the premium of new equipment.
Kobelco's reputation in the used market stems from exceptional parts availability and strong resale value—critical factors when acquiring pre-owned machinery. The SK280LC-12 features a 1.4m³ backhoe bucket with impressive digging force (171kN bucket, 122kN arm) and a maximum reach of 10,460mm. Water-cooled operation, dual variable displacement hydraulic pumps, and a spacious 640L fuel tank ensure extended productivity on site.
- Working weight: 29,200kg with low ground pressure (58kPa)
- Maximum digging depth: 6,740mm
- Travel speed: 4.0/6.3 km/h for efficient repositioning
- Tier IV emission compliance with 85L urea tank
- Compact transport dimensions: 10,560mm × 3,190mm × 3,210mm
| Specifications | Value |
|---|---|
| No. | 1012769 |
| Tonnage (tons) | 28 |
| Working weight (kg) | 29200 |
| Bucket capacity (m³) | 1.4 |
| Bucket width (mm) | 1500 |
| power | Fuel oil |
| manufacturer | Made in China |
| bucket | backhoe |

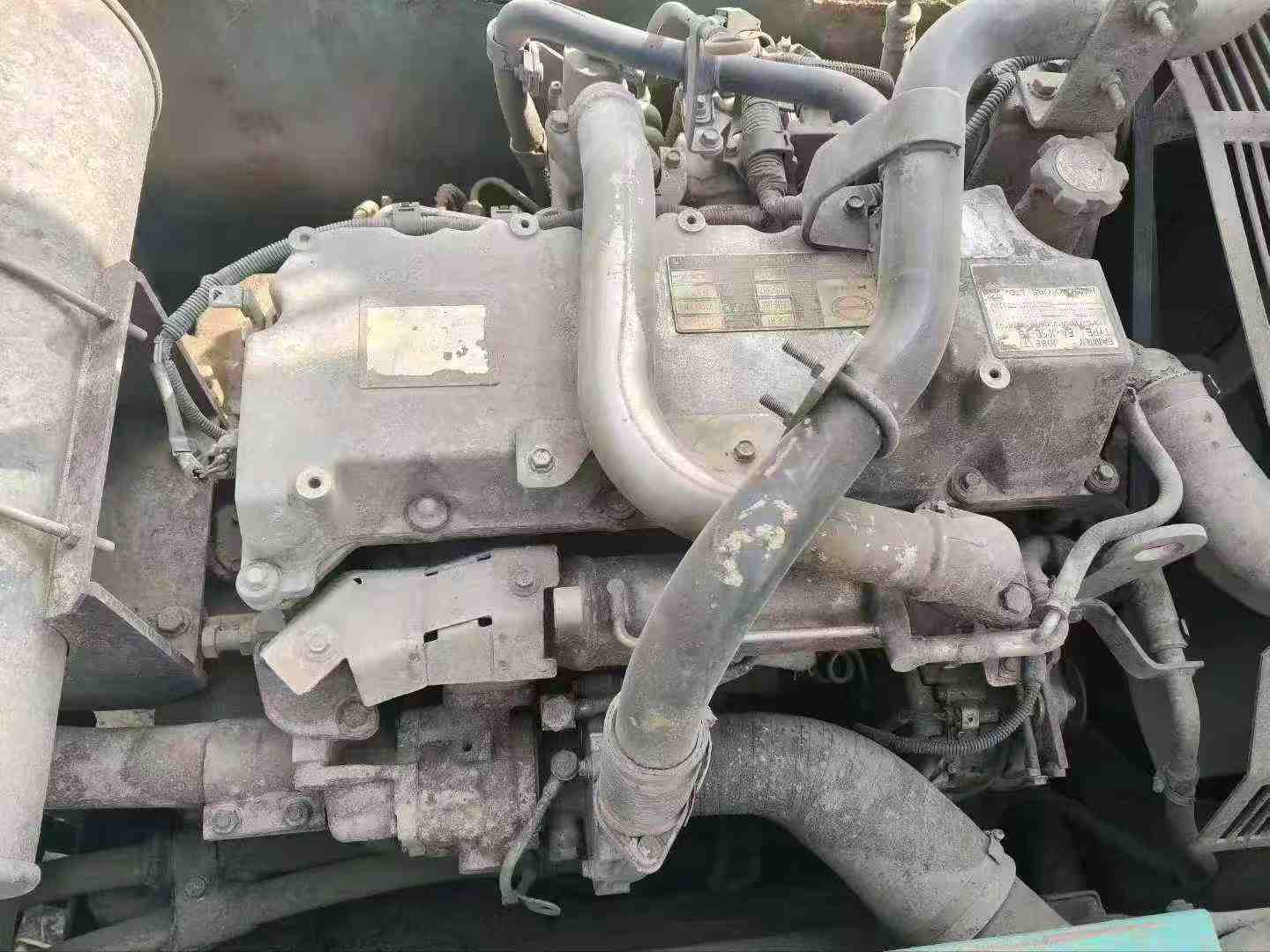

| Engine type | Cummins B7 |
| Rated power (kw/rpm) | 180/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Maximum torque (N.m) | 949/1200~1800 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.7 |
| Working form | Four-stroke, water-cooled, overhead camshaft, direct injection, built-in intercooled, turbocharged |
| Emission standard | Kokuni IV |
| Ground specific pressure (Kpa) | 58 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 171 |
| Rod digging force (kN) | 122 |
| Travel speed (km/h) | 4.0/6.3 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29.0 |
| Control Hydraulic Circuit (Mpa) | 5.0 |

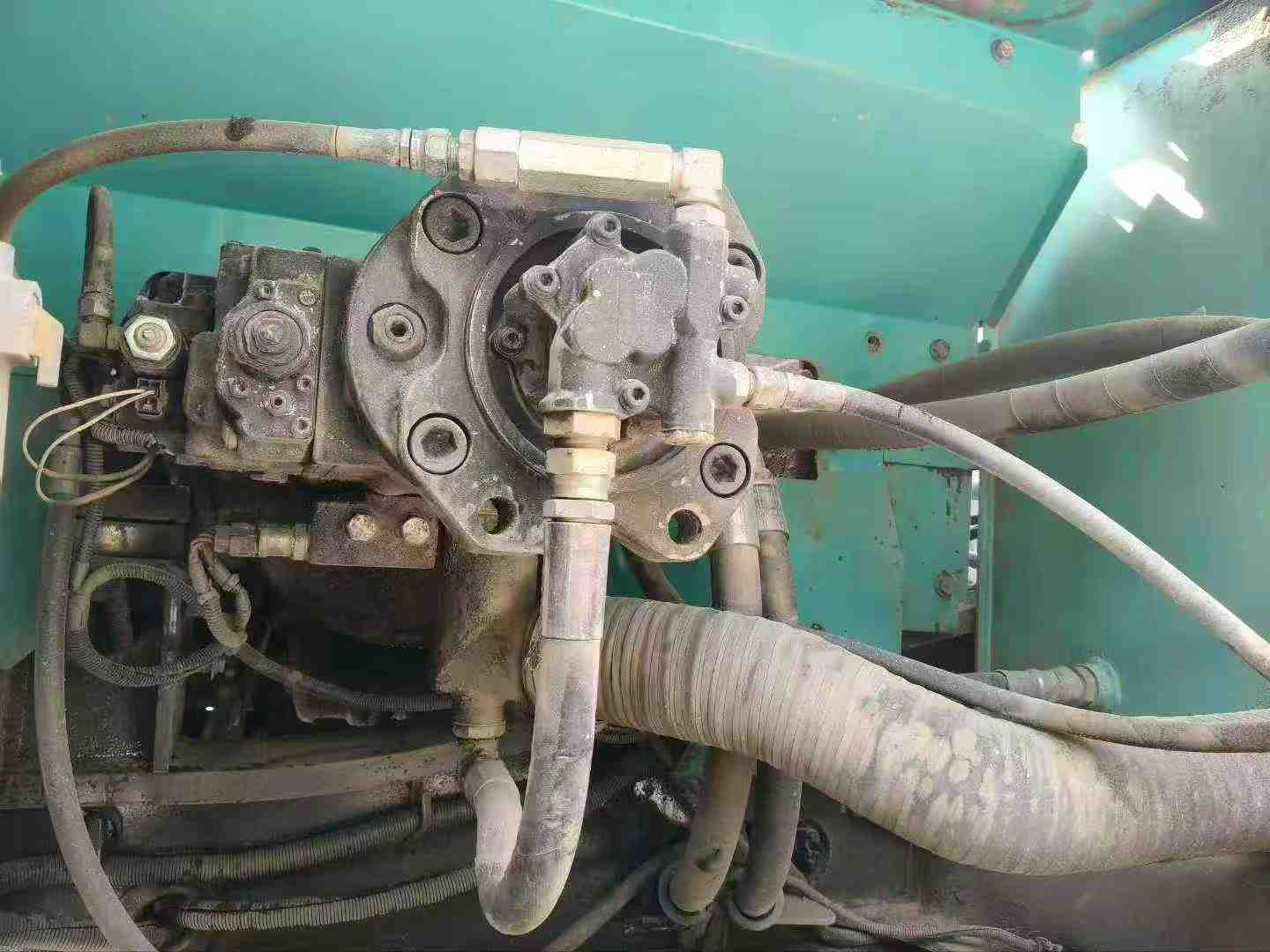

| Main pump type | Dual variable displacement axial piston pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 640 |
| Hydraulic Tank (L) | 250.6 |
| Engine Oil changes (L) | 27 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 400 |
| Urea Tank (L) | 85 |
| Total transport length (mm) | 10560 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3210 |
| Full cab height (mm) | 3120 |
| Minimum ground clearance (mm) | 445 |
| Back end turning radius (mm) | 3300 |
| Total track length (mm) | 4650 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Center distance of support wheel (mm) | 3800 |
| Maximum digging radius (mm) | 10460 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9550 |
| Maximum unloading height (mm) | 6720 |
| Maximum vertical digging depth (mm) | 5460 |
| Maximum excavation radius of stop surface (mm) | 10270 |
Overview
No.1012769
Brand Name：
KobelcoModel Number：
SK280LC-12Year：
2014
Location：
Sichuan China
Pub Date：
