2020 Kobelco SK330-10

1/9

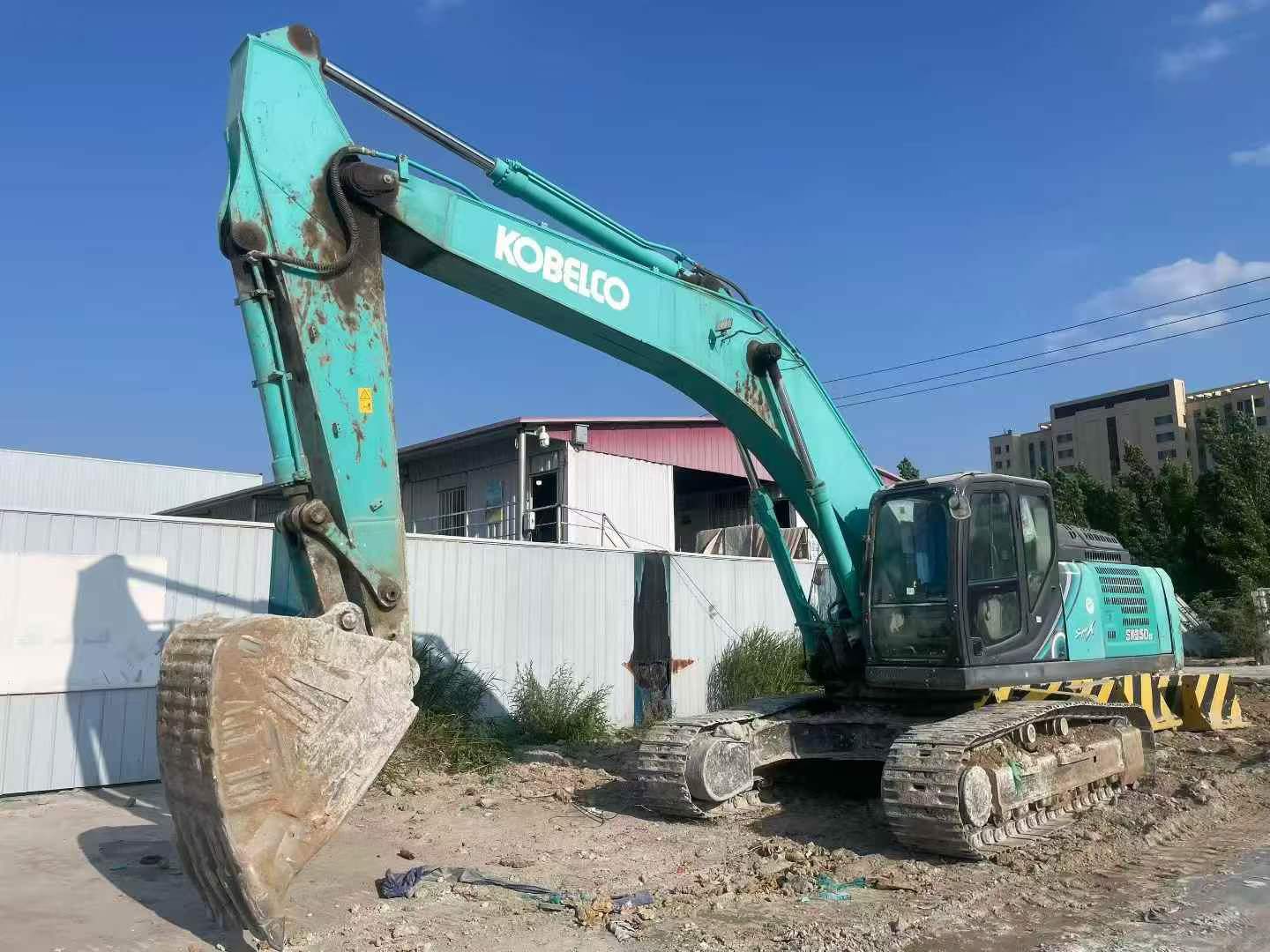

Buy Kobelco SK330-10 Used Excavator / 1

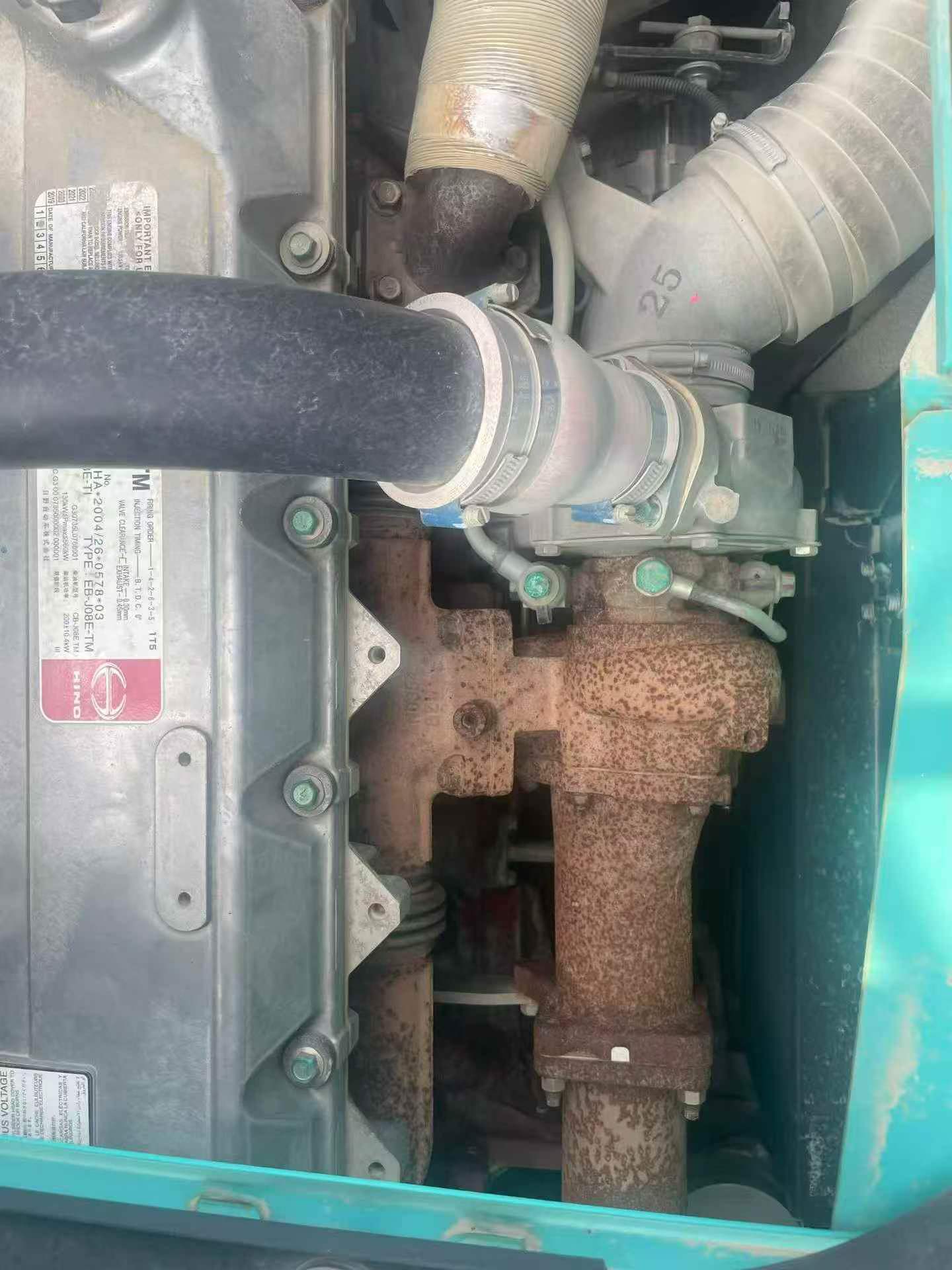

Buy Kobelco SK330-10 Used Excavator / 2

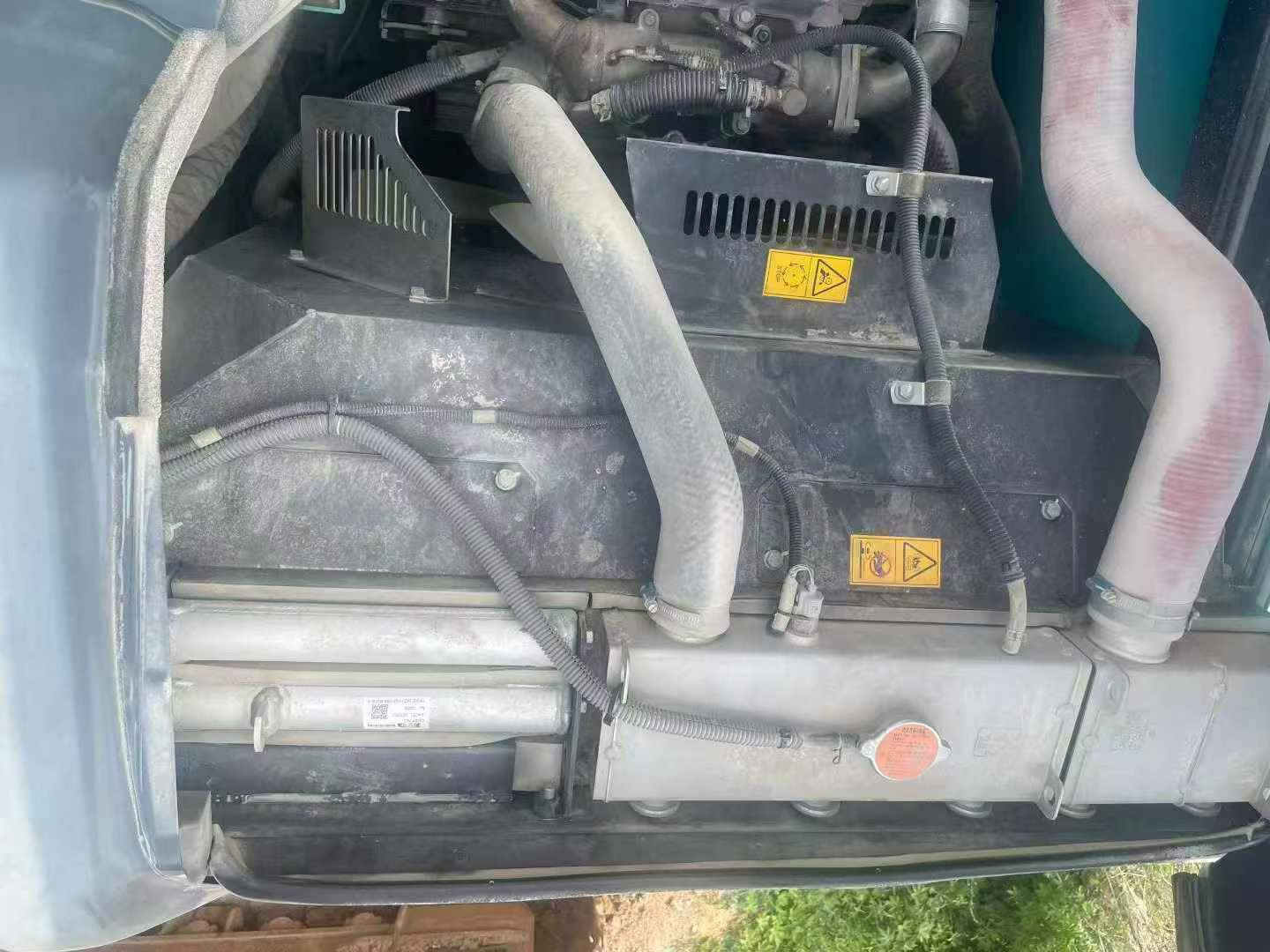

Buy Kobelco SK330-10 Used Excavator / 3

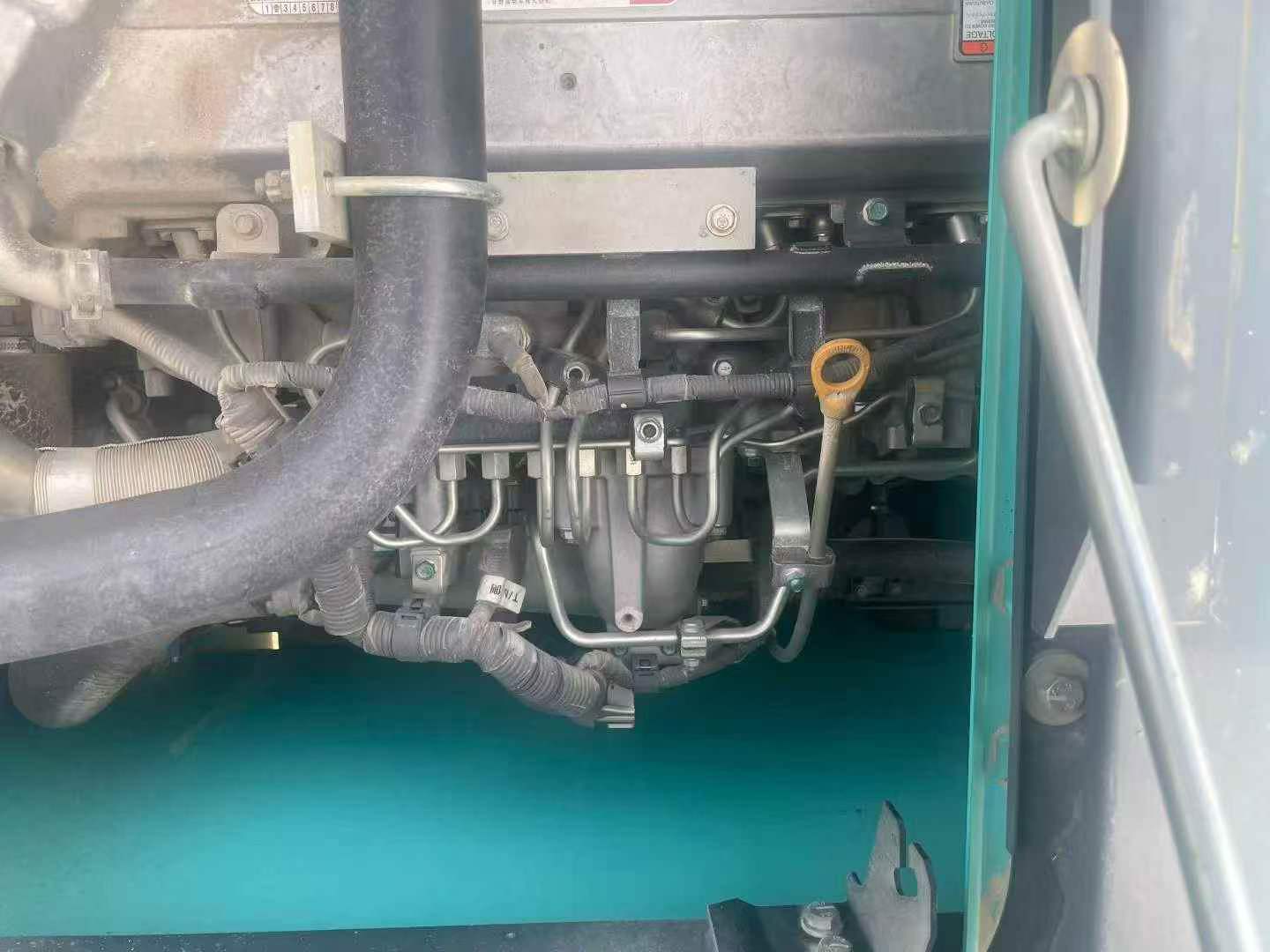

Buy Kobelco SK330-10 Used Excavator / 4

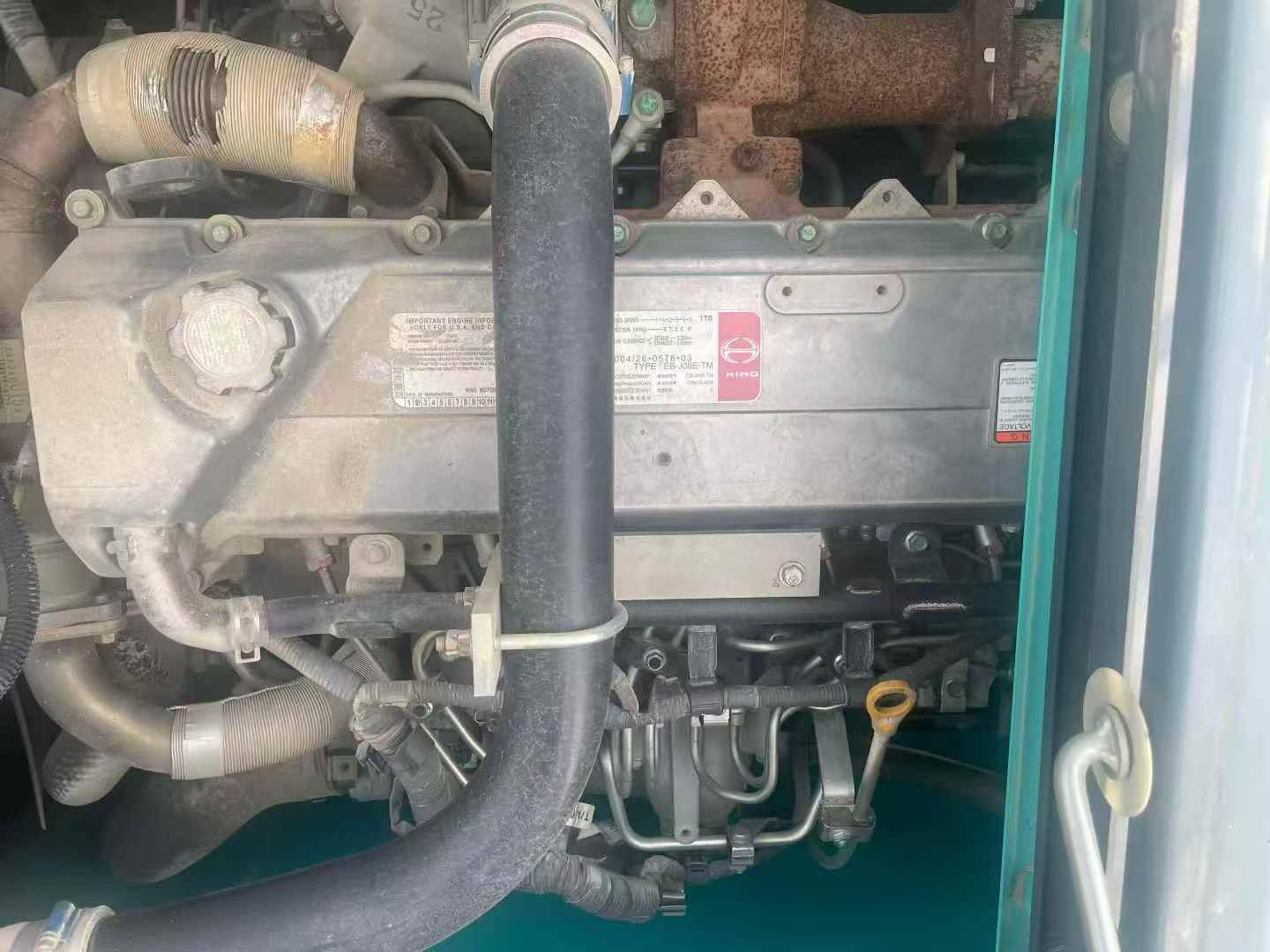

Buy Kobelco SK330-10 Used Excavator / 5

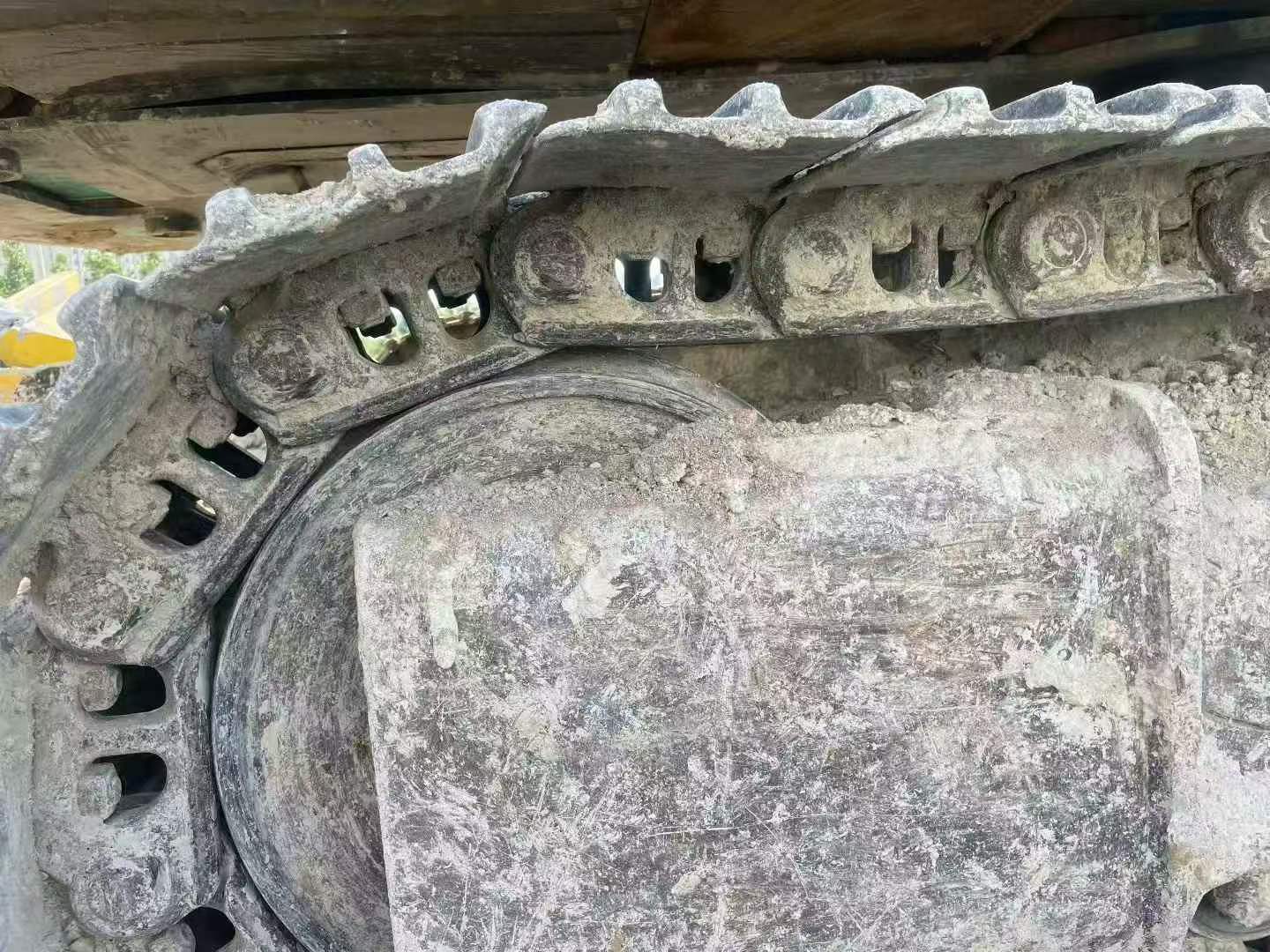

Buy Kobelco SK330-10 Used Excavator / 6

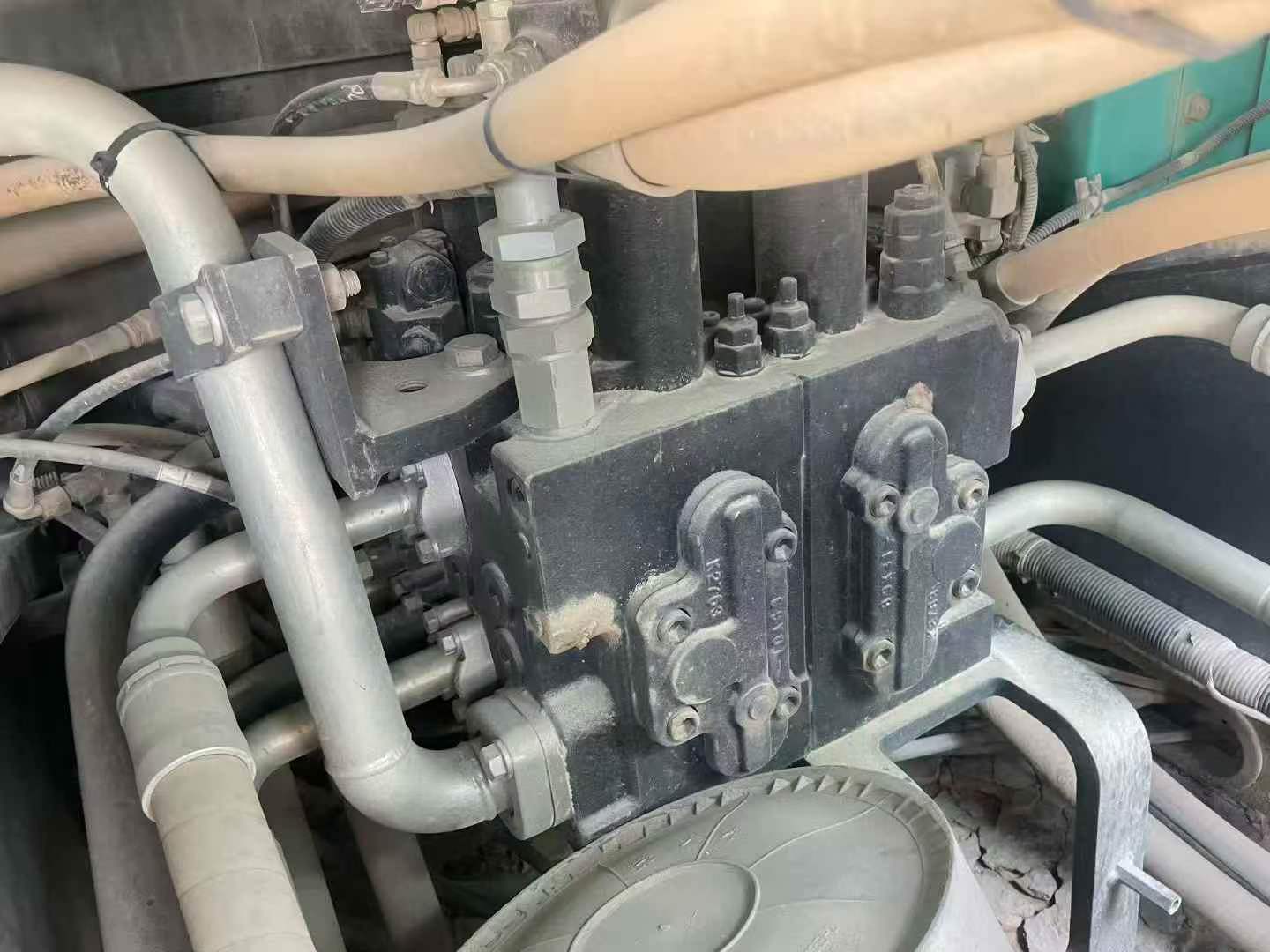

Buy Kobelco SK330-10 Used Excavator / 7

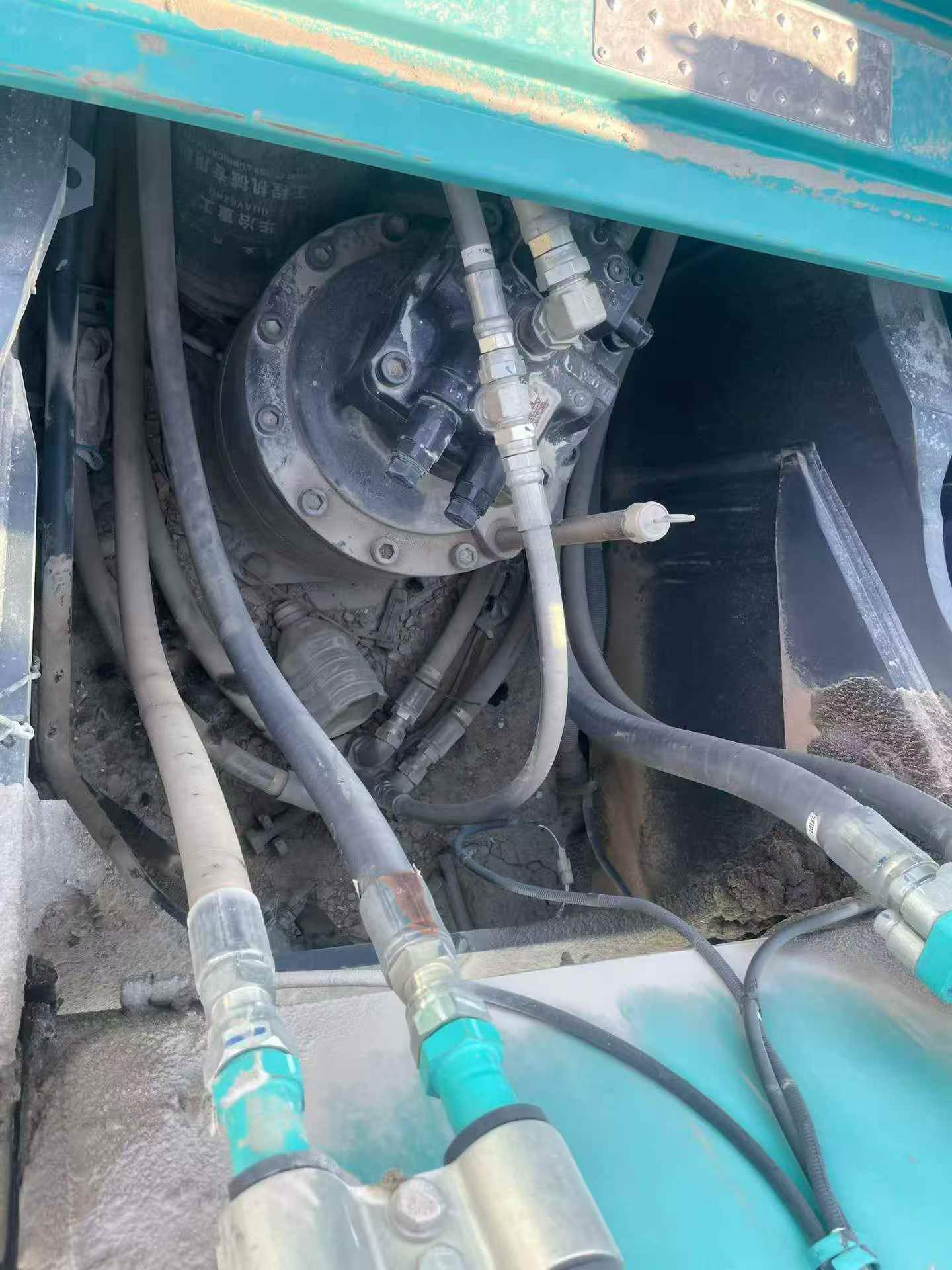

Buy Kobelco SK330-10 Used Excavator / 8

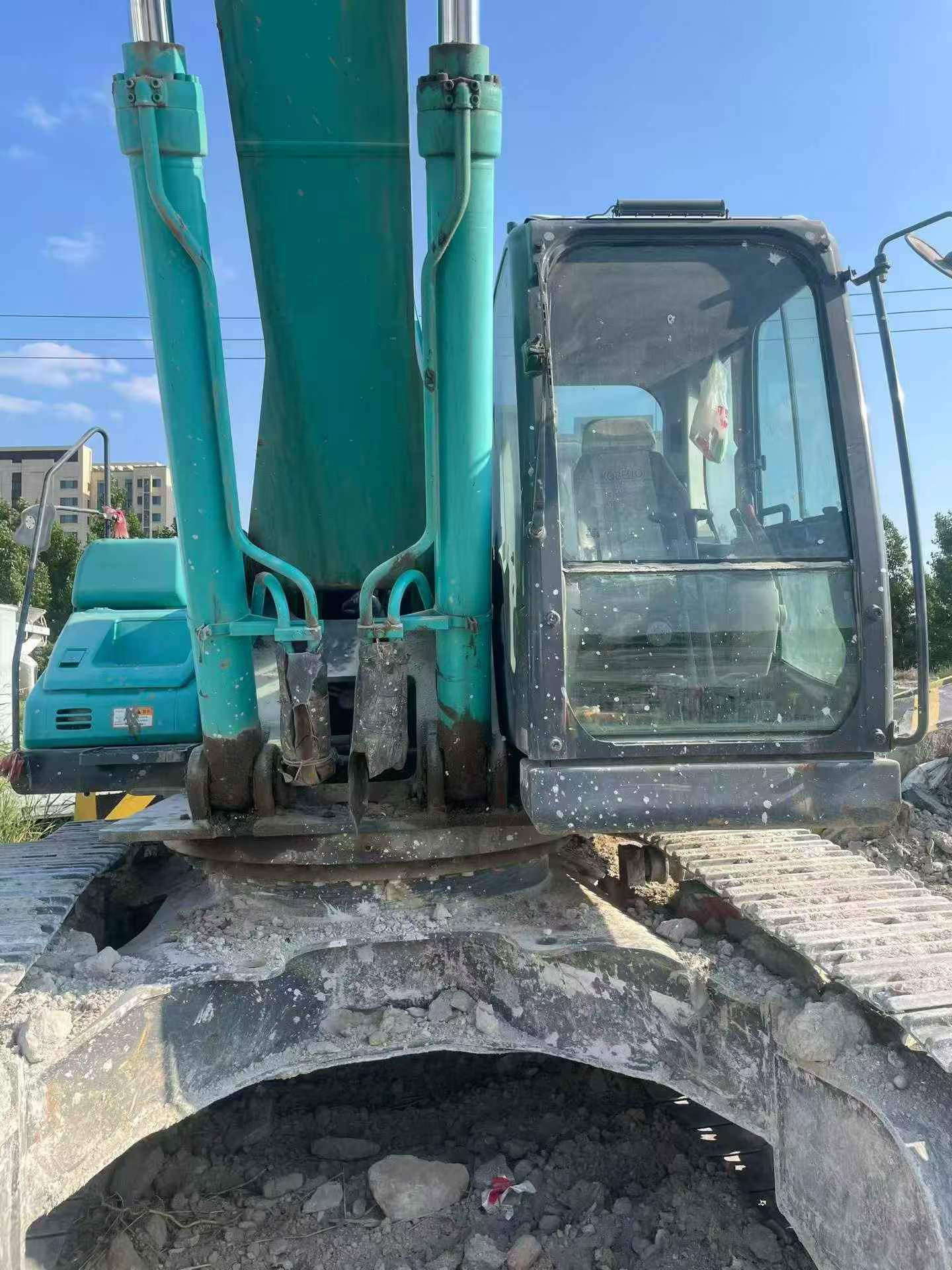

Buy Kobelco SK330-10 Used Excavator / 9

Product Description

This 2020 Kobelco SK330-10 hydraulic excavator offers reliable performance for demanding earthmoving applications. With approximately 6,000 operating hours, this machine represents a well-maintained mid-life unit suitable for construction, mining, and infrastructure projects.

The SK330-10 features Kobelco's proven hydraulic system and fuel-efficient engine design, delivering consistent productivity in a 33-ton class platform. Currently located in Shandong, China, this excavator is available for inspection and can be arranged for international shipping.

  • Year of Manufacture: 2020
  • Operating Hours: Approximately 6,000
  • Machine Class: 33-ton hydraulic excavator
  • Current Location: Shandong Province, China
  • Condition: Used, operational

Ideal for buyers seeking a late-model Kobelco excavator with moderate hours. Contact us for detailed specifications, additional photographs, and export documentation assistance.

SpecificationsValue
No.1075759
Tonnage (tons)33
Working weight (kg)34500
Bucket capacity (m³)1.5
Rod length (mm)3300
Bucket width (mm)1390
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino J08ETM-KSDL
Rated power (kw/rpm)209/2100
Cooling modewater-cooling
Maximum torque (N.m)998/1600
Working formDirect injection, water-cooled, four-stroke, turbocharged, built-in intercooling
Ground specific pressure (Kpa)70
Rotation speed (rpm)10.0
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)165
Maximum tractive force (kN)333
Travel speed (km/h)5.6/3.3
Main overflow set pressure (Mpa)34.3
Rotary hydraulic motor typeAxial piston pump motor ×1
Type of walking hydraulic motorVariable capacity axial piston motor x 2
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Fuel Tank (L)503
Hydraulic Tank (L)245
Hydraulic System (L)410
Total transport length (mm)11300
Total transport width (mm)3190
Total transport height (mm)3430
Full cab height (mm)3150
Counterweight ground clearance (mm)1190
Minimum ground clearance (mm)500
Onboard width (mm)2980
Total track length (mm)4630
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)3720
Maximum digging radius (mm)11260
Maximum digging depth (mm)7560
Maximum excavation height (mm)10540
Maximum unloading height (mm)7370
Maximum vertical digging depth (mm)6480
Maximum excavation radius of stop surface (mm)11060
see more

Overview

No.1075759

Brand Name:

Kobelco

Model Number:

SK330-10

Year:

2020

Location:

Shandong China

Pub Date
