Product Description

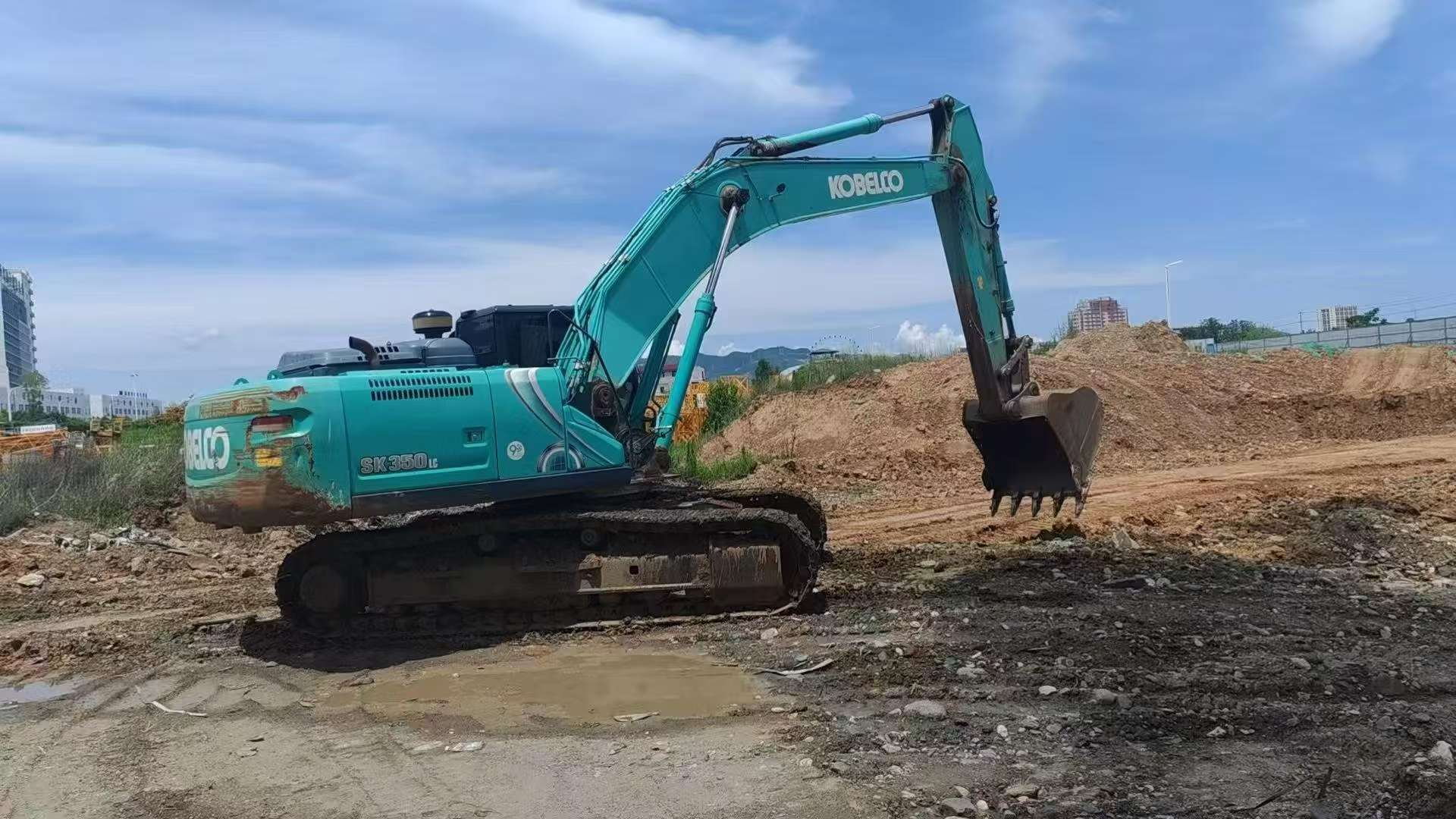

Engineered for demanding excavation work, this 2020 Kobelco SK350LC SuperX delivers exceptional operator-focused performance in a 35-ton platform. Powered by a Hino J08ETM-KSDL engine producing 209 kW at 2100 rpm, this machine combines robust digging force with refined control systems. Located in Shandong, this joint venture-manufactured excavator features a 6500mm boom and 3300mm arm configuration, providing an impressive 11260mm maximum digging radius and 7560mm maximum digging depth.
- Spacious cabin design with enhanced visibility for precise operation
- Superior stability with 66 kPa ground pressure distribution
- Responsive hydraulic system (410L capacity) ensures smooth, controlled movements
- Bucket digging force of 229 kN tackles challenging materials efficiently
- 10.0 rpm rotation speed enables quick positioning and cycle times
- 503L fuel tank supports extended operation periods
- 70% climbing ability handles steep gradients with confidence
Operators benefit from Kobelco's proven SuperX technology, which prioritizes handling precision and reduced fatigue during long shifts. The machine's balanced weight distribution and intuitive controls make it ideal
| Specifications | Value |
|---|---|
| No. | 1006254 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 35300 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3300 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Hino J08ETM-KSDL |
| Rated power (kw/rpm) | 209/2100 |
| Maximum torque (N.m) | 998/1600 |
| Ground specific pressure (Kpa) | 66 |
| Rotation speed (rpm) | 10.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 165 |
| Maximum tractive force (kN) | 333 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 503 |
| Hydraulic Tank (L) | 245 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11300 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3430 |
| Minimum turning radius of front working device (mm) | 4310 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11260 |
| Maximum digging depth (mm) | 7560 |
| Maximum excavation height (mm) | 10540 |
| Maximum unloading height (mm) | 7370 |
| Maximum vertical digging depth (mm) | 6480 |
| Maximum excavation radius of stop surface (mm) | 11060 |
Overview
No.1006254
Brand Name：
KobelcoModel Number：
SK350LC SuperXYear：
2020
Location：
Shandong China
Pub Date：
