Product Description

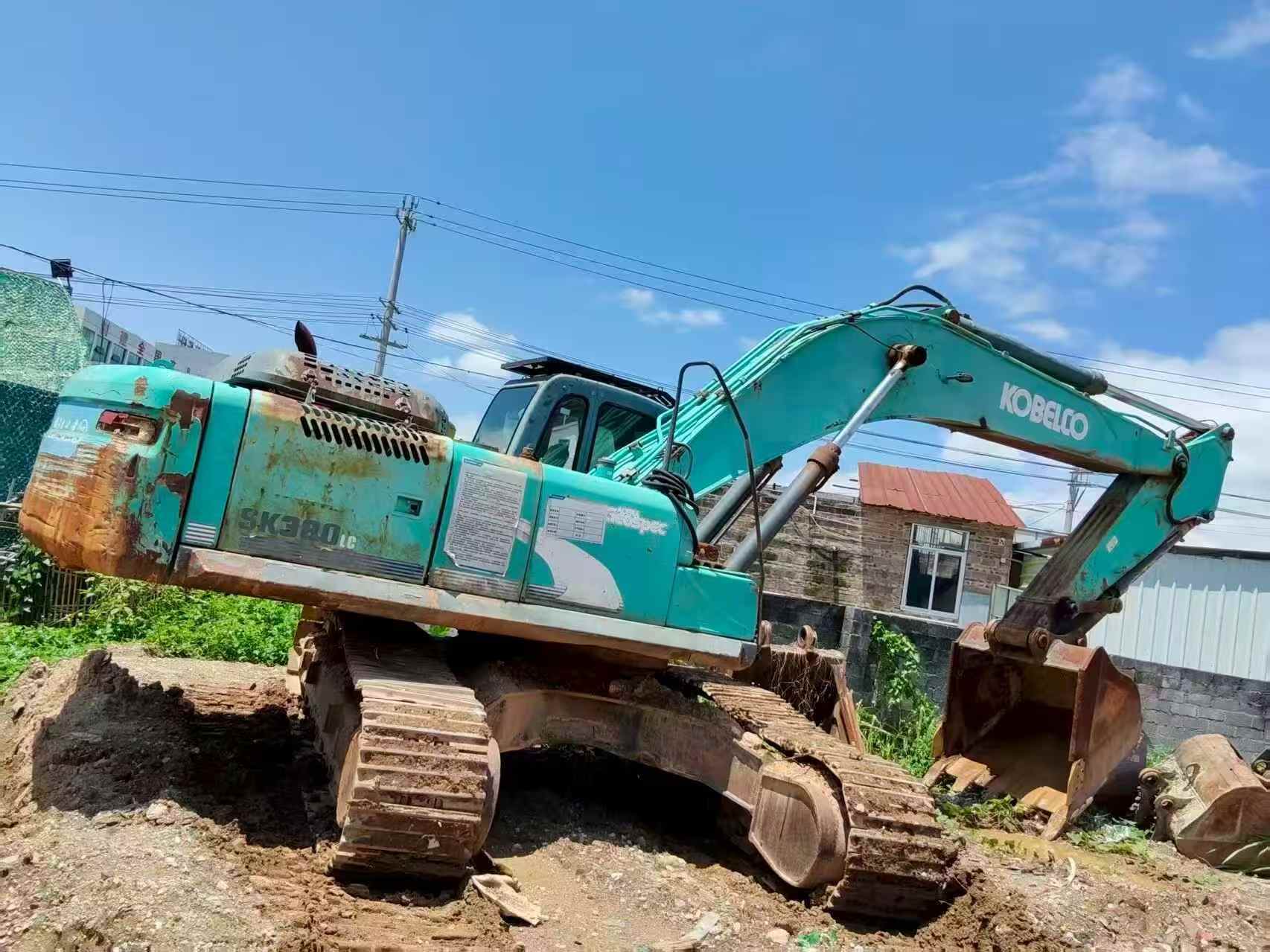

With a robust 38-ton working weight and a powerful Hino J08E engine, this 2012 Kobelco SK380D excavator is designed for immediate deployment in demanding construction environments. Capable of delivering 209 kW at 2100 rpm, it ensures efficient performance in digging, grading, and demolition tasks. Equipped with a 1.9 m³ bucket and a maximum digging force of 221 kN, or 244 kN when supercharged, this machine handles tough materials with ease. Its maximum tractive force of 322 kN and travel speed of up to 5.6 km/h make it highly maneuverable on various terrains. The SK380D features a direct injection, turbocharged, and intercooled engine, providing reliable power and efficiency. Ready to work, this excavator offers a maximum digging depth of 6860 mm and an unloading height of 7005 mm, making it a versatile tool for any job site.
| Specifications | Value |
|---|---|
| No. | 1057662 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.9 |
| Rod length (mm) | Short forearm 2600/ Ultra short 2250 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

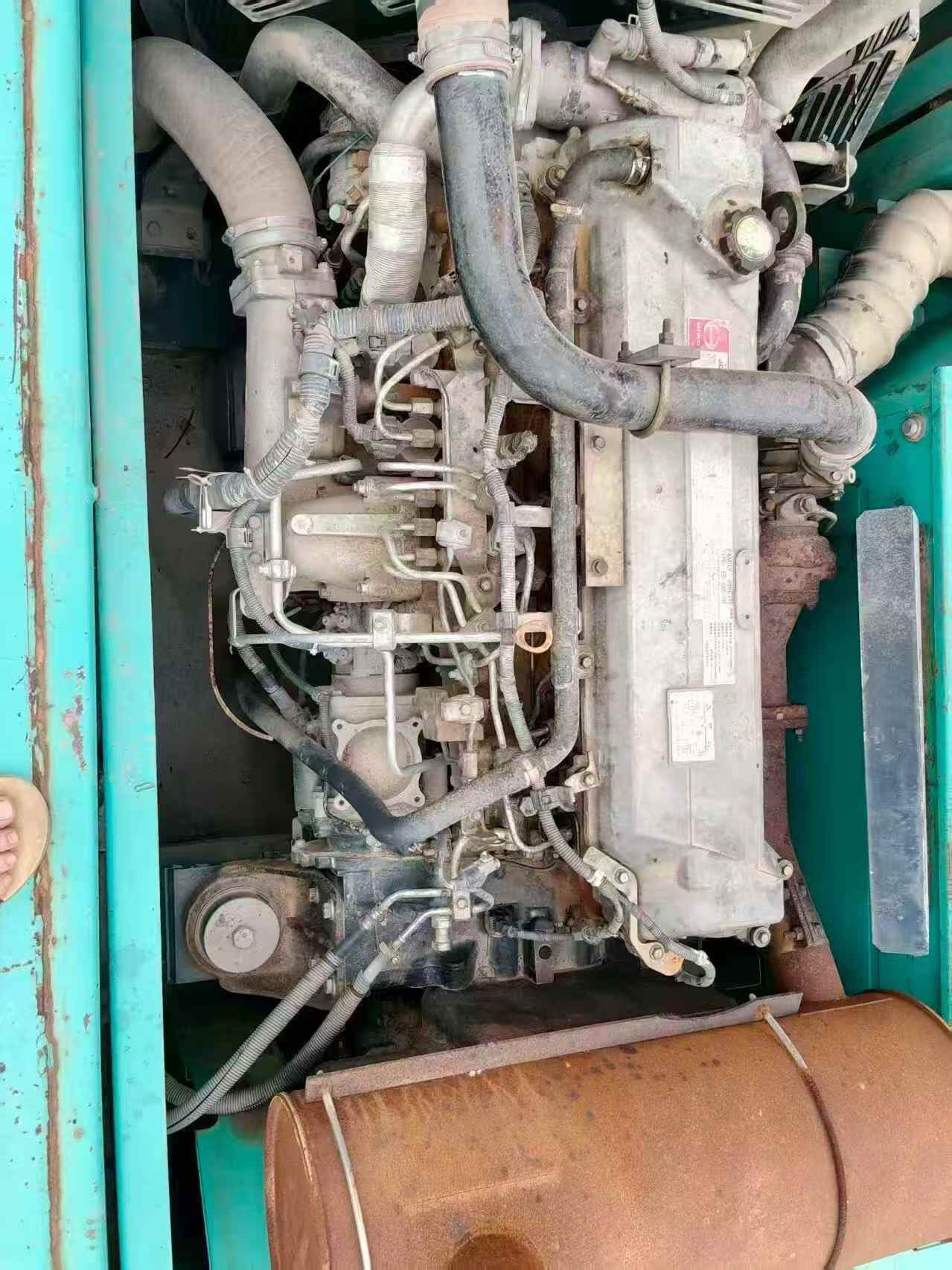

| Engine type | Hino J08E |
| Rated power (kw/rpm) | 209/2100 |
| Cylinder diameter × stroke (mm) | 112 x 130 |
| Maximum torque (N.m) | 998/1600 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.684 |
| Working form | Direct injection; Turbocharging; Built-in intercooling |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70%/35 degrees |
| Bucket digging force (kN) | 221/ Supercharged 244 |
| Rod digging force (kN) | 205/ Supercharged 225 |
| Maximum tractive force (kN) | 322 |
| Travel speed (km/h) | 5.6/3.3 |

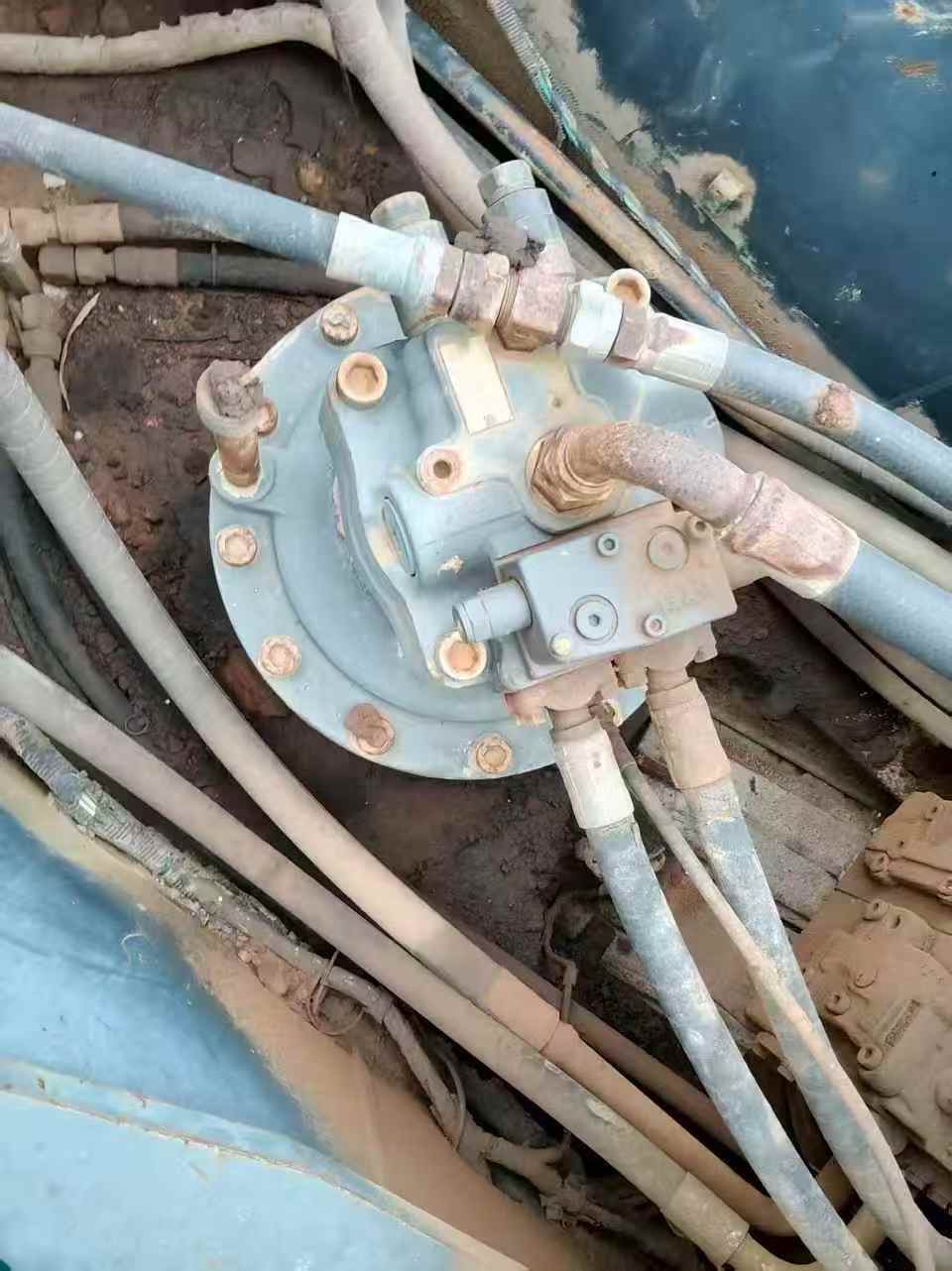

| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2 x 294-20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 29 |
| Control Hydraulic Circuit (Mpa) | 5 |

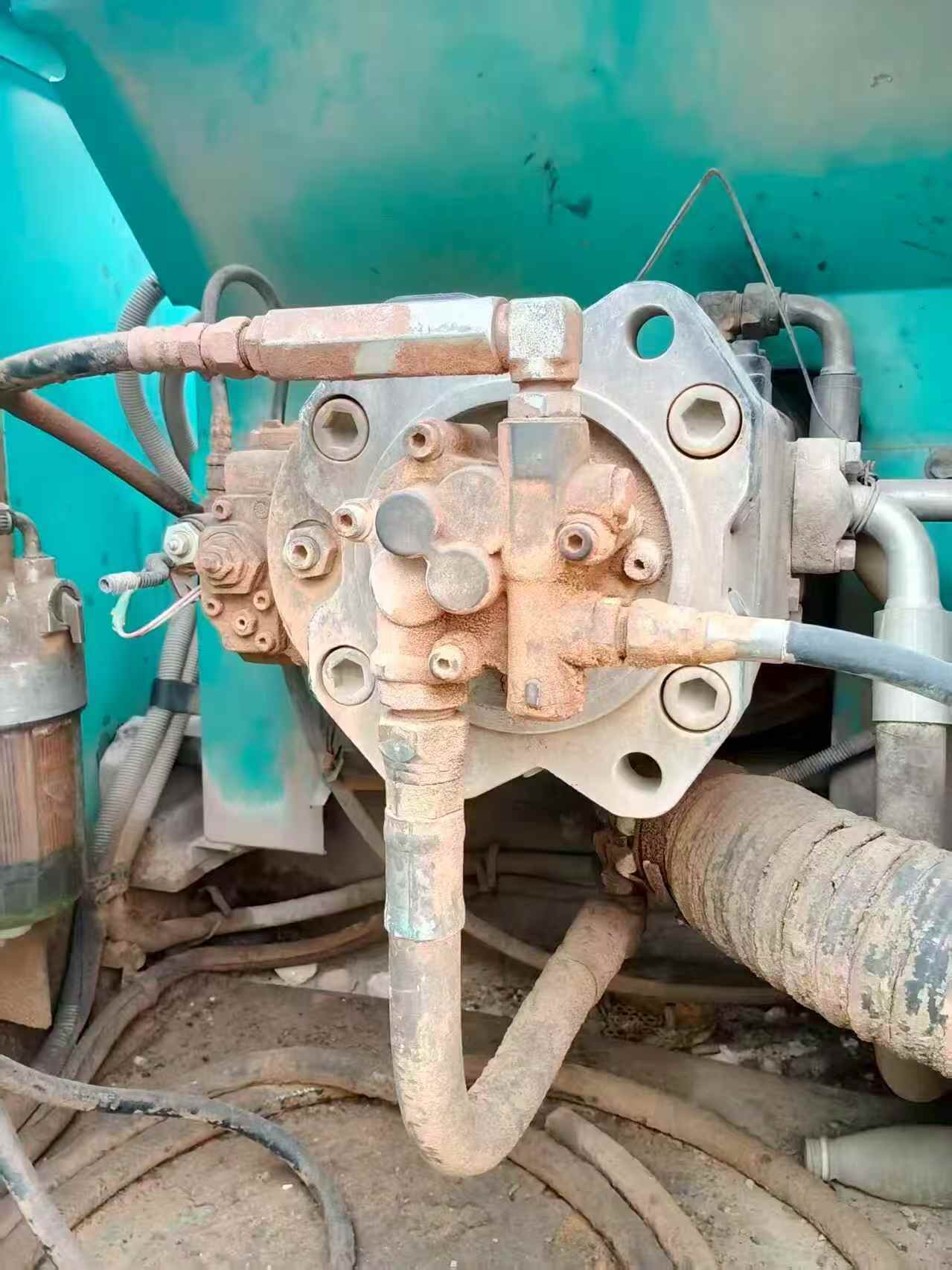

| Main pump type | Double variable axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3/ Supercharging 37.8 |
| Pilot pump flow (L/min) | 20 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 125 x 1200 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 145 x 1635 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1235 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 280 |
| Engine Oil changes (L) | 28.5 |
| Coolant (L) | 31.1 |
| Hydraulic System (L) | 353 |
| Total transport length (mm) | 11280 |
| Total transport width (mm) | 3270 |
| Total transport height (mm) | 3640 (to top of boom) |
| Full cab height (mm) | 3233 |
| Counterweight ground clearance (mm) | 1190 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3500 |
| Onboard width (mm) | 3080 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600/800 |
| Total track width (mm) | 3270 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6860 |
| Maximum excavation height (mm) | 10260 |
| Maximum unloading height (mm) | 7005 |
| Maximum vertical digging depth (mm) | 5840 |
| Maximum excavation radius of stop surface (mm) | 10400 |
| Maximum effective digging depth (mm) | 6670 |
