Product Description
Built for demanding excavation work, this 2019 Kobelco SK380XD-10 represents a proven investment in the used heavy equipment market. Operating at 38 tons with a robust 197kW Hino J08ETM engine, this machine delivers consistent performance across challenging job sites. Kobelco's reputation for engineering reliability translates directly into lower ownership costs—parts availability remains excellent throughout China, and the brand's strong resale value protects your capital investment.
Key specifications include:
- Maximum digging reach of 10,610mm with 6,840mm depth capability
- Powerful 229kN bucket digging force and 207kN arm digging force
- 1.9m³ bucket capacity for efficient material handling
- Water-cooled turbocharged engine with intercooling for sustained power
- 503L fuel tank supporting extended operation cycles
Currently located in Maoming, Guangdong, this SK380XD-10 combines Kobelco's established service network with straightforward maintenance requirements. For contractors prioritizing uptime and predictable operating costs, this model offers the dependability that keeps projects on schedule and budgets intact.
| Specifications | Value |
|---|---|
| No. | 998046 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 2600 |
| Rod length (mm) | 6500 |
| Bucket width (mm) | 1740 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

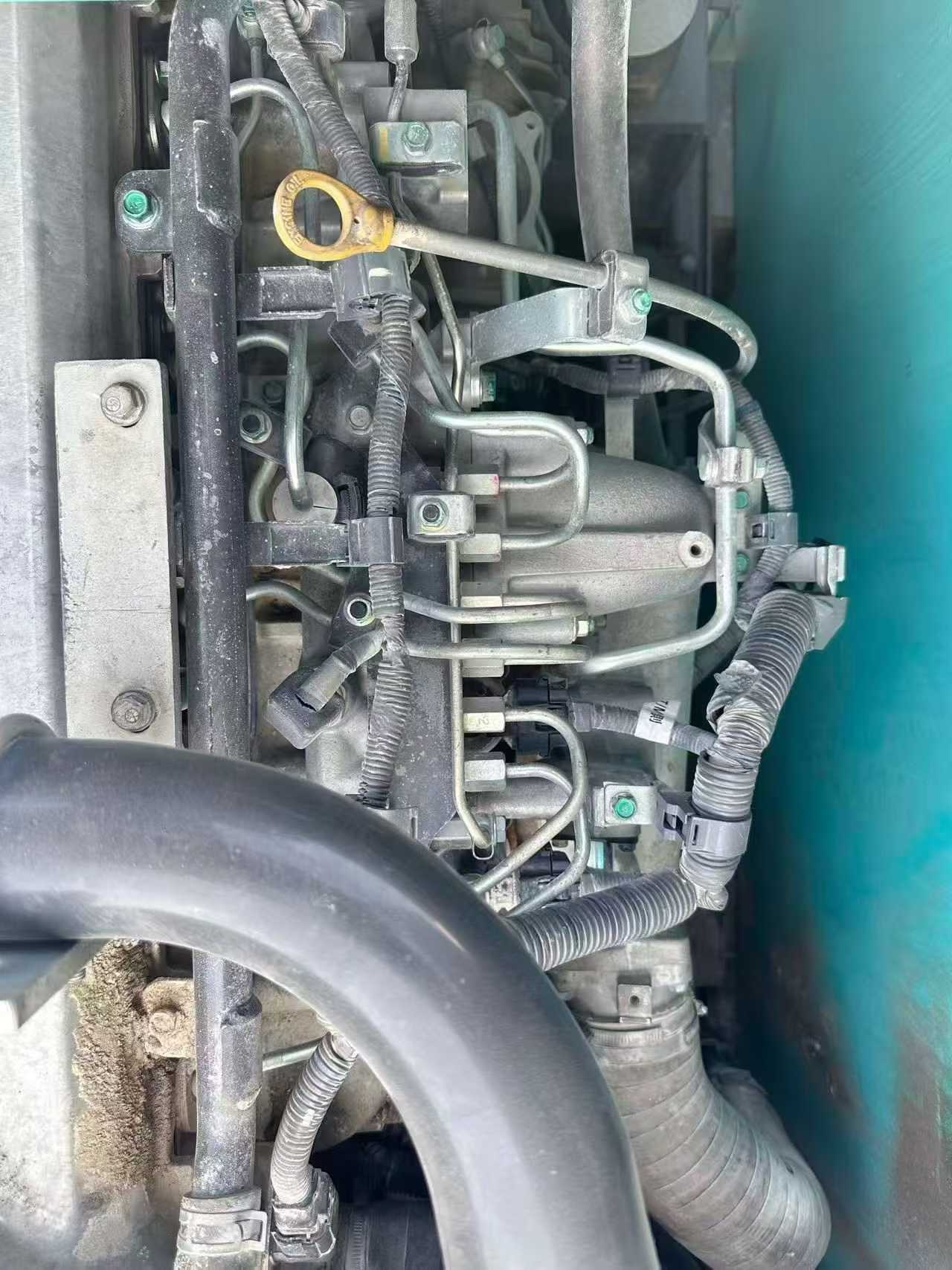

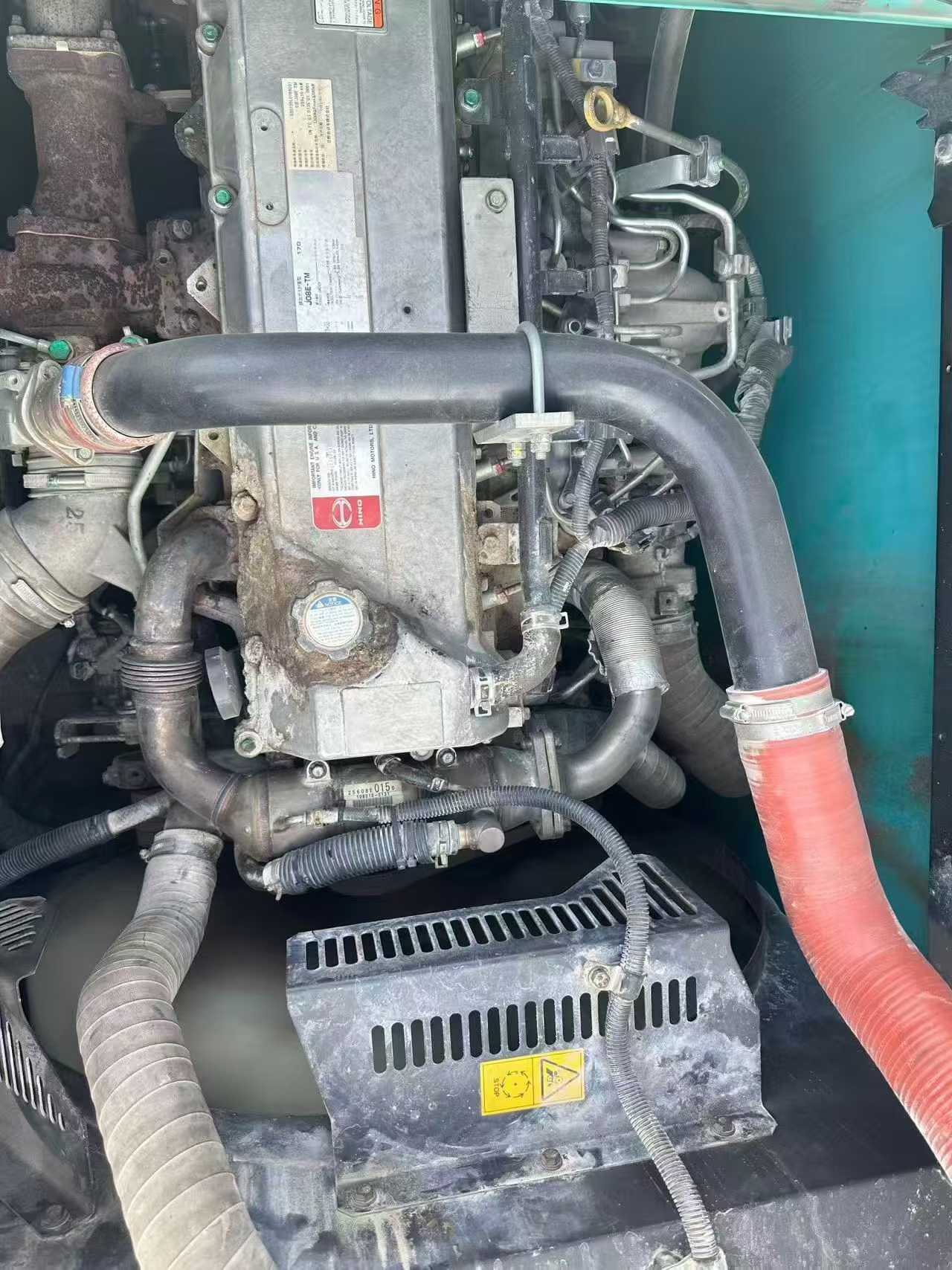

| Engine type | Hino J08ETM-KSDL |
| Rated power (kw/rpm) | 197/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 968/1600 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 72 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 207 |
| Maximum tractive force (kN) | 331 |
| Travel speed (km/h) | 5.6/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston pump motor (1) |
| Type of walking hydraulic motor | Variable capacity axial piston motors (2) |

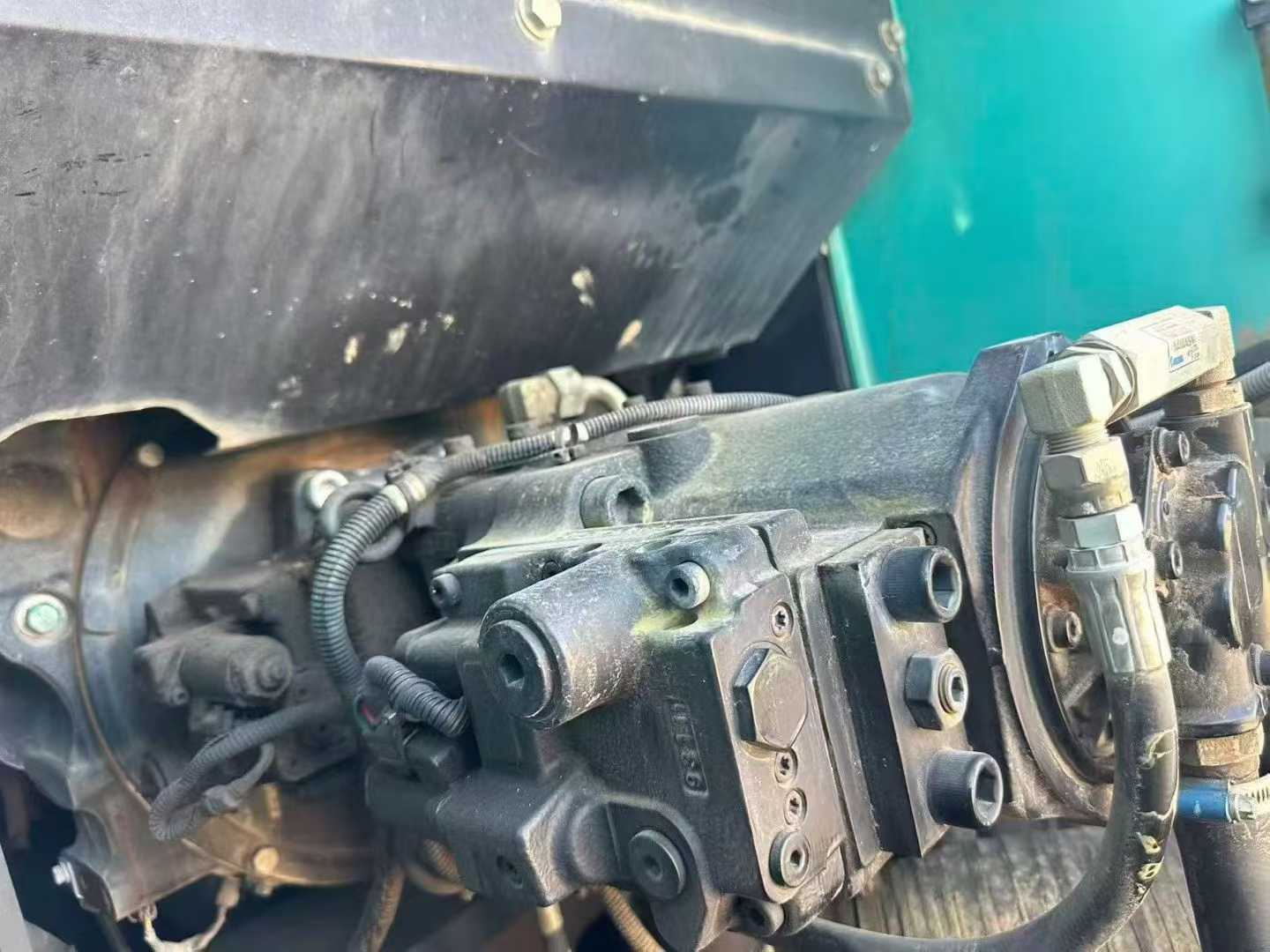

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Fuel Tank (L) | 503 |
| Hydraulic Tank (L) | 245 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11380 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3710 |
| Full cab height (mm) | 3230 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Minimum turning radius of front working device (mm) | 4460 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6840 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7070 |
| Maximum vertical digging depth (mm) | 5700 |
| Maximum excavation radius of stop surface (mm) | 10400 |
Overview
No.998046
Brand Name：
KobelcoModel Number：
SK380XD-10Year：
2019
Location：
Guangdong China
