Product Description

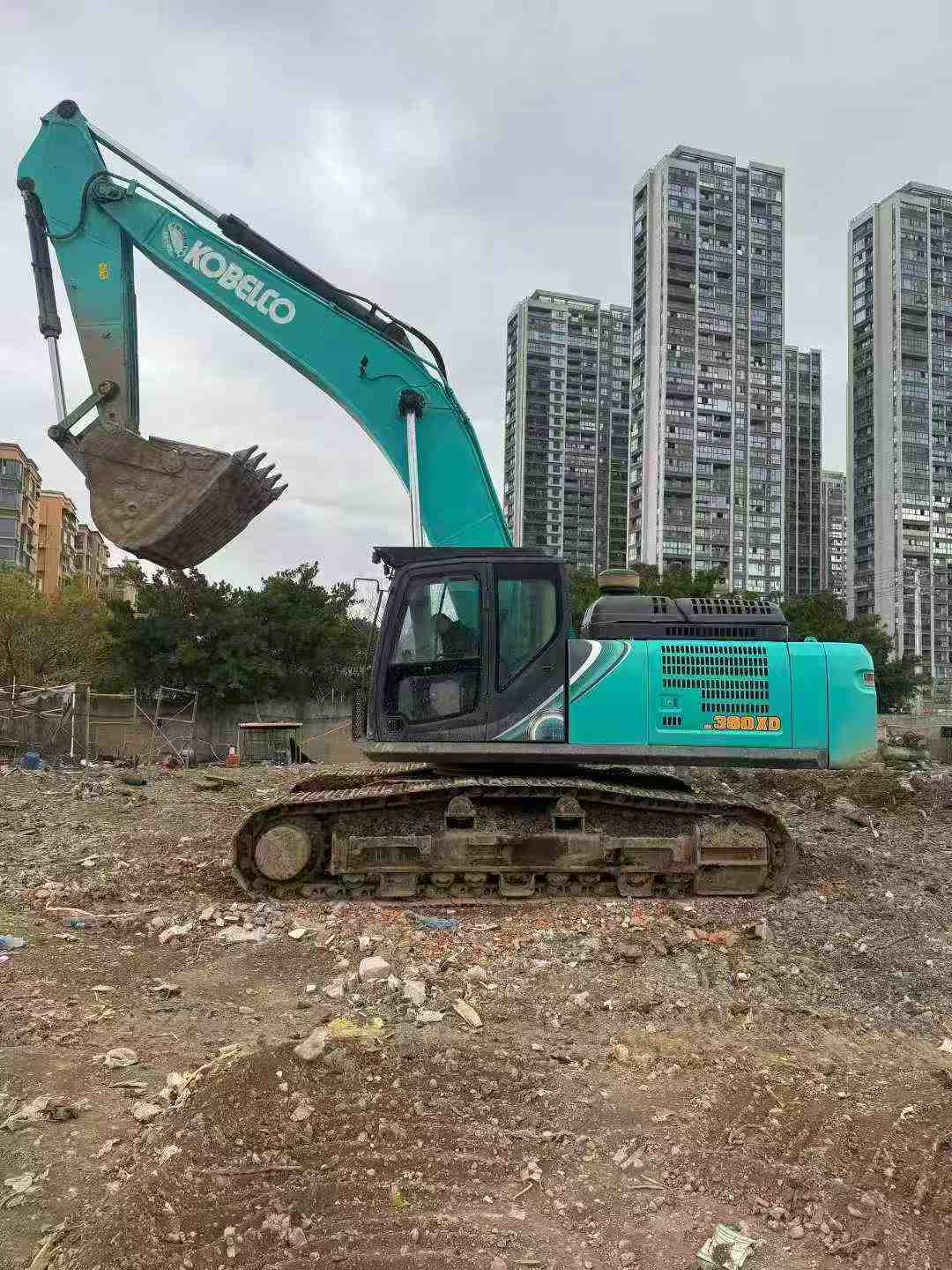

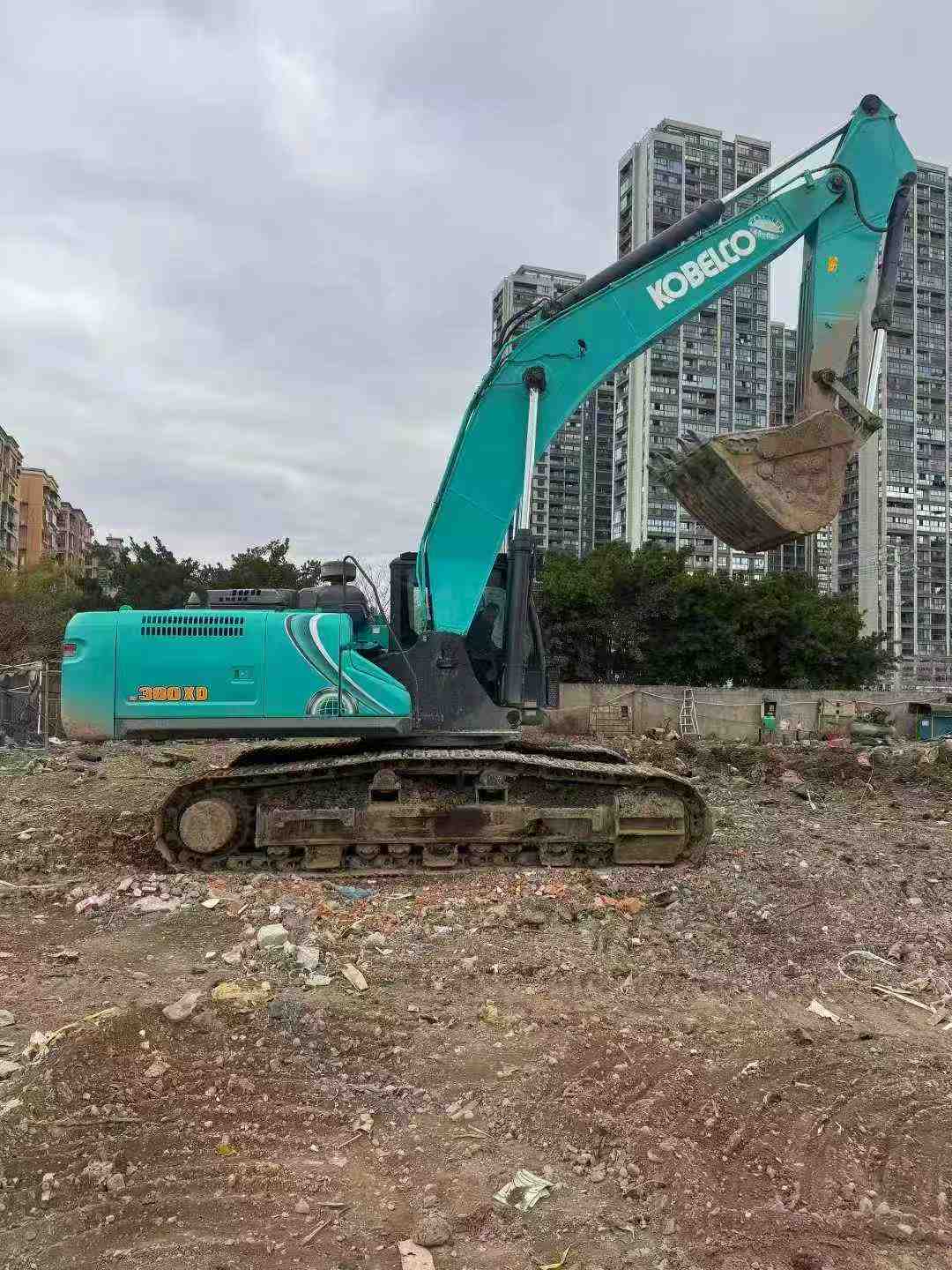

Engineered for demanding excavation work, this 2021 Kobelco SK380XD-10 delivers exceptional operator-focused performance in a 38-ton platform. Powered by a Hino J08ETM-KSDL engine producing 197 kW at 2100 rpm, this machine combines robust digging force with refined control systems. Operators benefit from superior cabin visibility and ergonomic design that reduces fatigue during extended shifts.
Stability remains paramount with a 72 kPa ground pressure distribution and 2590mm track gauge, ensuring confident operation on varied terrain. The spacious cab sits at 3230mm height, providing commanding sightlines to the 10610mm maximum digging radius. Hydraulic responsiveness is managed through dual variable displacement axial piston pumps, delivering precise bucket control with 229 kN digging force.
- Working weight: 38,500 kg with 1.9 m³ bucket capacity
- Maximum digging depth: 6840mm; unloading height: 7070mm
- Smooth 10 rpm rotation speed for accurate positioning

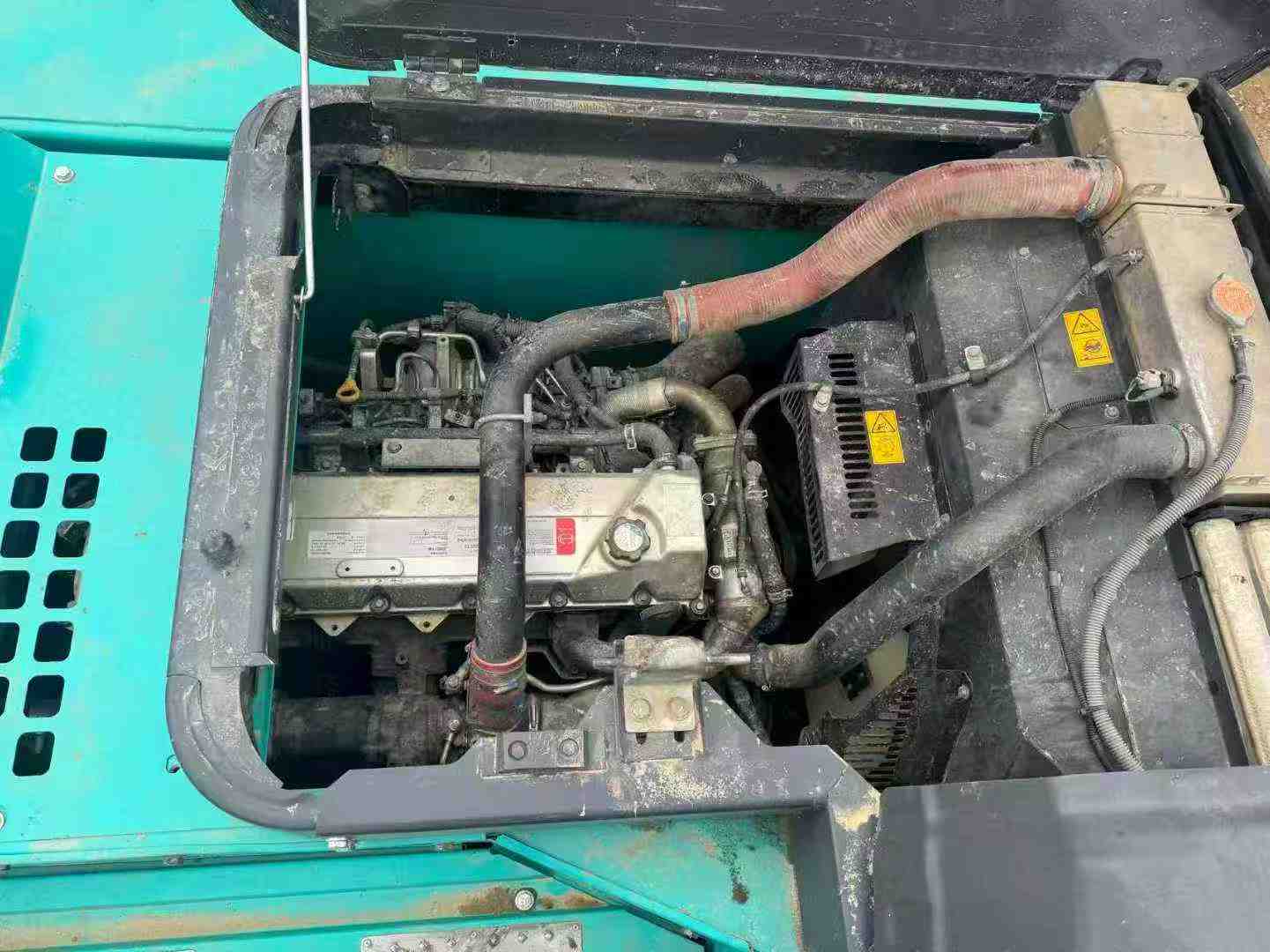

- Water-cooled turbocharged engine with intercooling
- 503L fuel capacity for extended operation
- Currently located in Wenzhou, Zhejiang
Built for professionals who demand reliability and operational comfort
| Specifications | Value |
|---|---|
| No. | 1008885 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 38500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 2600 |
| Rod length (mm) | 6500 |
| Bucket width (mm) | 1740 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Hino J08ETM-KSDL |
| Rated power (kw/rpm) | 197/2100 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 968/1600 |
| Working form | Direct injection, four stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 72 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70 (35°) |
| Bucket digging force (kN) | 229 |
| Rod digging force (kN) | 207 |
| Maximum tractive force (kN) | 331 |
| Travel speed (km/h) | 5.6/3.3 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston pump motor (1) |

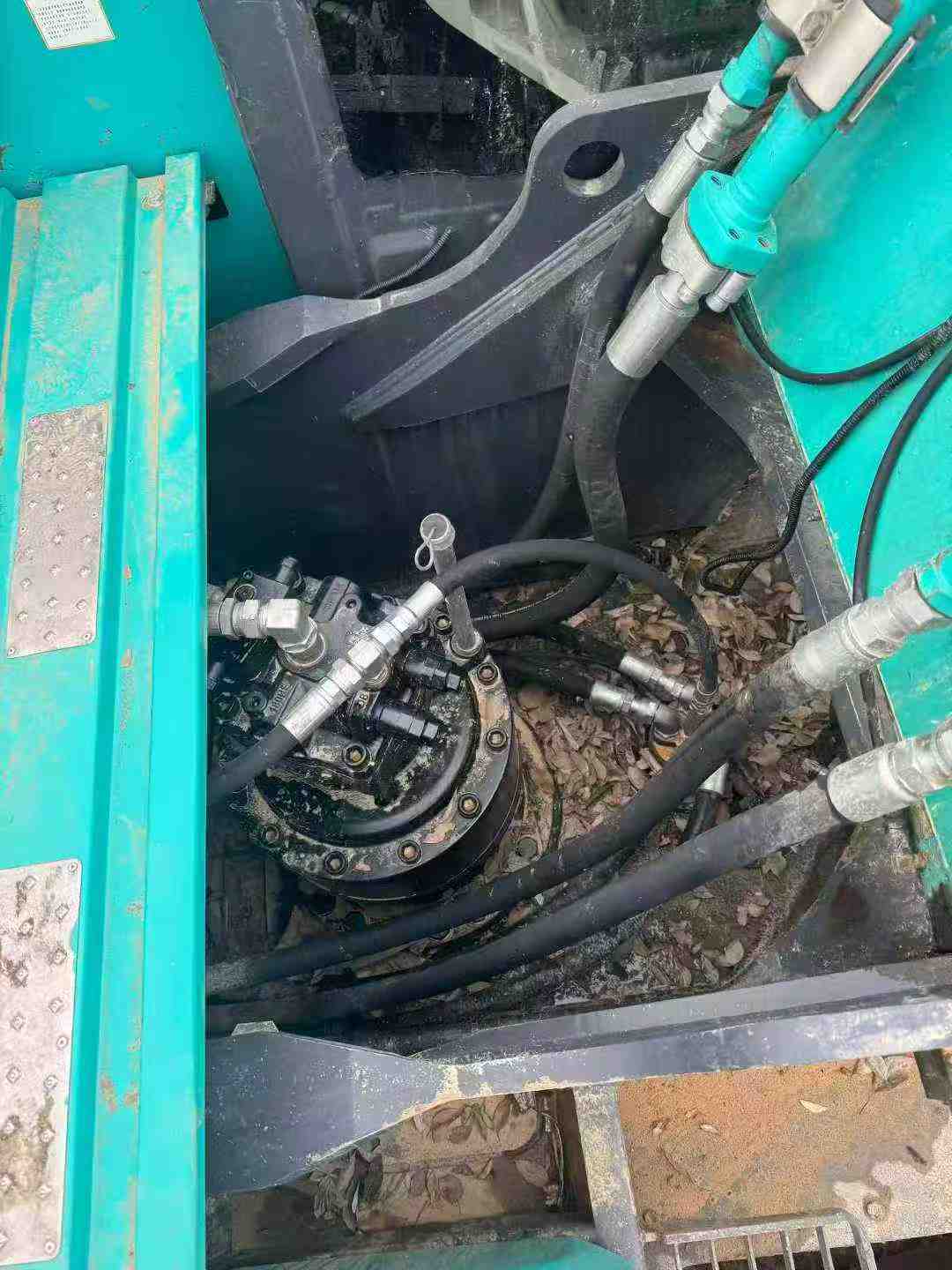

| Type of walking hydraulic motor | Variable capacity axial piston motors (2) |

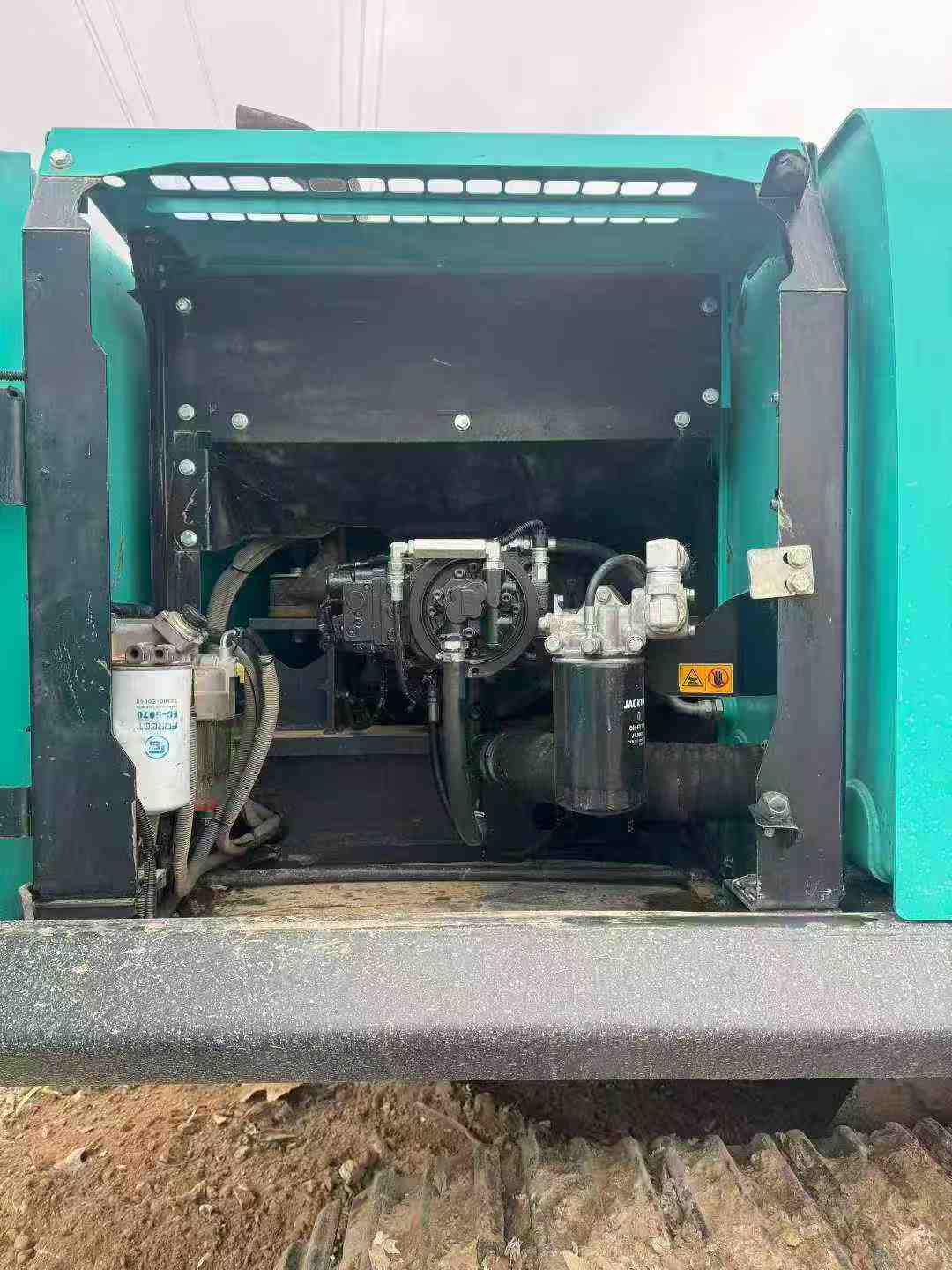

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Fuel Tank (L) | 503 |
| Hydraulic Tank (L) | 245 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11380 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3710 |
| Full cab height (mm) | 3230 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Minimum turning radius of front working device (mm) | 4460 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4050 |
| Maximum digging radius (mm) | 10610 |
| Maximum digging depth (mm) | 6840 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7070 |
| Maximum vertical digging depth (mm) | 5700 |
| Maximum excavation radius of stop surface (mm) | 10400 |
