Product Description

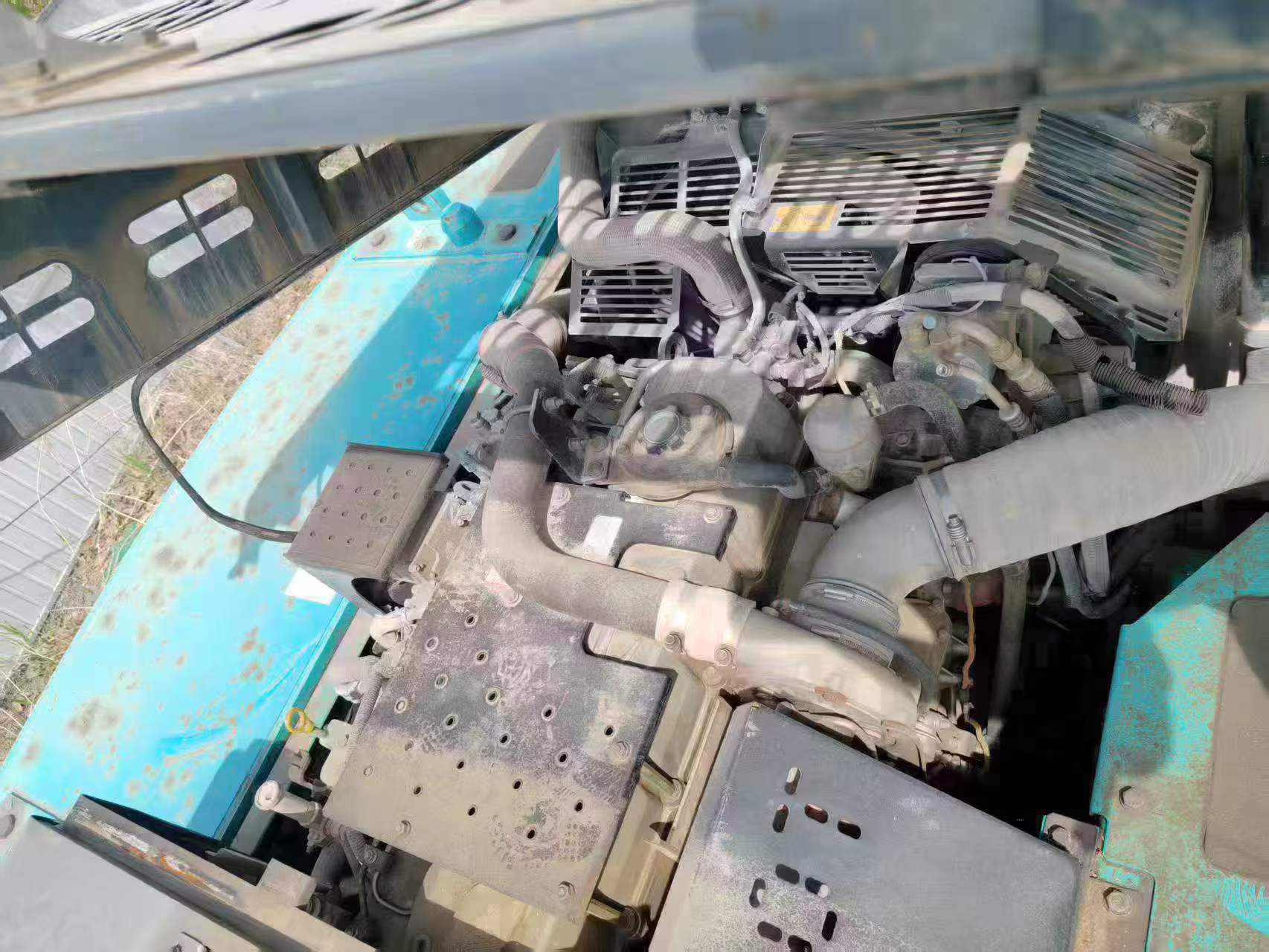

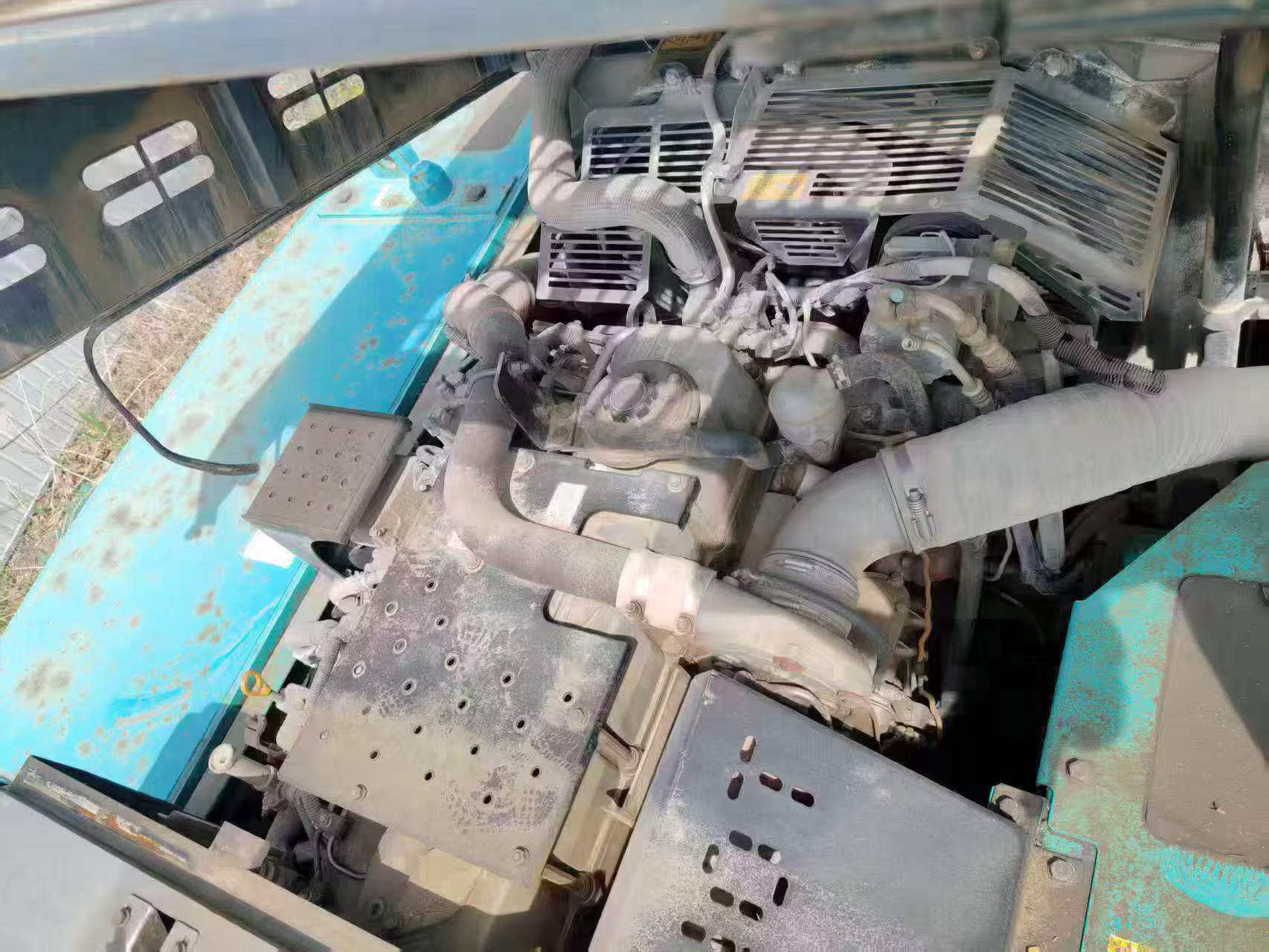

With a robust 46-ton capacity, the Kobelco SK460-8 stands as a testament to Japanese engineering, offering unparalleled reliability and performance. Built in 2016, this excavator is equipped with a HINO P11C engine, delivering 257 kW of power at 1850 rpm, ensuring efficient operation. Located in Shandong, China, this machine features a 1.9 m³ bucket capacity, a 7000 mm boom, and a 3450 mm rod, making it ideal for heavy-duty tasks.
- Parts availability: Kobelco's global network ensures easy access to genuine parts, reducing downtime and maintenance costs.
- Resale value: Known for its durability and performance, the SK460-8 retains high resale value, making it a smart investment.
- Engineered for efficiency: Water-cooled and turbocharged, the engine provides reliable power and optimal fuel efficiency.
- Superior digging force: With a bucket digging force of 267 kN and a rod digging force of 203 kN, this excavator handles tough jobs with ease.
| Specifications | Value |
|---|---|
| No. | 1057404 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 46400-48300 |
| Bucket capacity (m³) | 1.9 |

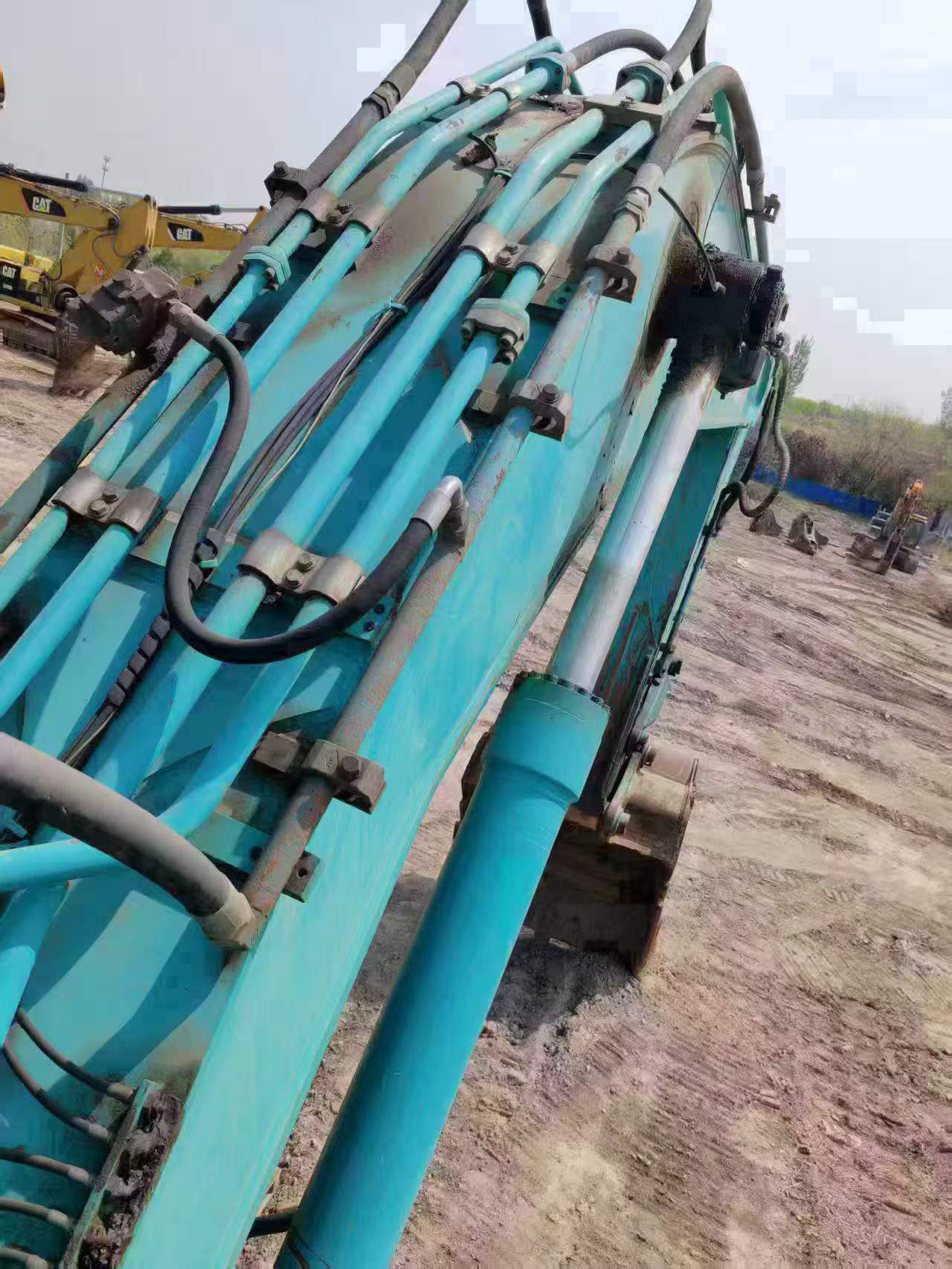

| Boom length (mm) | 7000 |
| Rod length (mm) | 3450 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | HINO P11C |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 122 x 150 |
| Maximum torque (N.m) | 1400/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.52 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Ground specific pressure (Kpa) | 58-83 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 203 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Main overflow set pressure (Mpa) | 34.3 |
| Type of walking hydraulic motor | Two sets of two-speed plunger motors |
| Maximum flow of main pump (l/min) | 2*370 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*160*1410 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*190*1970 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*170*1590 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 50 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3580 |
| Total transport height (mm) | 3800 |
| Full cab height (mm) | 3390 |
| Counterweight ground clearance (mm) | 1340 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 5270 |
| Back end turning radius (mm) | 3670 |
| Onboard width (mm) | 3000 |

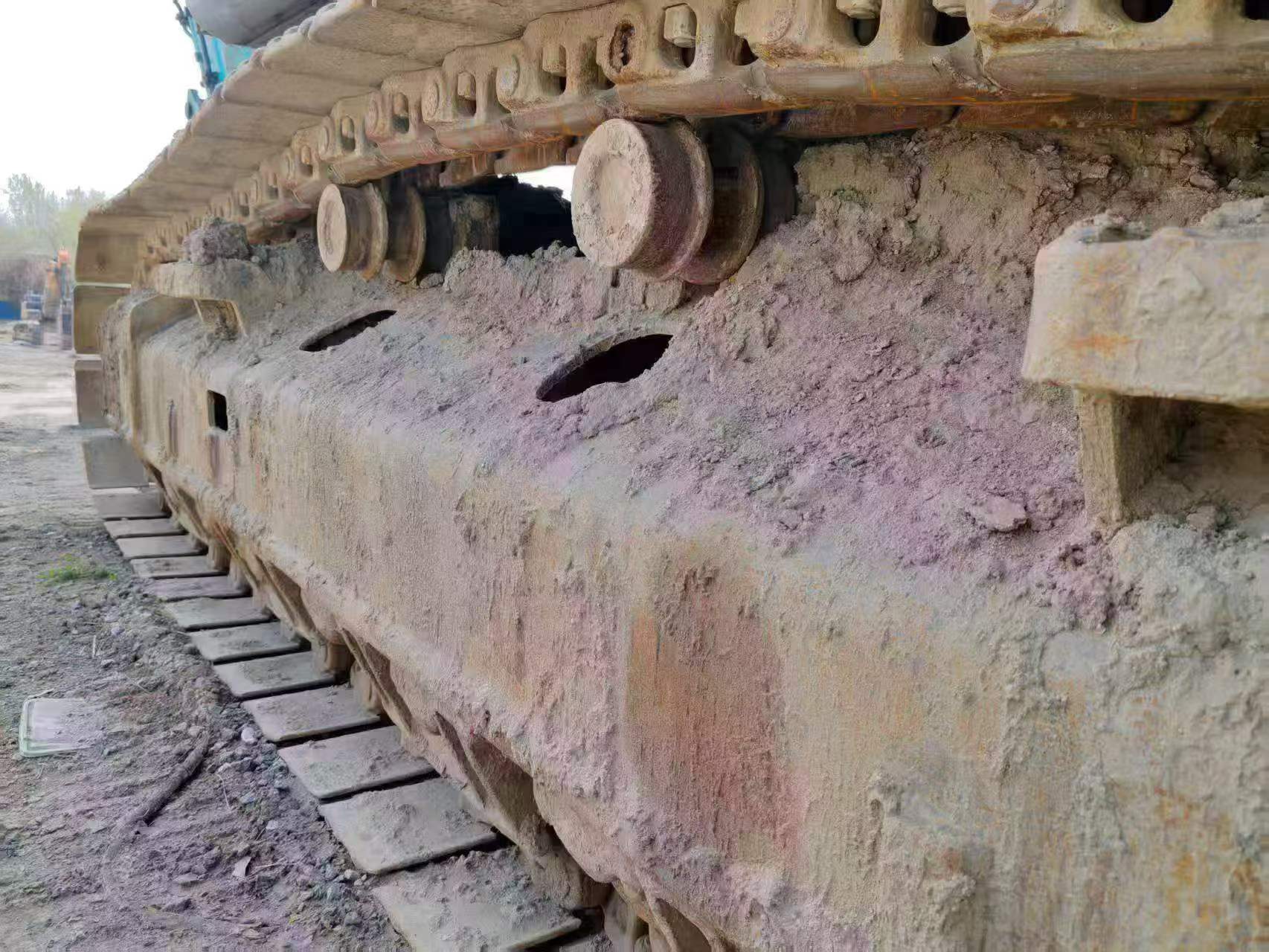

| Total track length (mm) | 5110 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3350 |
| Track ground length (mm) | 4060 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 12070 |
| Maximum digging depth (mm) | 7810 |
| Maximum excavation height (mm) | 10930 |
| Maximum unloading height (mm) | 7580 |
| Maximum vertical digging depth (mm) | 7120 |
| Maximum excavation radius of stop surface (mm) | 11840 |
