Product Description

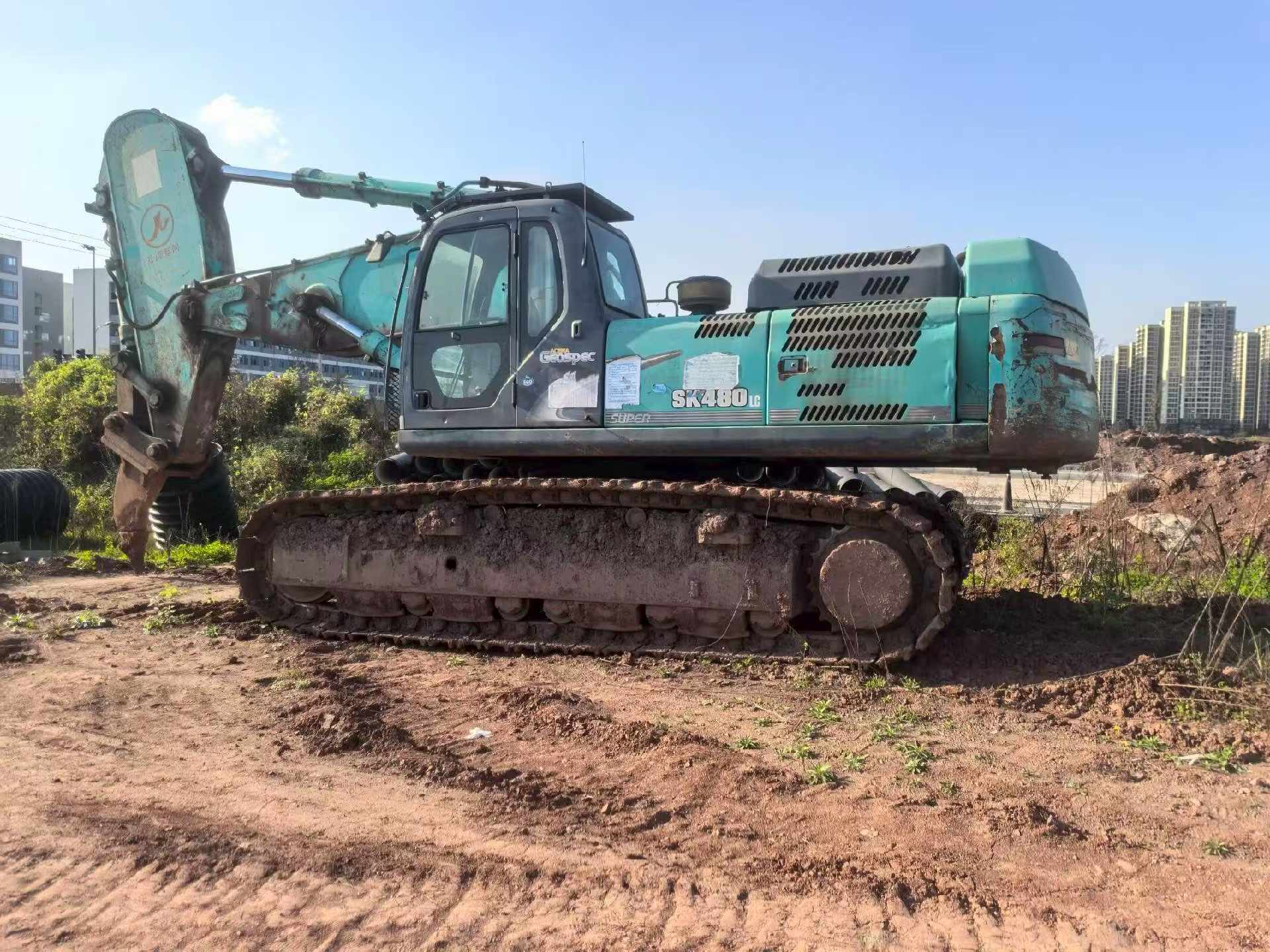

Built for heavy production work, this 2016 Kobelco SK480 excavator delivers 48 tons of operating power across demanding job sites. Currently located in Maoming, Guangdong, this machine arrives site-ready with a 2.3 m³ backhoe bucket and 7000 mm boom configuration designed for deep excavation and high-reach applications.
Performance specifications include:
- Maximum digging depth of 7370 mm reaches below-grade utilities and foundations
- 11700 mm maximum digging radius covers extensive work zones without repositioning
- 11160 mm maximum excavation height handles material loading into haul trucks
- 3670 mm rear turning radius enables operation in confined spaces
- 600 mm track plates provide stable ground contact and weight distribution
Measuring 12080 mm in transport length, this joint venture/import manufactured excavator combines proven traditional power systems with productive capacity for grading, trenching, demolition, and mass excavation projects. Inspection and shipping arrangements available upon request.
| Specifications | Value |
|---|---|
| No. | 1023642 |
| Tonnage (tons) | 48 |
| Bucket capacity (m³) | 2.3 |
| Boom length (mm) | 7000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3580 |
| Total transport height (mm) | 3800 |
| Counterweight ground clearance (mm) | 1340 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3670 |
| Onboard width (mm) | 3000 |
| Total track length (mm) | 5450 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11700 |
| Maximum digging depth (mm) | 7370 |
| Maximum excavation height (mm) | 11160 |
| Maximum vertical digging depth (mm) | 6680 |
| Maximum excavation radius of stop surface (mm) | 11540 |
