Product Description

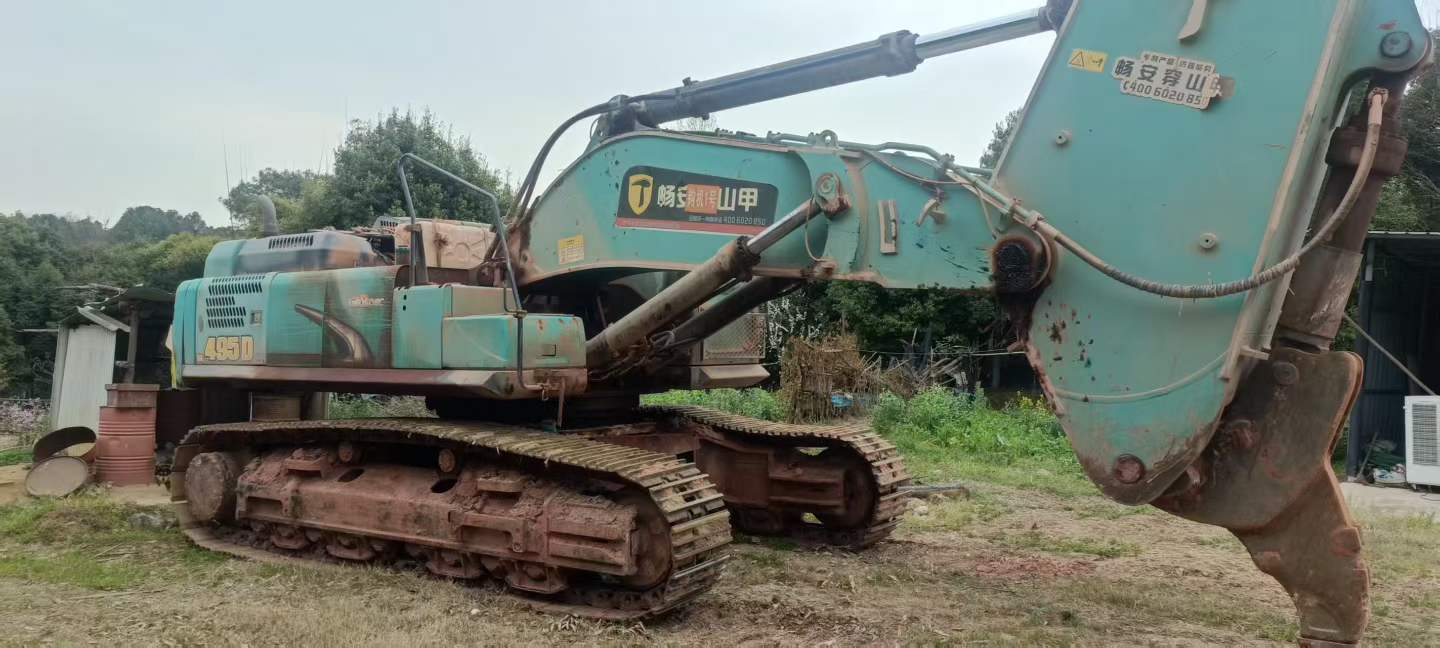

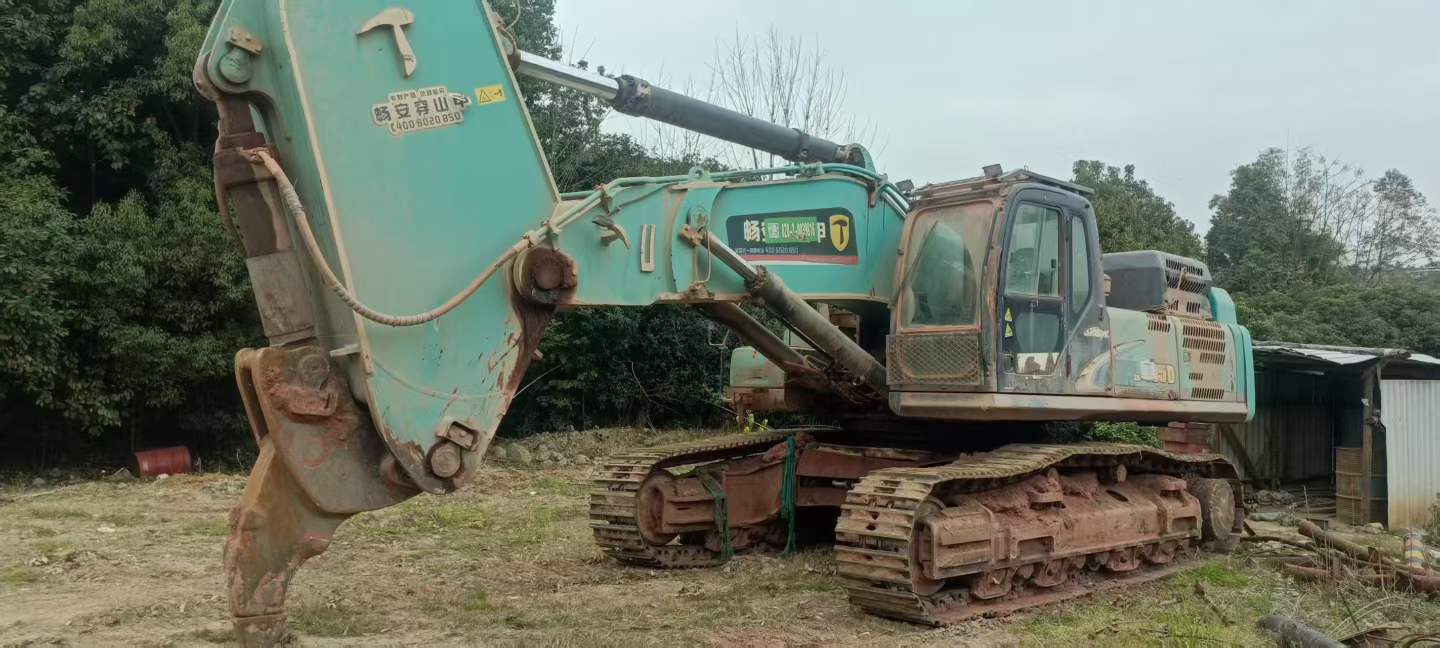

With a working weight of 52,700 kg and a bucket capacity of 2.3 m³, the 2018 Kobelco SK495D excavator is a robust choice for demanding construction projects. Located in 四川, this machine is available now, allowing you to skip the factory lead times and achieve fast deployment to your site. Equipped with a Hino P11C engine, it delivers 257 kW at 1850 rpm, ensuring reliable performance. The SK495D features a dual variable displacement axial piston pump, providing a maximum flow of 2 x 370 l/min, and a maximum tractive force of 417 kN, making it highly efficient in various terrains. Its impressive digging forces—266 kN for the bucket and 223 kN for the rod—coupled with a travel speed of 5.4/3.4 km/h, ensure quick and effective operations. Ideal for logistics-focused projects, this excavator is ready to enhance your operational speed and efficiency.
| Specifications | Value |
|---|---|
| No. | 1033154 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 52700 |
| Bucket capacity (m³) | 2.3 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

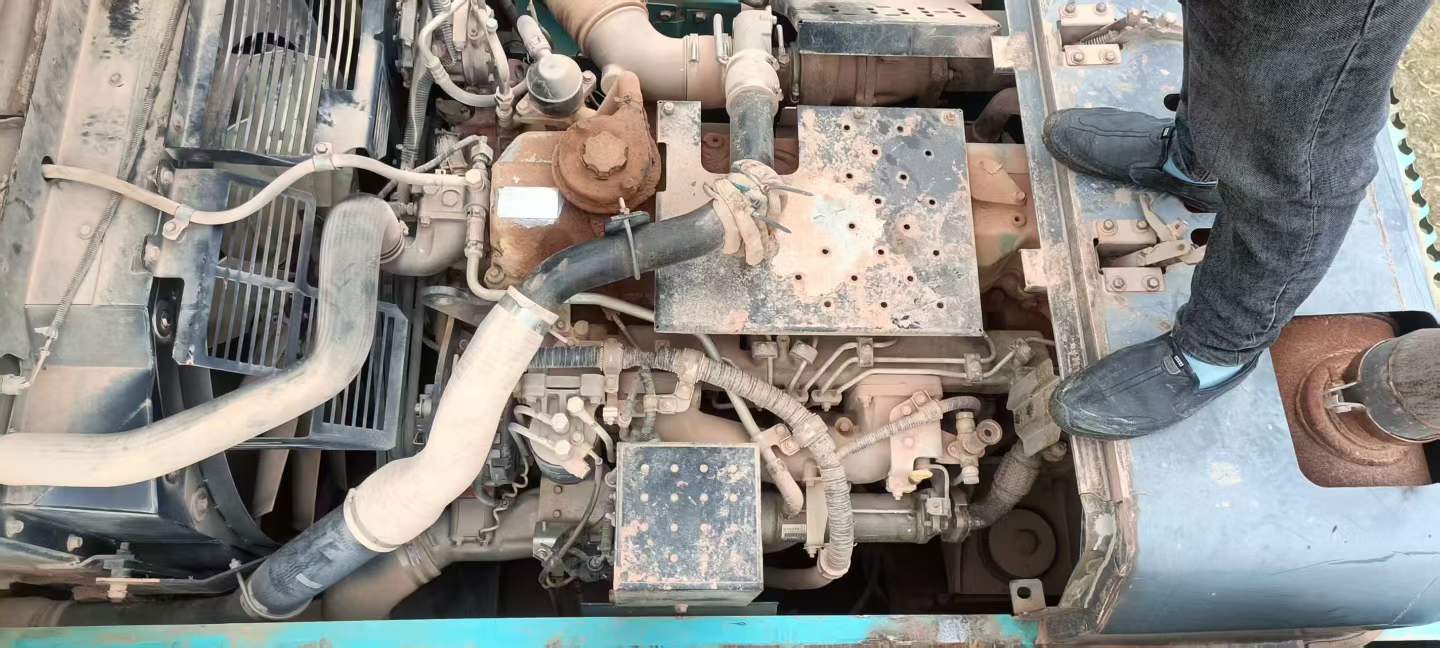

| Engine type | Hino P11C |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 122 x 150 |
| Maximum torque (N.m) | 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.52 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 266 |
| Rod digging force (kN) | 223 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum flow of main pump (l/min) | 2 x 370 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Control Hydraulic Circuit (Mpa) | 5 |

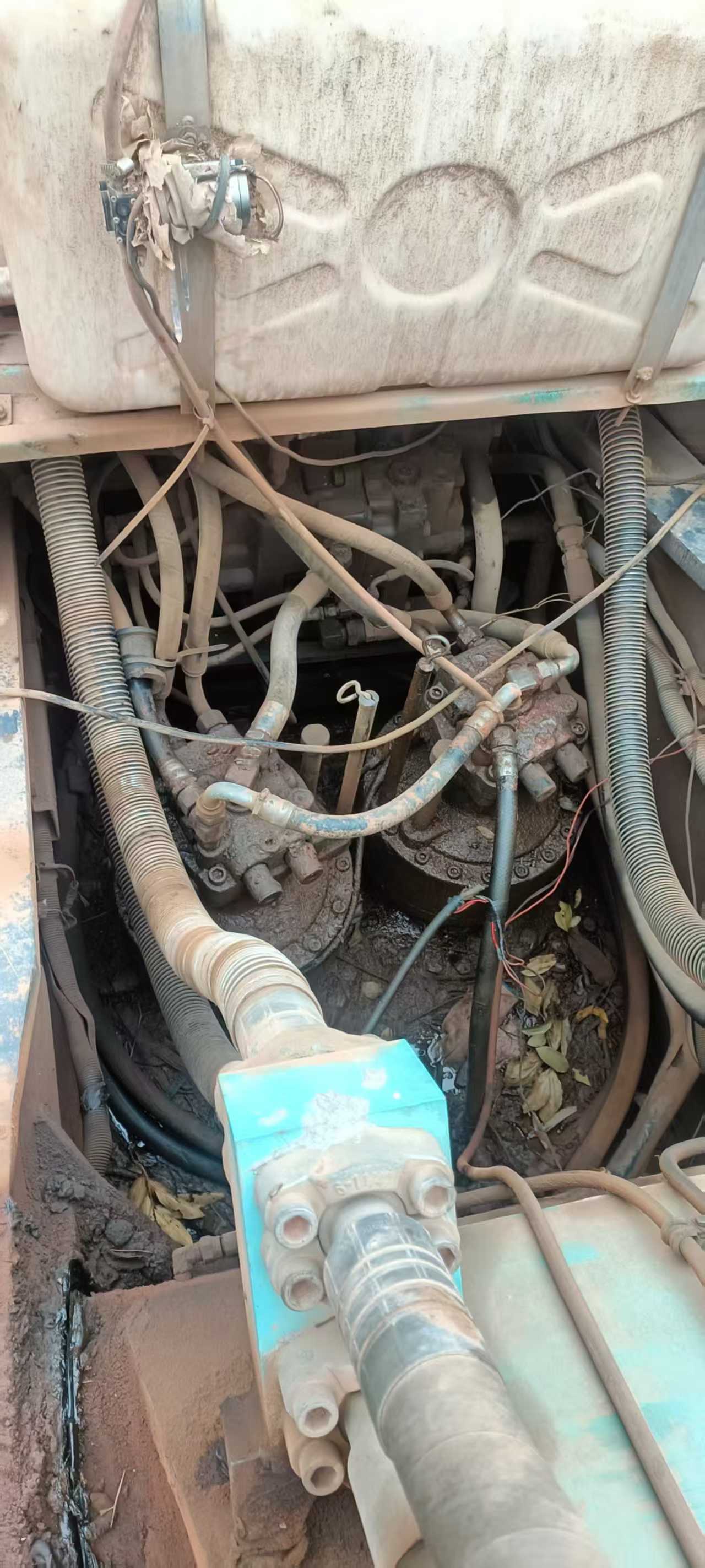

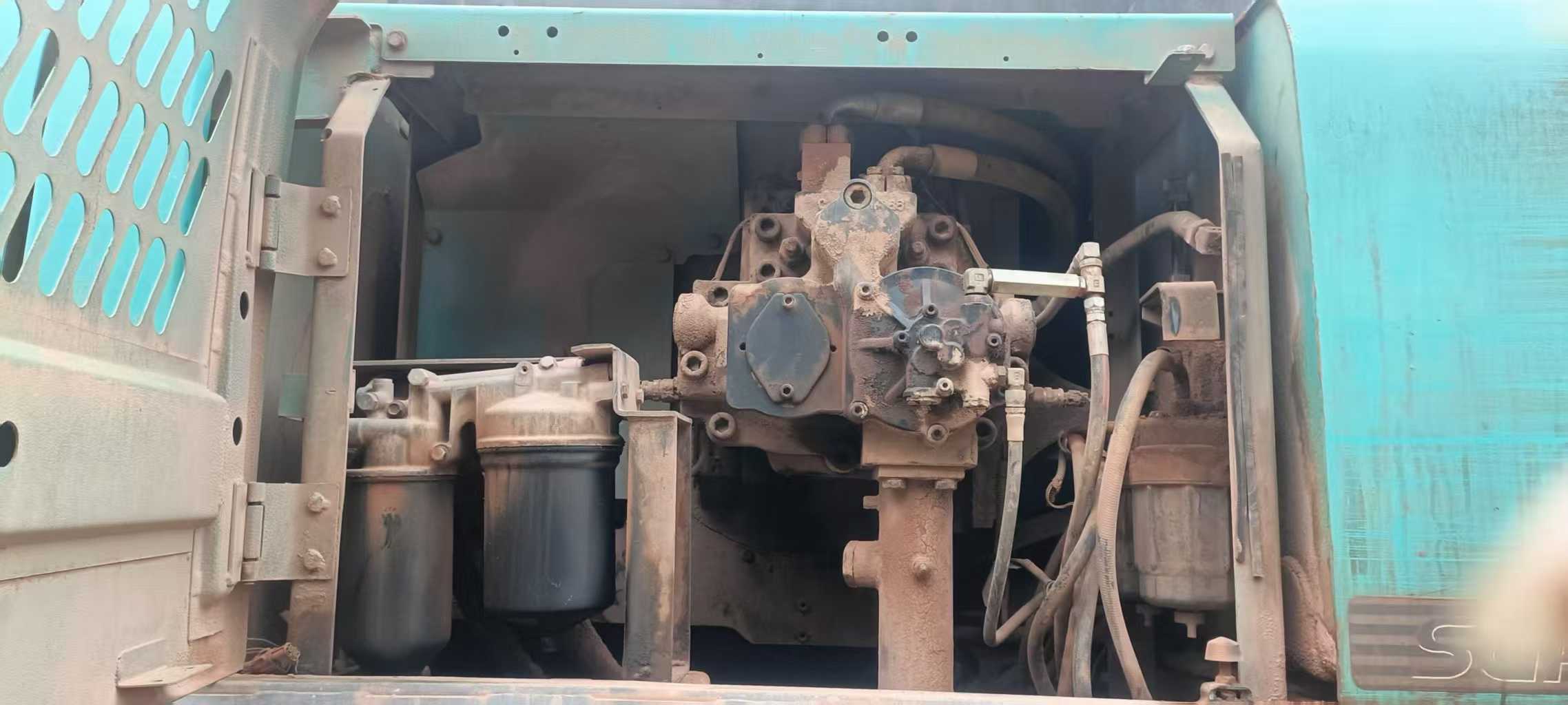

| Main pump type | Dual variable displacement axial piston pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 50 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3800 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 5270 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5460 |
| Total track width (mm) | 3130 |
| Maximum height at minimum turning radius (mm) | 9003 |
| Maximum digging radius (mm) | 11770 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 11160 |
| Maximum unloading height (mm) | 7720 |
| Maximum vertical digging depth (mm) | 6680 |
| Maximum excavation radius of stop surface (mm) | 11540 |
