2018 Kobelco SK495D

1/7
Buy Kobelco SK495D Used Excavator / 1

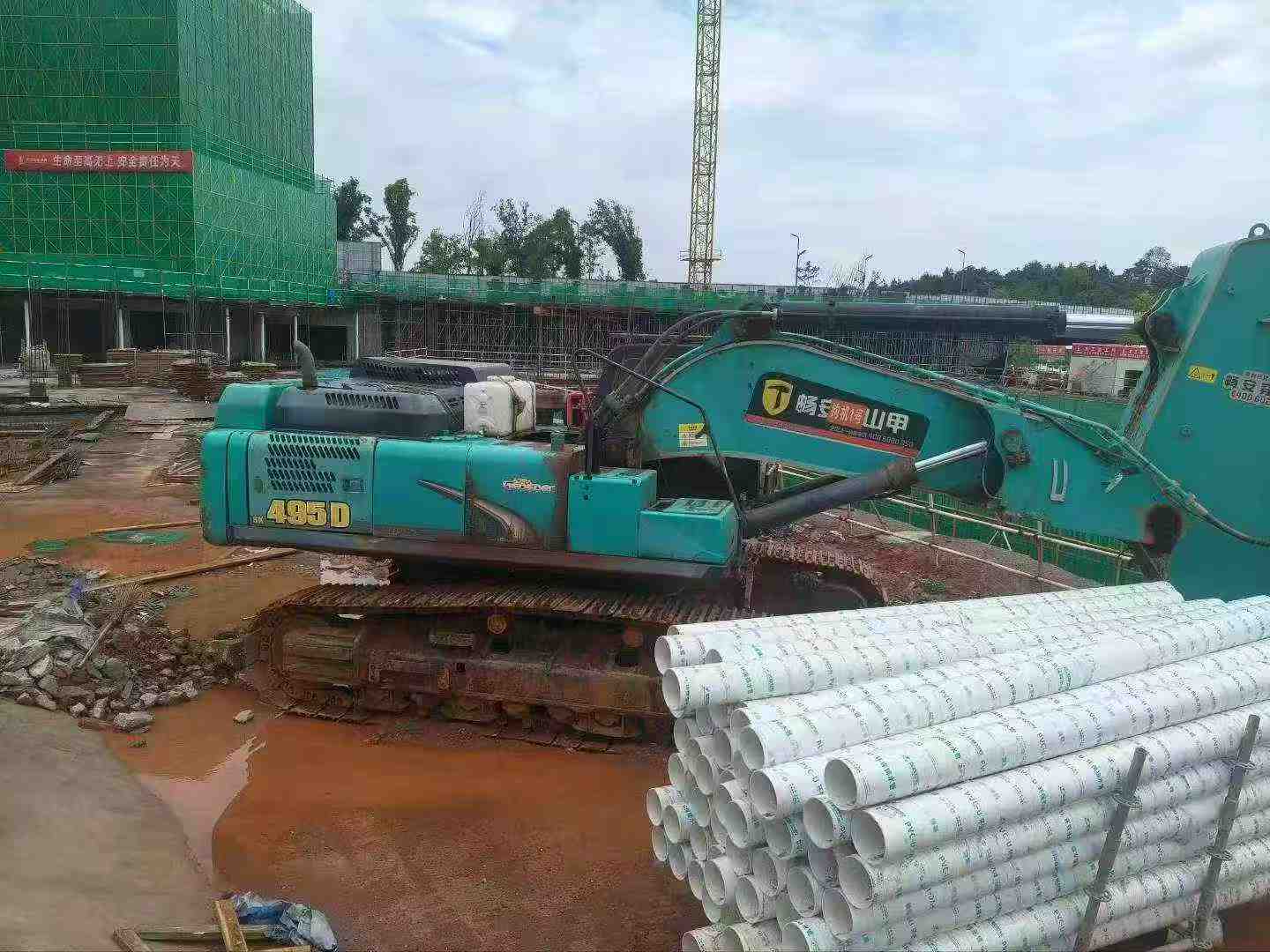

Buy Kobelco SK495D Used Excavator / 2

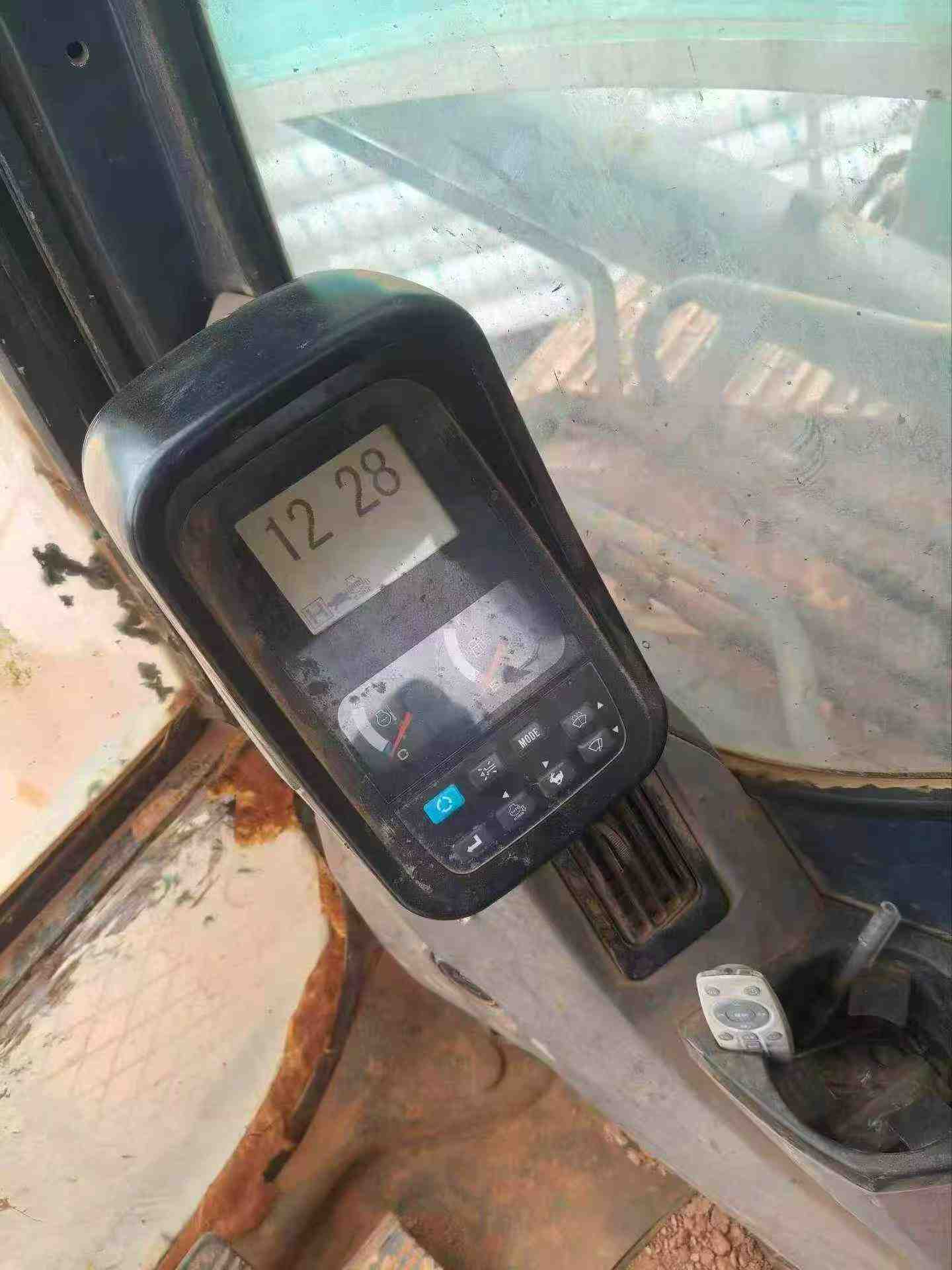

Buy Kobelco SK495D Used Excavator / 3

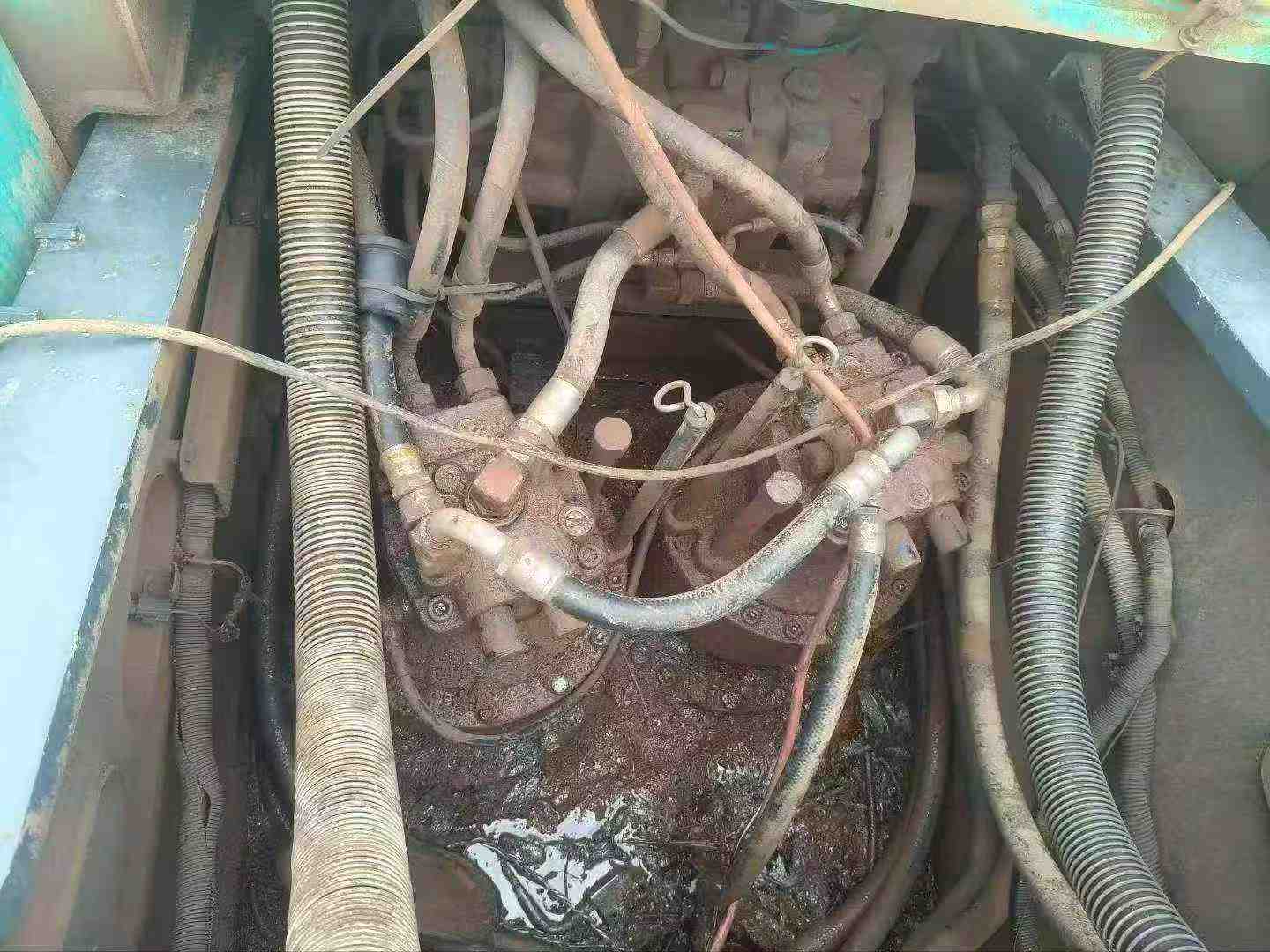

Buy Kobelco SK495D Used Excavator / 4

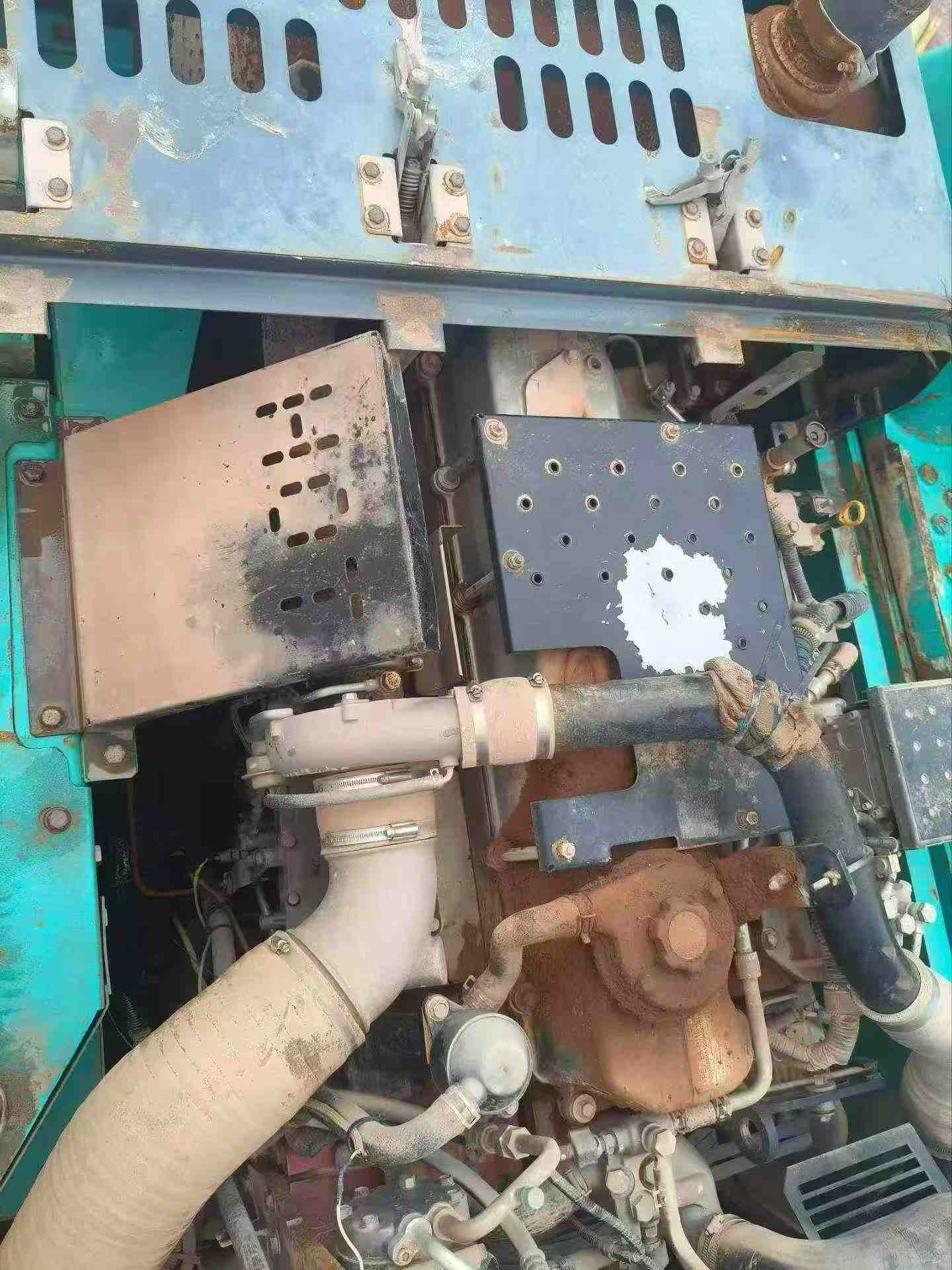

Buy Kobelco SK495D Used Excavator / 5

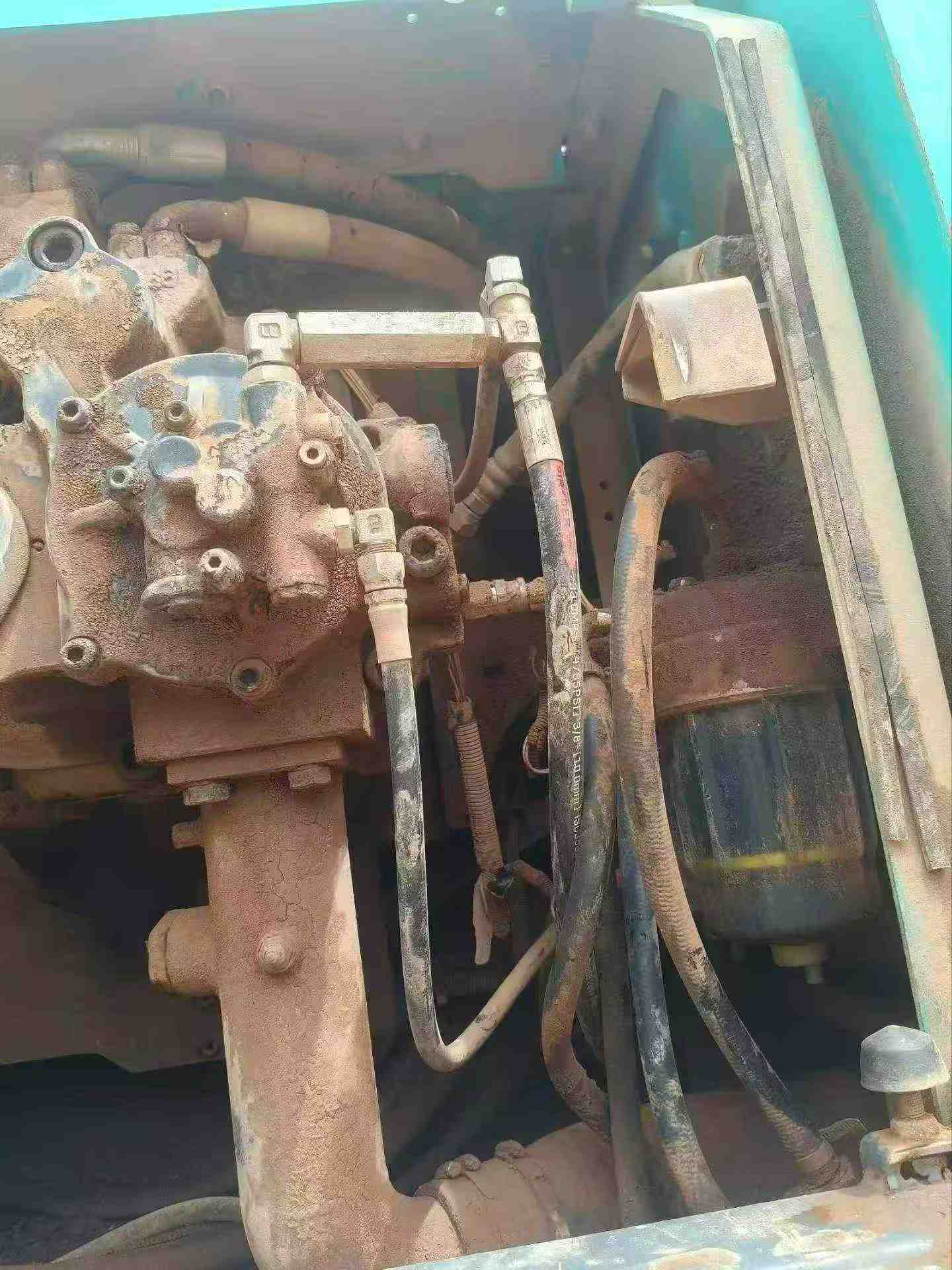

Buy Kobelco SK495D Used Excavator / 6

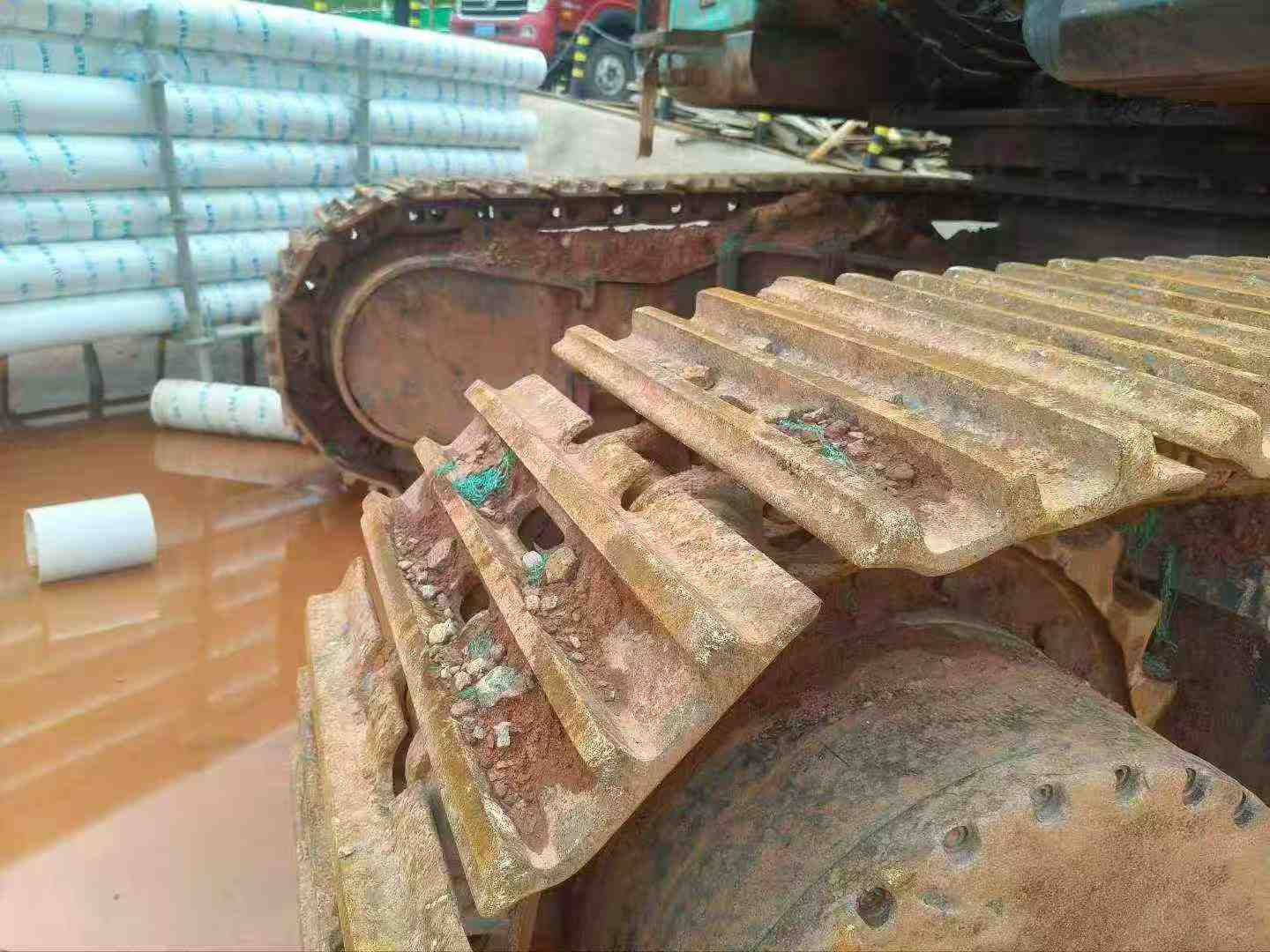

Buy Kobelco SK495D Used Excavator / 7

Product Description

Built for relentless performance, this 2018 Kobelco SK495D represents six years of proven durability in demanding construction environments. Operating at 49 tons with a robust 52,700 kg working weight, this excavator combines Japanese engineering precision with the power of a Hino P11C engine delivering 257 kW at 1850 rpm. Currently located in Hangzhou, Zhejiang, this machine features a substantial 2.3 m³ bucket capacity and impressive reach specifications—11,770 mm maximum digging radius and 7,360 mm maximum digging depth—making it ideal for large-scale earthmoving and infrastructure projects.

  • Powerful digging forces: 266 kN bucket force, 223 kN rod force
  • Advanced hydraulic system: dual 370 l/min variable displacement pumps
  • Extended reach: 7,000 mm boom, 3,000 mm rod
  • Reliable water-cooled 6-cylinder engine with 10.52 L displacement
  • Excellent stability: 70% climbing ability, 7.8 rpm rotation speed
  • Ready for immediate deployment with proven track record

Engineered as a workhorse for high-productivity operations, this SK495D continues to deliver consistent performance backed by Kobelco's reputation for longevity and minimal downtime.

SpecificationsValue
No.1036704
Tonnage (tons)49
Working weight (kg)52700
Bucket capacity (m³)2.3
Boom length (mm)7000
Rod length (mm)3000
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino P11C
Rated power (kw/rpm)257/1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)122 x 150
Maximum torque (N.m)1400
Number of cylinders (PCS)6
Displacement (L)10.52
Working formDirect injection, water-cooled, four-stroke, turbocharged, built-in intercooling
Rotation speed (rpm)7.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)266
Rod digging force (kN)223
Maximum tractive force (kN)417
Travel speed (km/h)5.4/3.4
Maximum flow of main pump (l/min)2 x 370
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Control Hydraulic Circuit (Mpa)5
Main pump typeDual variable displacement axial piston pump
Working Hydraulic Circuit (Mpa)31.4
Fuel Tank (L)650
Hydraulic Tank (L)300
Engine Oil changes (L)50
Coolant (L)41
Hydraulic System (L)555
Total transport length (mm)12080
Total transport width (mm)3570
Total transport height (mm)3800
Minimum ground clearance (mm)510
Minimum turning radius of front working device (mm)5270
Back end turning radius (mm)3670
Total track length (mm)5460
Total track width (mm)3130
Maximum height at minimum turning radius (mm)9003
Maximum digging radius (mm)11770
Maximum digging depth (mm)7360
Maximum excavation height (mm)11160
Maximum unloading height (mm)7720
Maximum vertical digging depth (mm)6680
Maximum excavation radius of stop surface (mm)11540
see more

Overview

No.1036704

Brand Name:

Kobelco

Model Number:

SK495D

Year:

2018

Location:

Zhejiang China
