Product Description

Available now in Fujian, this 2020 Kobelco SK495D eliminates factory wait times and delivers immediate productivity to your project. Operating at 49 tons with a robust 52,700 kg working weight, this crawler excavator combines Hino P11C power (257 kW at 1850 rpm) with exceptional reach capabilities—11,770 mm maximum digging radius and 7,360 mm digging depth. Dual variable displacement axial piston pumps deliver 2 × 370 l/min flow for responsive hydraulic performance across demanding applications.

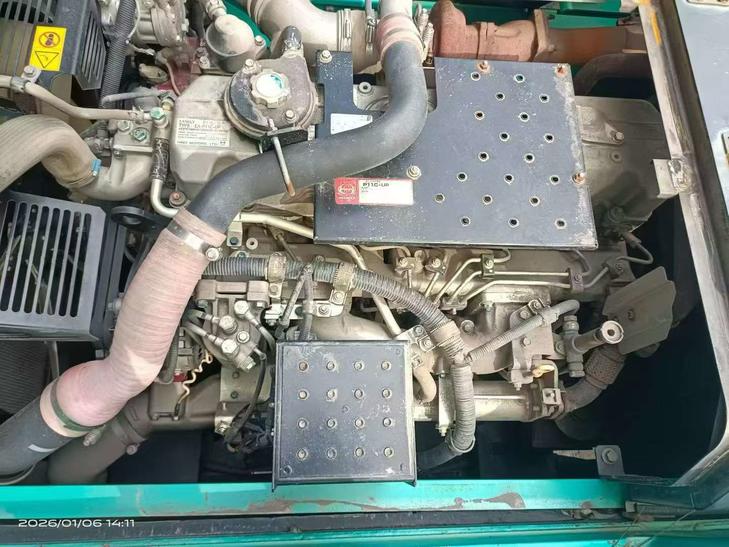

  • Engine: Hino P11C, 6-cylinder, 10.52L displacement, water-cooled with intercooling
  • Digging Force: 266 kN bucket force, 223 kN arm force for tough material handling
  • Capacity: 2.3 m³ backhoe bucket, 650L fuel tank for extended operation
  • Performance: 7.8 rpm swing speed, 70% grading ability, 417 kN maximum tractive force
  • Transport Dimensions: 12,080 × 3,570 × 3,800 mm

Fast deployment from Fujian ensures minimal downtime. Ready to ship directly to your site—contact Fair Trade Machinery today for immediate availability and competitive export pricing.

SpecificationsValue
No.1045136
Tonnage (tons)49
Working weight (kg)52700
Bucket capacity (m³)2.3
Boom length (mm)7000
Rod length (mm)3000
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeHino P11C
Rated power (kw/rpm)257/1850
Cooling modewater-cooling
Cylinder diameter × stroke (mm)122 x 150
Maximum torque (N.m)1400
Number of cylinders (PCS)6
Displacement (L)10.52
Working formDirect injection, water-cooled, four-stroke, turbocharged, built-in intercooling
Rotation speed (rpm)7.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)266
Rod digging force (kN)223
Maximum tractive force (kN)417
Travel speed (km/h)5.4/3.4
Maximum flow of main pump (l/min)2 x 370
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Control Hydraulic Circuit (Mpa)5
Main pump typeDual variable displacement axial piston pump
Working Hydraulic Circuit (Mpa)31.4
Fuel Tank (L)650
Hydraulic Tank (L)300
Engine Oil changes (L)50
Coolant (L)41
Hydraulic System (L)555
Total transport length (mm)12080
Total transport width (mm)3570
Total transport height (mm)3800
Minimum ground clearance (mm)510
Minimum turning radius of front working device (mm)5270
Back end turning radius (mm)3670
Total track length (mm)5460
Total track width (mm)3130
Maximum height at minimum turning radius (mm)9003
Maximum digging radius (mm)11770
Maximum digging depth (mm)7360
Maximum excavation height (mm)11160
Maximum unloading height (mm)7720
Maximum vertical digging depth (mm)6680
Maximum excavation radius of stop surface (mm)11540
