Product Description

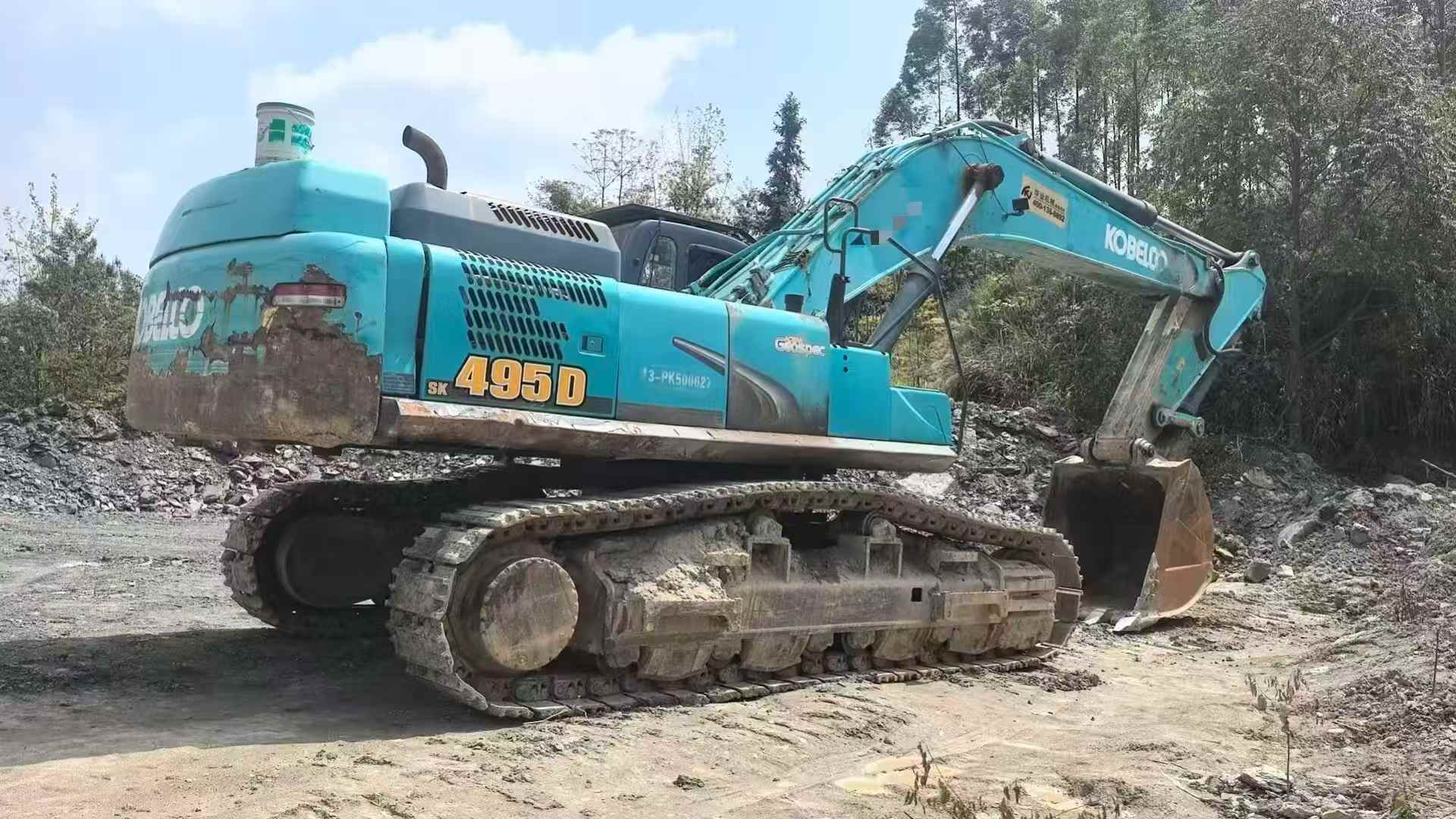

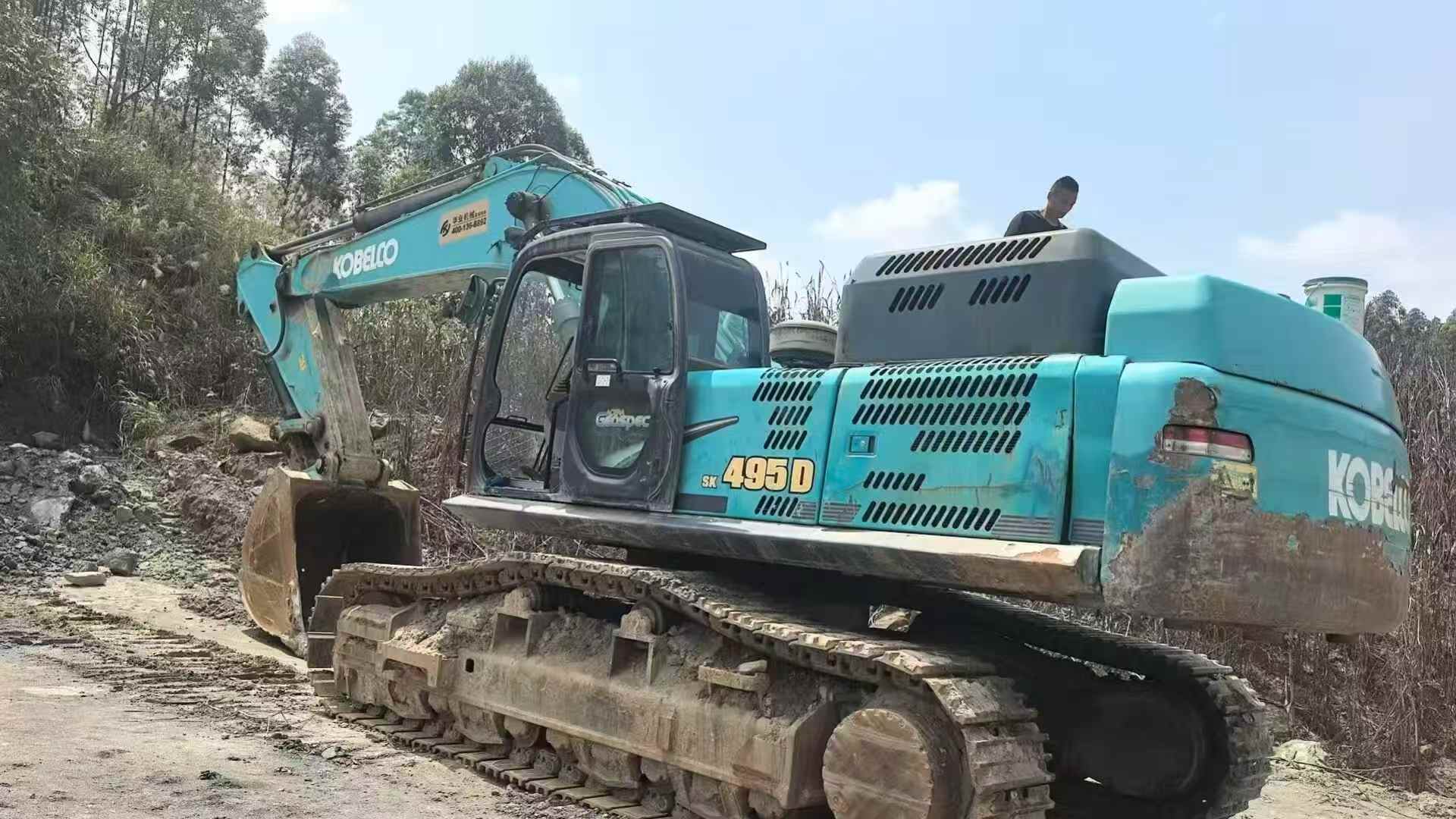

Discover the robust 2020 Kobelco SK495D, a premium used heavy machine currently available in Guizhou, China. This excavator is designed to handle the most demanding tasks with efficiency and reliability, making it an ideal choice for construction and mining operations. With a reputation for durability and performance, the SK495D model offers a cost-effective solution for your industrial needs.
- Year: 2020
- Brand: Kobelco
- Model: SK495D
- Location: Guizhou, China
- Priced at 316,000 RMB
| Specifications | Value |
|---|---|
| No. | 1057655 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 52700 |
| Bucket capacity (m³) | 2.3 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

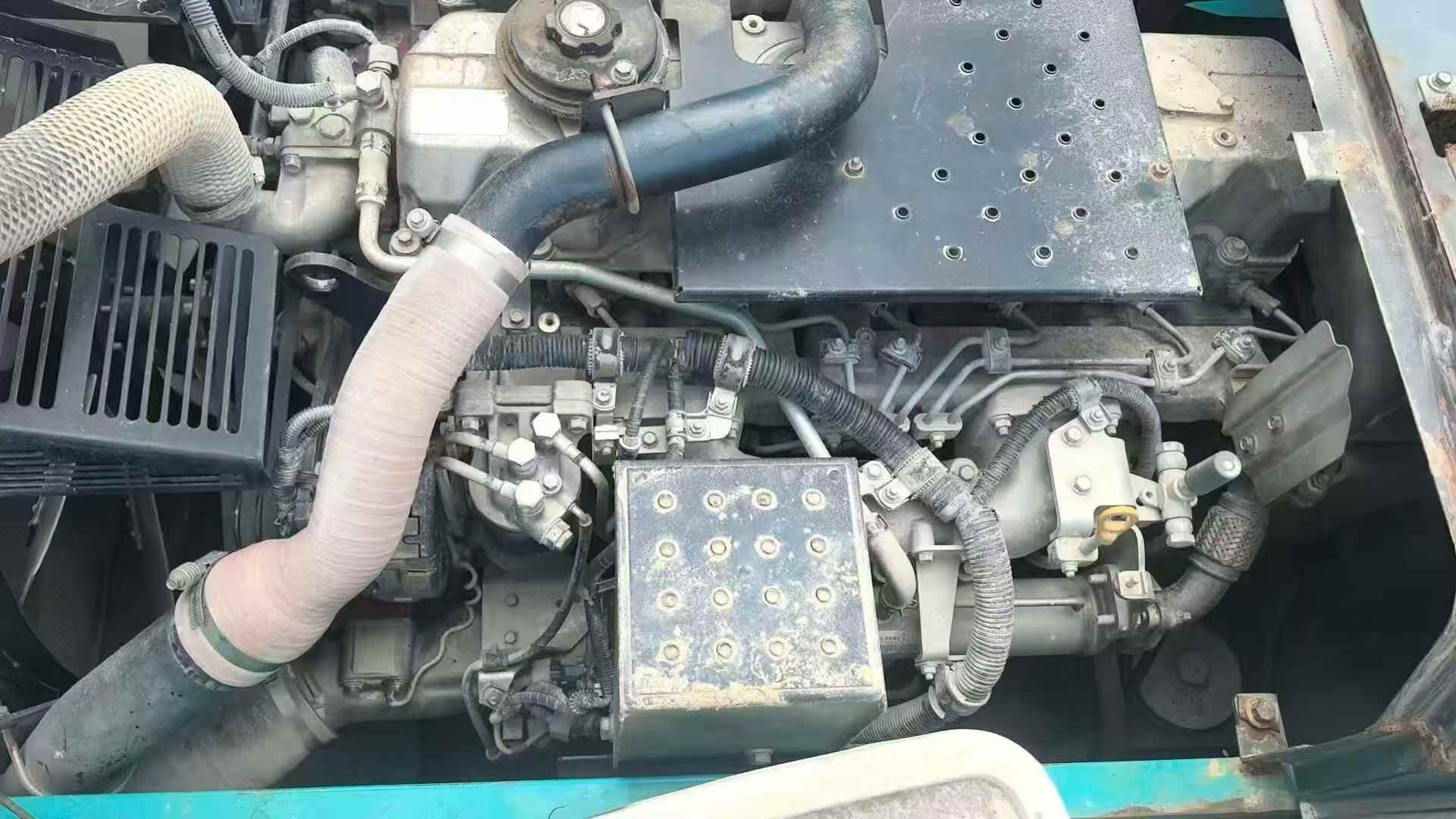

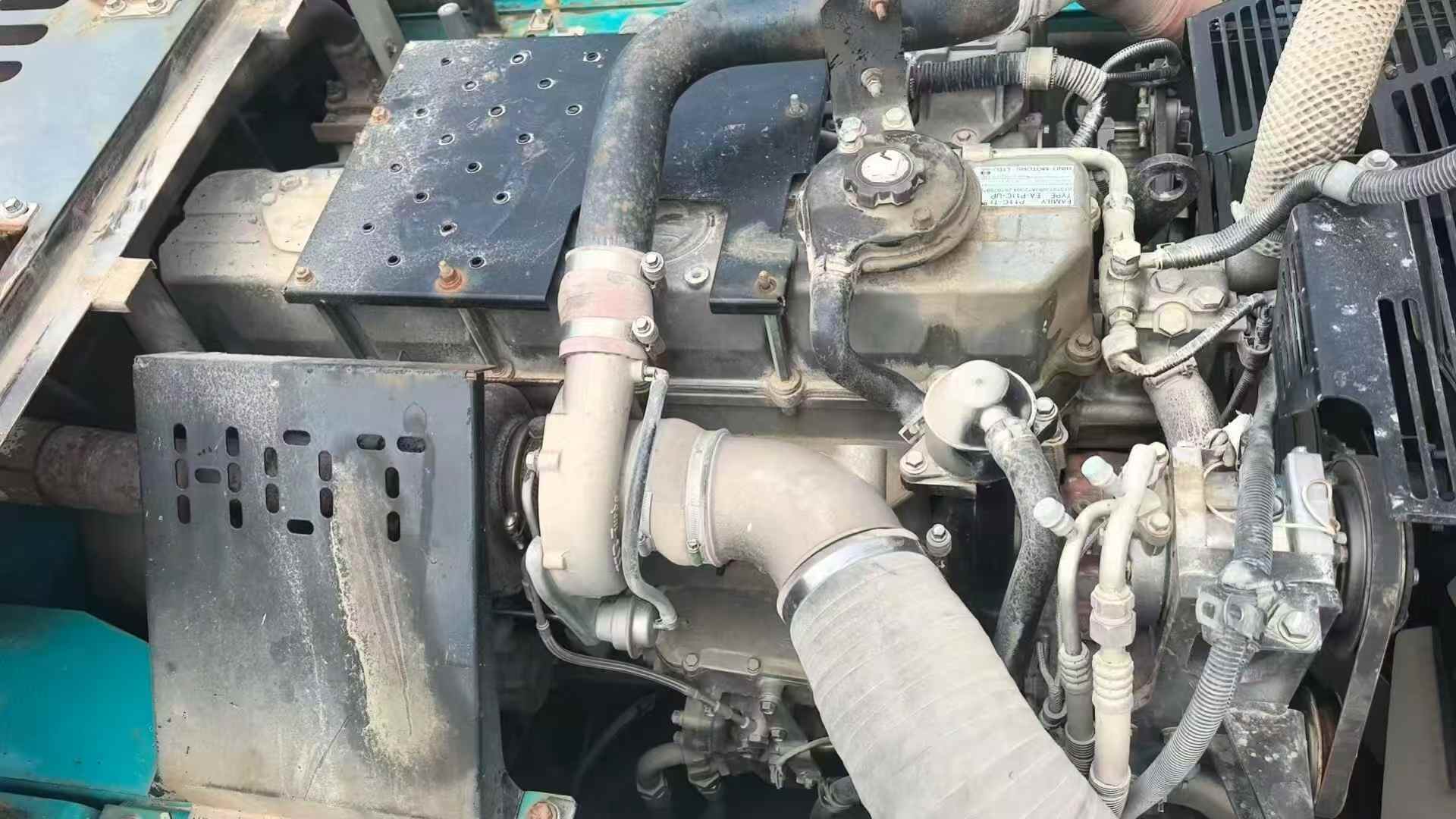

| Engine type | Hino P11C |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 122 x 150 |
| Maximum torque (N.m) | 1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.52 |
| Working form | Direct injection, water-cooled, four-stroke, turbocharged, built-in intercooling |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 266 |
| Rod digging force (kN) | 223 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Maximum flow of main pump (l/min) | 2 x 370 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Control Hydraulic Circuit (Mpa) | 5 |
| Main pump type | Dual variable displacement axial piston pump |
| Working Hydraulic Circuit (Mpa) | 31.4 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Engine Oil changes (L) | 50 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3800 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 5270 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5460 |
| Total track width (mm) | 3130 |
| Maximum height at minimum turning radius (mm) | 9003 |
| Maximum digging radius (mm) | 11770 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 11160 |
| Maximum unloading height (mm) | 7720 |
| Maximum vertical digging depth (mm) | 6680 |
| Maximum excavation radius of stop surface (mm) | 11540 |
