Product Description
Equipped with a HINO P11C turbocharged engine, this 2018 Kobelco SK495D SuperX delivers 257 kW at 1850 rpm, ensuring robust performance. Water-cooled and designed for durability, the engine provides a maximum torque of 1400 N.m. The hydraulic system operates at 34.3 Mpa, supporting precise and powerful operations. With a bucket capacity of 2.5 m³ and a digging force of 267 kN, this excavator is built for heavy-duty tasks.
- Working weight: 53,100 kg
- Boom length: 7000 mm, Rod length: 3000 mm
- Maximum tractive force: 417 kN
- Travel speed: 5.4/3.4 km/h
- Total transport dimensions: 12080 x 3575 x 3800 mm
Made in China, the SK495D SuperX boasts a climbing ability of 70%, making it versatile for challenging terrains. Its advanced engineering ensures reliability and efficiency, ideal for demanding construction and excavation projects.
| Specifications | Value |
|---|---|
| No. | 998968 |
| Tonnage (tons) | 53 |
| Working weight (kg) | 53100 |
| Bucket capacity (m³) | 2.5 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

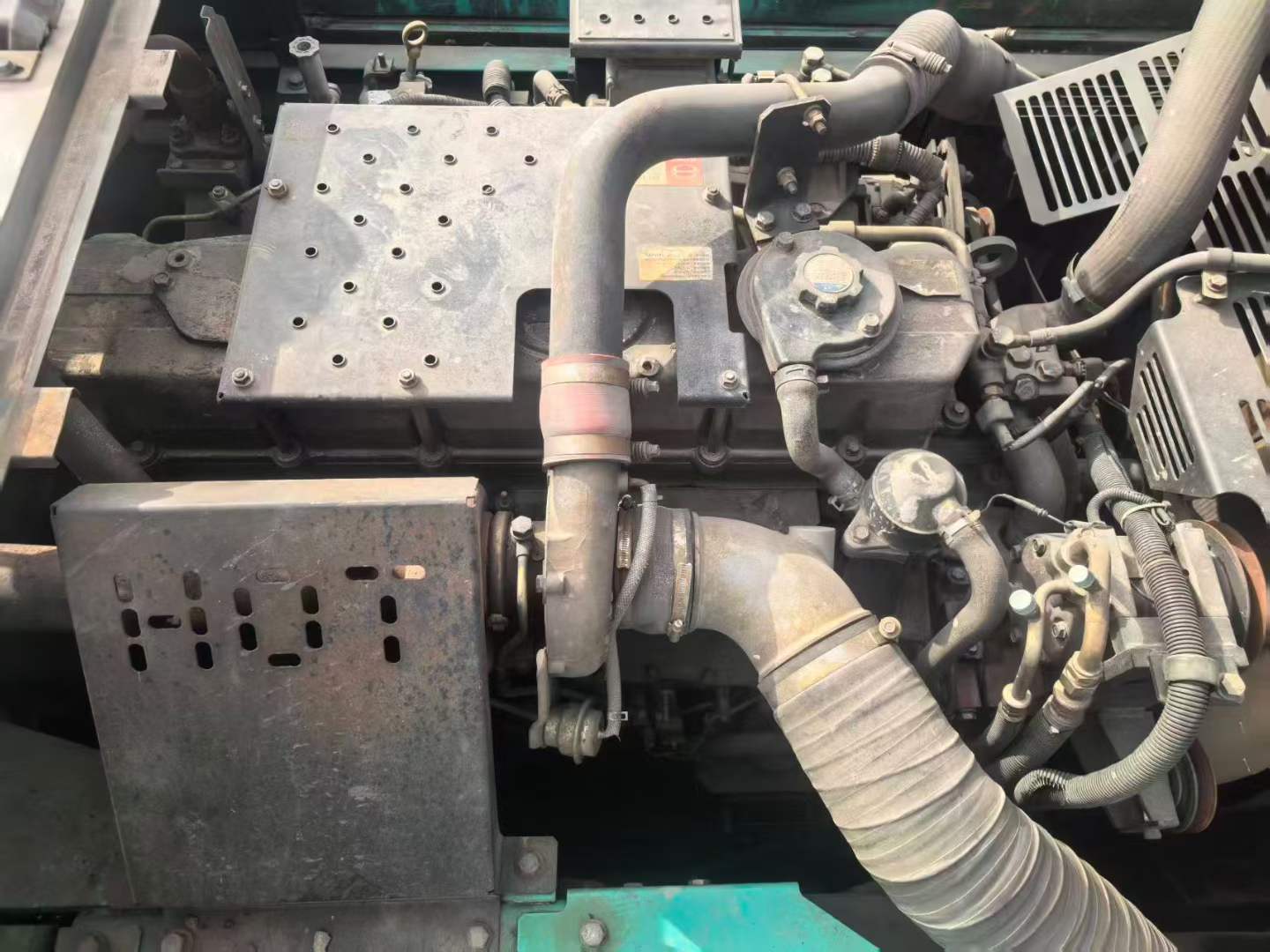

| Engine type | HINO P11C turbocharged engine |
| Rated power (kw/rpm) | 257/1850 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1400/1400 |
| Rotation speed (rpm) | 7.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 223 |
| Maximum tractive force (kN) | 417 |
| Travel speed (km/h) | 5.4/3.4 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 300 |
| Hydraulic System (L) | 555 |
| Total transport length (mm) | 12080 |
| Total transport width (mm) | 3575 |
| Total transport height (mm) | 3800 |
| Counterweight ground clearance (mm) | 1340 |
| Minimum ground clearance (mm) | 510 |
| Minimum turning radius of front working device (mm) | 4400 |
| Back end turning radius (mm) | 3670 |
| Total track length (mm) | 5480 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11770 |
| Maximum digging depth (mm) | 7360 |
| Maximum excavation height (mm) | 11160 |
| Maximum unloading height (mm) | 7720 |
| Maximum vertical digging depth (mm) | 6680 |
see more
Overview
No.998968
Brand Name：
KobelcoModel Number：
SK495D SuperXYear：
2018
Location：
Gansu China
Pub Date：
