Product Description

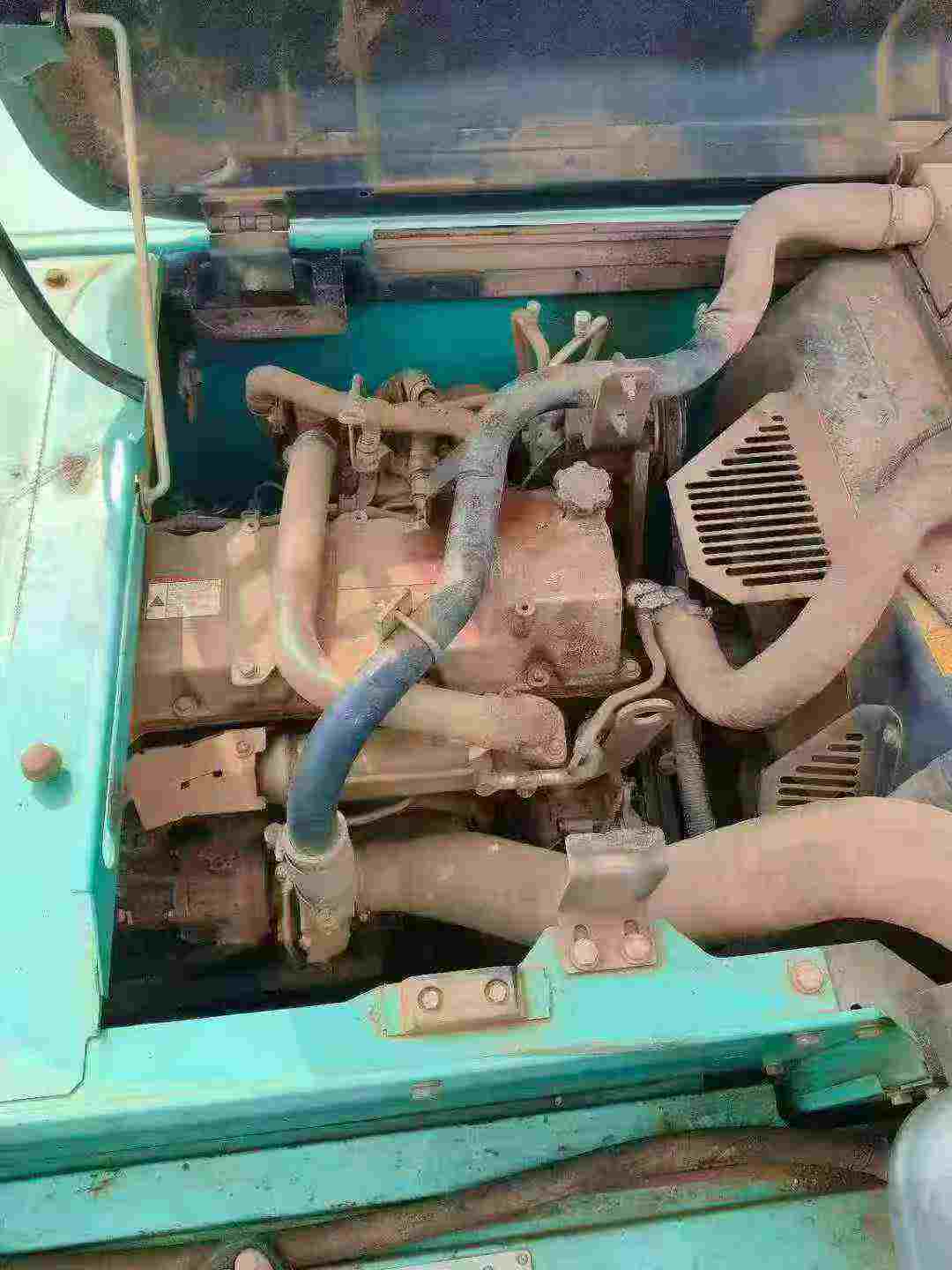

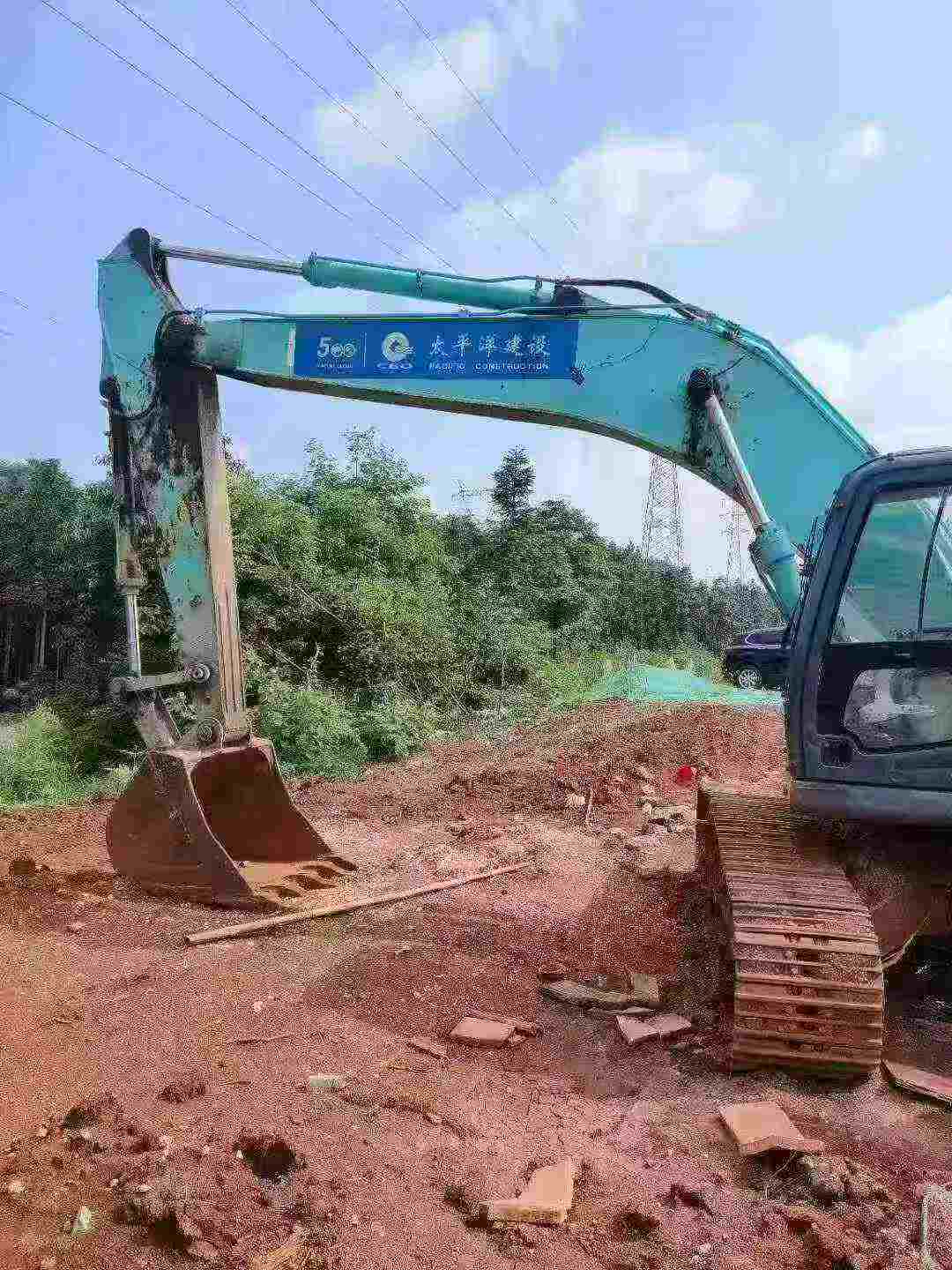

Available now in Guangdong Huizhou, this 2018 Kobelco SK60-10 mini excavator cuts weeks off your project timeline. Skip the factory lead times and deploy a proven 6-ton workhorse to your site within days. Powered by a Yanmar 4TNV94L-ZCP engine delivering 35.5 kW at 2,400 rpm, this compact machine combines reliable joint-venture engineering with field-ready performance.
- Immediate Availability: Located in Guangdong Huizhou for rapid logistics across South China and export markets
- Digging Performance: 6,200 mm max reach, 3,910 mm depth, 40.5 kN bucket force
- Compact Footprint: 5,850 mm transport length, 1,900 mm width—ideal for urban sites and confined spaces

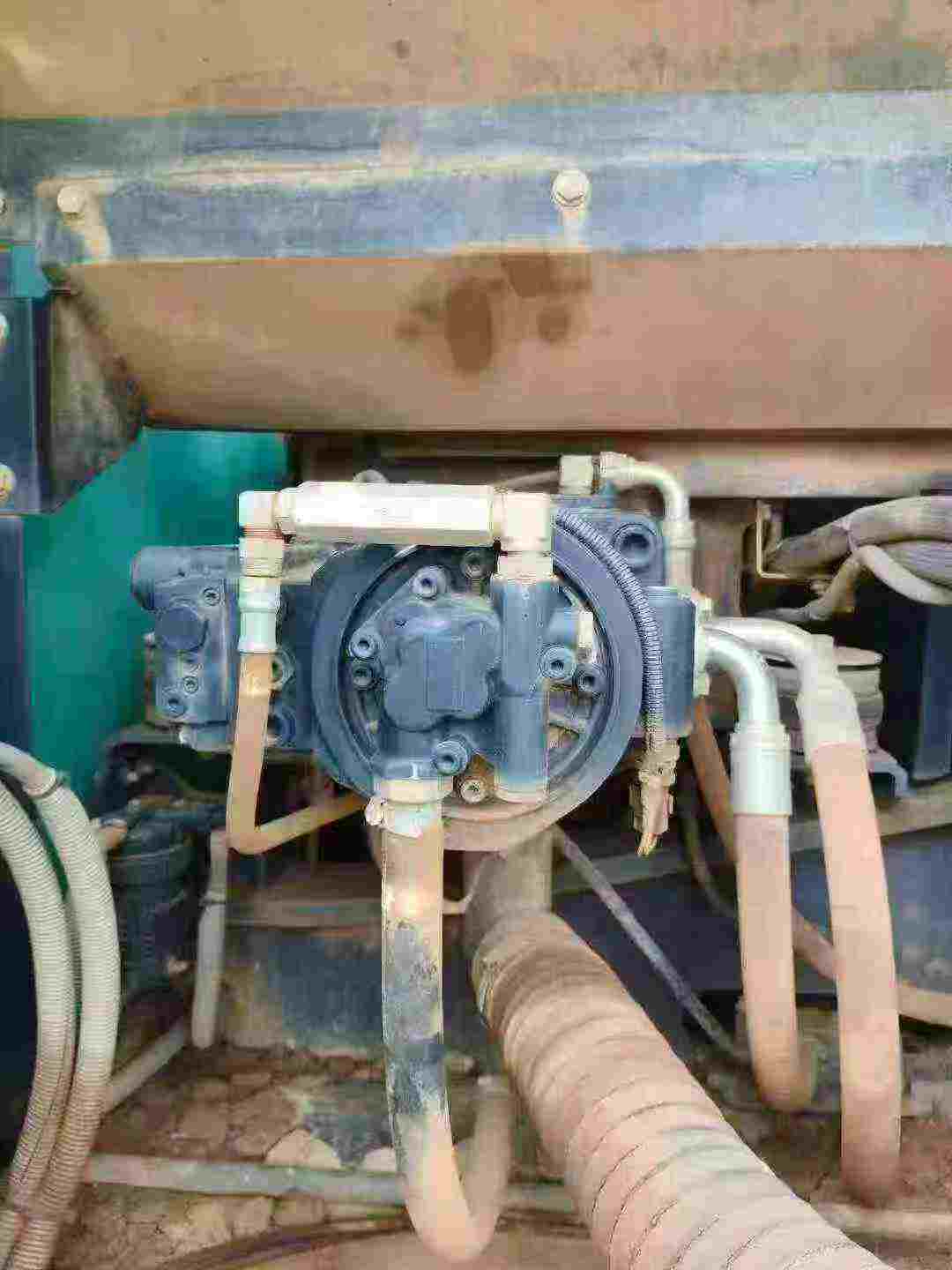

- Proven Hydraulics: Dual variable displacement axial piston pumps (57.1 L/min each) ensure responsive control
- Operational Efficiency: 120 L fuel tank, 0.22 m³ bucket capacity, 4.2 km/h travel speed
Fast deployment starts here. Contact Fair Trade Machinery today to arrange inspection and secure your logistics schedule.
| Specifications | Value |
|---|---|
| No. | 1014180 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5770 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Bucket width (mm) | 760 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZCP |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 202 / 1,450 |
| Displacement (L) | 3.053 |
| Working form | Vertical in-line water-cooled four-stroke diesel engine (Direct injection) |
| Ground specific pressure (Kpa) | 33.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 40.5 |
| Rod digging force (kN) | 25.1 |
| Travel speed (km/h) | 4.2 / 2.5 |
| Maximum flow of main pump (l/min) | 57.1 x 2, 33.8 x 1 |
| Main pump type | Variable displacement axial piston pump 2 + gear pump 2 |
| Pilot pump flow (L/min) | 12.2 x 1 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 41 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1900 |
| Total transport height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3910 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1,960 times 345 |
