Product Description

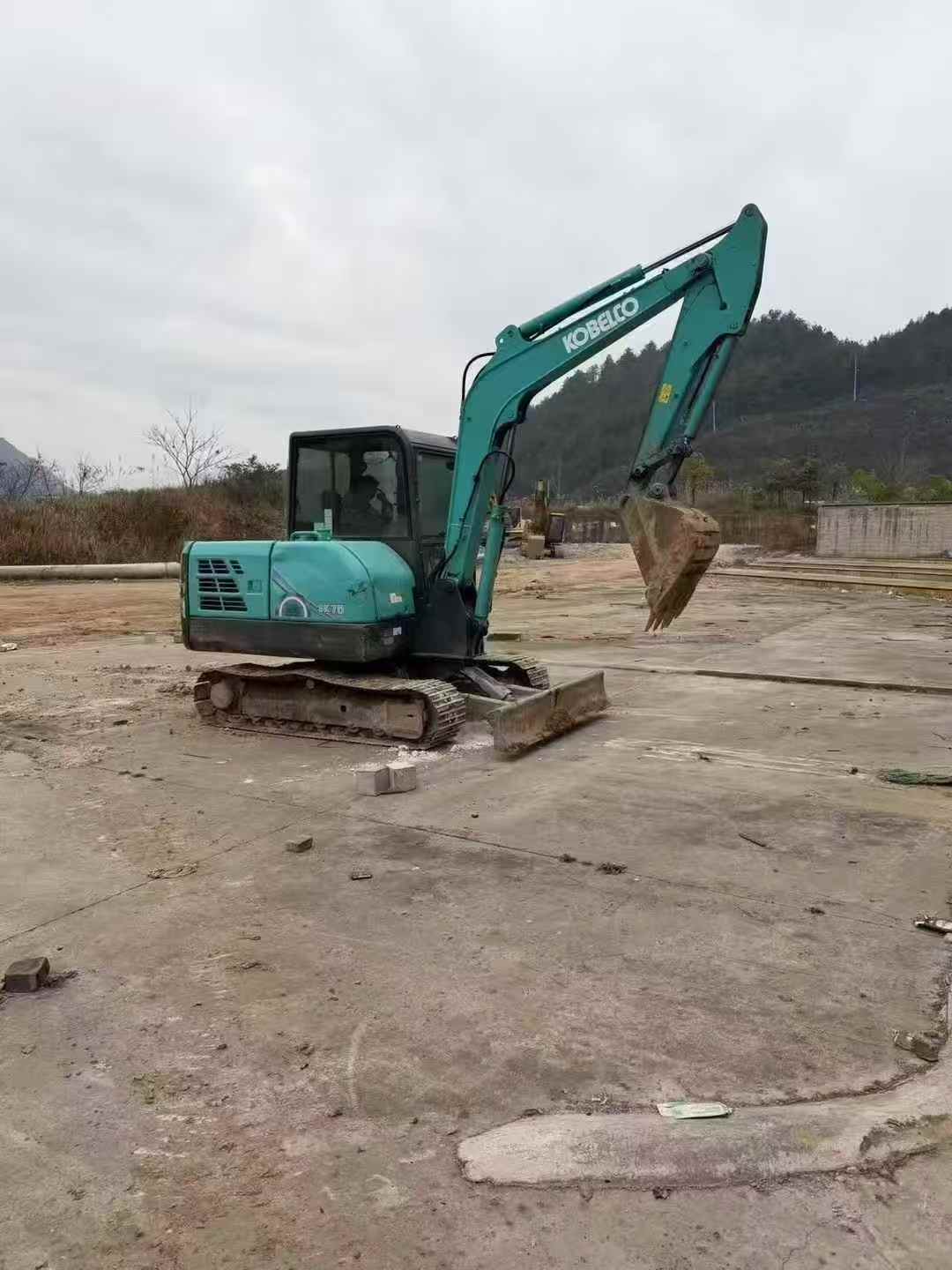

With a working weight of 5,770 kg and a robust Yanmar 4TNV94L-ZCP engine, this 2021 Kobelco SK60-10 excavator is a proven workhorse in the field. Located in 贵州, it features a 0.22 m³ bucket capacity and a 1,660 mm rod length, ensuring efficient digging and loading. The machine's 35.5 kW rated power at 2,400 rpm, combined with a maximum torque of 202 N.m at 1,450 rpm, delivers consistent performance. Equipped with a water-cooling system and a variable displacement axial piston pump, it maintains optimal operation under various conditions. Its 58% climbing ability and 4.2 km/h travel speed enhance maneuverability on tough terrains. Built to last, this excavator has a ground specific pressure of 33.7 Kpa, making it a reliable choice for demanding construction projects.
| Specifications | Value |
|---|---|
| No. | 1000871 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5770 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Bucket width (mm) | 760 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

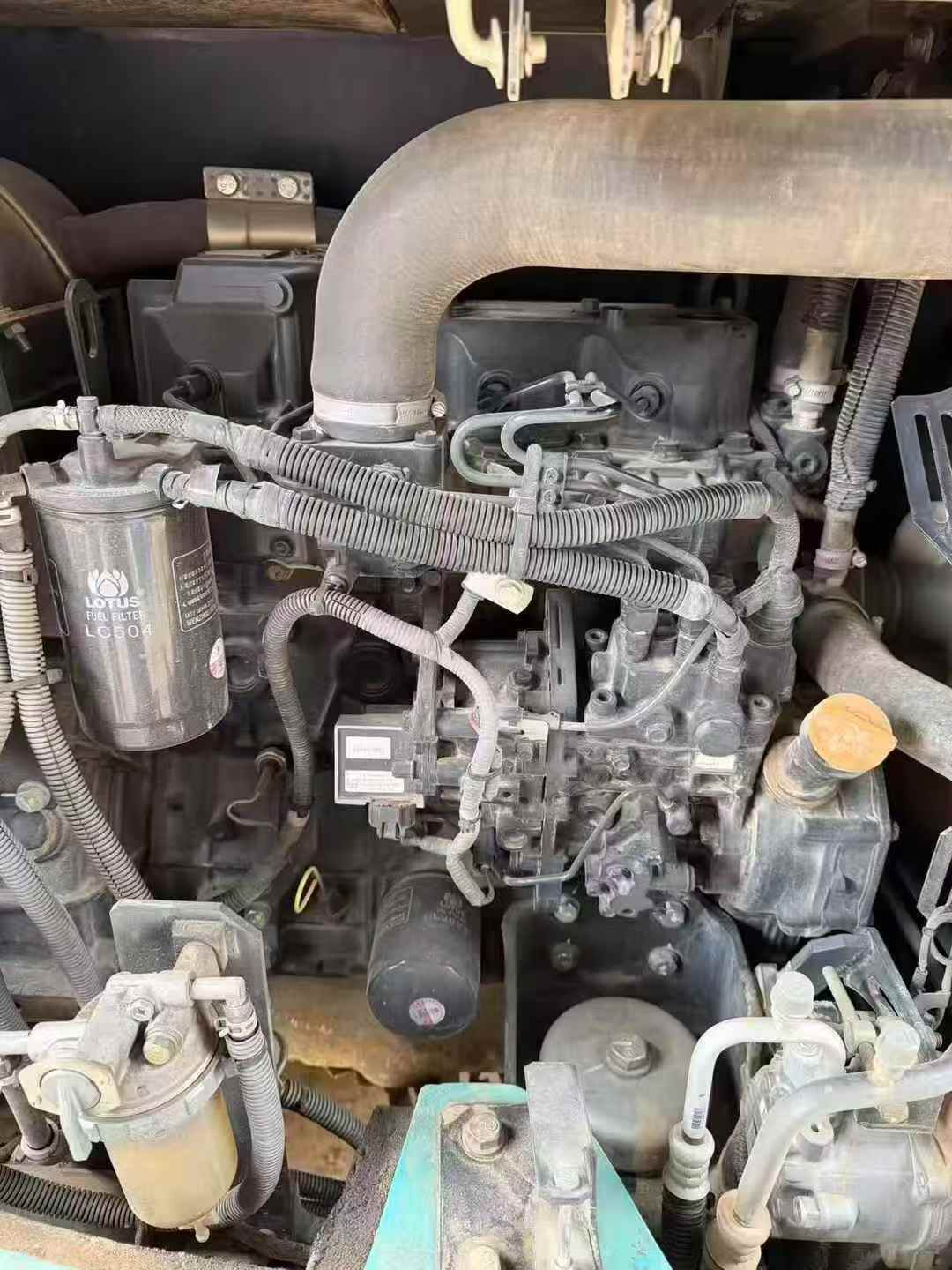

| Engine type | Yanmar 4TNV94L-ZCP |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 202 / 1,450 |
| Displacement (L) | 3.053 |
| Working form | Vertical in-line water-cooled four-stroke diesel engine (Direct injection) |
| Ground specific pressure (Kpa) | 33.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 40.5 |
| Rod digging force (kN) | 25.1 |
| Travel speed (km/h) | 4.2 / 2.5 |
| Maximum flow of main pump (l/min) | 57.1 x 2, 33.8 x 1 |
| Main pump type | Variable displacement axial piston pump 2 + gear pump 2 |
| Pilot pump flow (L/min) | 12.2 x 1 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 41 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1900 |
| Total transport height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3910 |

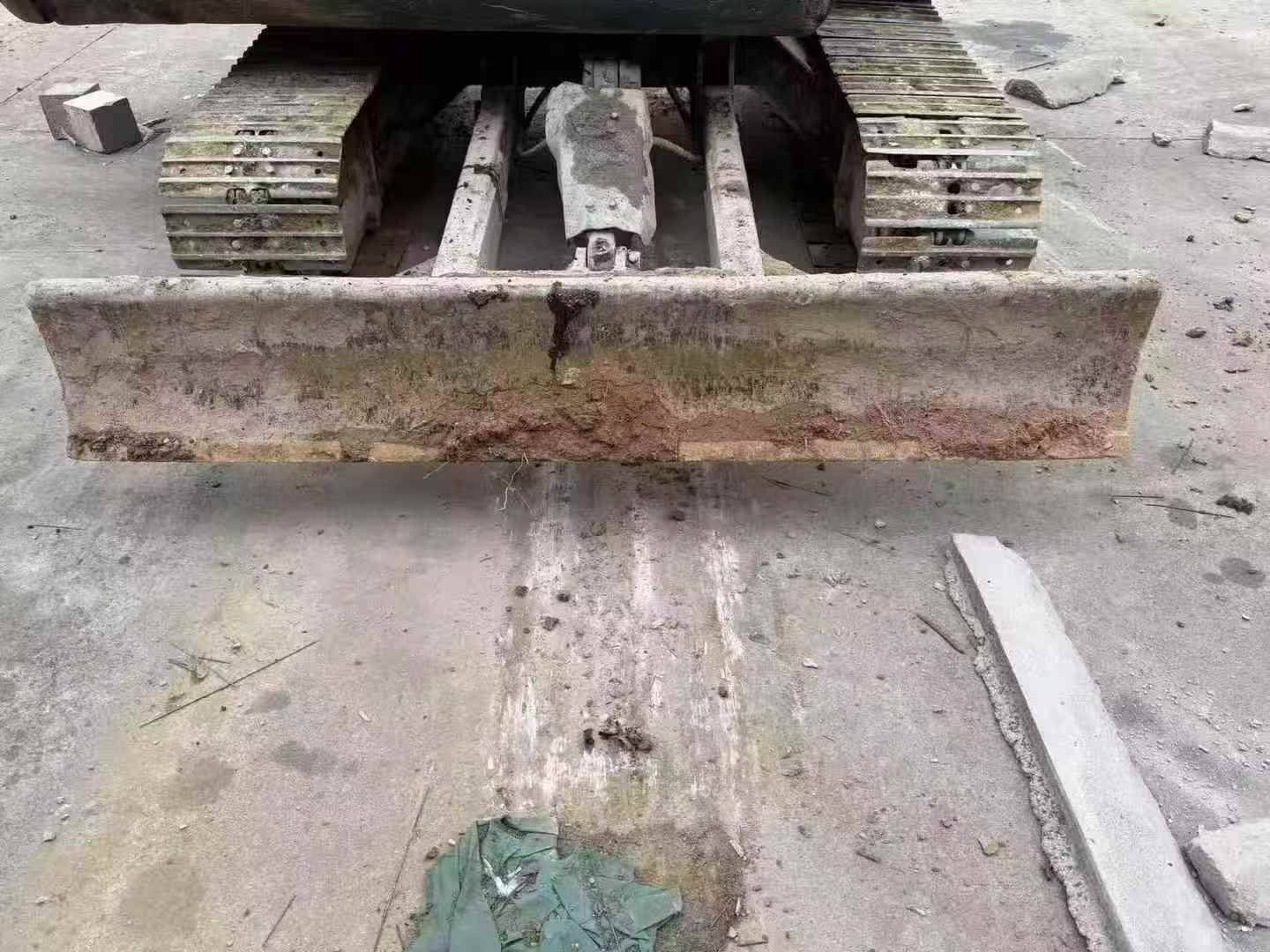

| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1,960 times 345 |
