Product Description

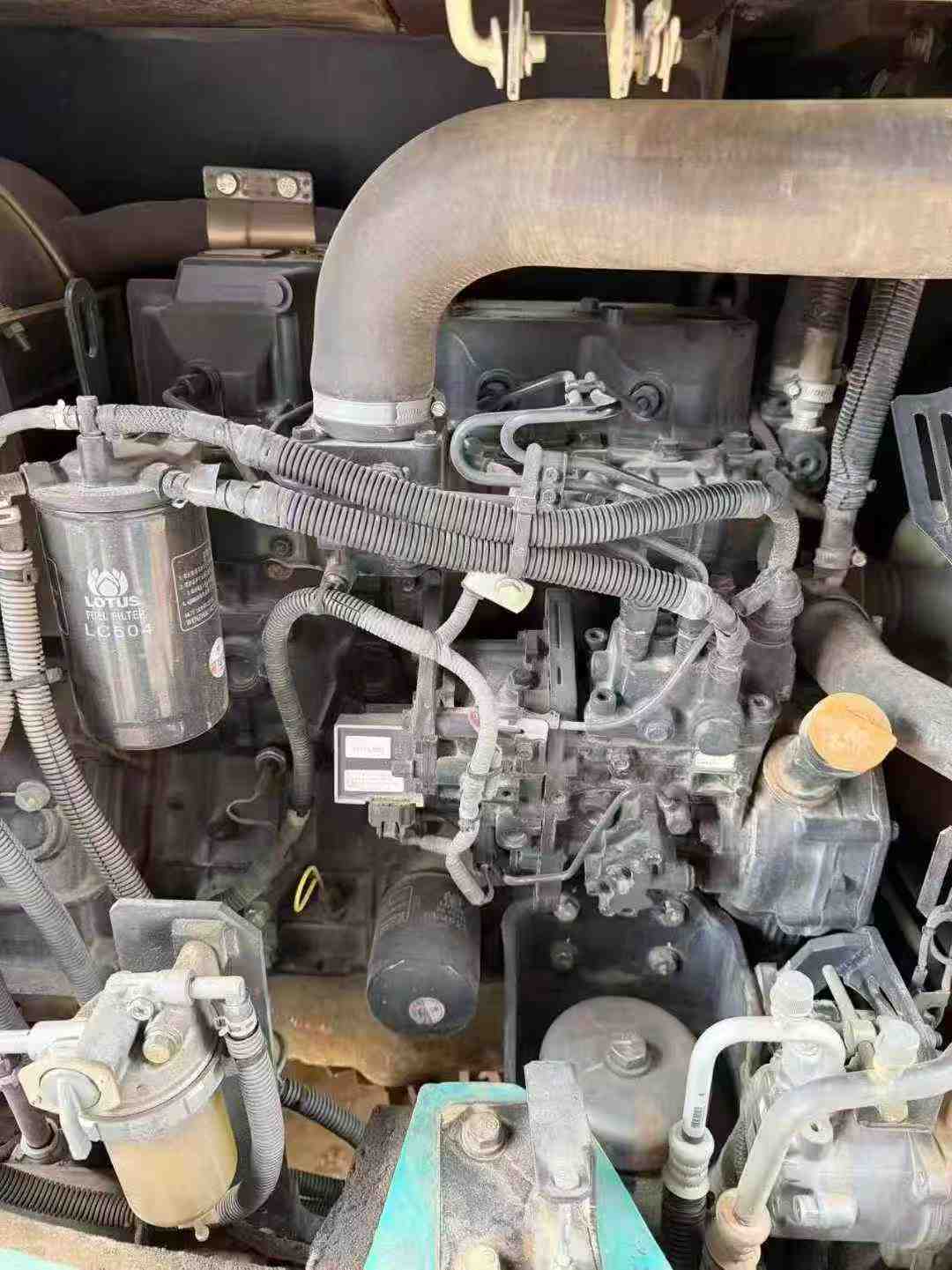

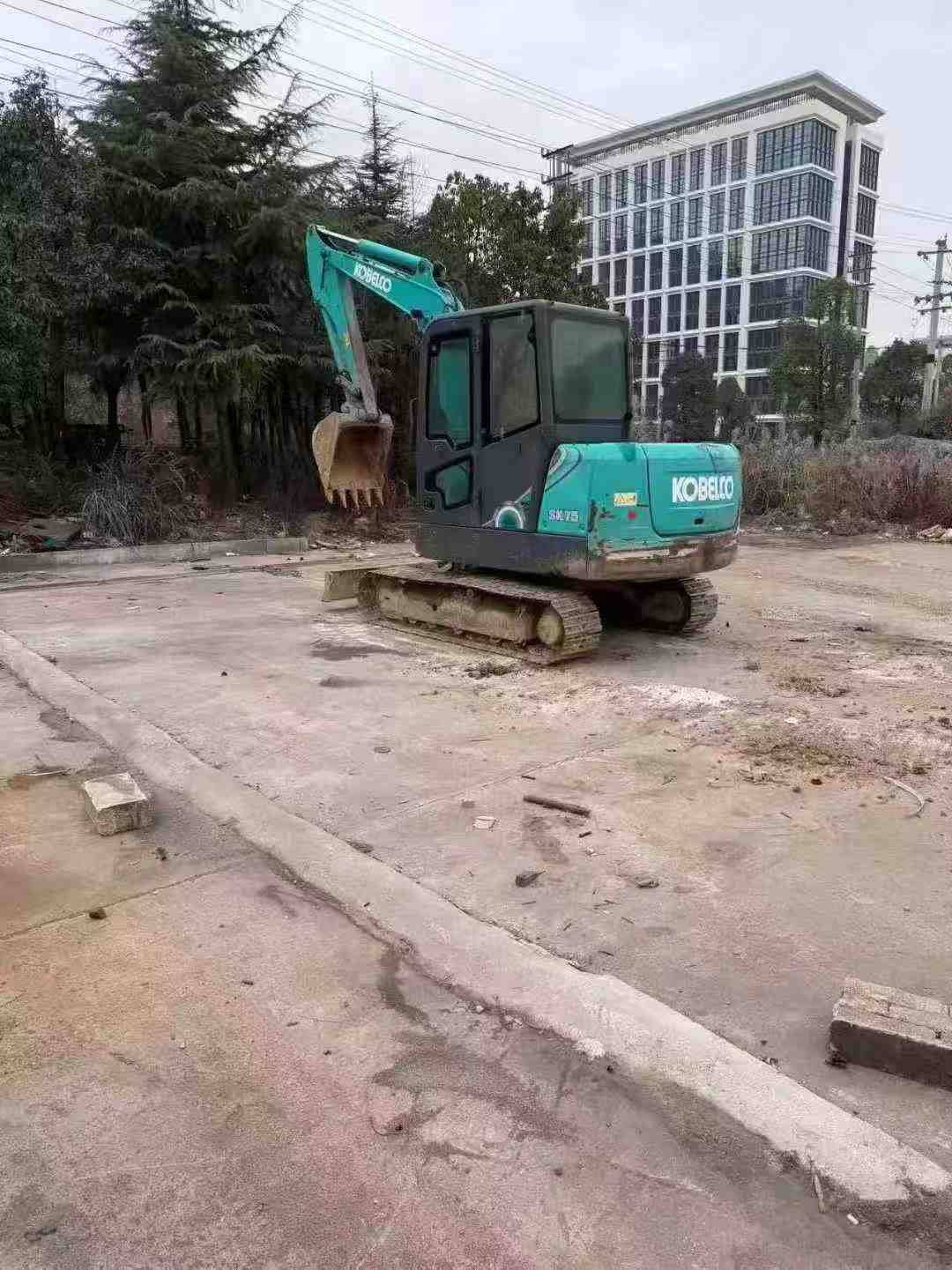

Built for immediate deployment, this 2021 Kobelco SK60-10 mini excavator delivers reliable performance across digging, grading, and demolition applications. Operating at 5,770 kg working weight with a 0.22 m³ bucket capacity, this 6-ton machine combines compact dimensions with serious capability. The Yanmar 4TNV94L-ZCP engine generates 35.5 kW at 2,400 rpm, providing consistent power through a water-cooled, direct-injection diesel system backed by 202 N·m maximum torque.
Performance specifications include:
- Maximum digging radius of 6,200 mm and depth of 3,910 mm for extensive reach
- Bucket digging force of 40.5 kN and rod force of 25.1 kN for tough material penetration
- Variable displacement axial piston pumps delivering 57.1 L/min flow for responsive hydraulics
- 58% climbing ability and 8.9 rpm rotation speed for versatile site mobility
- Compact transport dimensions (5,850 × 1,900 × 2,550 mm) for easy relocation
Currently located in Luzhou, Sichuan, this joint venture-manufactured excavator arrives site-ready with 120L fuel capacity and proven Kobelco engineering for demanding jobsite conditions.
| Specifications | Value |
|---|---|
| No. | 996823 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5770 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Bucket width (mm) | 760 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L-ZCP |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 202 / 1,450 |
| Displacement (L) | 3.053 |
| Working form | Vertical in-line water-cooled four-stroke diesel engine (Direct injection) |
| Ground specific pressure (Kpa) | 33.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58 |
| Bucket digging force (kN) | 40.5 |
| Rod digging force (kN) | 25.1 |
| Travel speed (km/h) | 4.2 / 2.5 |
| Maximum flow of main pump (l/min) | 57.1 x 2, 33.8 x 1 |
| Main pump type | Variable displacement axial piston pump 2 + gear pump 2 |
| Pilot pump flow (L/min) | 12.2 x 1 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 41 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1900 |
| Total transport height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3910 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1,960 times 345 |
