Product Description

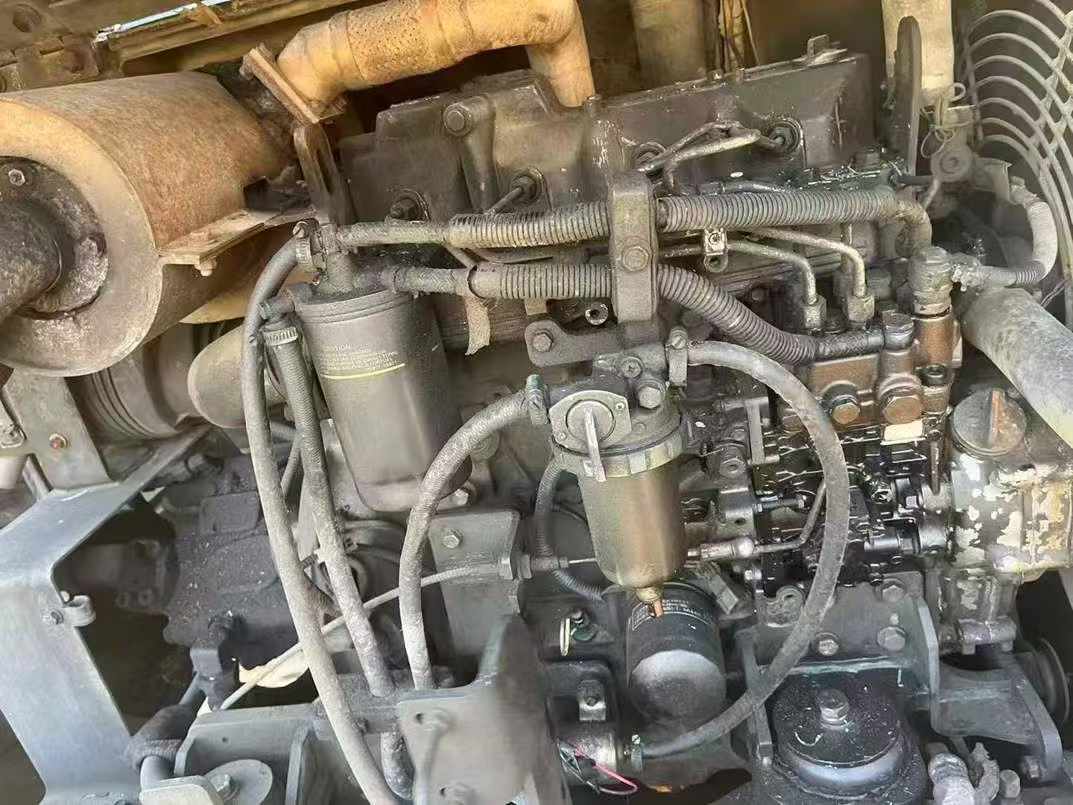

With a working weight of 5610 kg and a bucket capacity of 0.22 m³, the 2016 Kobelco SK60-8 excavator offers robust performance for a variety of construction tasks. Located in 浙江杭州, this machine is powered by a Yanmar 4TNV94L engine, delivering 35.5 kW at 2400 rpm, ensuring reliable and efficient operation. The water-cooled, direct injection engine provides a maximum torque of 21.7 N.m at 1440 rpm, enhancing its capability to handle tough jobs.
- Equipped with a backhoe bucket, it features a digging force of 40.1 kN, making it ideal for excavation tasks.

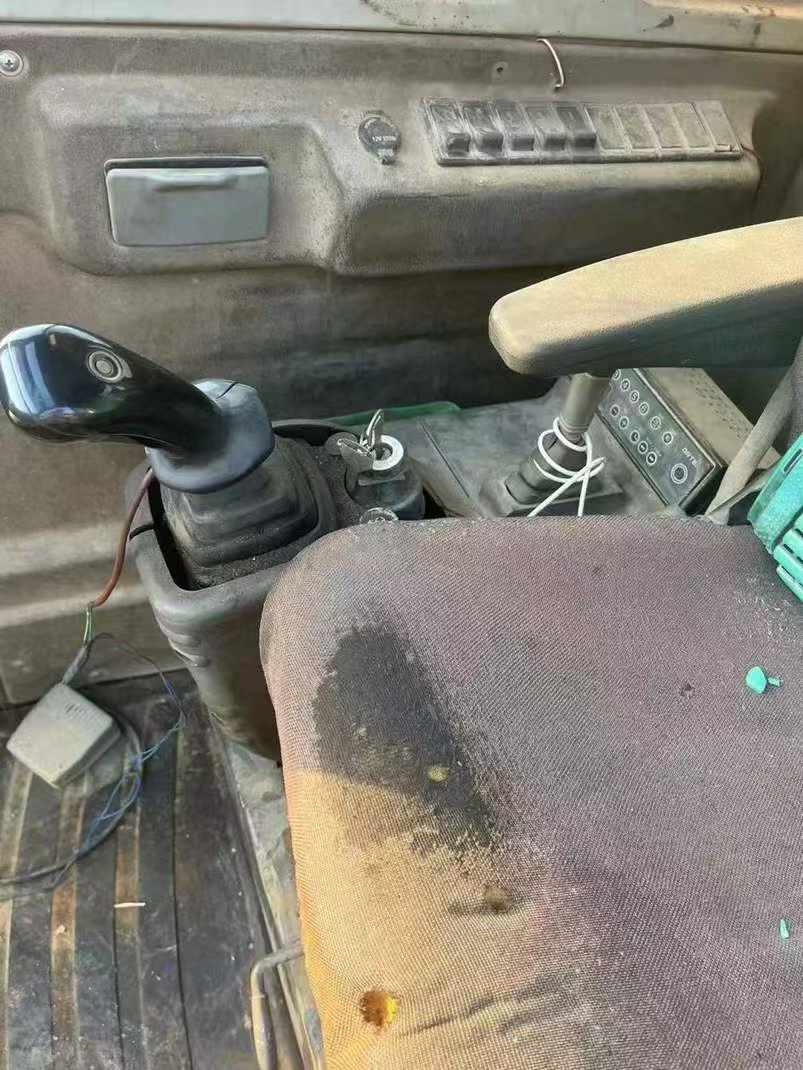

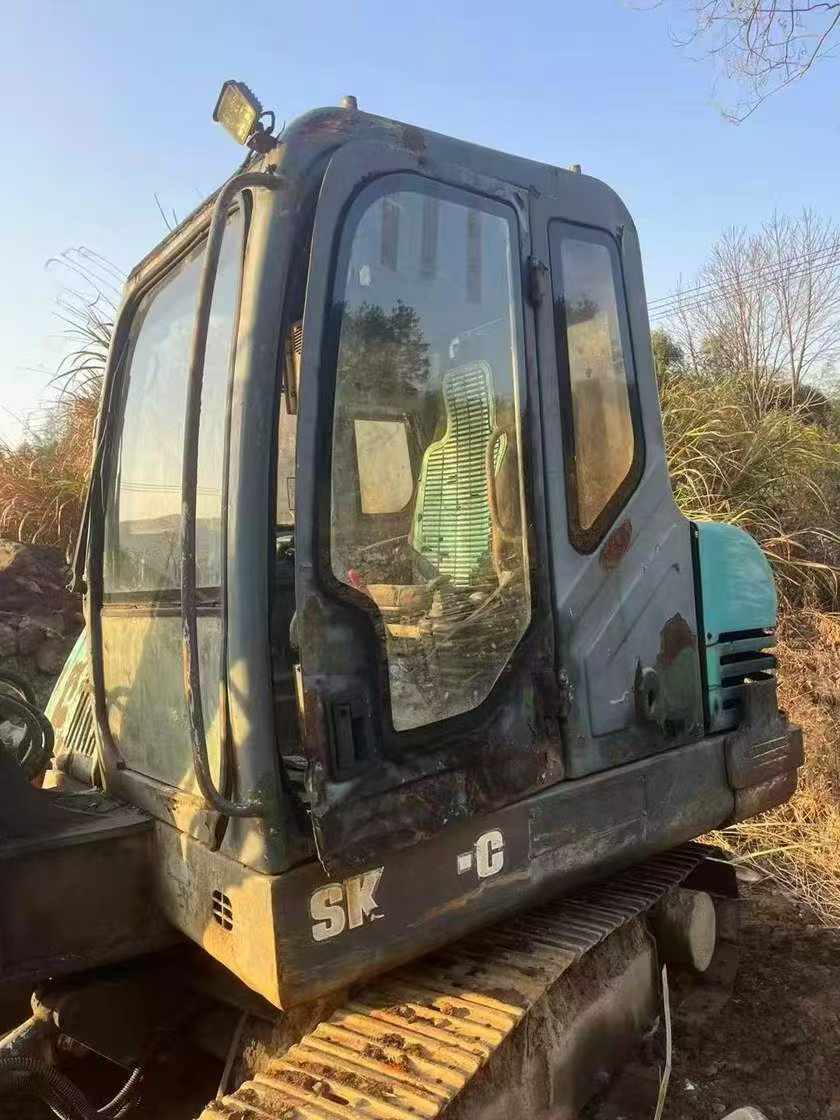

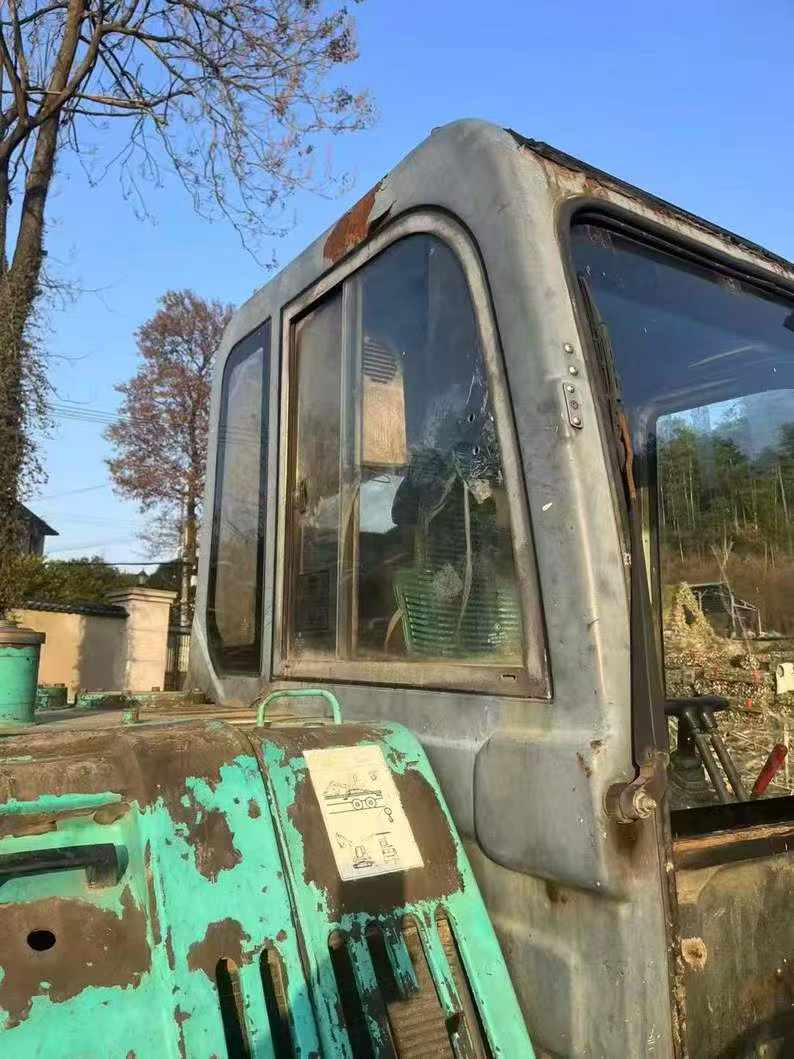

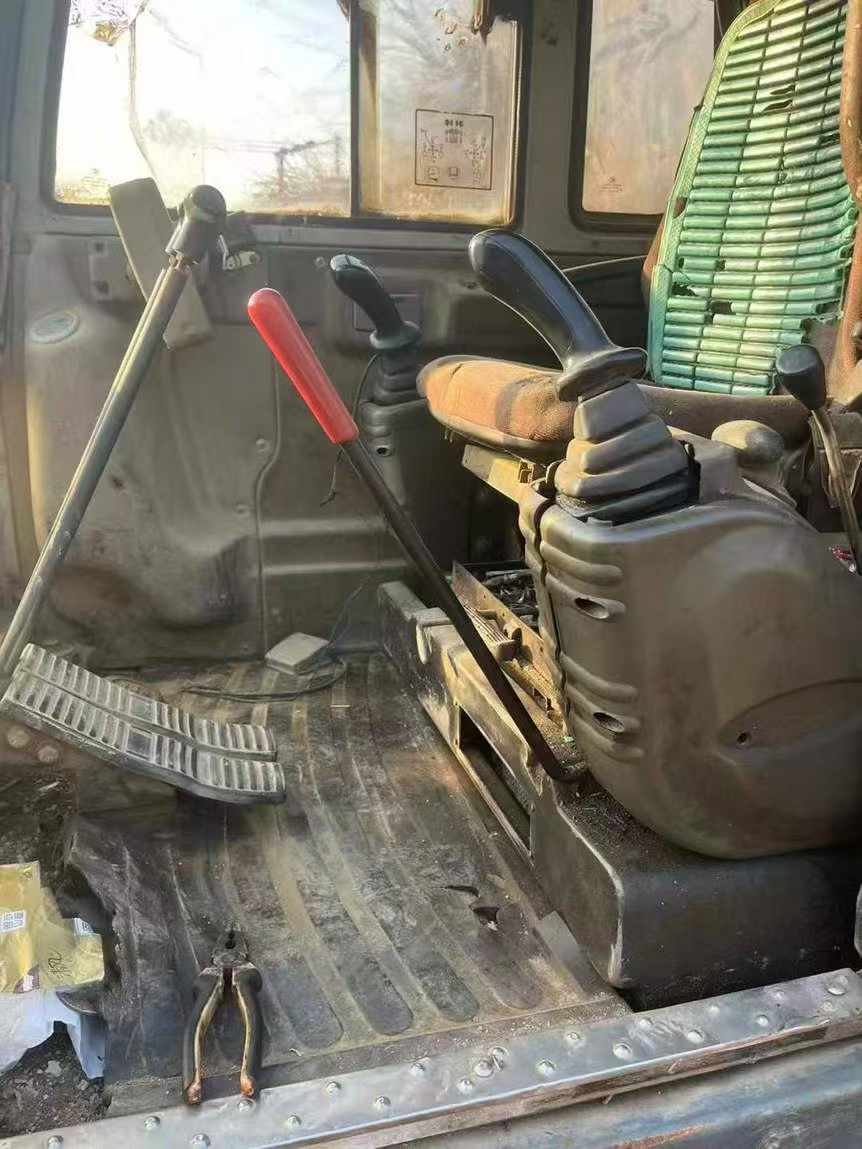

- The cab, with a full height of 2550 mm, offers excellent visibility, allowing operators to maintain clear sight lines and control over the worksite.
- Stability is enhanced by a ground specific pressure of 32.7 Kpa, and the machine can climb up to 58% (30 degrees) gradients, ensuring versatility on various terrains.
- Travel speeds of 4.2 km/h and 2.5 km/h provide flexibility in movement, while the main pump system, consisting of variable piston pumps and gear pumps, ensures smooth and precise operations.
| Specifications | Value |
|---|---|
| No. | 1000722 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5610 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 21.7/1440 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 32.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58% (30 degrees) |
| Bucket digging force (kN) | 40.1 |
| Rod digging force (kN) | 25.2 |
| Travel speed (km/h) | 4.2/2.5 |
| Main overflow set pressure (Mpa) | 23 |
| Maximum flow of main pump (l/min) | 2*57.1 |
| Main pump type | Variable piston pump *2+ gear pump *2 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3890 |
| Maximum excavation height (mm) | 5730 |
| Maximum unloading height (mm) | 4200 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1960*345 |
