Product Description

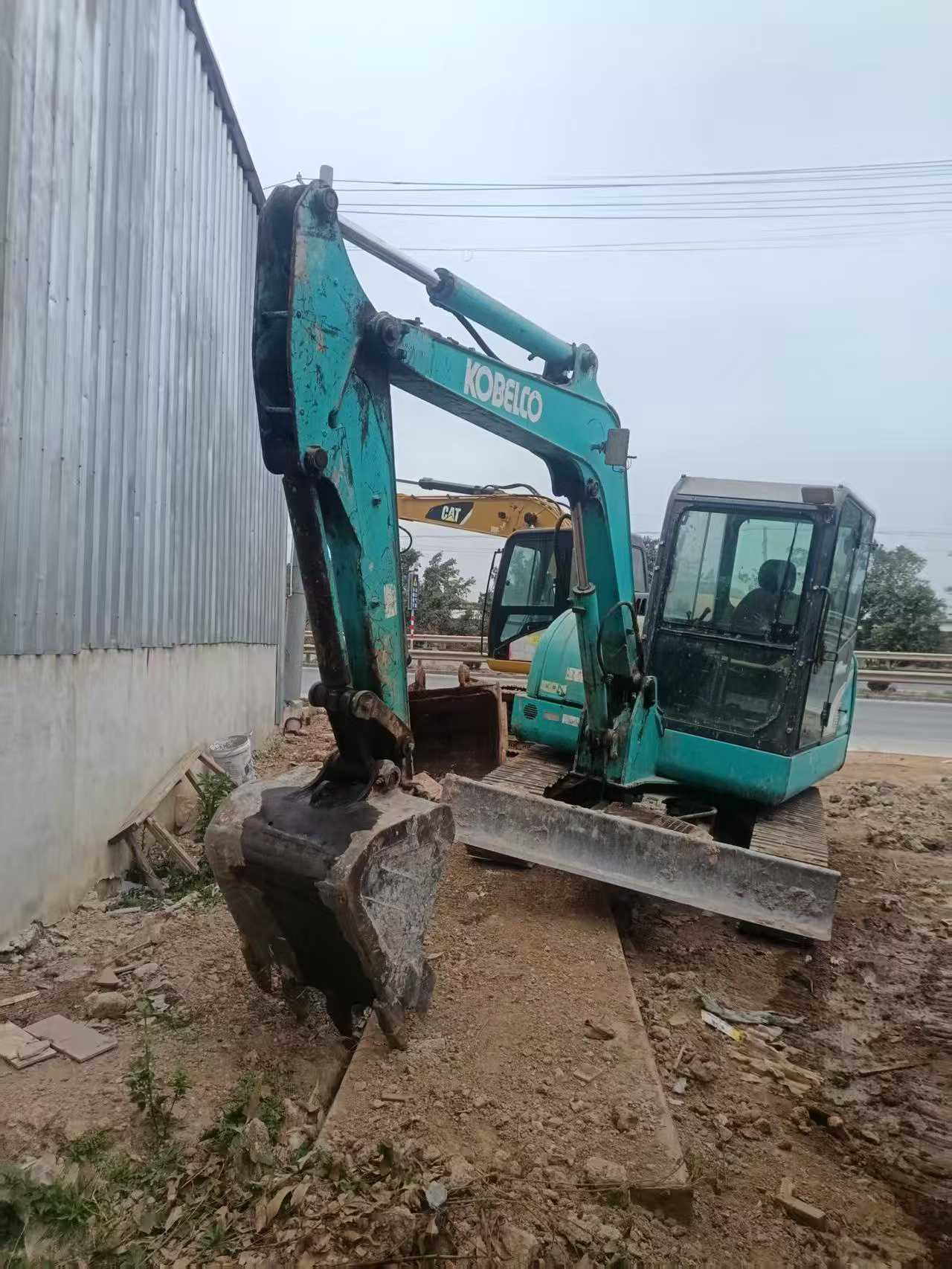

With a working weight of 5610 kg and a bucket capacity of 0.22 m³, the 2016 Kobelco SK60-8 excavator is primed for immediate deployment in your next construction project. Powered by a Yanmar 4TNV94L engine, this machine delivers 35.5 kW at 2400 rpm, ensuring robust performance for digging, grading, and demolition tasks. Equipped with a backhoe bucket, it offers a maximum digging force of 40.1 kN, making quick work of tough materials. The SK60-8 features a water-cooled system and a direct injection working form, enhancing efficiency and reliability. Its compact dimensions, including a total transport length of 5850 mm, make it highly maneuverable on site. Capable of reaching a maximum digging depth of 3890 mm and a maximum excavation height of 5730 mm, this excavator is ready to tackle a variety of challenging jobs. Located in 广西, this machine is set to meet your operational needs with minimal setup time.
| Specifications | Value |
|---|---|
| No. | 993360 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5610 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

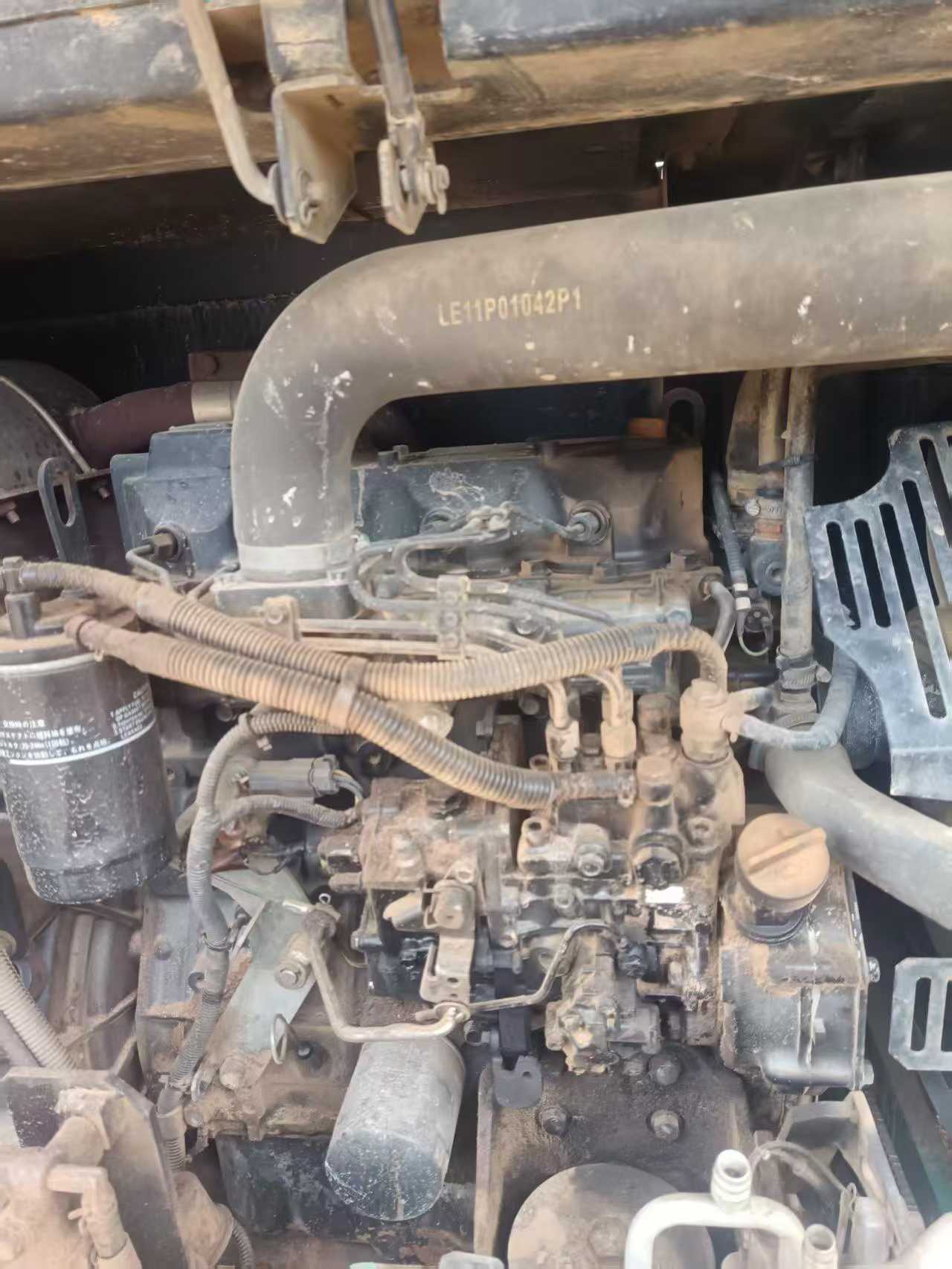

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 21.7/1440 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 32.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58% (30 degrees) |
| Bucket digging force (kN) | 40.1 |
| Rod digging force (kN) | 25.2 |
| Travel speed (km/h) | 4.2/2.5 |
| Main overflow set pressure (Mpa) | 23 |
| Maximum flow of main pump (l/min) | 2*57.1 |
| Main pump type | Variable piston pump *2+ gear pump *2 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3890 |
| Maximum excavation height (mm) | 5730 |
| Maximum unloading height (mm) | 4200 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1960*345 |
