Product Description

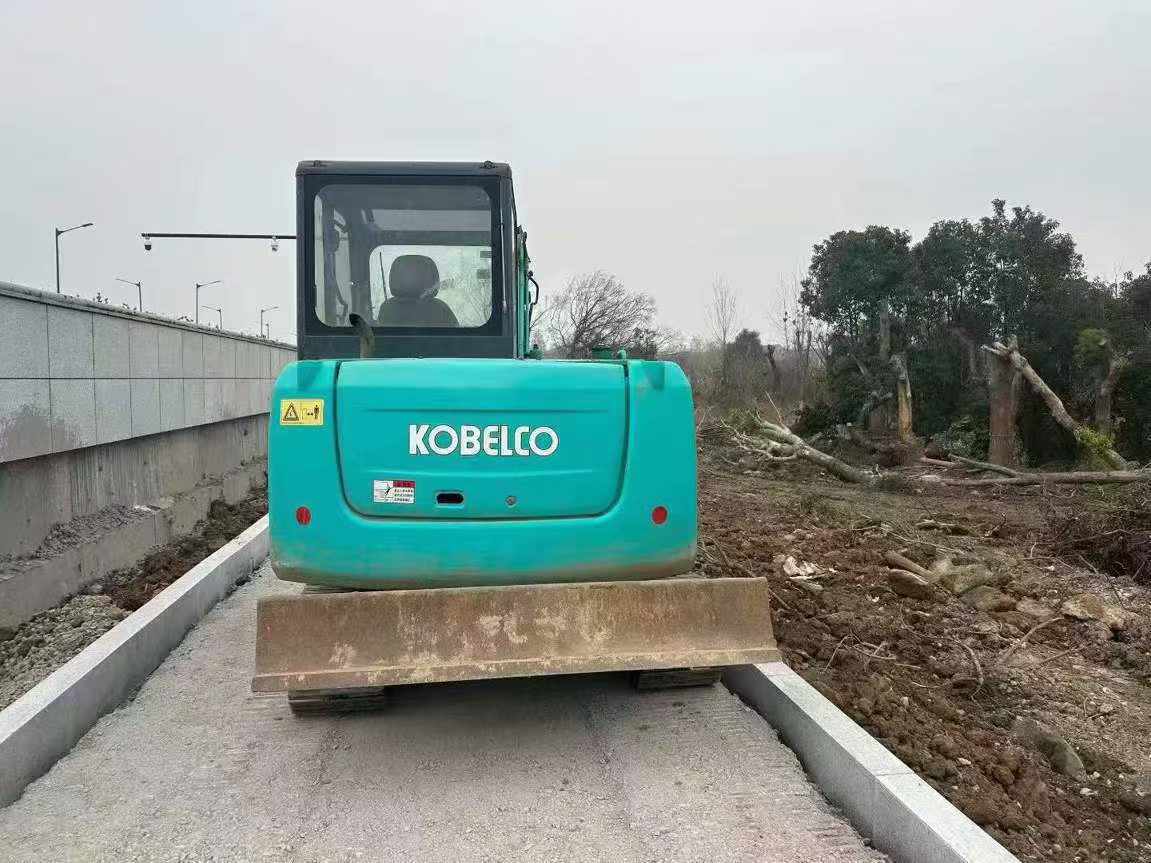

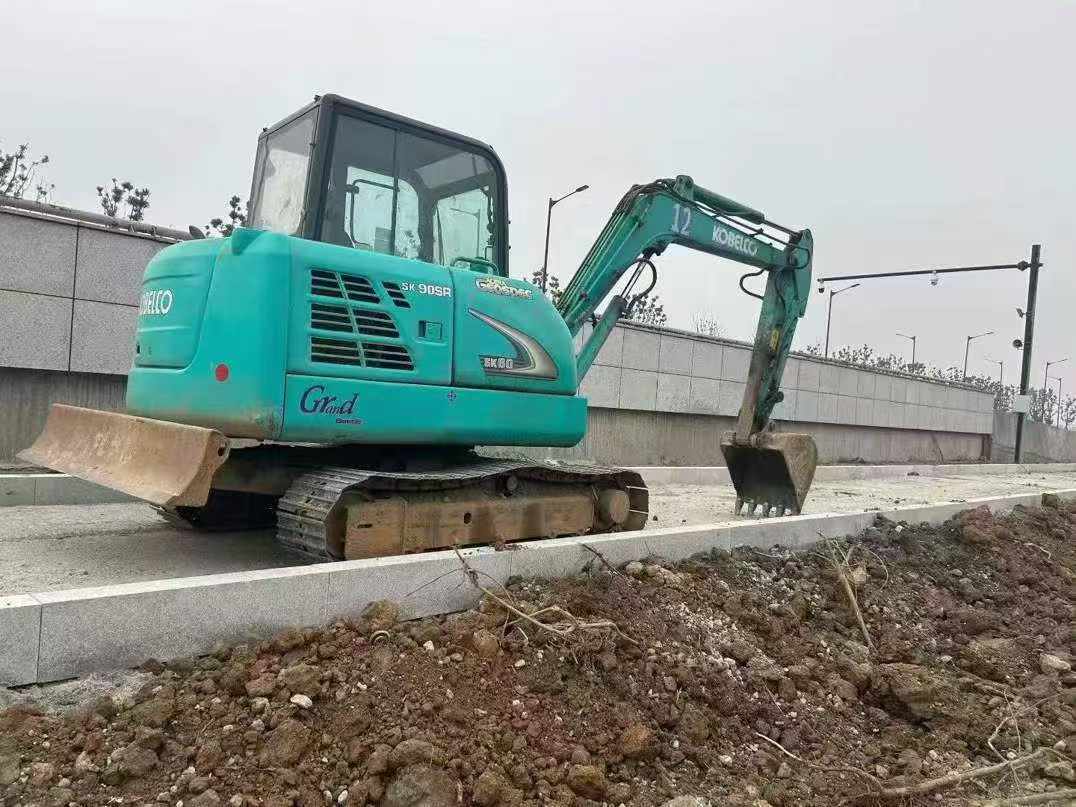

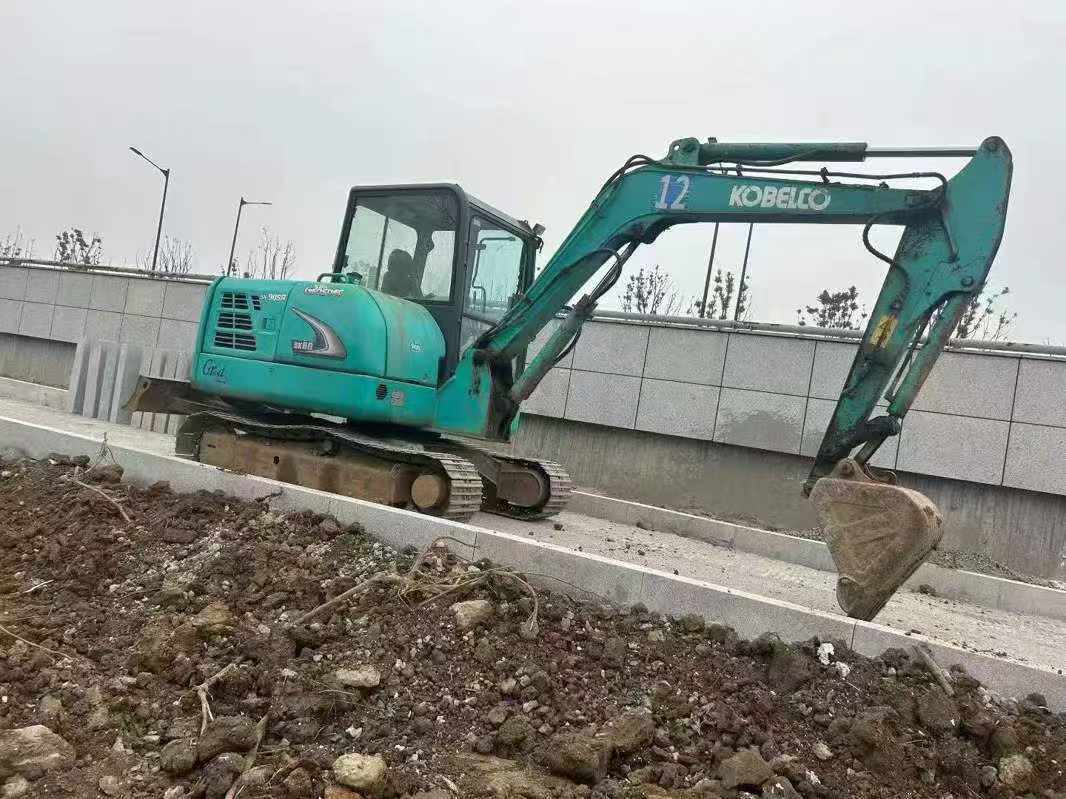

With a working weight of 5,610 kg and powered by a Yanmar 4TNV94L engine, this 2019 Kobelco SK60-8 mini excavator is a proven workhorse. Built to last, it boasts a bucket capacity of 0.22 m³ and a rod length of 1,660 mm, ideal for various construction tasks. Originating from Chengdu, this machine has been meticulously engineered as a joint venture/import, ensuring top-notch quality and reliability. Its maximum digging force of 40.1 kN and travel speed of up to 4.2 km/h make it a versatile and efficient choice. The water-cooled engine with a rated power of 35.5 kW at 2,400 rpm ensures consistent performance. This excavator, located in 浙江杭州, is ready to tackle your next project with durability and precision.
- Working weight: 5,610 kg
- Bucket capacity: 0.22 m³
- Maximum digging force: 40.1 kN
- Travel speed: 4.2/2.5 km/h

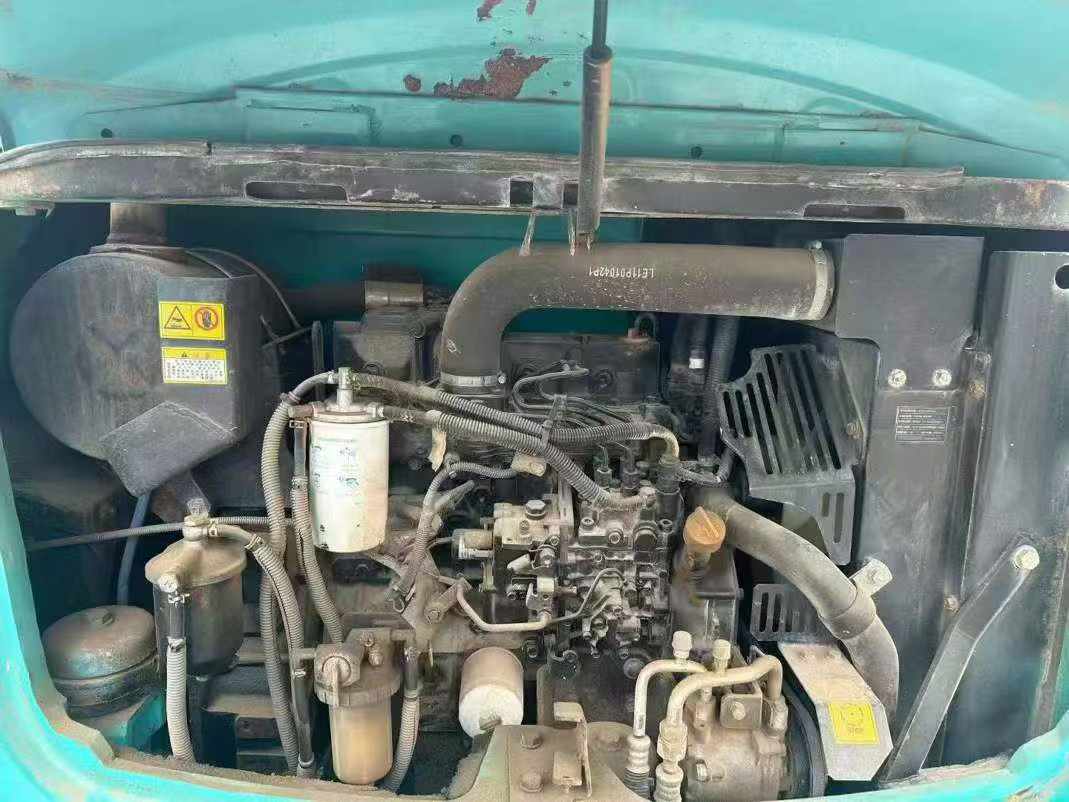

- Engine type: Yanmar 4TNV94L, 35.5 kW at 2,400 rpm
| Specifications | Value |
|---|---|
| No. | 1000720 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5610 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 21.7/1440 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 32.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58% (30 degrees) |
| Bucket digging force (kN) | 40.1 |
| Rod digging force (kN) | 25.2 |
| Travel speed (km/h) | 4.2/2.5 |
| Main overflow set pressure (Mpa) | 23 |
| Maximum flow of main pump (l/min) | 2*57.1 |
| Main pump type | Variable piston pump *2+ gear pump *2 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3890 |
| Maximum excavation height (mm) | 5730 |
| Maximum unloading height (mm) | 4200 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1960*345 |
