Product Description

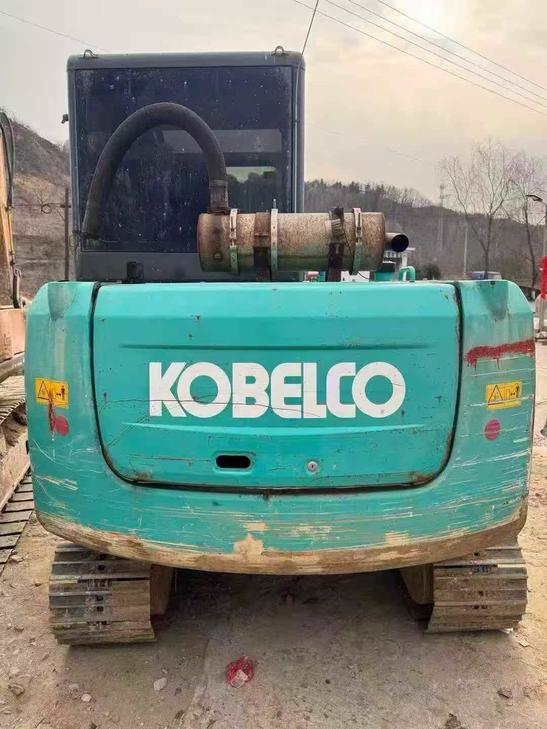

Built for precision in confined spaces, this 2019 Kobelco SK60-8 mini excavator delivers reliable performance with operator-first engineering. Powered by a Yanmar 4TNV94L engine generating 35.5 kW at 2400 rpm, this 6-ton machine combines efficient fuel consumption with robust digging force—40.1 kN bucket force and 25.2 kN arm force handle demanding excavation tasks with ease.
Operators benefit from exceptional visibility through the full-height 2550 mm cab, enabling confident maneuvering around obstacles and precise bucket placement. Stability remains consistent across uneven terrain thanks to 400 mm track plates and optimized 32.7 kPa ground pressure. The 8.9 rpm rotation speed and responsive dual variable piston pumps (2×57.1 l/min flow) provide smooth, controlled movements during grading and trenching operations.
- Maximum digging reach: 6200 mm
- Maximum digging depth: 3890 mm
- Climbing ability: 58% (30°)
- Compact transport dimensions: 5850×1960×2550 mm
- Currently located in Guizhou, China
Ideal for urban construction, utility installation, and landscaping projects requiring maneuverability without sacrificing power.
| Specifications | Value |
|---|---|
| No. | 1019156 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5610 |
| Bucket capacity (m³) | 0.22 |
| Rod length (mm) | 1660 |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 35.5/2400 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 21.7/1440 |
| Number of cylinders (PCS) | 4 |
| Working form | Direct injection |
| Ground specific pressure (Kpa) | 32.7 |
| Rotation speed (rpm) | 8.9 |
| Climbing ability (%) | 58% (30 degrees) |
| Bucket digging force (kN) | 40.1 |
| Rod digging force (kN) | 25.2 |
| Travel speed (km/h) | 4.2/2.5 |
| Main overflow set pressure (Mpa) | 23 |
| Maximum flow of main pump (l/min) | 2*57.1 |
| Main pump type | Variable piston pump *2+ gear pump *2 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Track plate width (mm) | 400 |
| Maximum digging radius (mm) | 6200 |
| Maximum digging depth (mm) | 3890 |
| Maximum excavation height (mm) | 5730 |
| Maximum unloading height (mm) | 4200 |
| Bulldozer lift or depth (mm) | 470/380 |
| Dodging plate width × height (mm) | 1960*345 |
