Product Description

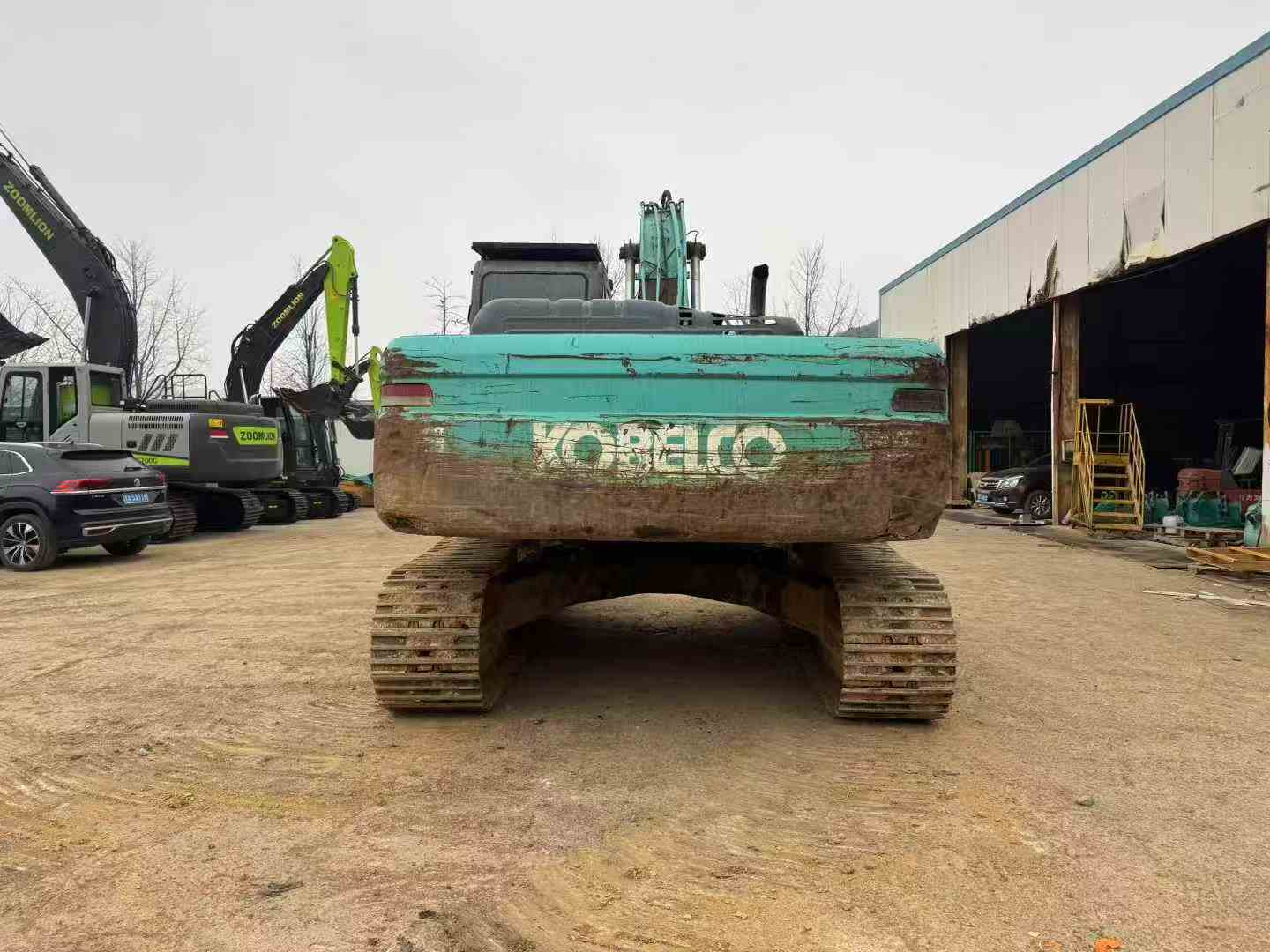

Strengthen your fleet capacity with this reliable 2014 Kobelco SK70 excavator, currently located in Lishui, Zhejiang. Built for contractors who demand consistent performance across multiple jobsites, this 7-ton compact machine delivers the versatility and power needed to keep projects moving forward without interruption.
Powered by a proven ISUZU AU4LE2X engine producing 41kW at 2200 rpm, this unit combines efficiency with dependable output. With a maximum digging depth of 4160mm and a reach extending to 6460mm, it handles trenching, utility work, and site preparation with precision. The 5830mm boom length provides excellent working range, while the compact 2630mm transport height ensures easy mobilization between sites.

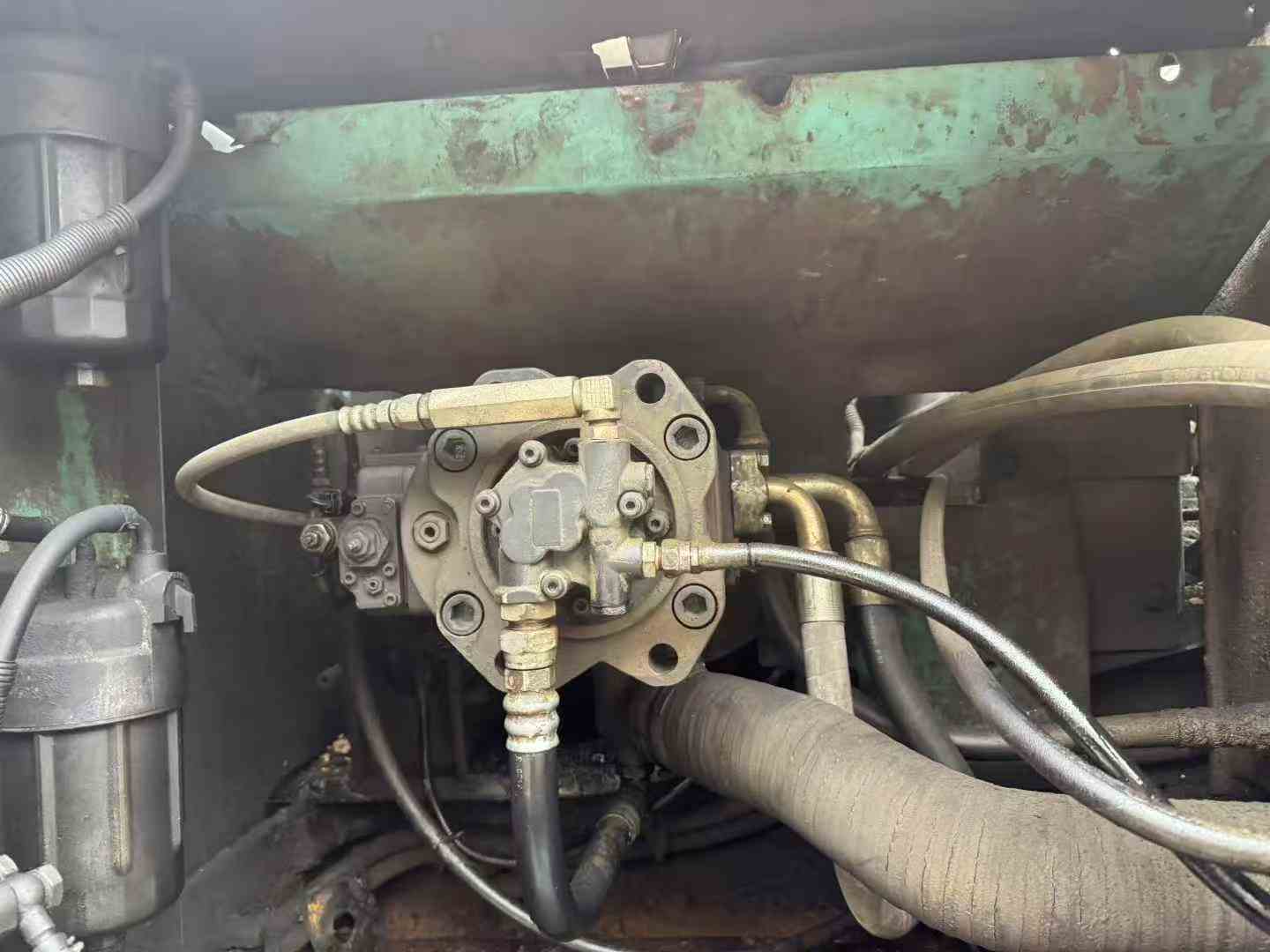

- Dual variable displacement hydraulic system operating at 29.4 Mpa for responsive control
- Water-cooled 4-cylinder engine with 2.179L displacement for sustained operation
- 11.5 rpm rotation speed and dual travel speeds (2.8/5.3 km/h) for efficient positioning
- 120L fuel capacity minimizes refueling downtime during extended shifts
- Joint venture/import quality construction built to withstand demanding commercial applications
Add proven backup capacit
| Specifications | Value |
|---|---|
| No. | 998708 |
| Tonnage (tons) | 7 |
| Boom length (mm) | 5830 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 11.5 |
| Travel speed (km/h) | 2.8/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
