Product Description

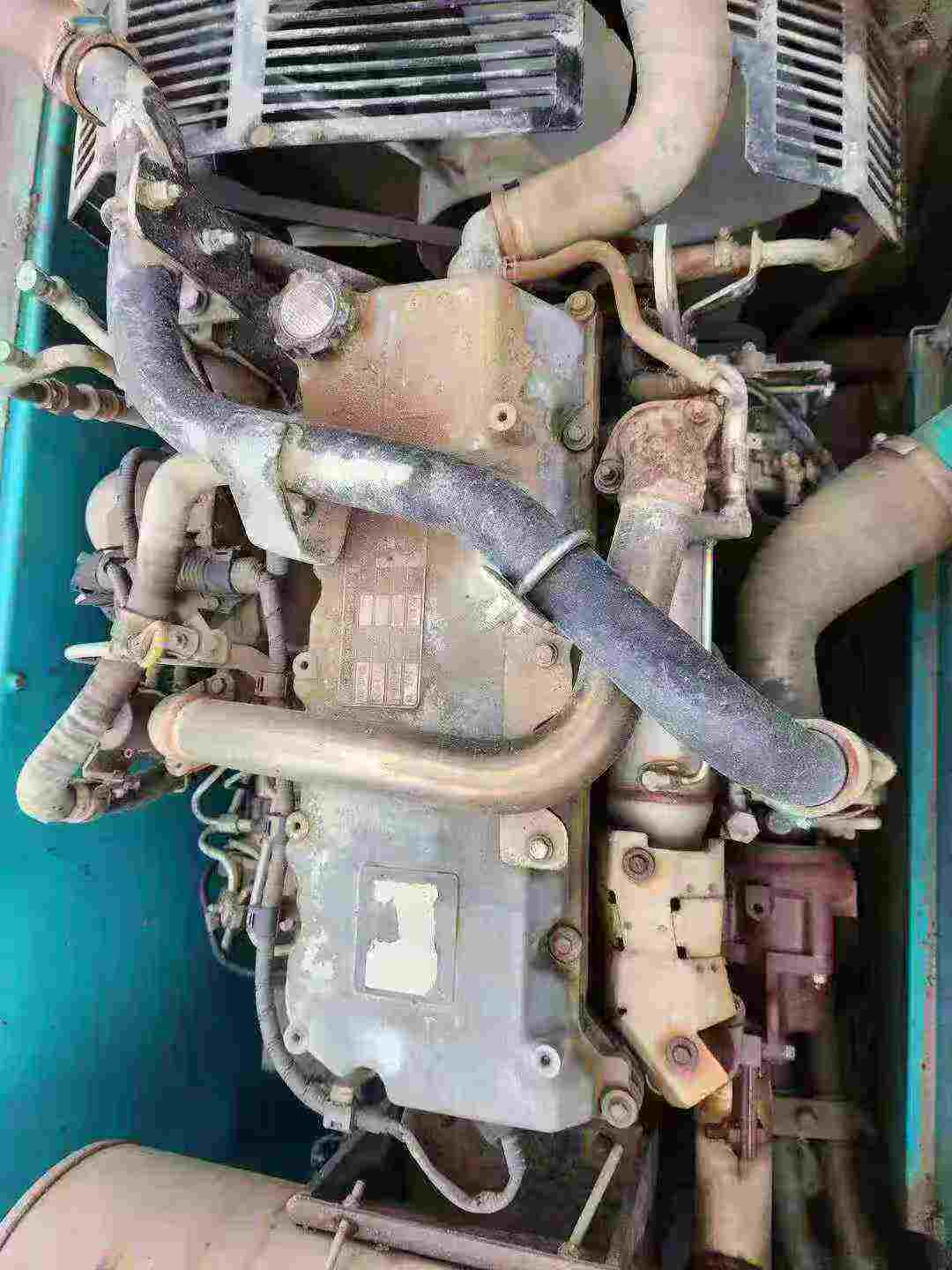

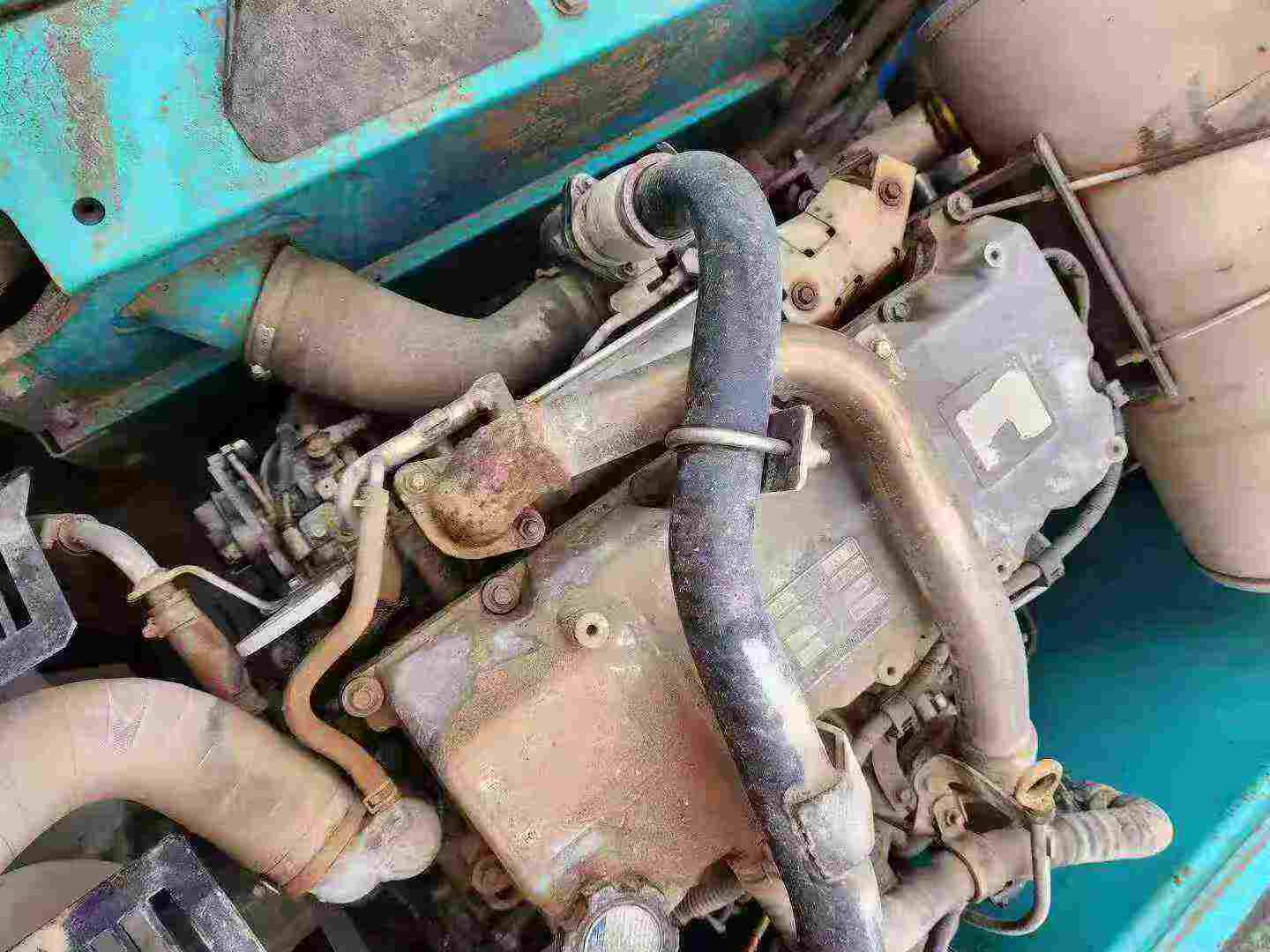

Available now in Guangdong Huizhou, this 2015 Kobelco SK70 mini excavator eliminates factory lead times and delivers immediate productivity to your jobsite. Powered by a reliable ISUZU AU4LE2X engine with 41kW output, this 7-ton machine combines precision control with robust performance for urban construction, utility work, and confined-space applications.
Engineered with a 5,830mm boom and maximum digging depth of 4,160mm, the SK70 tackles demanding excavation tasks efficiently. Its compact design features a 1,760mm front turning radius and 2,630mm transport height, enabling seamless navigation through tight access points while maintaining impressive reach capabilities up to 6,460mm.
Key Specifications:
- Double variable displacement axial piston pump operating at 29.4 MPa
- Water-cooled 4-cylinder engine with 2.179L displacement
- Dual travel speeds: 2.8/5.3 km/h for versatile site mobility
- 120L fuel capacity for extended operation cycles
- Maximum unloading height: 5,330mm
Skip the wait. Fast deployment from Guangdong Huizhou ensures your project stays on schedule. Contact Fair Trade Machinery today for immediate availability and shipping det
| Specifications | Value |
|---|---|
| No. | 1014186 |
| Tonnage (tons) | 7 |
| Boom length (mm) | 5830 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 11.5 |
| Travel speed (km/h) | 2.8/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
