Product Description
Built for immediate deployment, this 2017 Kobelco SK70 delivers reliable 7-ton performance across demanding jobsites. Powered by an ISUZU AU4LE2X engine generating 41kW at 2200rpm, this compact excavator combines precision hydraulics with proven mechanical durability. The water-cooled 4-cylinder engine and double variable displacement axial piston pump system ensure consistent power delivery during extended operation cycles.
Operational capabilities include:
- Maximum digging depth of 4160mm for foundation and utility work
- 6460mm maximum digging radius covering substantial work areas
- 5830mm boom length providing versatile reach for grading and material handling
- Compact 2630mm transport height enabling easy site-to-site mobility
- Dual travel speeds (2.8/5.3 km/h) optimizing productivity and repositioning
Hydraulic systems operate at 29.4MPa working pressure with 120L capacity, supporting continuous digging, loading, and grading tasks. Currently located in Luzhou, Sichuan, this machine arrives site-ready with complete fluid capacities and backhoe configuration. Ideal for contractors requiring dependable excavation performance in confined spaces and general constructi
| Specifications | Value |
|---|---|
| No. | 1006317 |
| Tonnage (tons) | 7 |
| Boom length (mm) | 5830 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

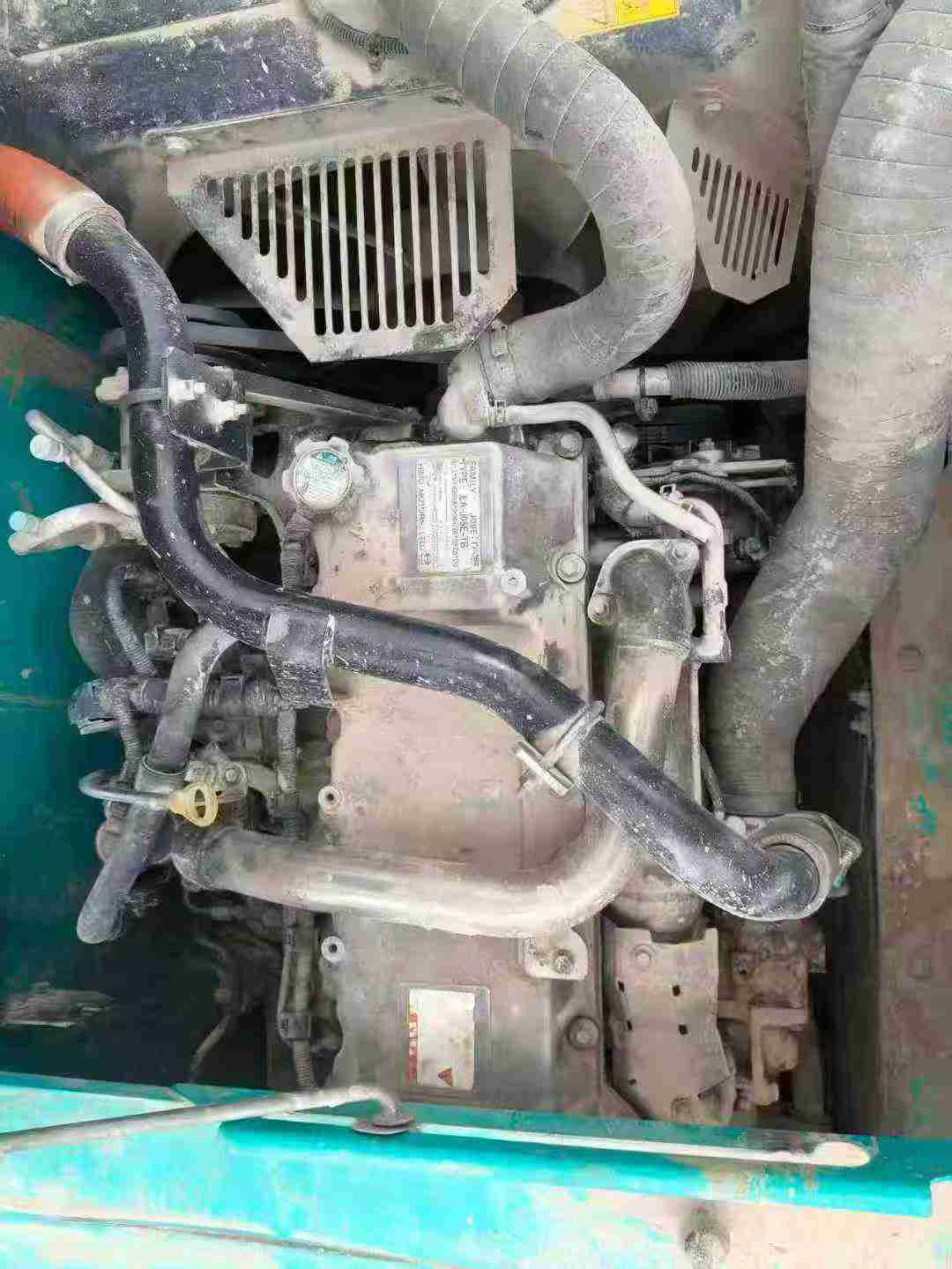

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotation speed (rpm) | 11.5 |
| Travel speed (km/h) | 2.8/5.3 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
