2020 Kobelco SK70

1/9
Buy Kobelco SK70 Used Excavator / 1
Buy Kobelco SK70 Used Excavator / 2
Buy Kobelco SK70 Used Excavator / 3
Buy Kobelco SK70 Used Excavator / 4
Buy Kobelco SK70 Used Excavator / 5
Buy Kobelco SK70 Used Excavator / 6
Buy Kobelco SK70 Used Excavator / 7
Buy Kobelco SK70 Used Excavator / 8
Buy Kobelco SK70 Used Excavator / 9

Product Description

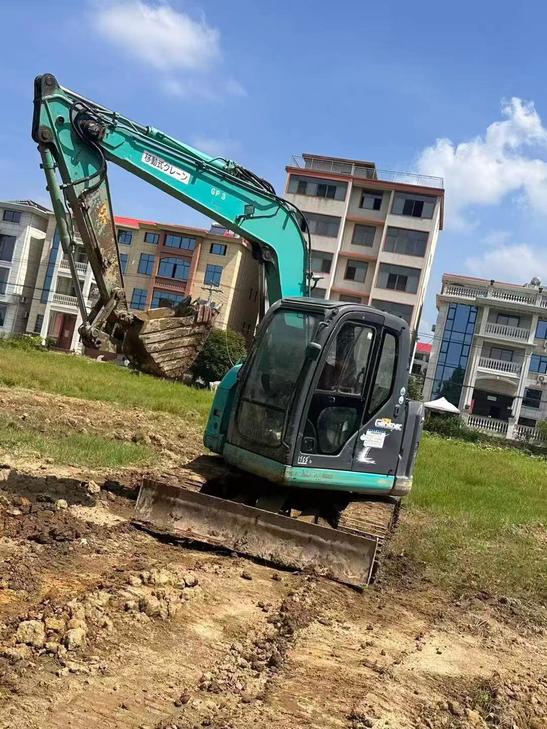

Discover the exceptional 2020 Kobelco SK70, available for inspection and testing in Jiangxi, China. This used excavator is in remarkable condition, featuring its original body and chassis, which are both in excellent aesthetic and functional states. The machine boasts a highly stable hydraulic system, ensuring reliable performance on any job site. All original piping and the factory air conditioning system are intact, maintaining the integrity and efficiency of the equipment. Detailed photos and videos are available to provide a comprehensive view of the machine's condition. Arrange a visit to test and inspect this top-quality Kobelco SK70 today.

  • Year: 2020
  • Brand: Kobelco
  • Model: SK70
  • Location: Jiangxi, China
  • Condition: Excellent, with all original components and systems
SpecificationsValue
No.1134697
Tonnage (tons)7
Boom length (mm)5830
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotation speed (rpm)11.5
Travel speed (km/h)2.8/5.3
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
see more

Overview

No.1134697

Brand Name:

Kobelco

Model Number:

SK70

Year:

2020

Location:

Jiangxi China

Pub Date
