Product Description

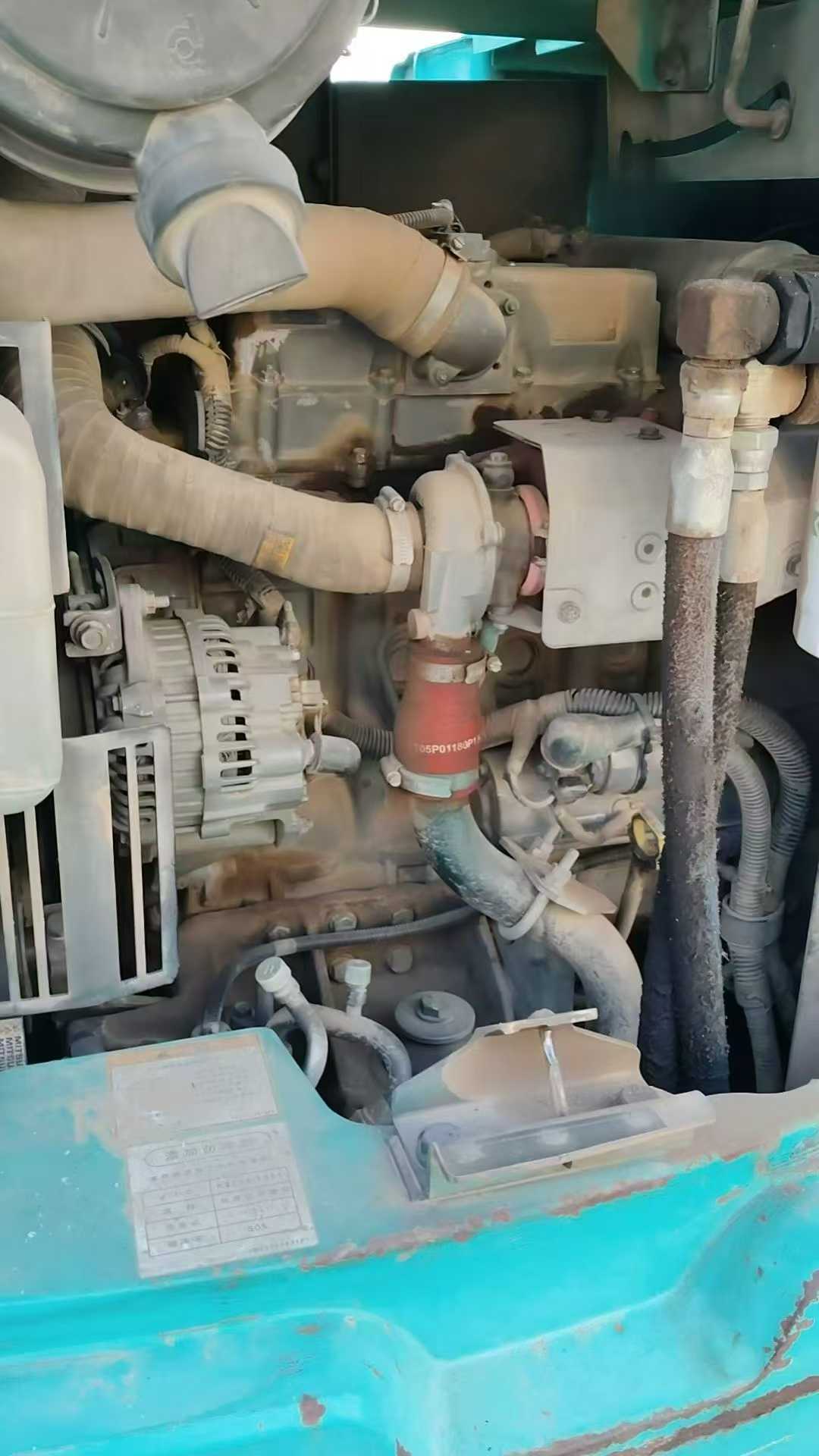

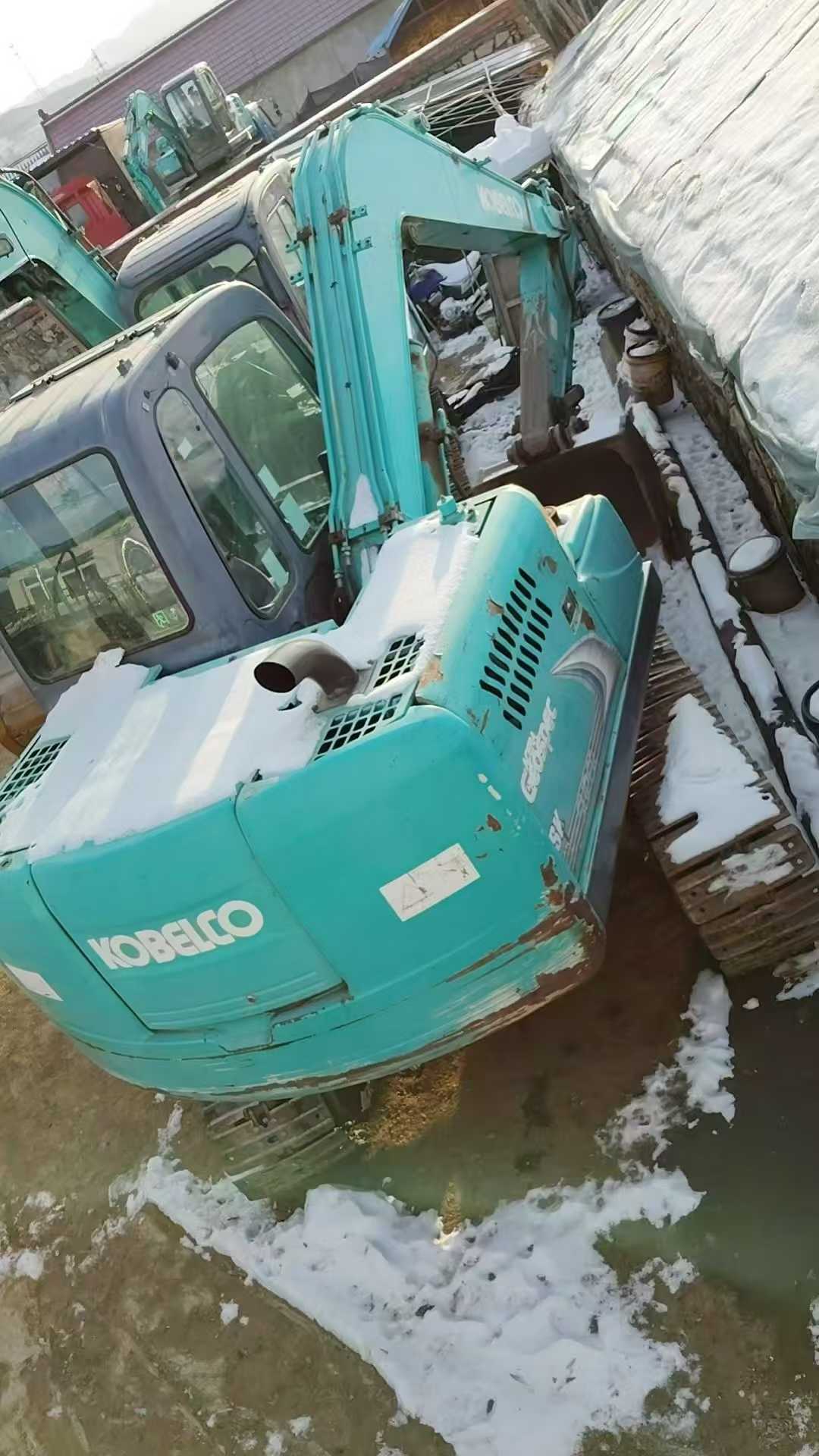

Available now in 山东菏泽, this 2011 Kobelco SK75 mini excavator is ready for immediate deployment to your site. Skip the factory lead times and put this 7-ton workhorse into operation without delay. Powered by a reliable ISUZU AU4LE2X engine delivering 41kW at 2200rpm, this machine combines proven performance with efficient water-cooling technology across its 4-cylinder, 2.179L displacement configuration.
Engineered for versatility, the SK75 offers impressive reach specifications: 6460mm maximum digging radius, 4160mm maximum digging depth, and 7390mm maximum excavation height. Its compact footprint features a 1760mm minimum turning radius while maintaining a 1290mm back end turning radius, ideal for confined work areas. The dual-speed travel system (2.8/5.3 km/h) ensures efficient site mobility.
- Working weight: 7000kg with backhoe bucket configuration

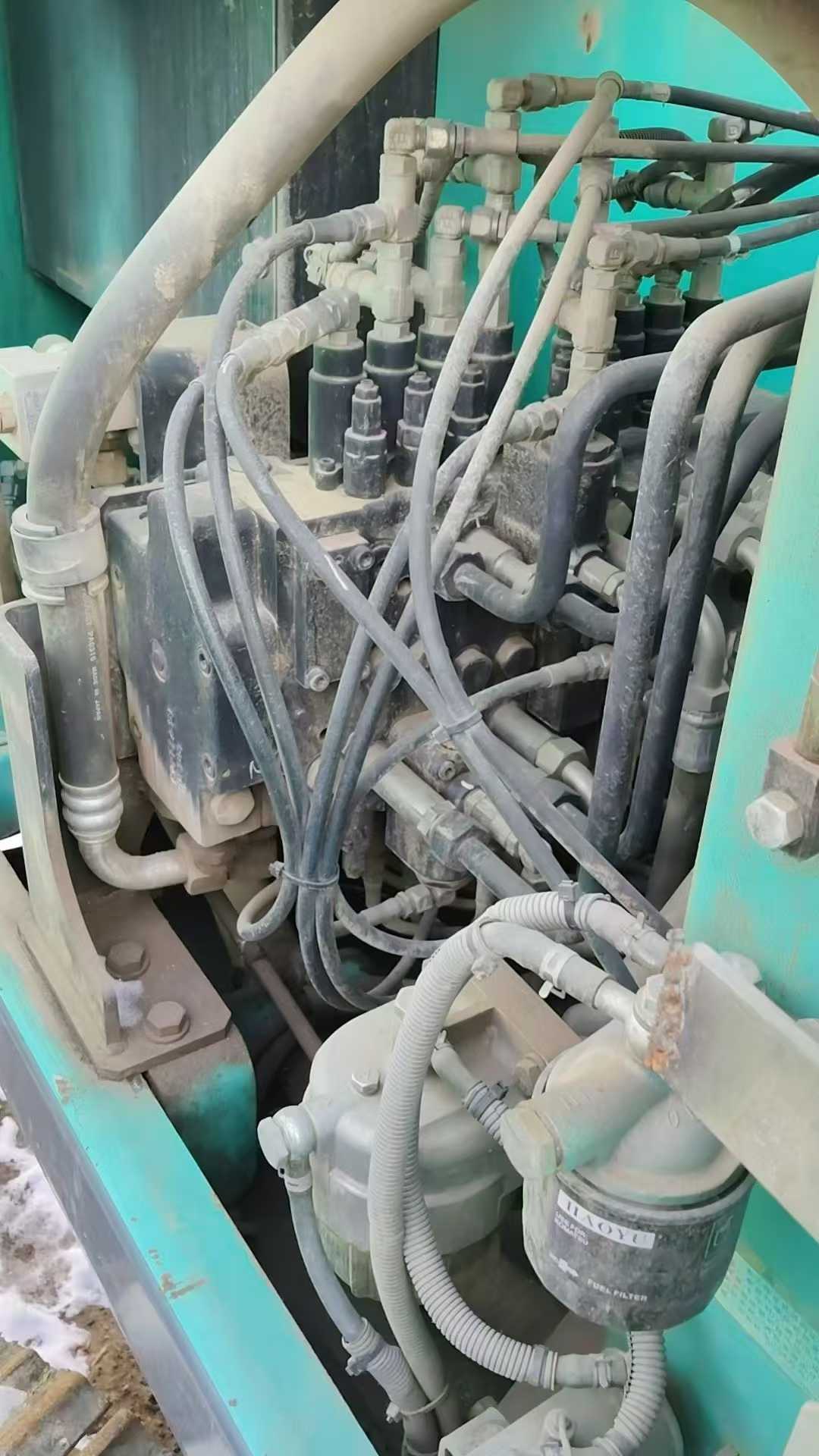

- Hydraulic system: Double variable displacement axial piston pump, 29.4MPa working circuit
- Fuel capacity: 120L for extended operation
- Transport height: 2630mm for easy logistics
- Location: 山东菏泽 – fast deployment available
Secure this unit today and accelerate your project timeline with immediate availability.
| Specifications | Value |
|---|---|
| No. | 994370 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
