Product Description
Built in 2011, this Kobelco SK75 mini excavator represents proven engineering from one of the industry's most trusted manufacturers. Operating at 7 tons with a robust ISUZU AU4LE2X engine delivering 41kW at 2200 rpm, this machine combines compact dimensions with serious digging capability. Currently located in Hangzhou, Zhejiang, it offers a maximum digging depth of 4160mm and a reach of 6460mm, making it ideal for urban construction and utility work.
Kobelco's reputation in the used equipment market stems from exceptional parts availability and strong resale value retention. Joint venture manufacturing ensures quality control standards that translate into long-term reliability. Key specifications include:
- Water-cooled 4-cylinder engine with 2.179L displacement
- Double variable displacement axial piston pump system
- Working hydraulic circuit rated at 29.4 Mpa
- Compact turning radius: 1760mm front, 1290mm rear
- Dual travel speeds: 2.8/5.3 km/h
With comprehensive hydraulic systems and proven component sourcing, this SK75 delivers the dependability contractors demand while maintaining lower lifecycle costs compared to lesser-known brands.
| Specifications | Value |
|---|---|
| No. | 998680 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

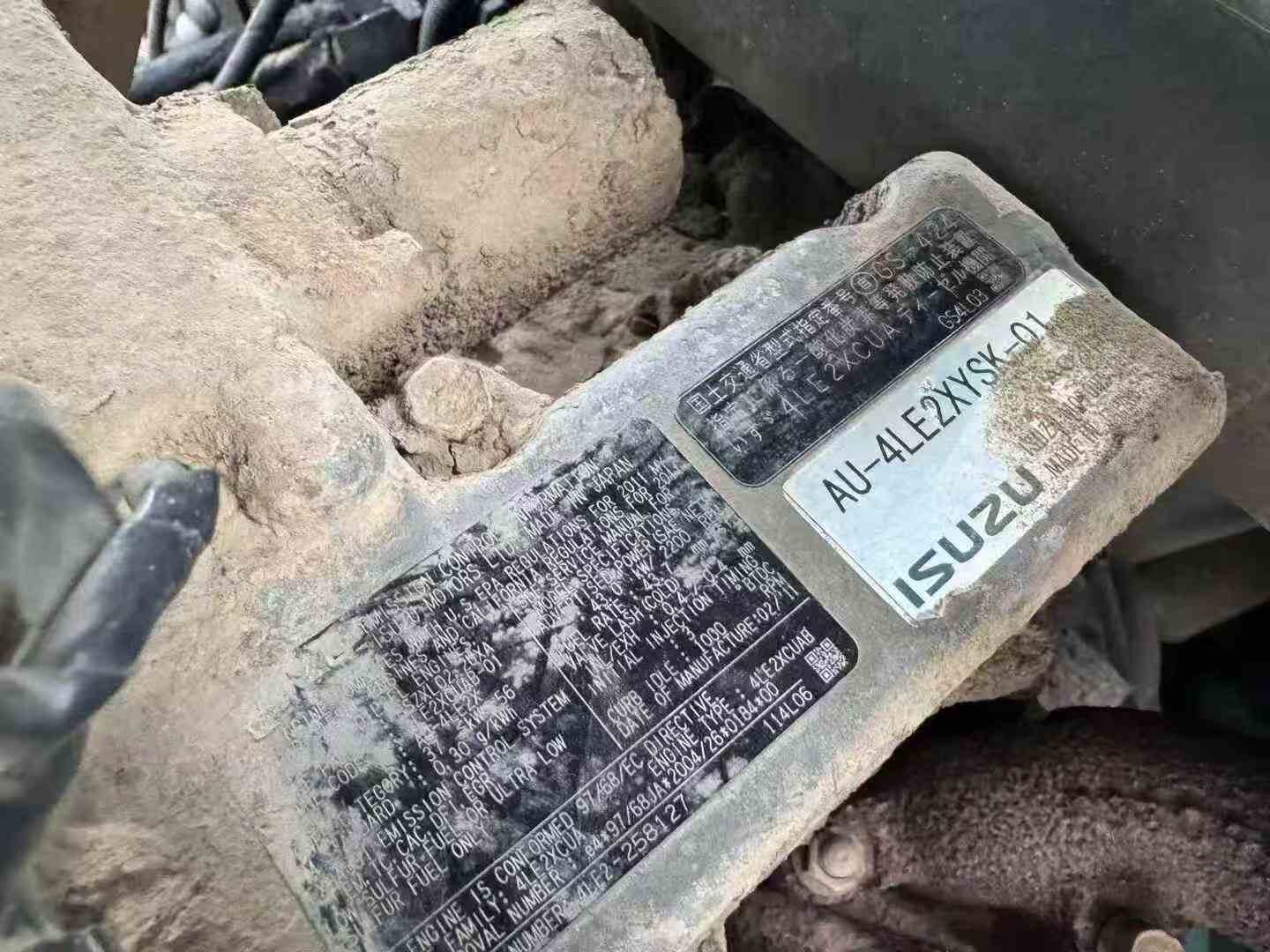

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
