HOME>>Kobelco>>Kobelco SK75

2012 Kobelco SK75

1/6

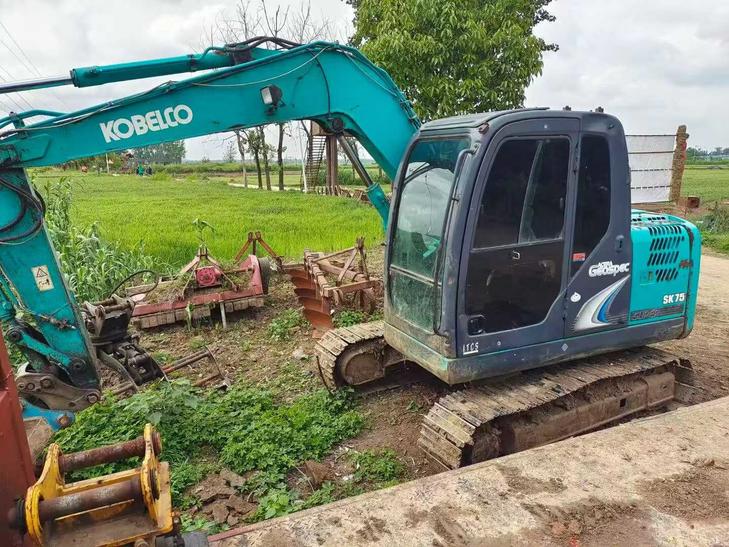

Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6

Product Description

This 2012 Kobelco SK75 midi excavator offers reliable performance for contractors seeking proven Japanese engineering. With over a decade of field operation, this machine demonstrates Kobelco's reputation for durability in demanding applications.

The SK75 delivers balanced power and maneuverability in a compact footprint, making it suitable for urban construction, utility work, and site development projects. Its operating weight and dig depth provide versatility across residential and light commercial applications.

  • Year: 2012
  • Manufacturer: Kobelco
  • Model: SK75
  • Location: Zhejiang Province, China
  • Machine Type: Midi Excavator

Currently located in Zhejiang, this unit is available for inspection. As with all pre-owned equipment, prospective buyers should conduct thorough evaluation to assess current condition and remaining service life for their specific operational requirements.

SpecificationsValue
No.1072432
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1072432

Brand Name:

Kobelco

Model Number:

SK75

Year:

2012

Location:

Zhejiang China
