Product Description

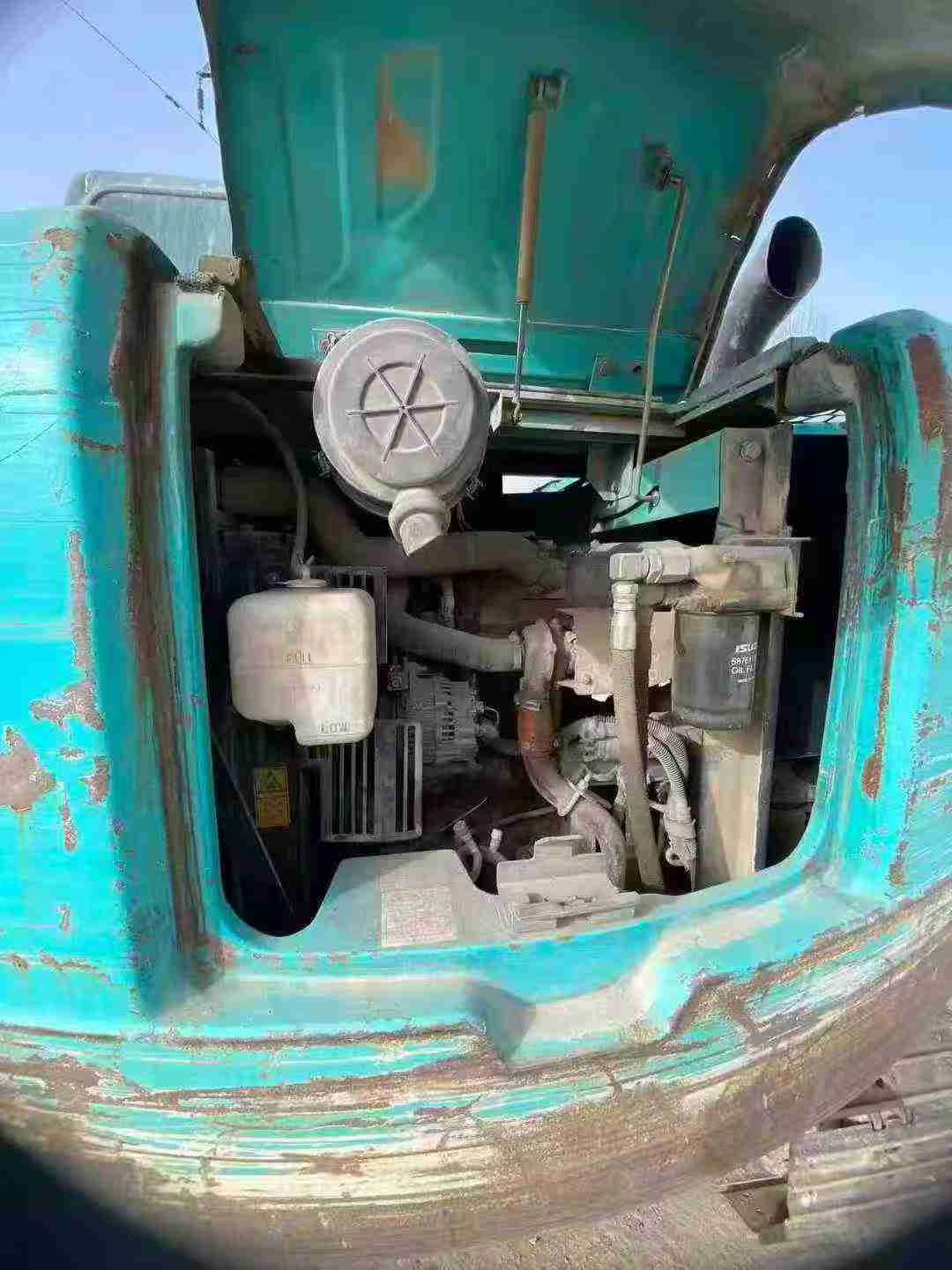

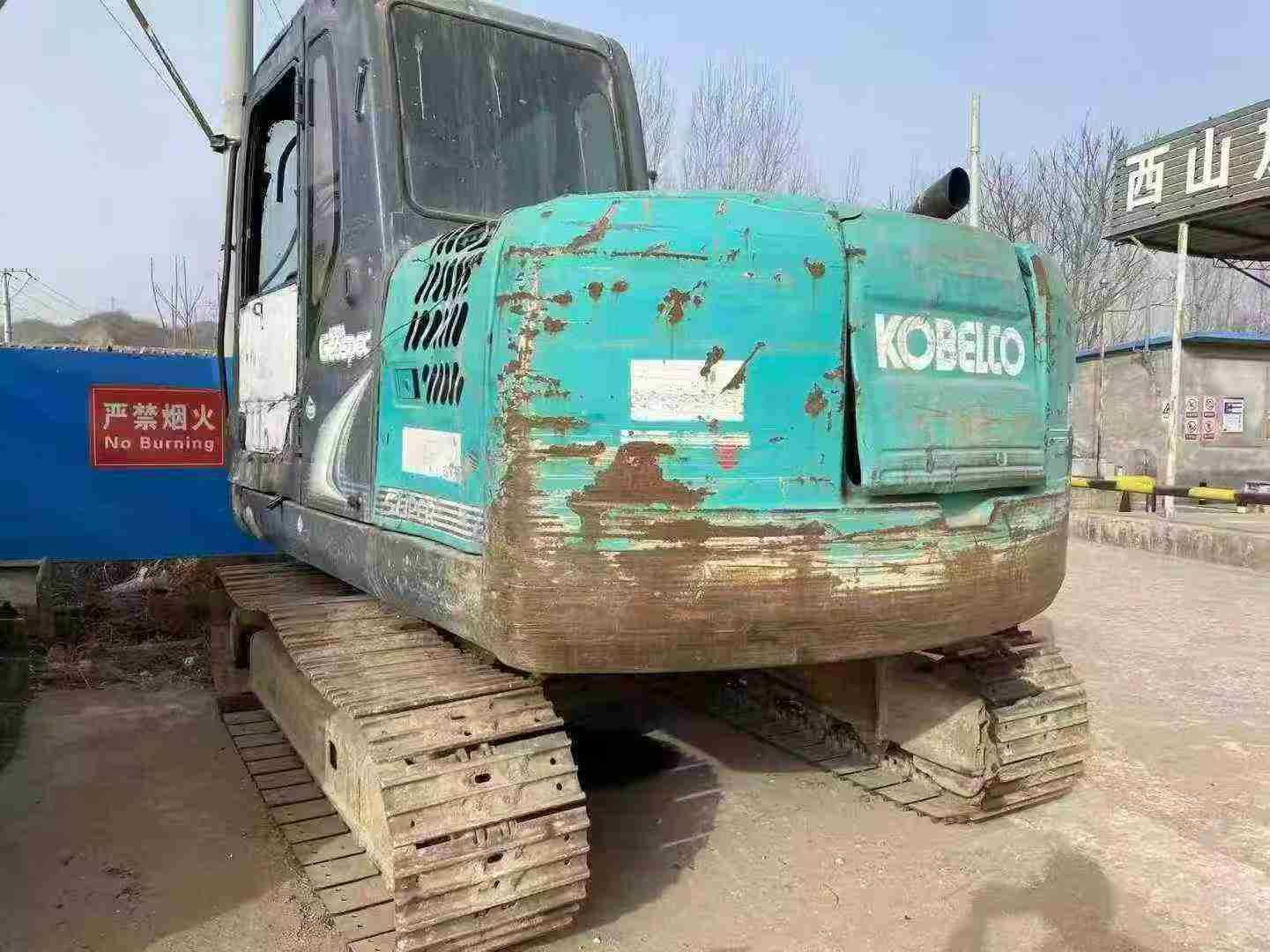

Available now in Sichuan Luzhou, this 2013 Kobelco SK75 mini excavator delivers immediate deployment without factory wait times. Powered by a robust ISUZU AU4LE2X engine producing 41kW at 2200rpm, this 7-ton workhorse combines precision Japanese engineering with practical field performance. Skip the months-long lead times—this machine is ready for fast shipment to your construction site, mining operation, or infrastructure project.
Equipped with a double variable displacement axial piston pump and water-cooled 4-cylinder engine, the SK75 offers impressive reach specifications: 6460mm maximum digging radius, 4160mm maximum digging depth, and 7390mm maximum excavation height. The compact design features a 1760mm minimum turning radius, making it ideal for confined urban sites or tight working conditions. Dual travel speeds (2.8/5.3 km/h) provide flexibility across terrain types.
- Working weight: 7000kg with backhoe bucket configuration
- Hydraulic system: 120L capacity, 29.4Mpa working pressure
- Fuel capacity: 120L for extended operation cycles
- Transport height: 2630mm for standard logistics compatibility
- Location: Sichuan Luzhou—ready for immediate inspection and purchase
| Specifications | Value |
|---|---|
| No. | 1024433 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
