Product Description

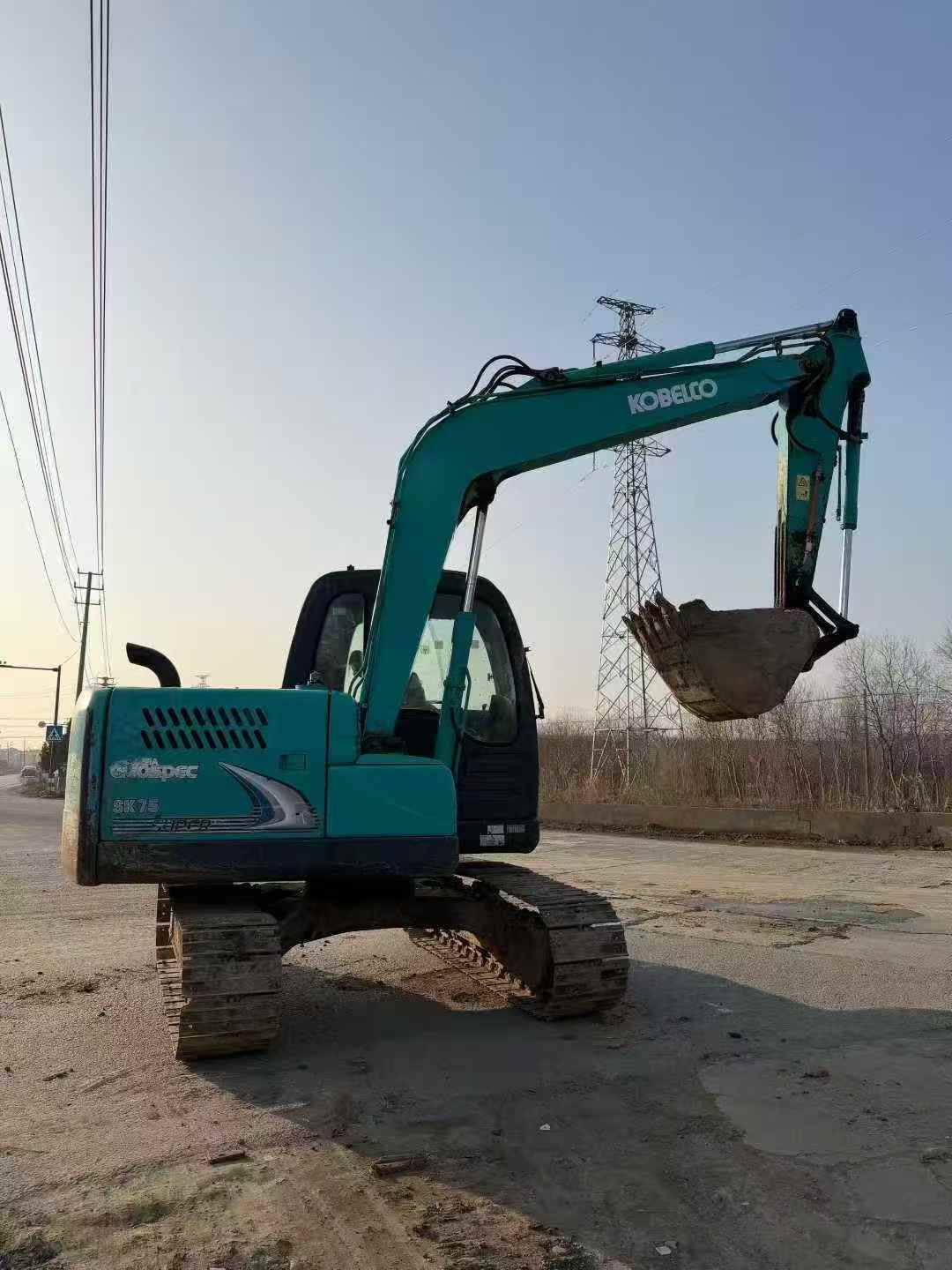

Engineered for precision and reliability, this 2014 Kobelco SK75 mini excavator delivers 7-ton performance with proven Japanese technology. Powered by an ISUZU AU4LE2X engine producing 41kW at 2200 rpm, this compact machine combines a 2.179L displacement with water-cooling efficiency for consistent operation in demanding conditions. The advanced hydraulic system features a double variable displacement axial piston pump with working circuit pressure reaching 29.4 Mpa, ensuring responsive control and optimal fuel efficiency.
- Hydraulic Excellence: 120L hydraulic system capacity with 72L tank, 27.5 Mpa traveling circuit
- Performance Specs: 6460mm maximum digging radius, 4160mm maximum digging depth
- Operational Range: 7390mm maximum excavation height, 5330mm maximum unloading height
- Compact Design: 2630mm transport height, 1290mm back-end turning radius for confined spaces
- Travel Speed: Dual-speed capability at 2.8/5.3 km/h
Built with joint venture/import manufacturing standards, this SK75 represents Kobelco's commitment to durability and technical superiority in the compact excavator segmen
| Specifications | Value |
|---|---|
| No. | 1004927 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
