Product Description

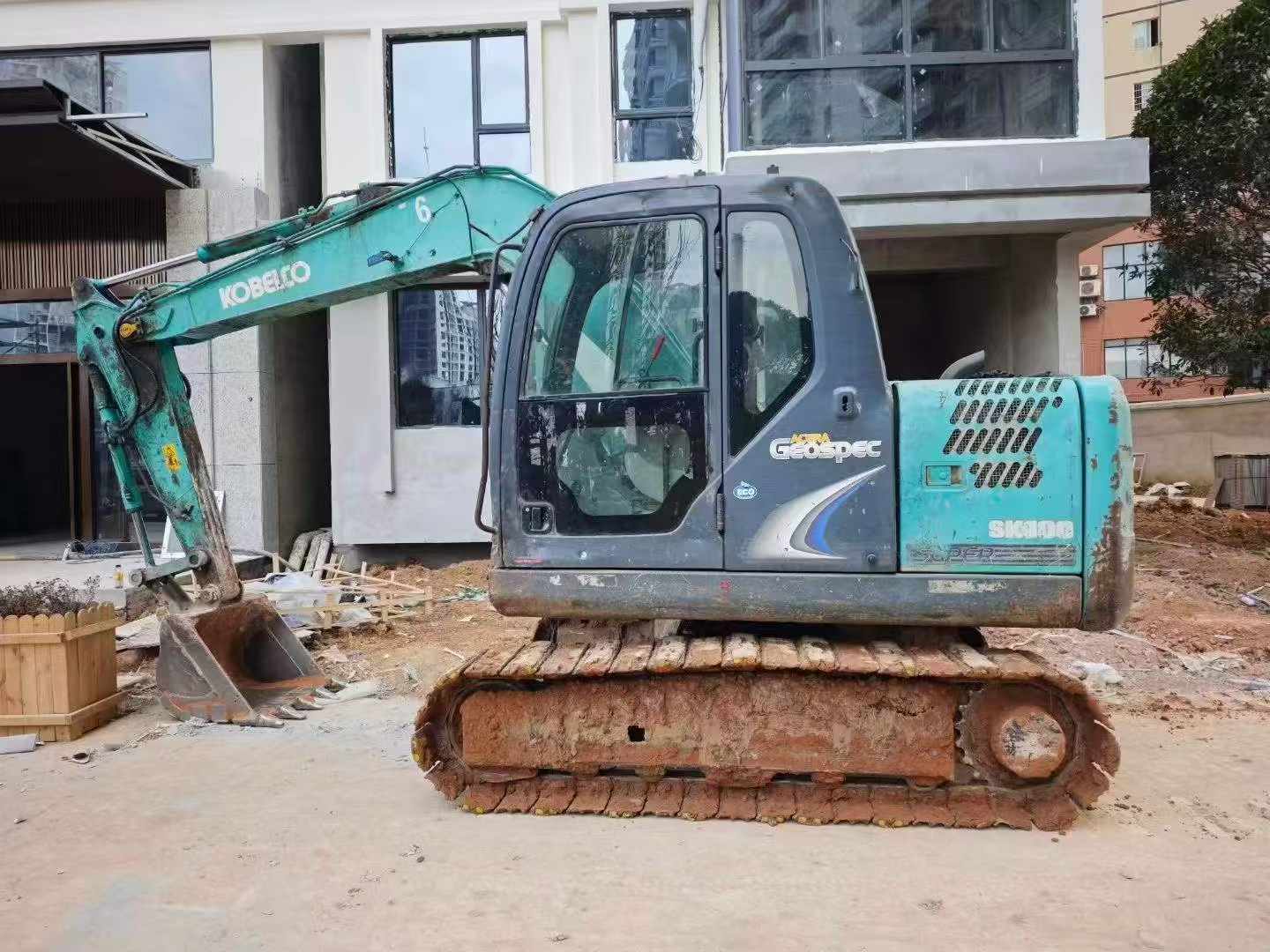

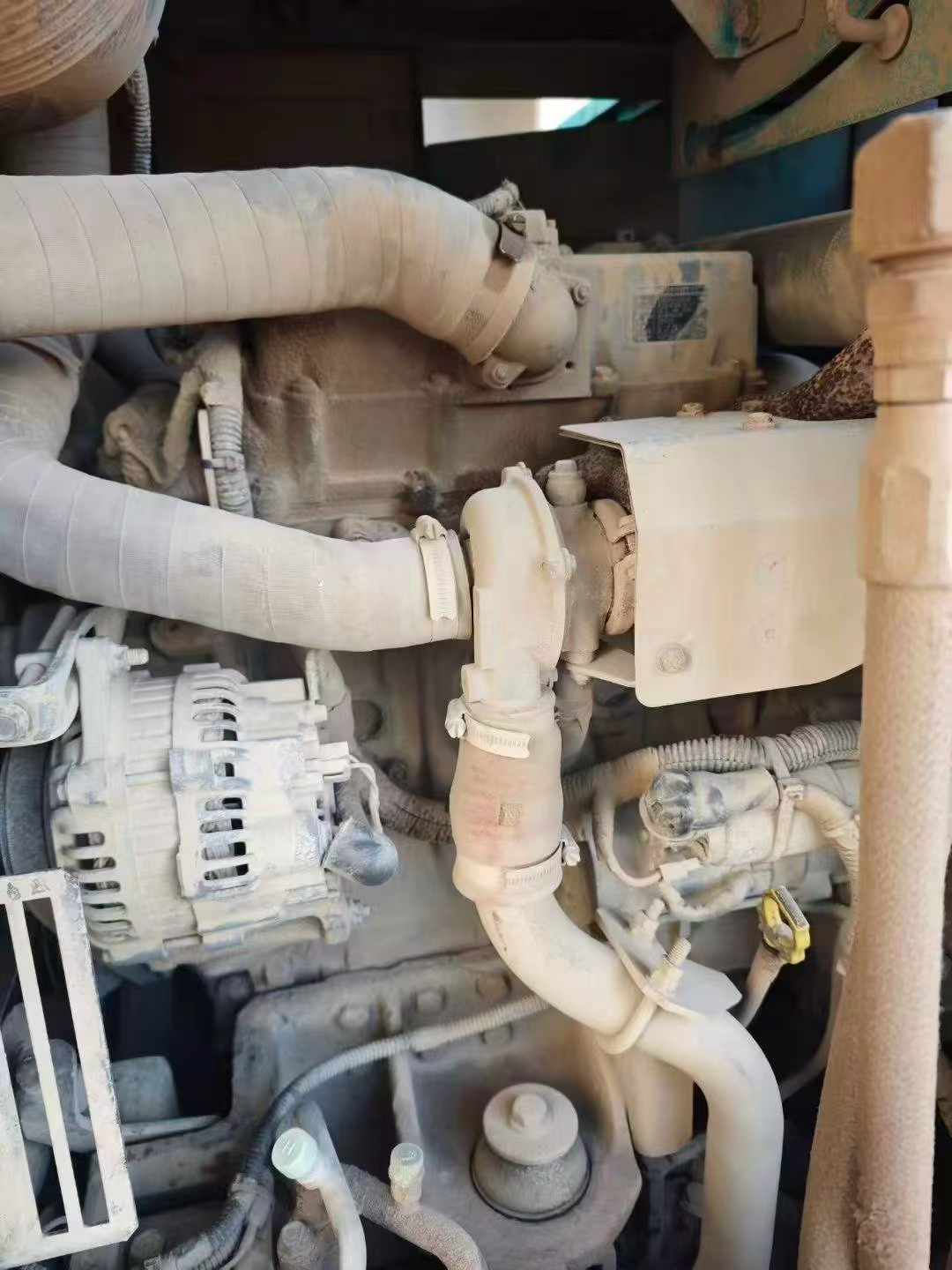

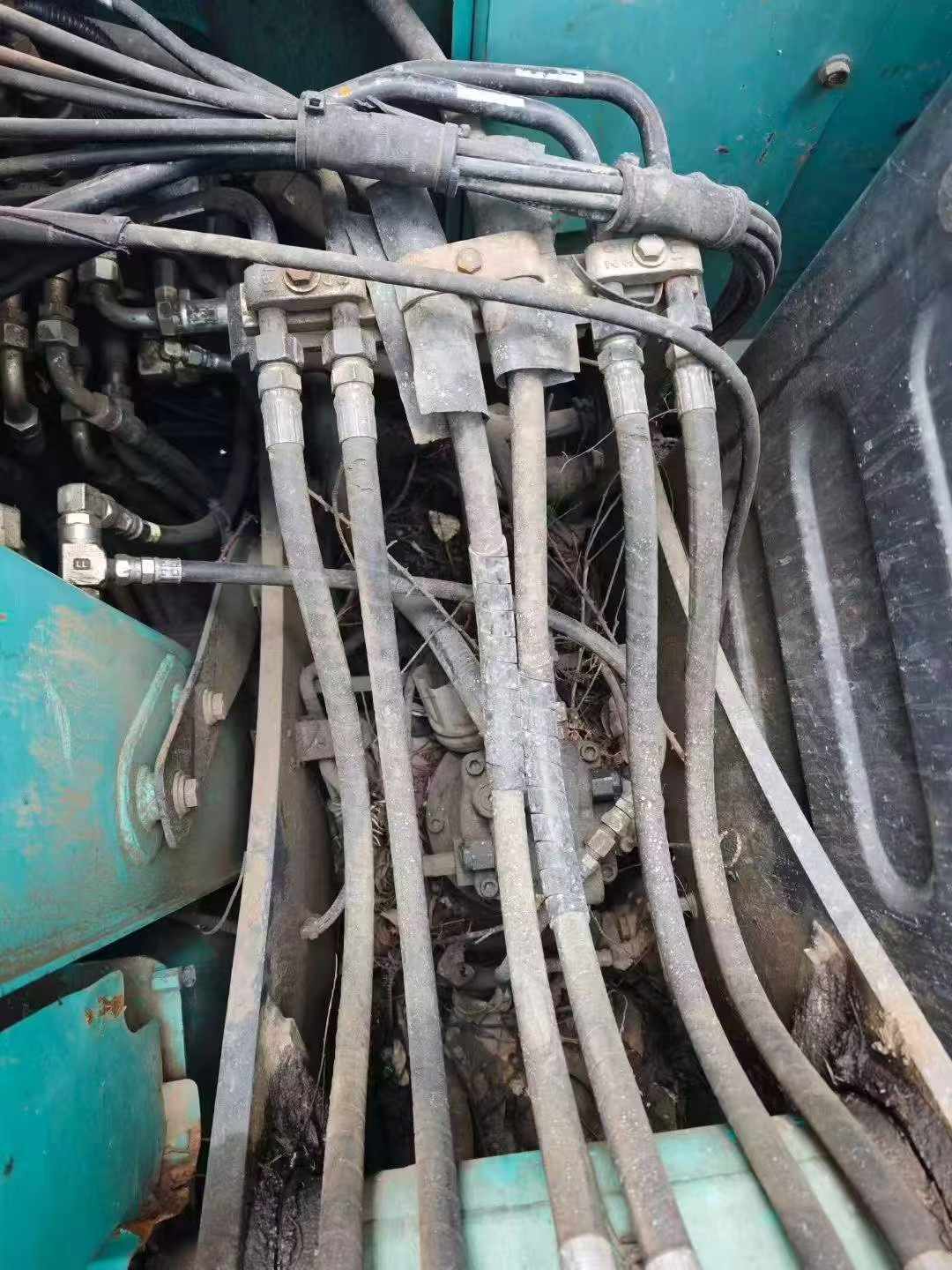

Engineered with precision in Chengdu, this 2014 Kobelco SK75 delivers 7-ton performance through a robust ISUZU AU4LE2X engine rated at 41kW/2200rpm. The water-cooled, 4-cylinder powerplant with 2.179L displacement provides reliable output for demanding excavation tasks. Hydraulic superiority defines this machine: a double variable displacement axial piston pump drives a 29.4 MPa working circuit, while dedicated systems maintain 27.5 MPa traveling pressure and 14.5 MPa rotary pressure for smooth, controlled operation.
Performance specifications demonstrate Kobelco's engineering commitment:
- Maximum digging reach: 6,460mm with 4,160mm depth capability
- Maximum digging height: 7,390mm for elevated work
- Compact footprint: 1,760mm minimum front turning radius, 1,290mm rear swing
- Dual-speed travel: 2.8/5.3 km/h for jobsite mobility
- Generous fluid capacities: 120L fuel tank, 72L hydraulic reservoir
Currently positioned in Fuzhou, Fujian, this joint-venture manufactured excavator combines Japanese engineering standards with practical operational efficiency. The backhoe configuration and axial piston motor rotary system ensure precise control across construction, utility,
| Specifications | Value |
|---|---|
| No. | 1022503 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

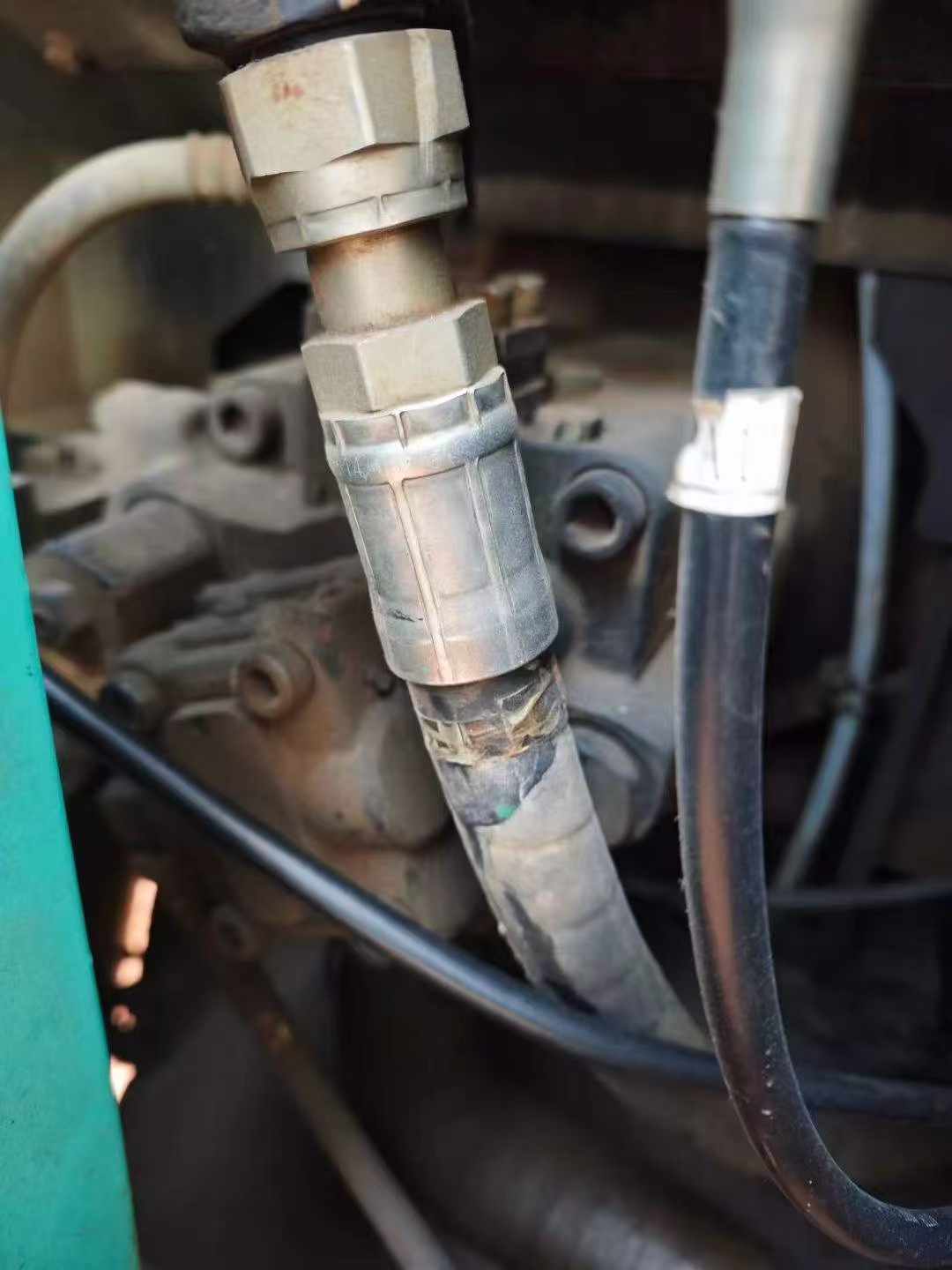

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
