2014 Kobelco SK75

1/8
Buy Kobelco SK75 Used Excavator / 1

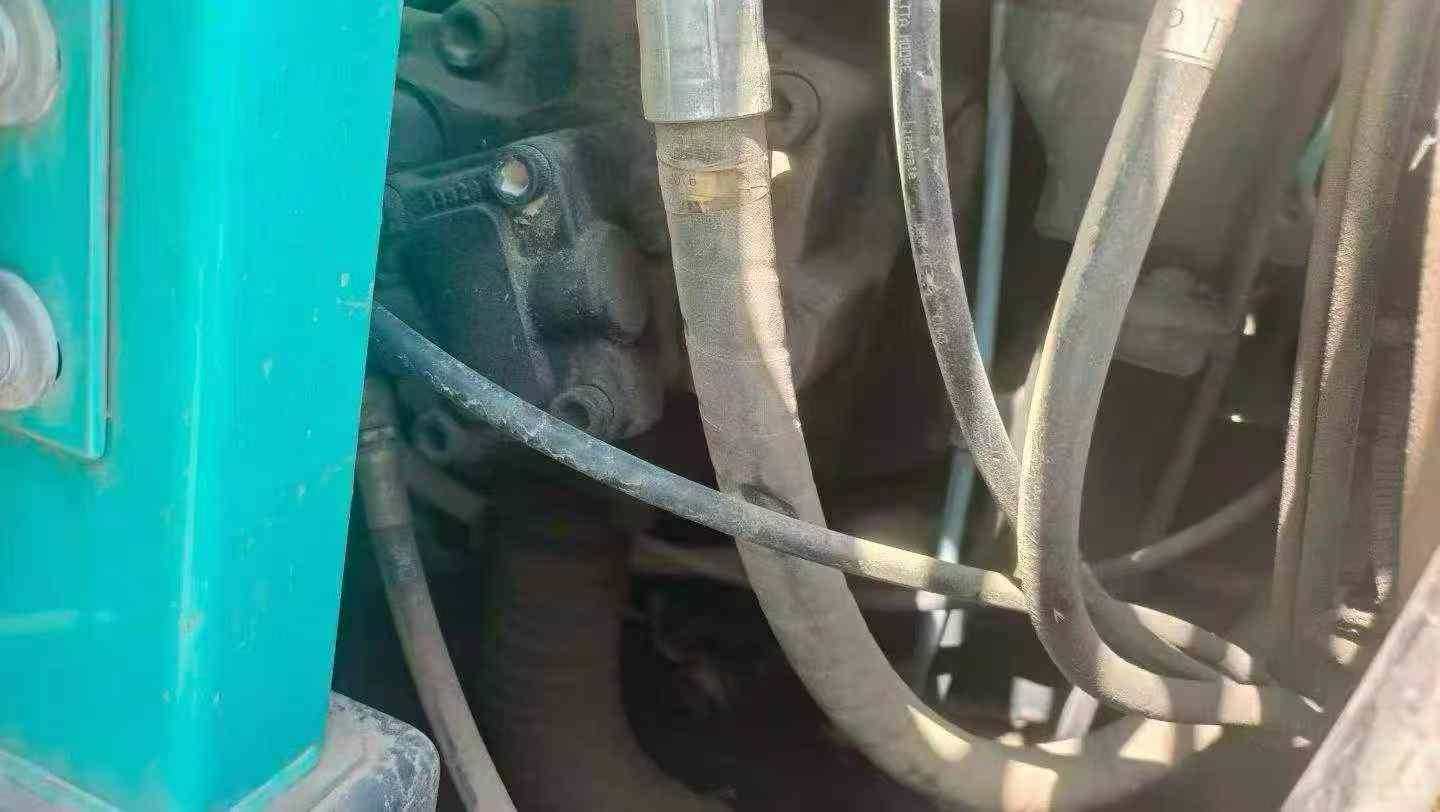

Buy Kobelco SK75 Used Excavator / 2

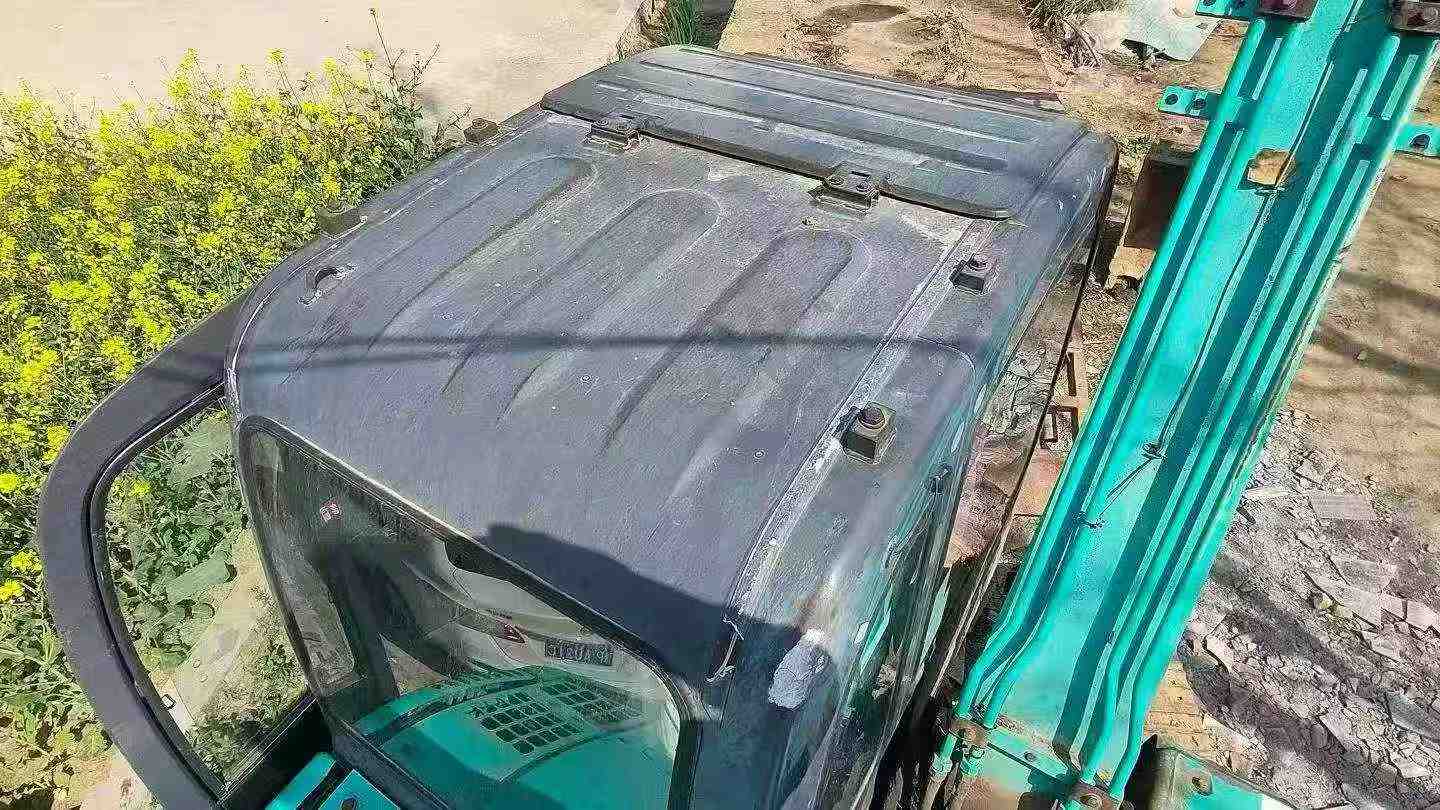

Buy Kobelco SK75 Used Excavator / 3

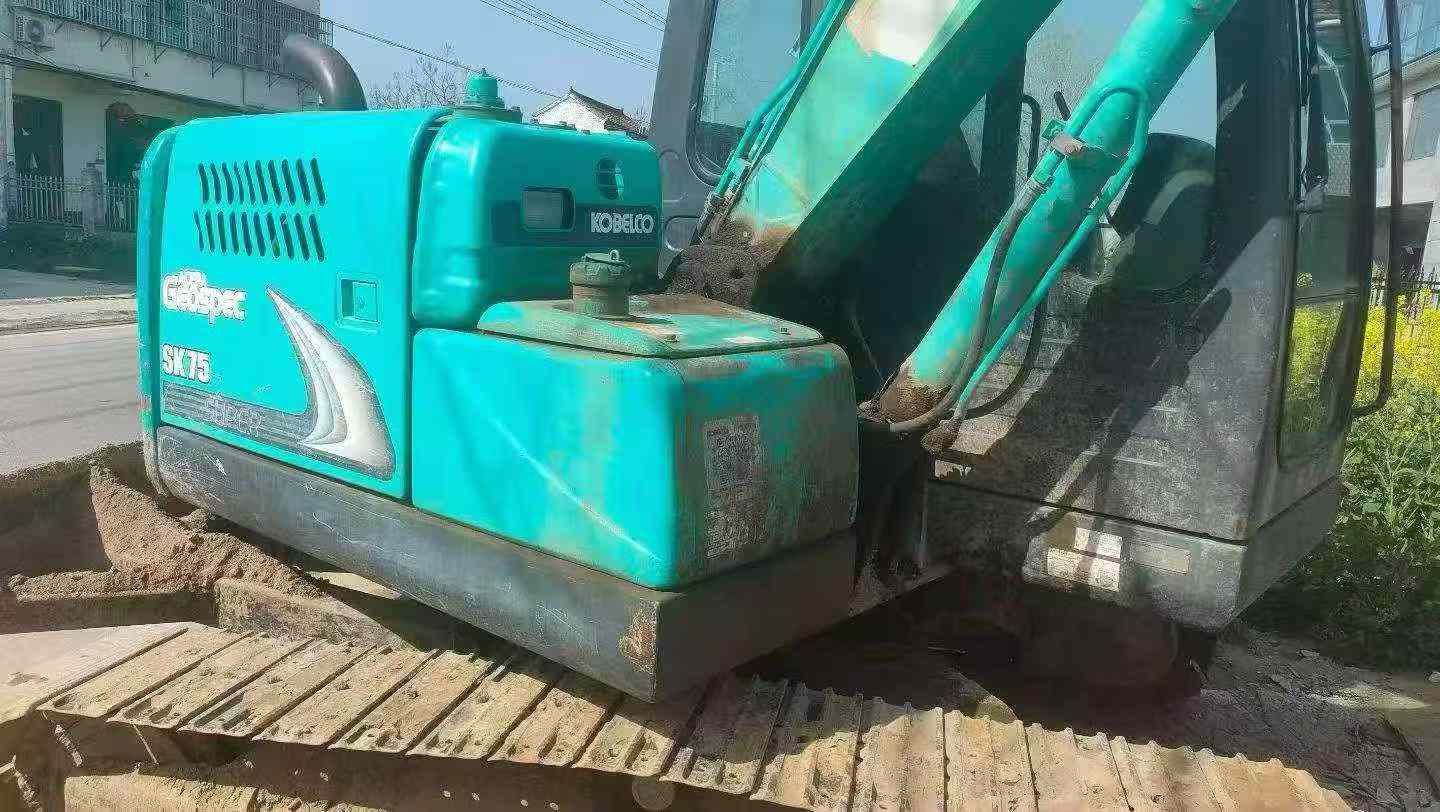

Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5

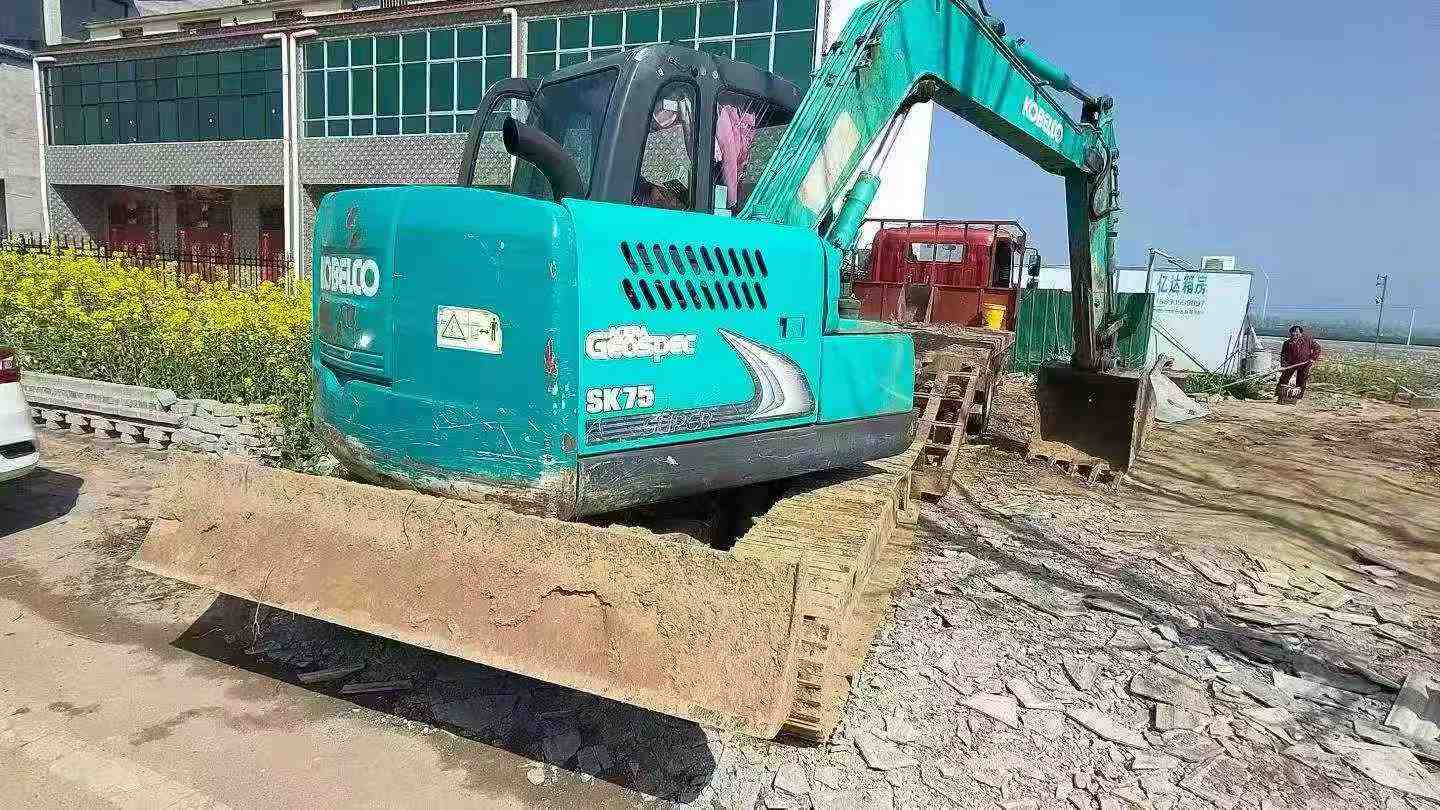

Buy Kobelco SK75 Used Excavator / 6

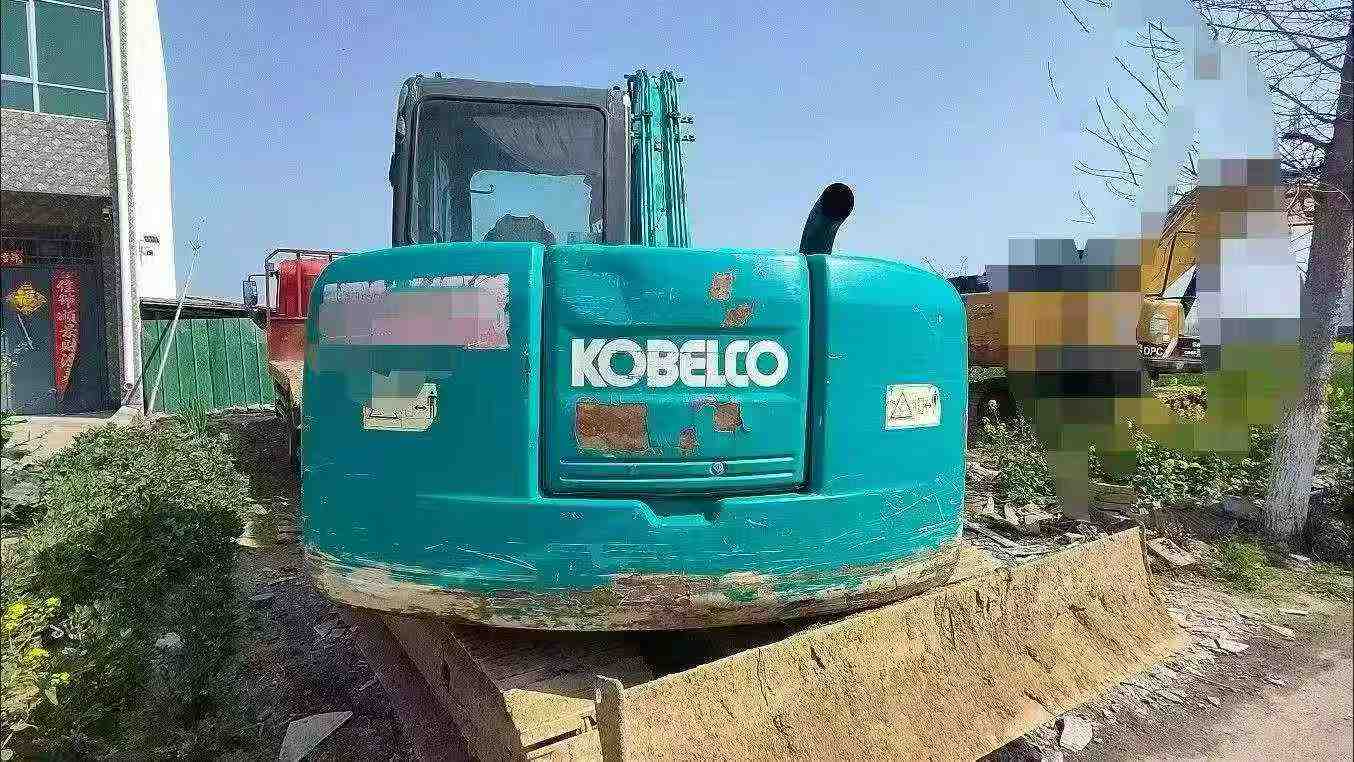

Buy Kobelco SK75 Used Excavator / 7

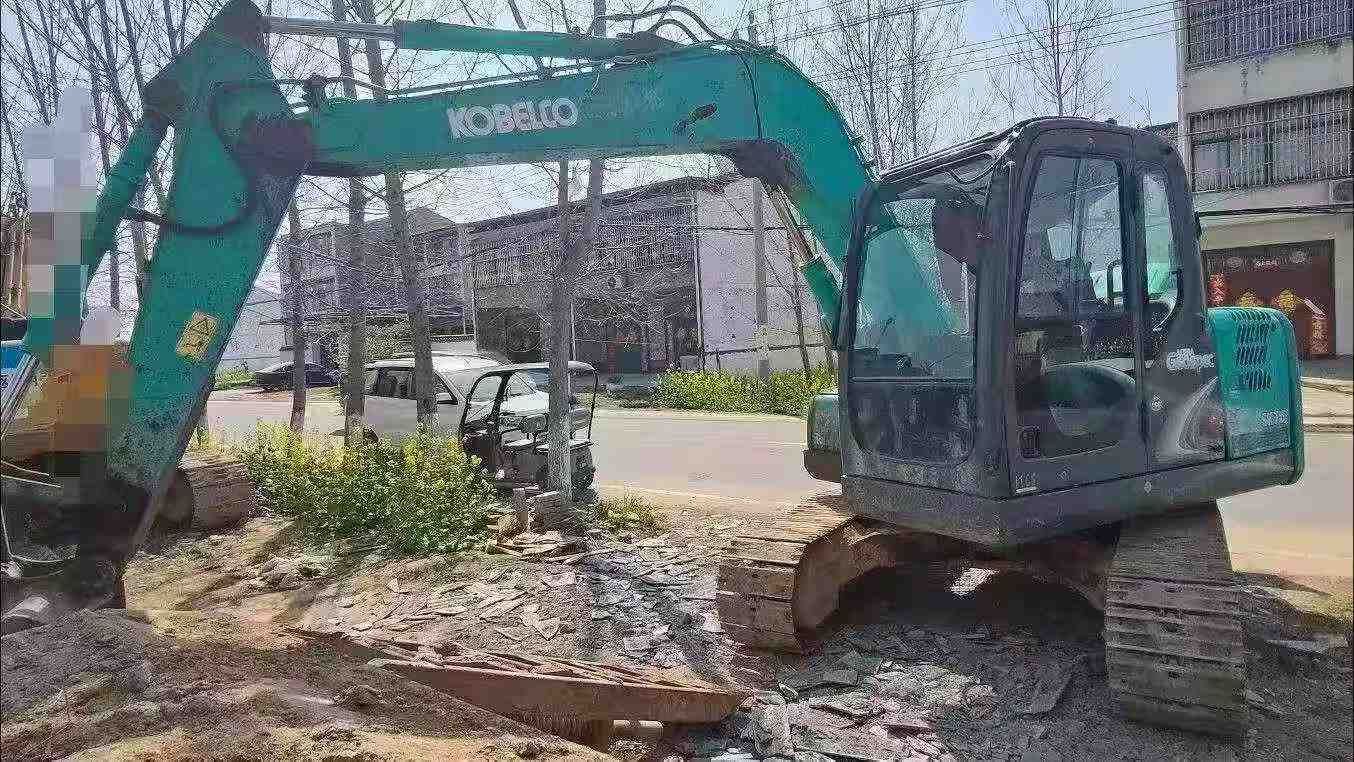

Buy Kobelco SK75 Used Excavator / 8

Product Description

Secure proven performance without the premium price tag with this 2014 Kobelco SK75 compact excavator, now available from our Shaoxing, Zhejiang facility. Engineered for demanding jobsites, this 7-ton machine delivers exceptional value for contractors seeking reliable productivity at a fraction of new equipment costs. Powered by a robust ISUZU AU4LE2X engine generating 41 kW at 2200 rpm, this water-cooled powerhouse combines efficiency with dependable operation across diverse applications.

Performance specifications include:

  • Maximum digging depth of 4,160 mm with 6,460 mm reach radius
  • Maximum digging height reaching 7,390 mm for versatile operation
  • Dual-speed travel system: 2.8/5.3 km/h for optimal maneuverability
  • Advanced hydraulic system with double variable displacement axial piston pump operating at 29.4 Mpa
  • Compact turning radius: 1,760 mm front, 1,290 mm rear for confined spaces
  • Generous fuel capacity (120L) minimizes downtime

Backed by Kobelco's joint-venture manufacturing quality and ISUZU's legendary engine reliability, this SK75 represents a smart investment for budget-conscious operations demanding professional-grade capabilities without new

SpecificationsValue
No.1047250
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1047250

Brand Name:

Kobelco

Model Number:

SK75

Year:

2014

Location:

Zhejiang China

Pub Date
