Product Description

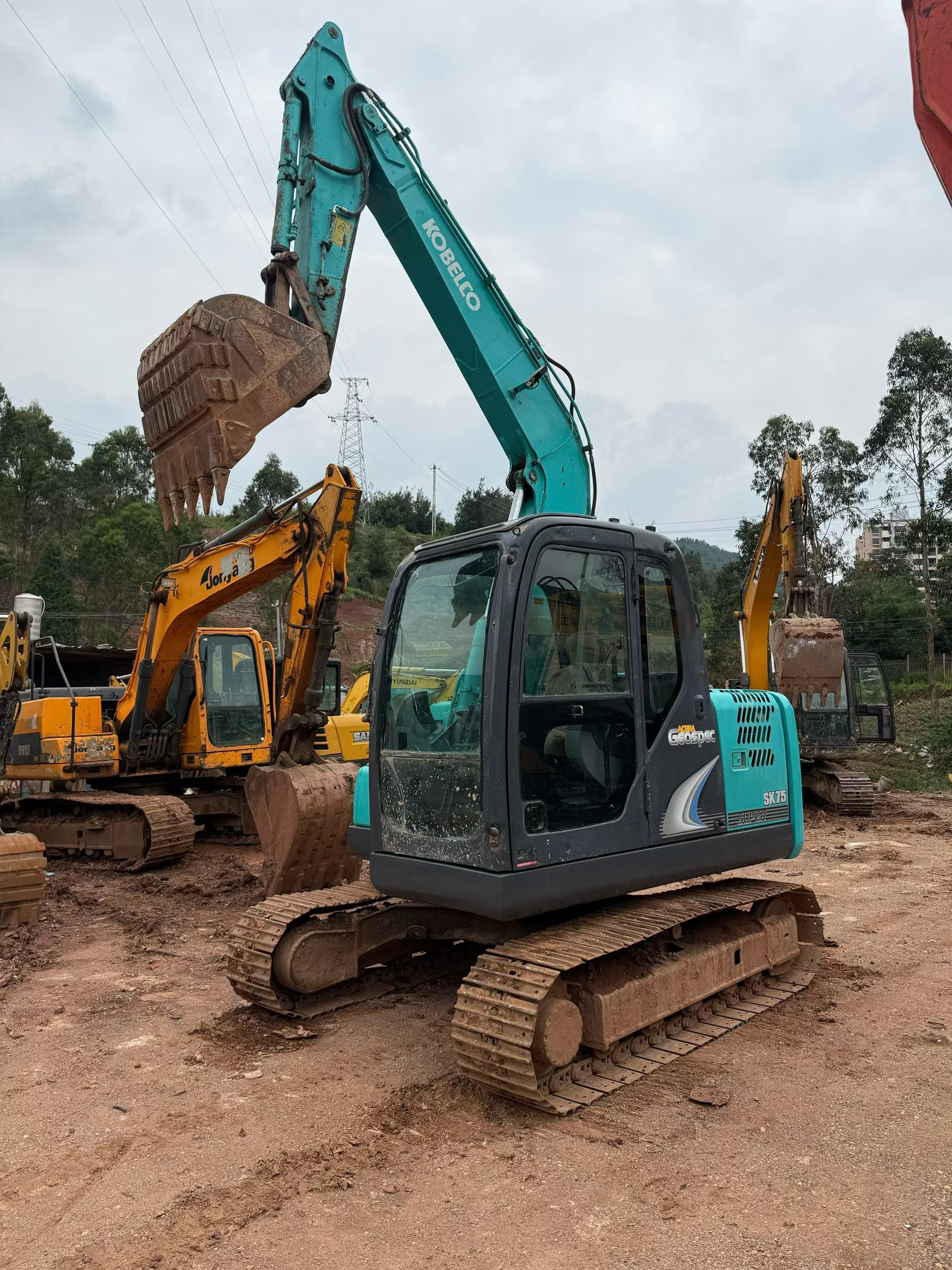

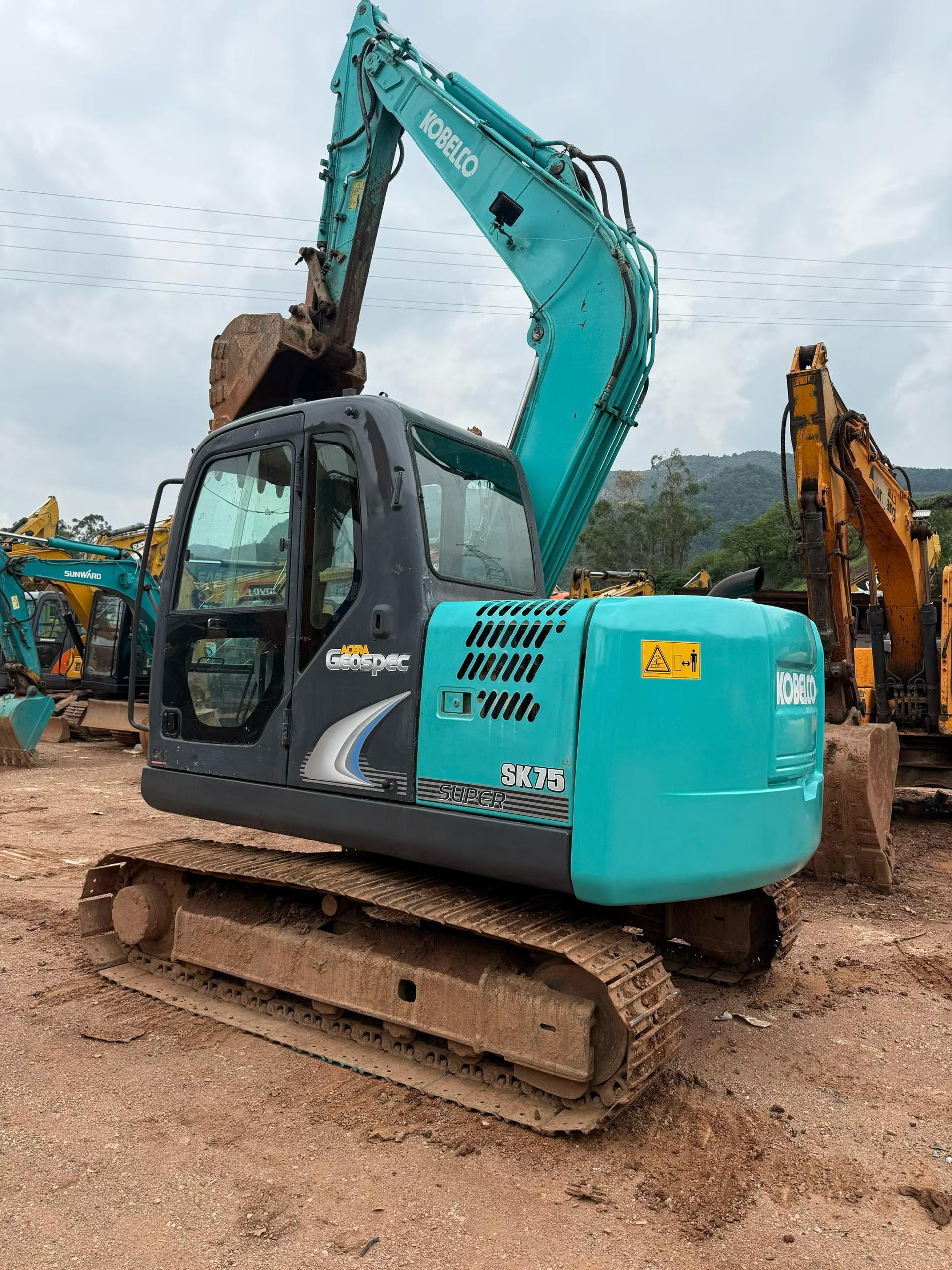

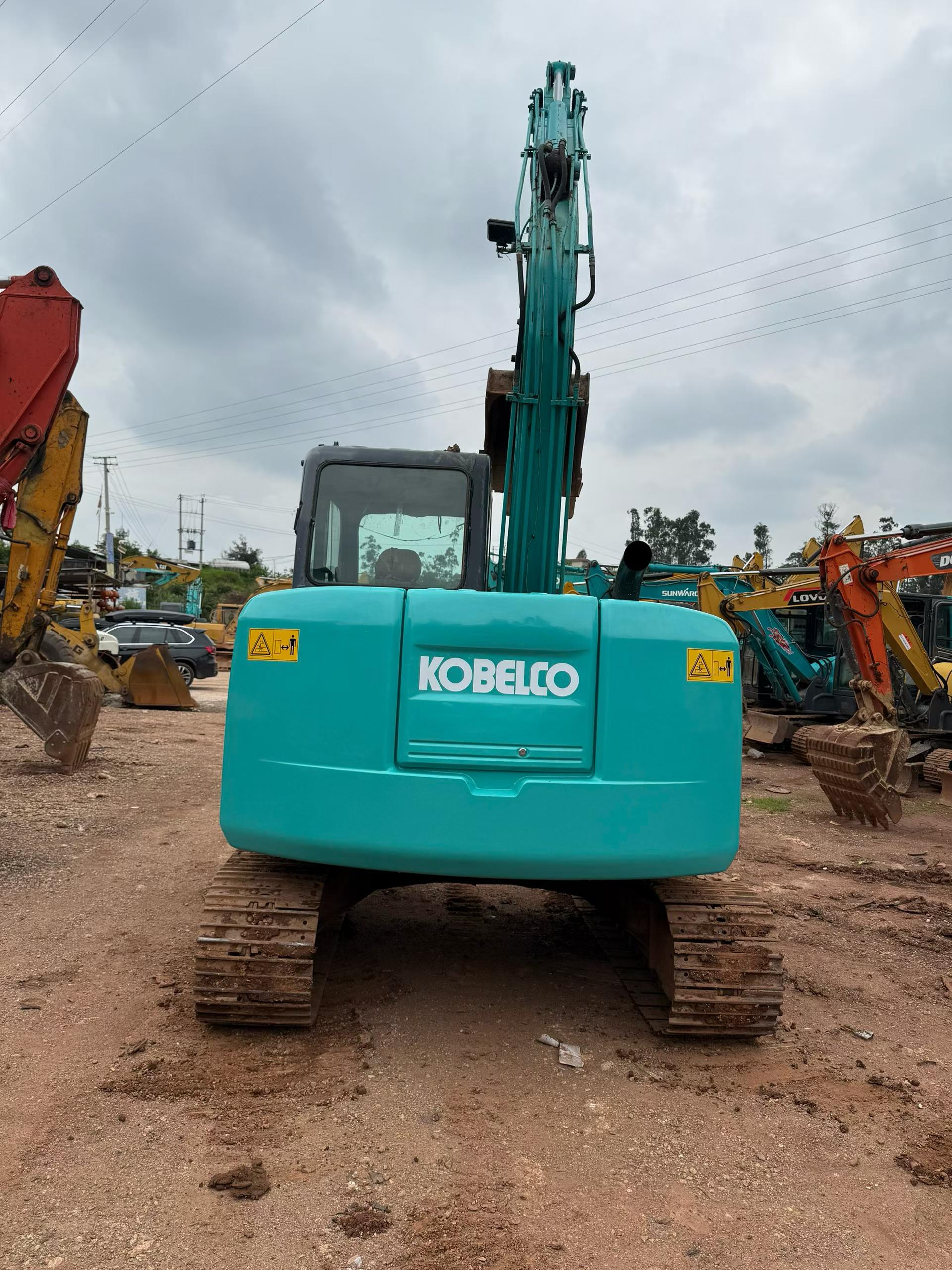

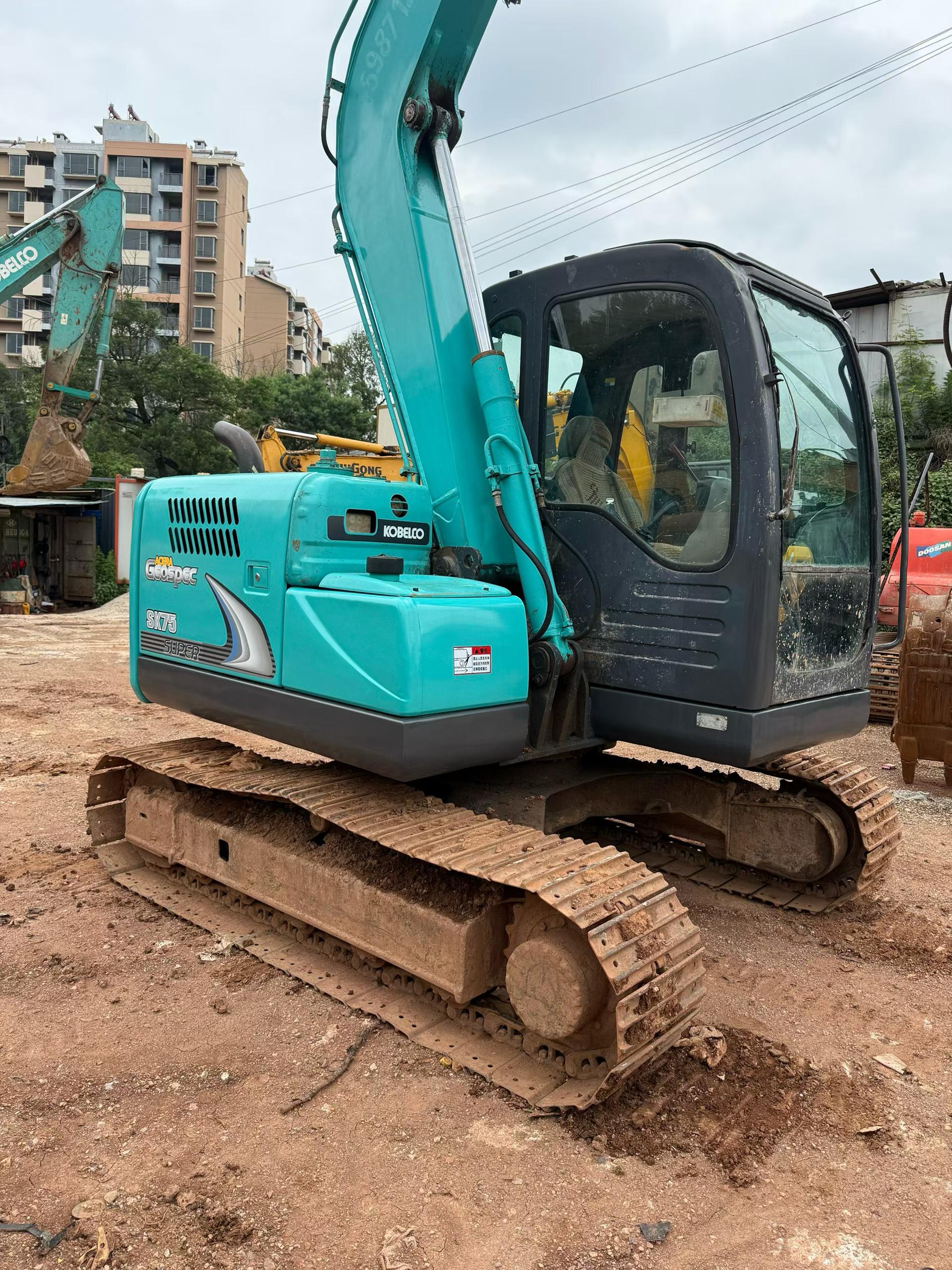

This 2014 Kobelco SK75 midi excavator offers reliable performance for construction and earthmoving operations. Currently located in Yunnan, China, this unit is available for inspection in Kunming. The SK75 is known for its compact design and fuel efficiency, making it suitable for urban construction sites and confined working areas.
- Year: 2014
- Model: Kobelco SK75
- Operating weight class: Approximately 7.5 tonnes
- Location: Yunnan Province, China
- Condition: Performance verified, ready for inspection
- Viewing: Available in Kunming
The SK75 combines maneuverability with sufficient digging power for medium-scale projects. Interested buyers are encouraged to conduct on-site inspection to verify operational condition. This unit represents a cost-effective solution for contractors seeking proven Japanese engineering in the midi excavator segment.
| Specifications | Value |
|---|---|
| No. | 1081731 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

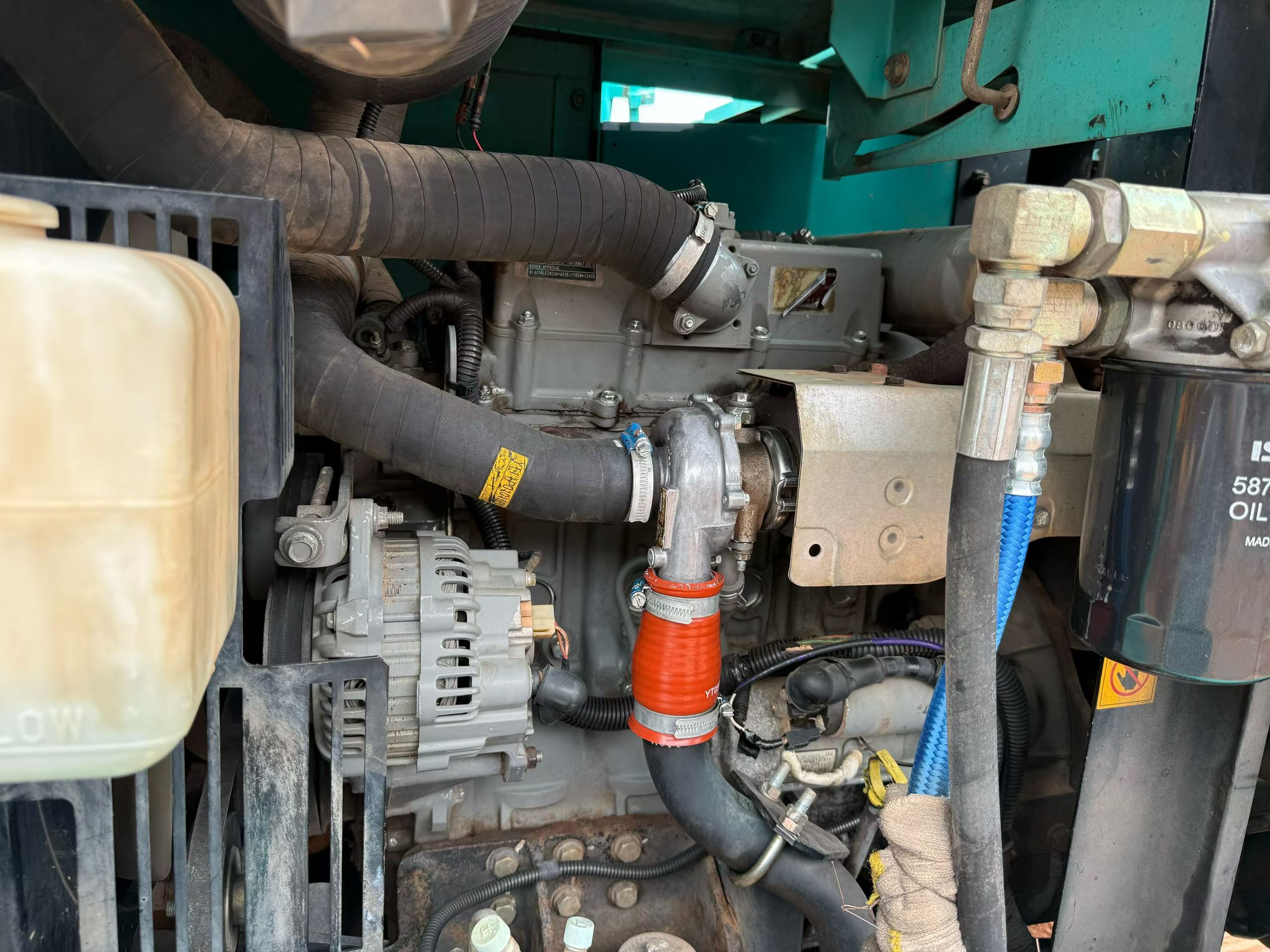

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

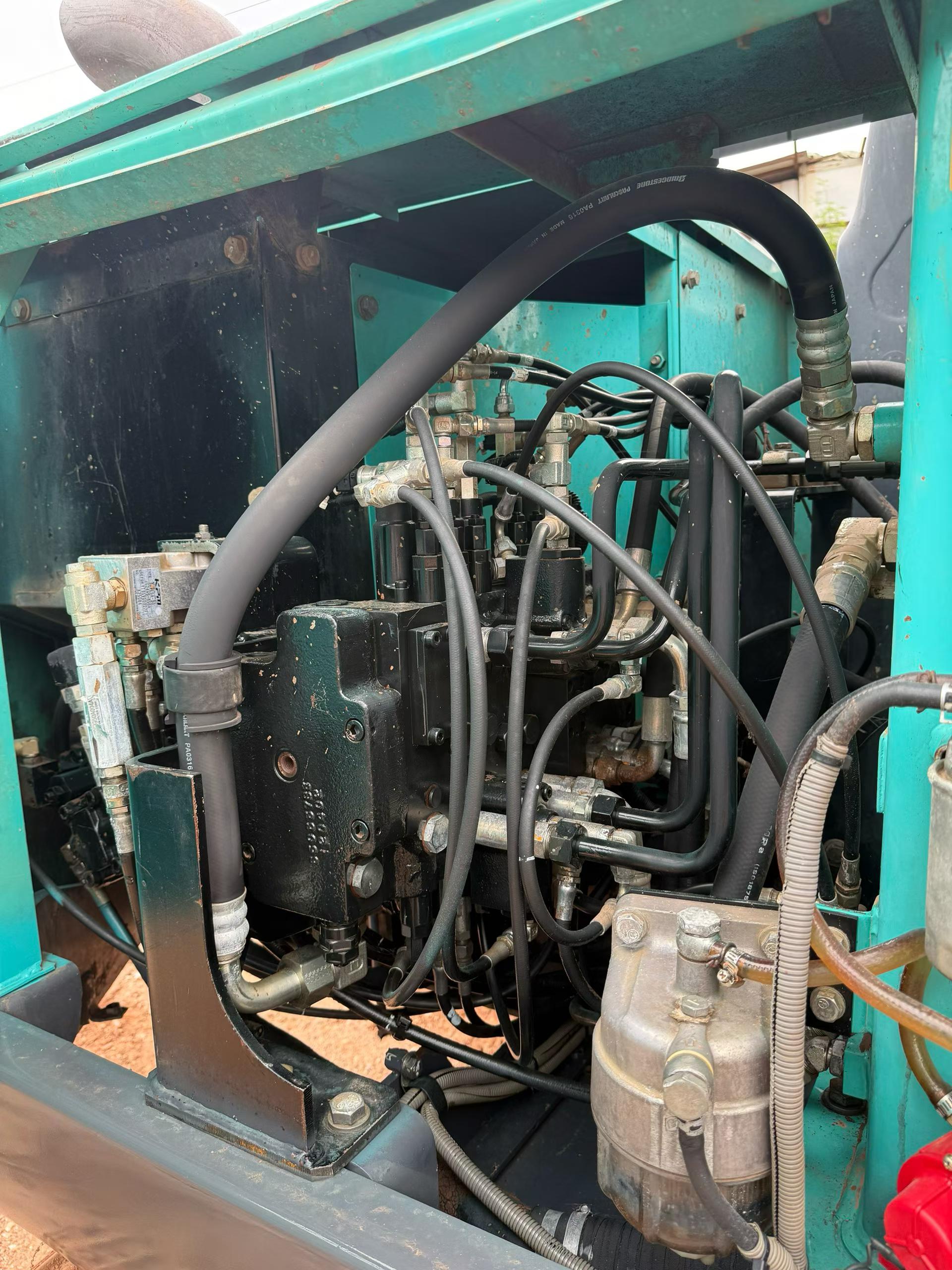

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
