Product Description

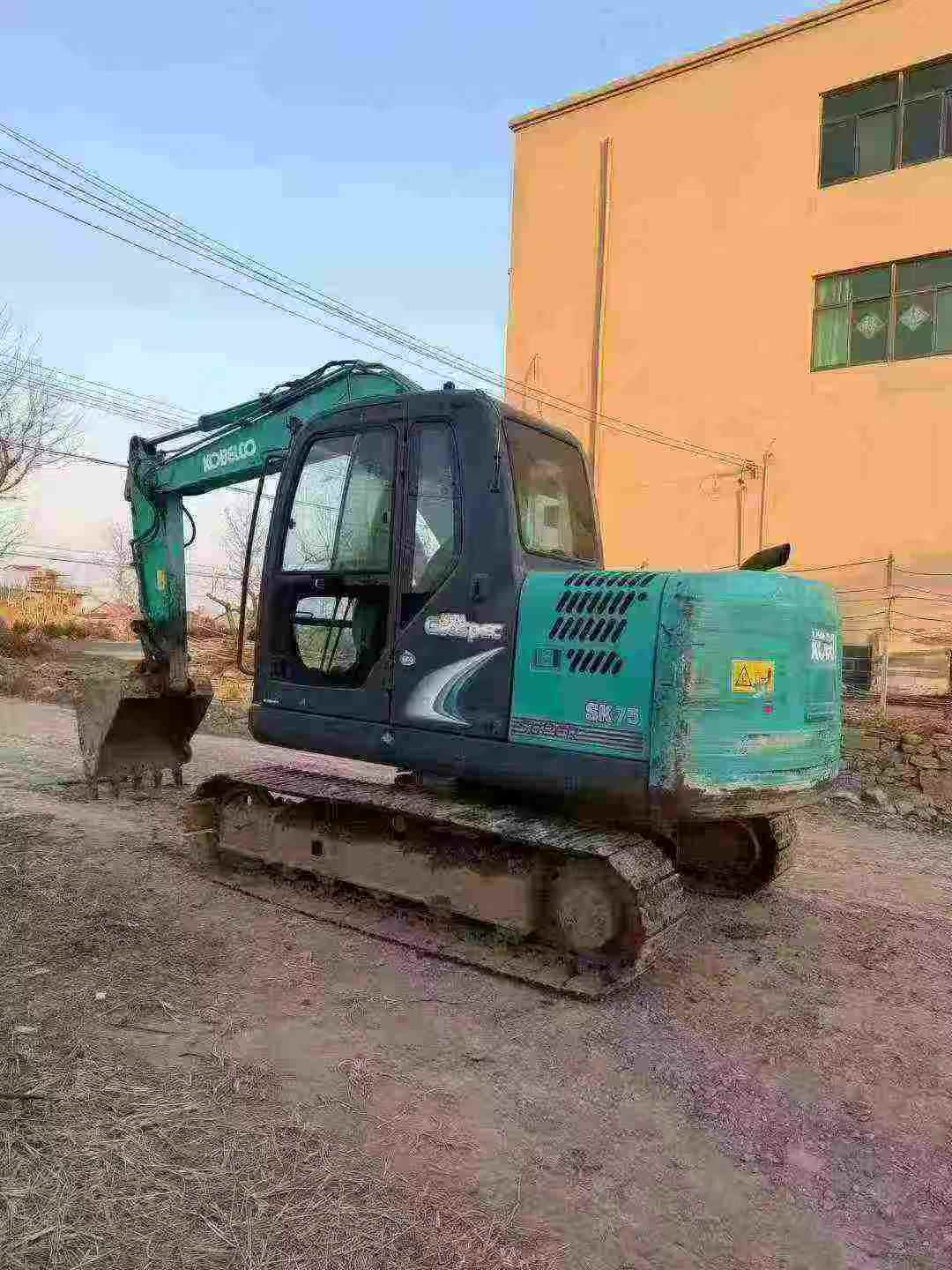

Built to endure the toughest jobsite conditions, this 2015 Kobelco SK75 excavator demonstrates exceptional longevity and reliability. Operating at 7 tons with a robust ISUZU AU4LE2X engine delivering 41kW at 2200rpm, this proven workhorse has established itself as a dependable performer in demanding construction and excavation environments. Currently located in Hebei, this machine combines Japanese engineering precision with practical functionality that stands the test of time.
Key performance specifications include:
- Maximum digging depth of 4160mm with 6460mm reach capability
- Water-cooled 4-cylinder engine with 2.179L displacement for consistent power delivery
- Advanced hydraulic system featuring double variable displacement axial piston pumps
- Working hydraulic circuit rated at 29.4 Mpa for superior digging force
- Dual travel speeds (2.8/5.3 km/h) for operational versatility
- Compact design with 1760mm minimum turning radius for confined spaces
With nearly a decade of proven service, this SK75 represents the durability and build quality that Kobelco is renowned for in the compact excavator segment.
| Specifications | Value |
|---|---|
| No. | 1009047 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

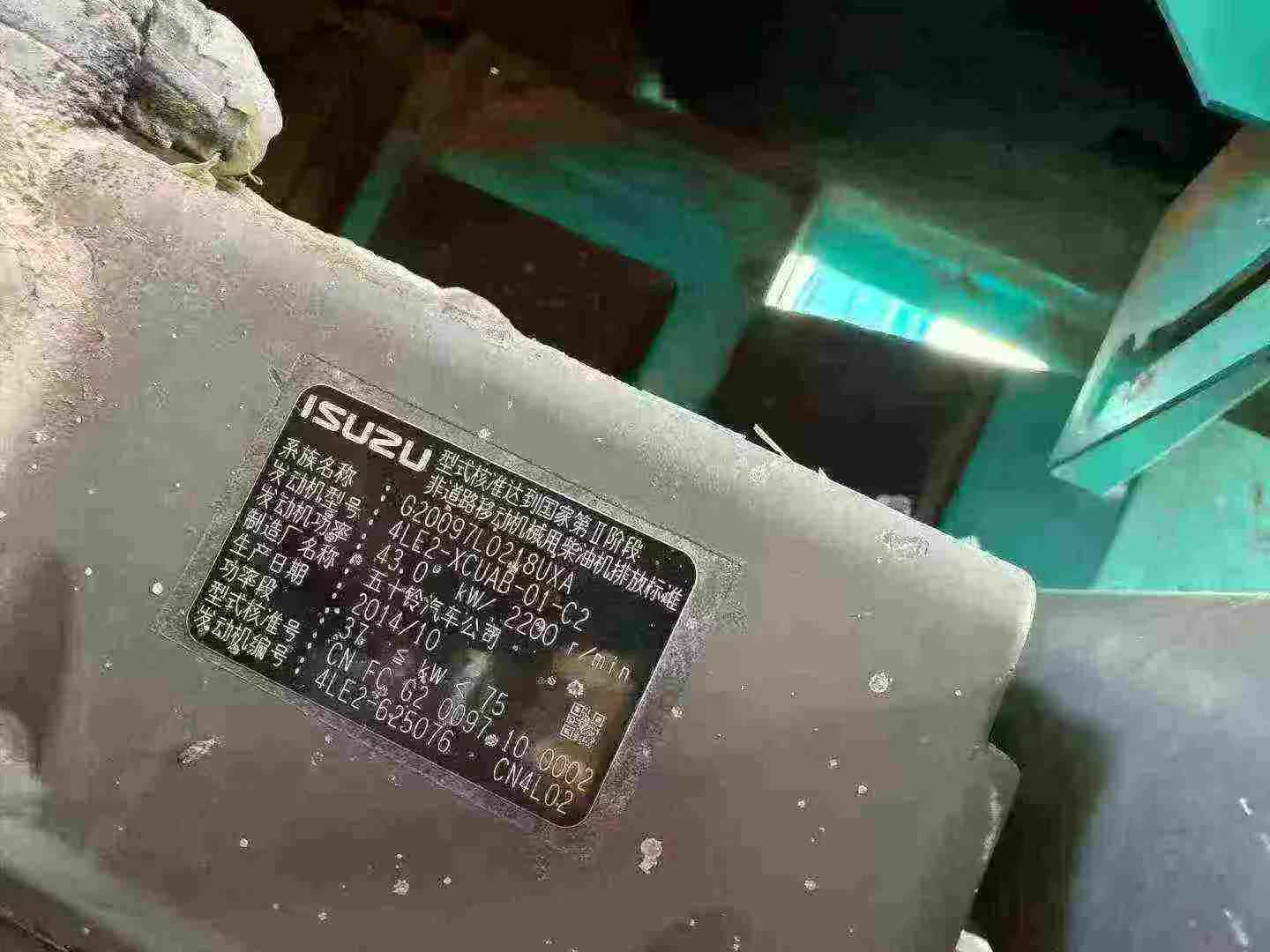

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
