Product Description

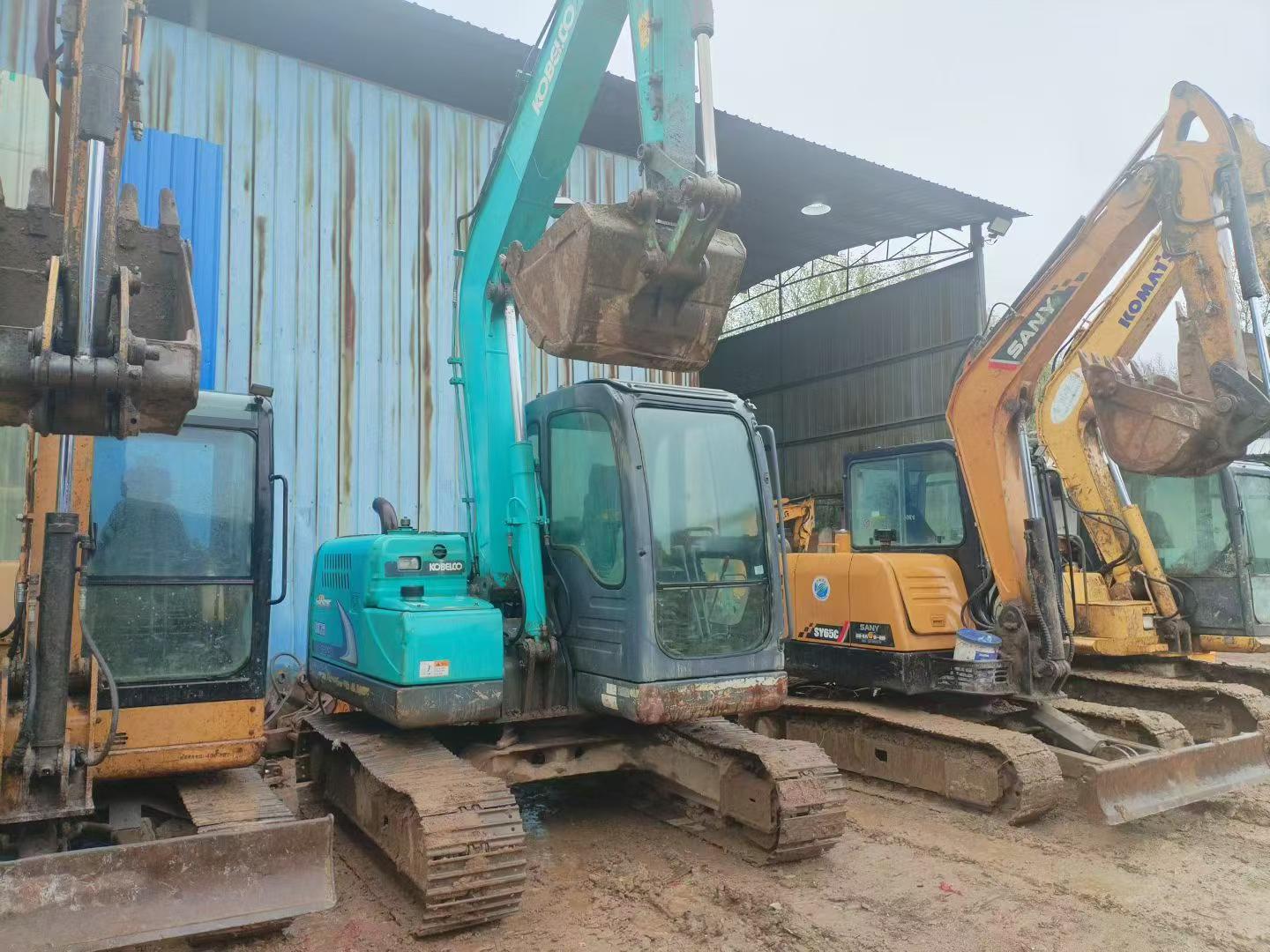

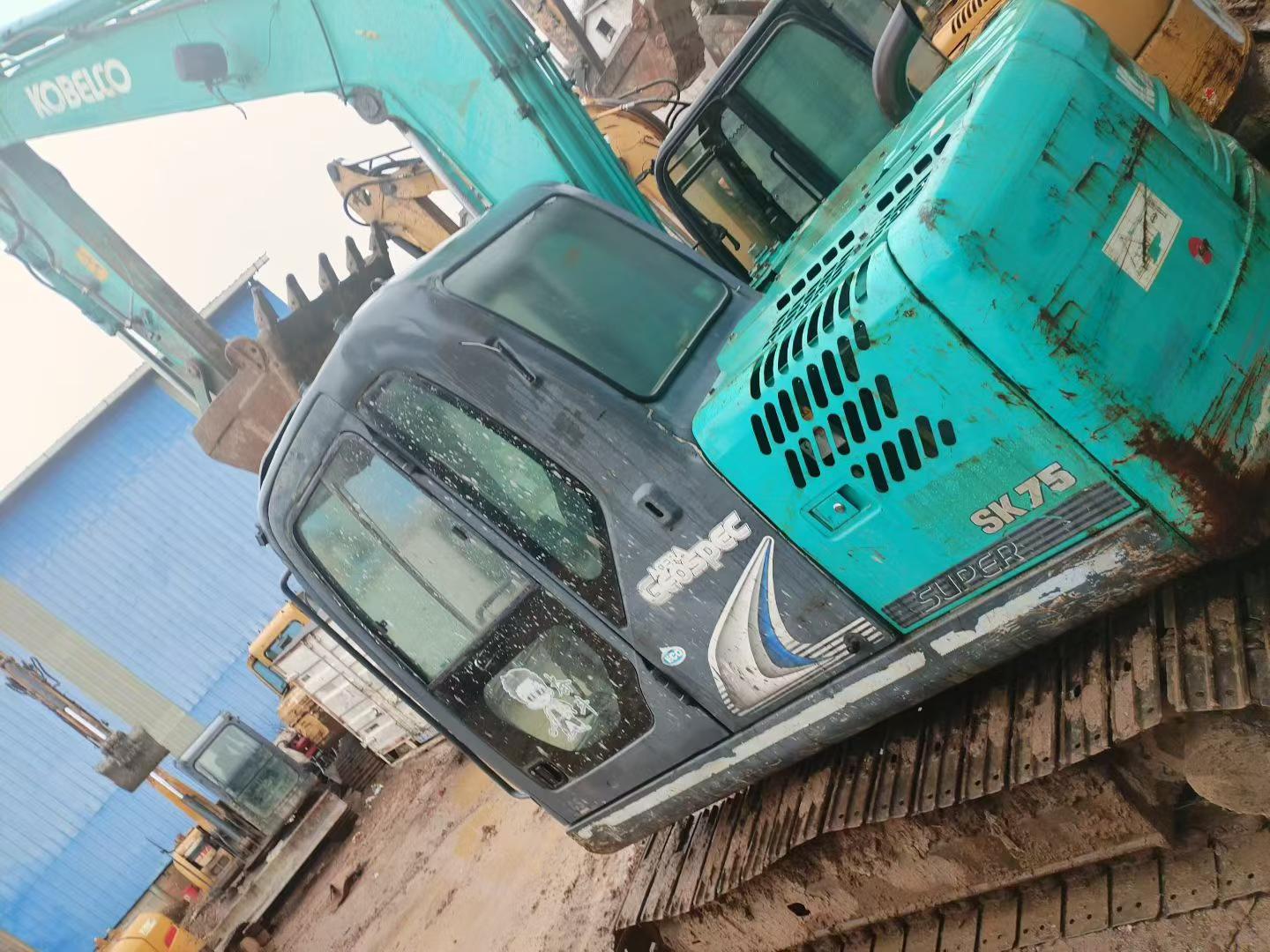

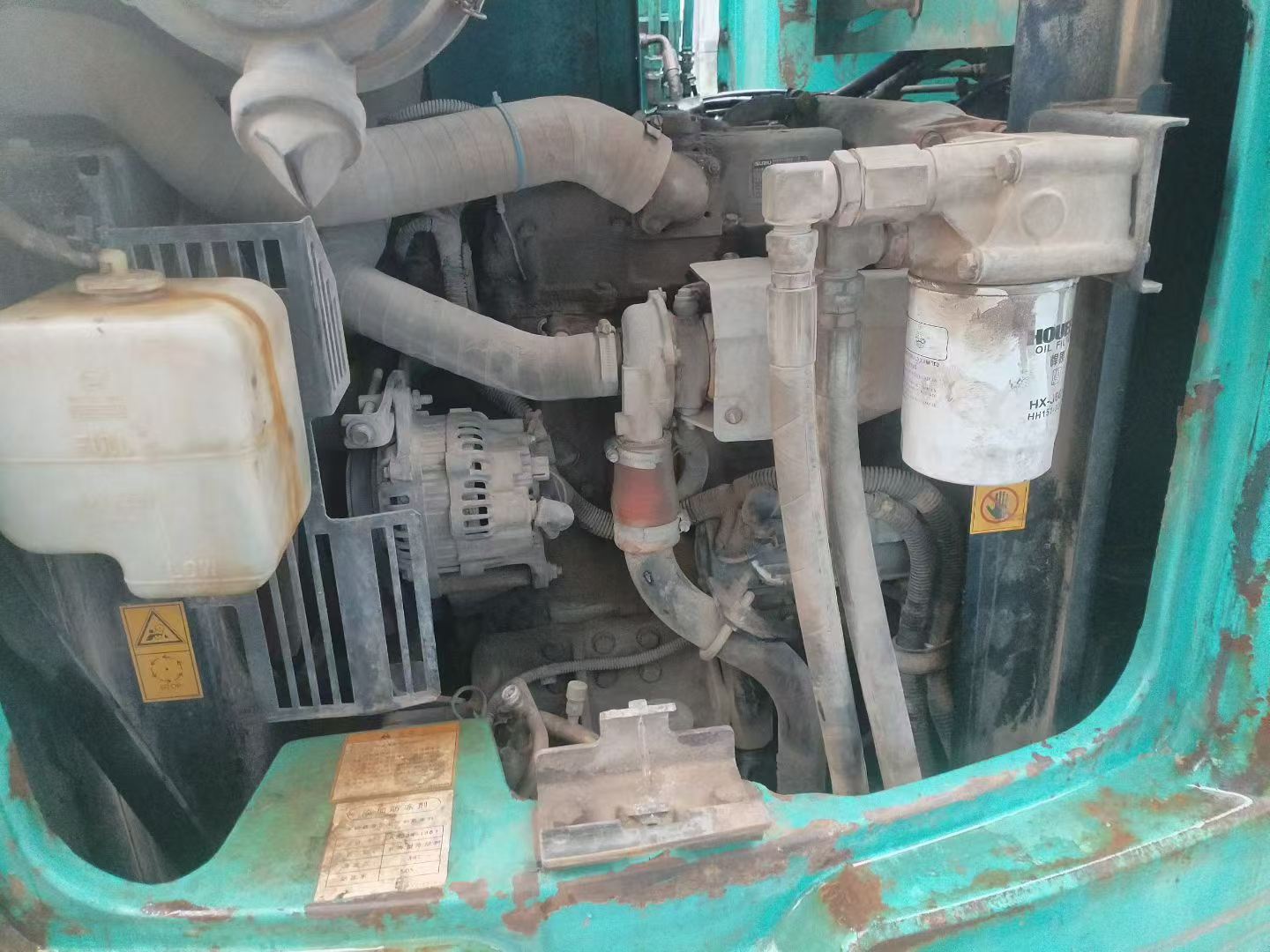

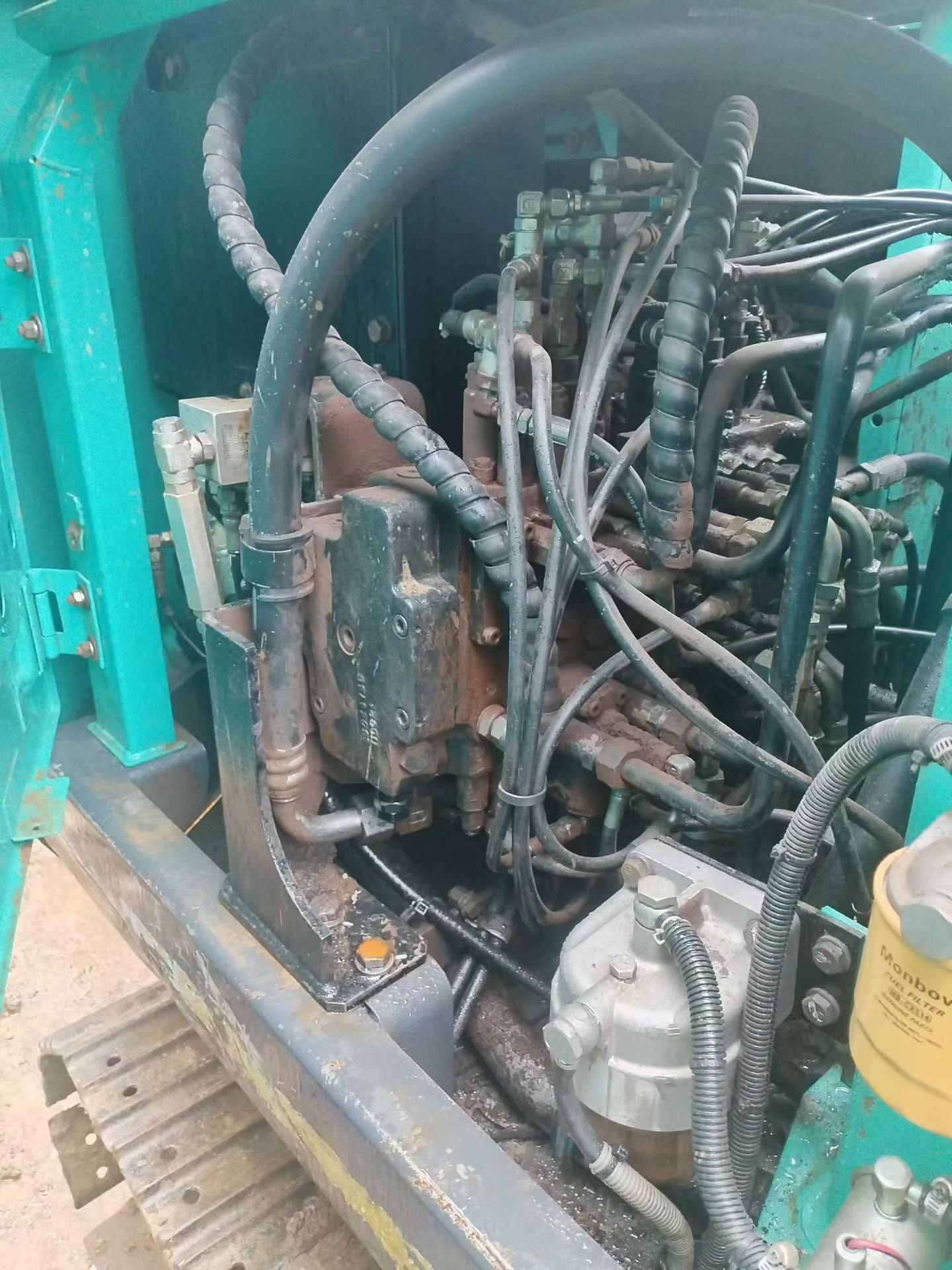

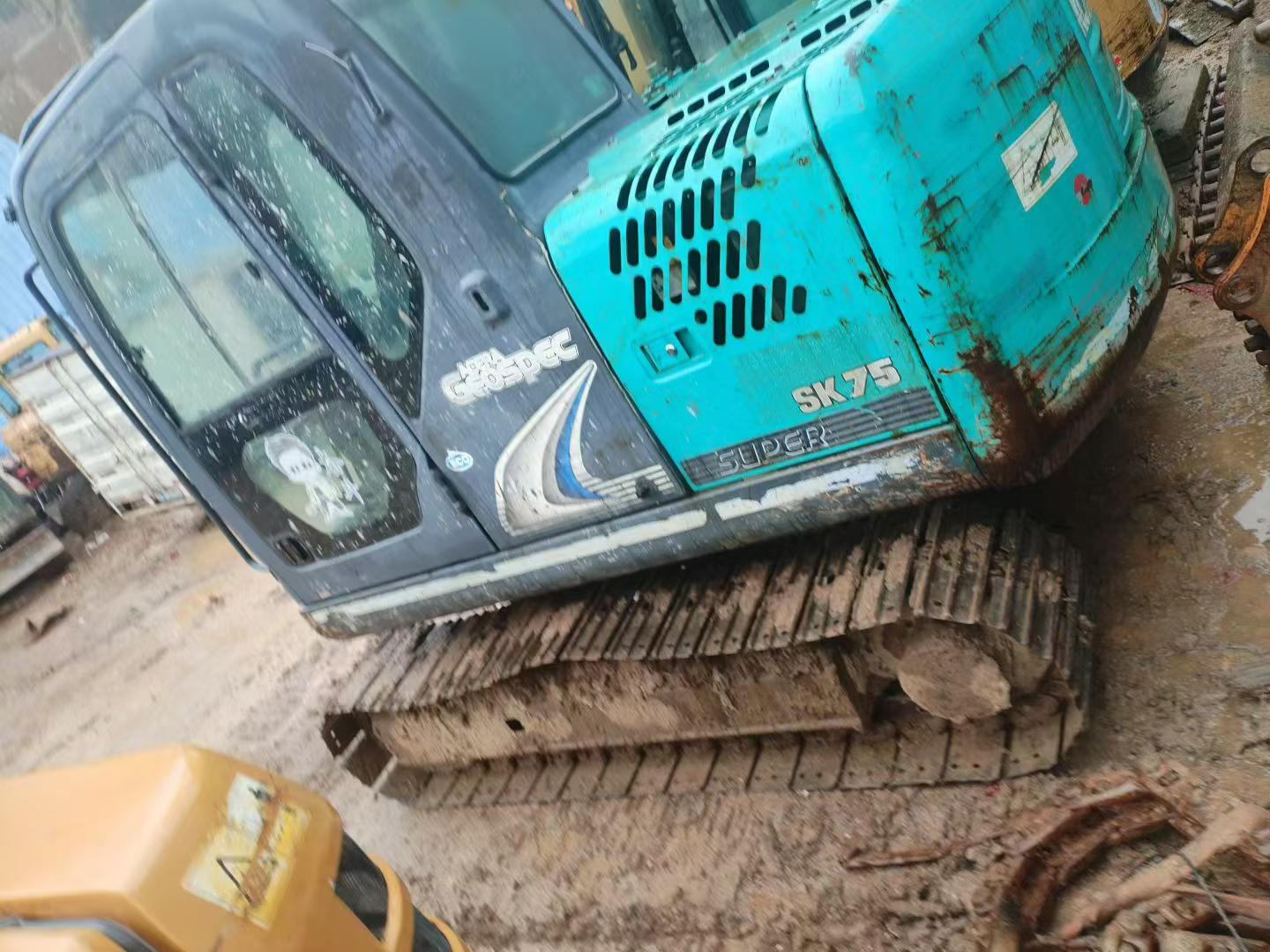

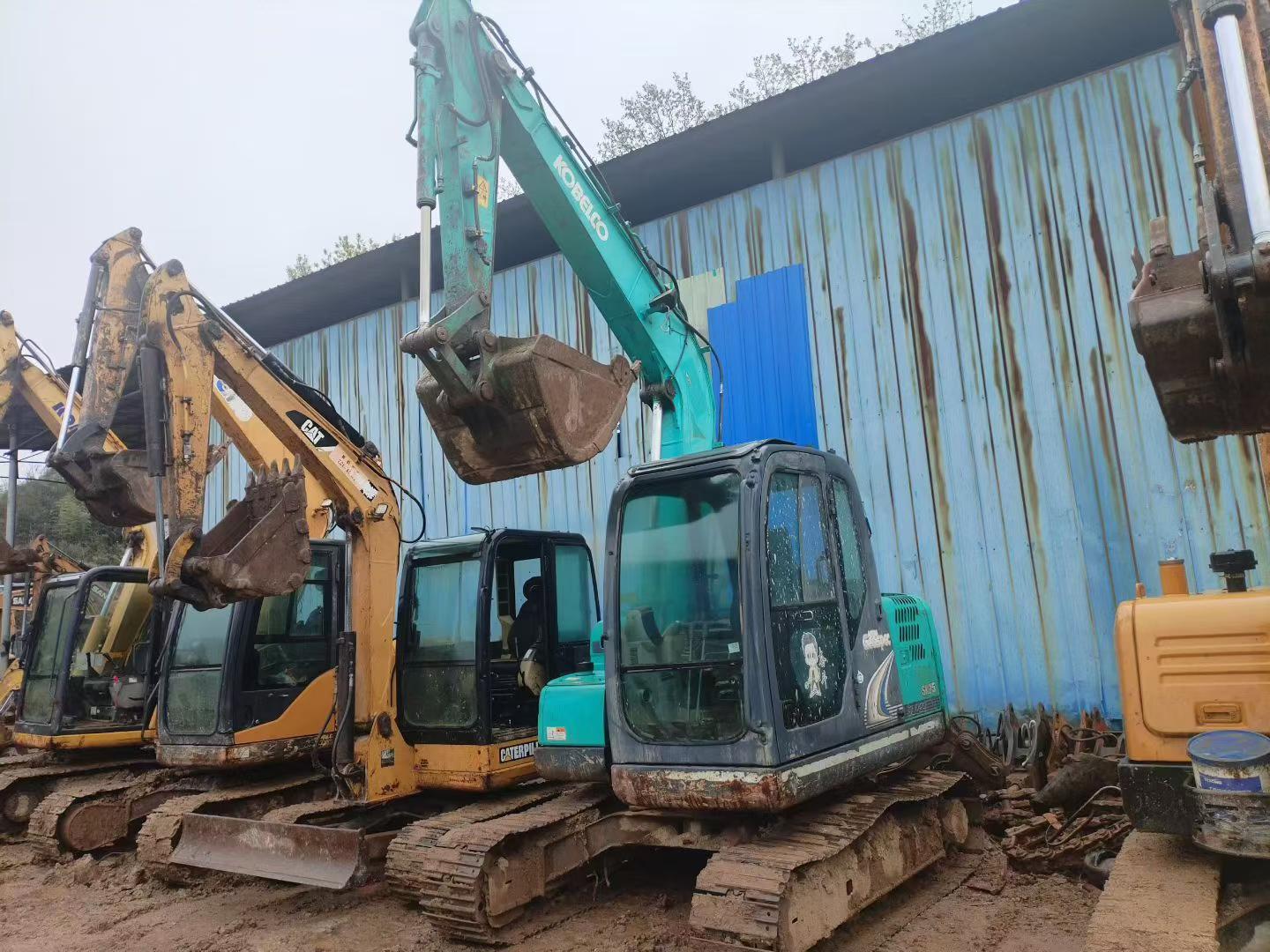

Proven in demanding conditions since 2015, this Kobelco SK75 mini excavator demonstrates the enduring quality that defines professional-grade machinery. Operating at 7 tons with a robust ISUZU AU4LE2X engine delivering 41kW at 2200 rpm, this compact workhorse has established itself as a reliable performer for contractors who demand consistent results. Currently located in Guizhou, this unit features a water-cooled 4-cylinder powerplant with 2.179L displacement, backed by a sophisticated double variable displacement axial piston pump system and 29.4 Mpa working hydraulic circuit.
- Maximum digging depth: 4160mm with 6460mm reach radius
- Maximum excavation height: 7390mm for versatile job site applications
- Dual-speed travel: 2.8/5.3 km/h for efficient site mobility
- Compact footprint: 1760mm minimum turning radius, 2630mm transport height
- Generous fluid capacities: 120L fuel tank, 120L hydraulic system
Built with joint venture manufacturing standards, this SK75 represents years of dependable service with the structural integrity to continue delivering value. A genuine workhorse for excavation, grading, and utility work.
| Specifications | Value |
|---|---|
| No. | 1034246 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
