2015 Kobelco SK75

1/9

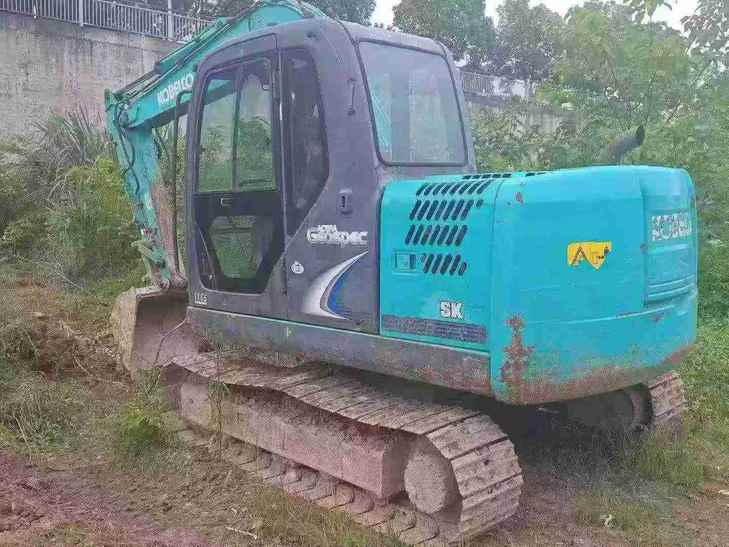

Buy Kobelco SK75 Used Excavator / 1
Buy Kobelco SK75 Used Excavator / 2
Buy Kobelco SK75 Used Excavator / 3
Buy Kobelco SK75 Used Excavator / 4
Buy Kobelco SK75 Used Excavator / 5
Buy Kobelco SK75 Used Excavator / 6
Buy Kobelco SK75 Used Excavator / 7
Buy Kobelco SK75 Used Excavator / 8
Buy Kobelco SK75 Used Excavator / 9

Product Description

This 2015 Kobelco SK75 midi excavator is available from a first-owner source in Sichuan, China. The SK75 is a proven 7.5-tonne class machine known for reliable hydraulic performance and fuel efficiency in confined job sites.

Key features of the Kobelco SK75 include:

  • Compact footprint suitable for urban construction and utility work
  • Kobelco's AZEUS hydraulic system for responsive digging and lifting
  • Zero tail swing design for operation in restricted spaces
  • Operator cabin with good visibility and ergonomic controls

This unit comes directly from the original owner, offering transparency on service history and operational background. Priced competitively for the regional market, it represents a cost-effective option for contractors seeking dependable midi excavator capacity without the premium of newer inventory.

Contact us to arrange inspection or discuss shipping to your location.

SpecificationsValue
No.1140387
Tonnage (tons)7
Working weight (kg)7000(approx)
Country of originChengdu
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeISUZU AU4LE2X
Rated power (kw/rpm)41/2200
Cooling modewater-cooling
Cylinder diameter × stroke (mm)85 x 96
Number of cylinders (PCS)4
Displacement (L)2.179
Rotary hydraulic motor typeAxial piston motor
Traveling Hydraulic Circuit (Mpa)27.5
Rotary Hydraulic Circuit (Mpa)14.5
Control Hydraulic Circuit (Mpa)3.5
Main pump typeDouble variable displacement axial piston pump + pilot gear pump
Working Hydraulic Circuit (Mpa)29.4
Fuel Tank (L)120
Hydraulic Tank (L)72
Engine Oil changes (L)11
Coolant (L)8.5
Hydraulic System (L)120
Total transport height (mm)2630
Full cab height (mm)2630
Minimum turning radius of front working device (mm)1760
Back end turning radius (mm)1290
Maximum digging radius (mm)6460
Maximum digging depth (mm)4160
Maximum excavation height (mm)7390
Maximum unloading height (mm)5330
Maximum vertical digging depth (mm)3450
Maximum excavation radius of stop surface (mm)6300
Maximum effective digging depth (mm)3800
Travel speed (km/h)2.8/5.3
see more

Overview

No.1140387

Brand Name:

Kobelco

Model Number:

SK75

Year:

2015

Location:

Sichuan China
