Product Description

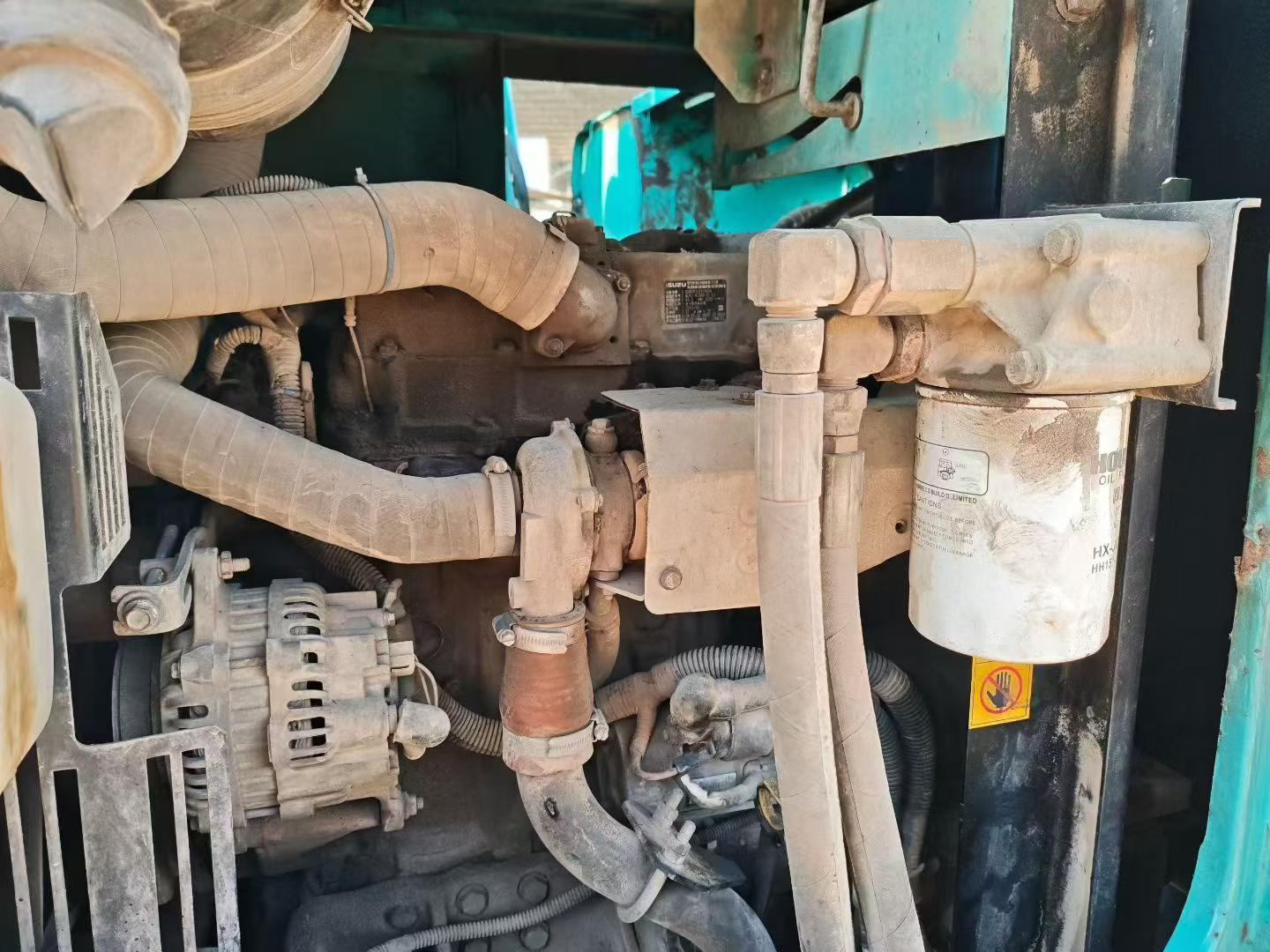

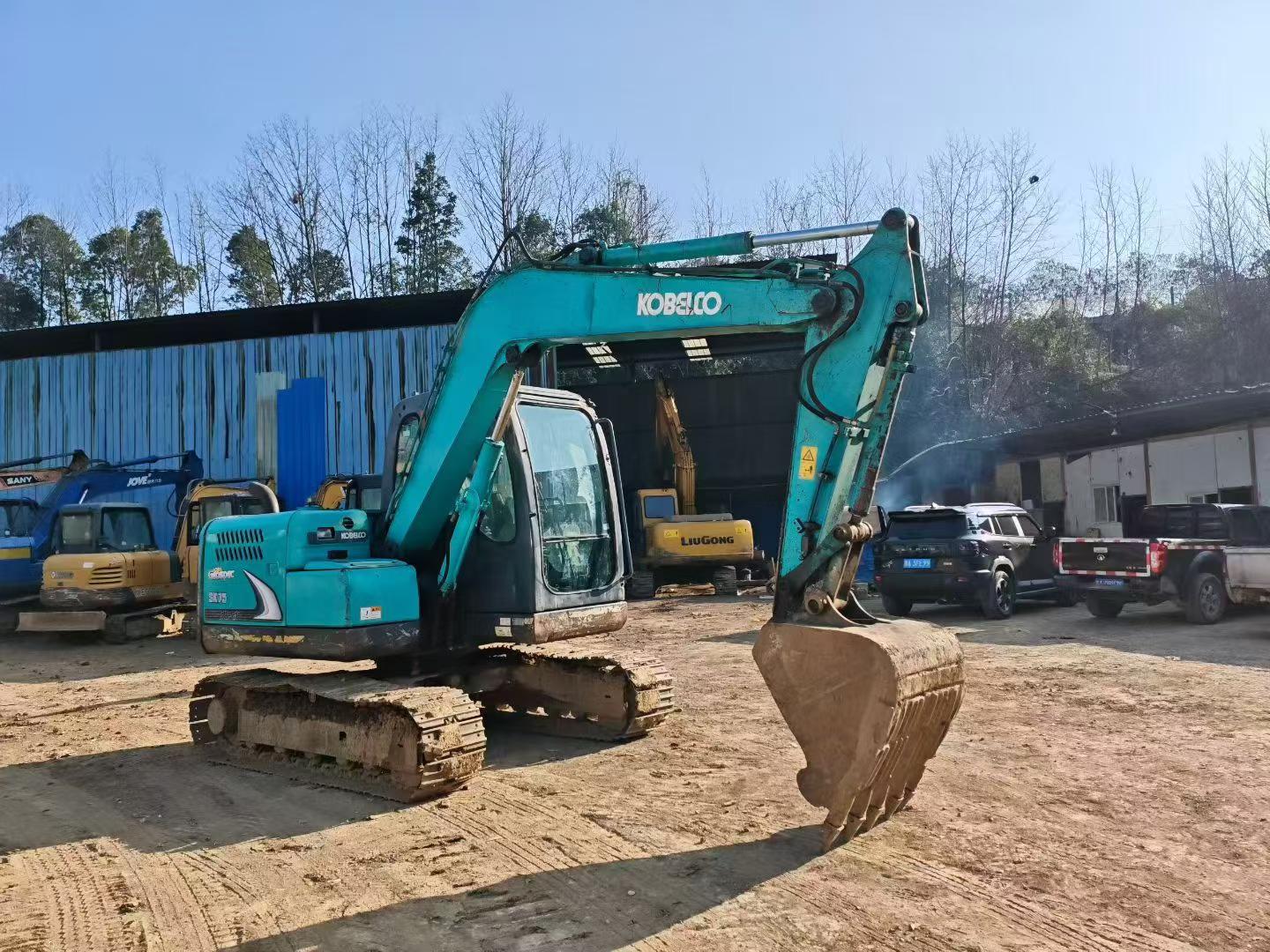

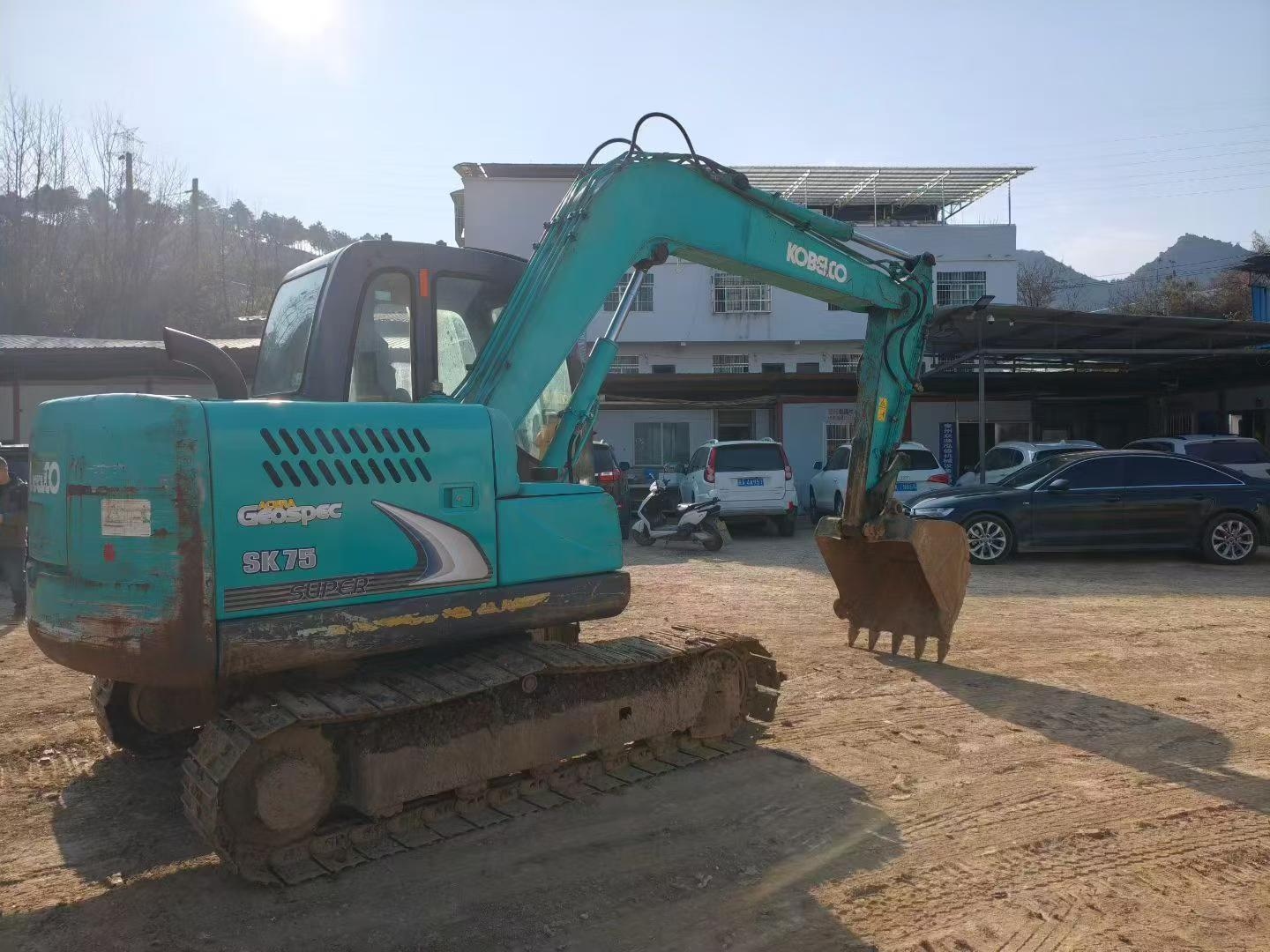

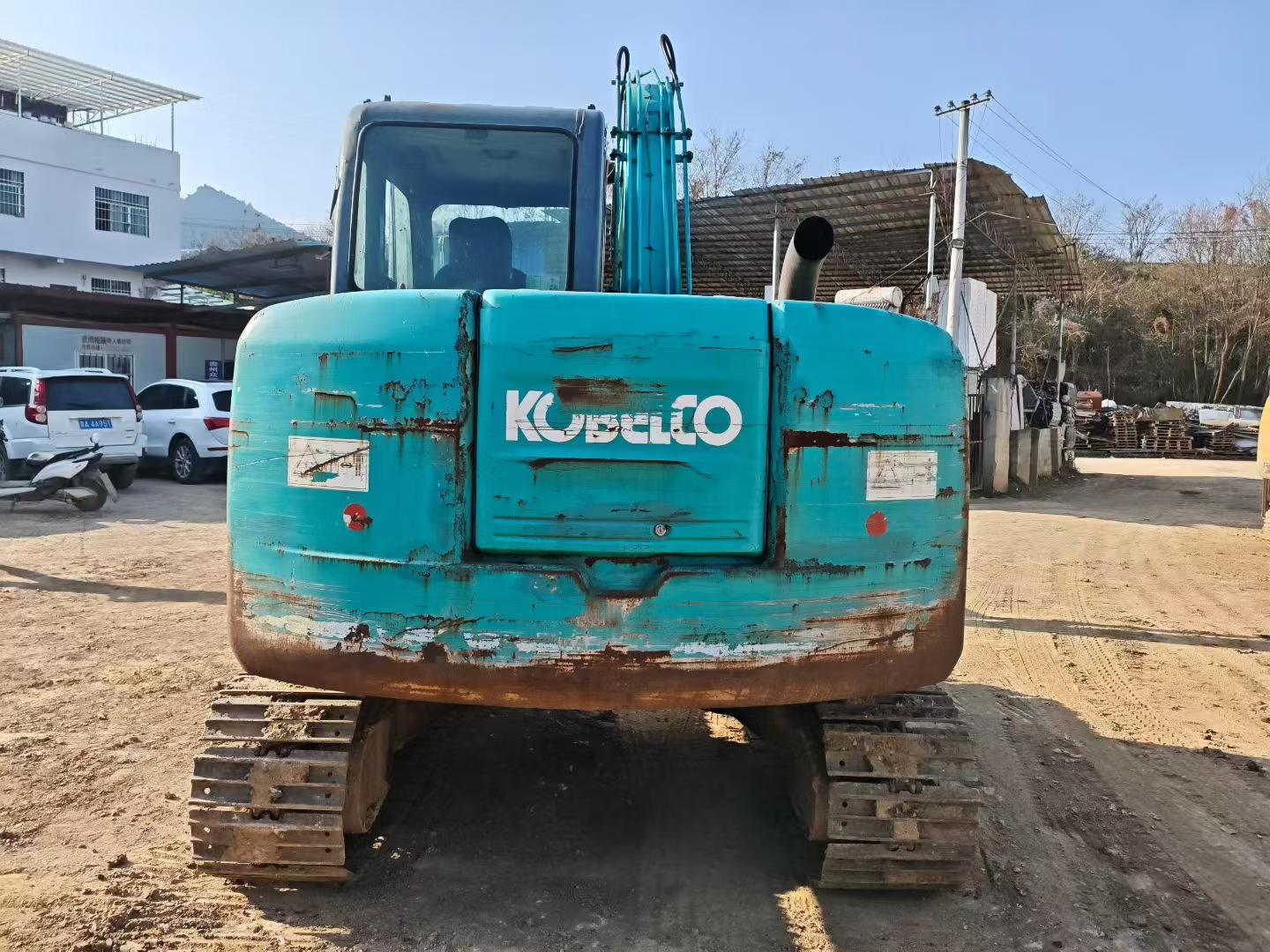

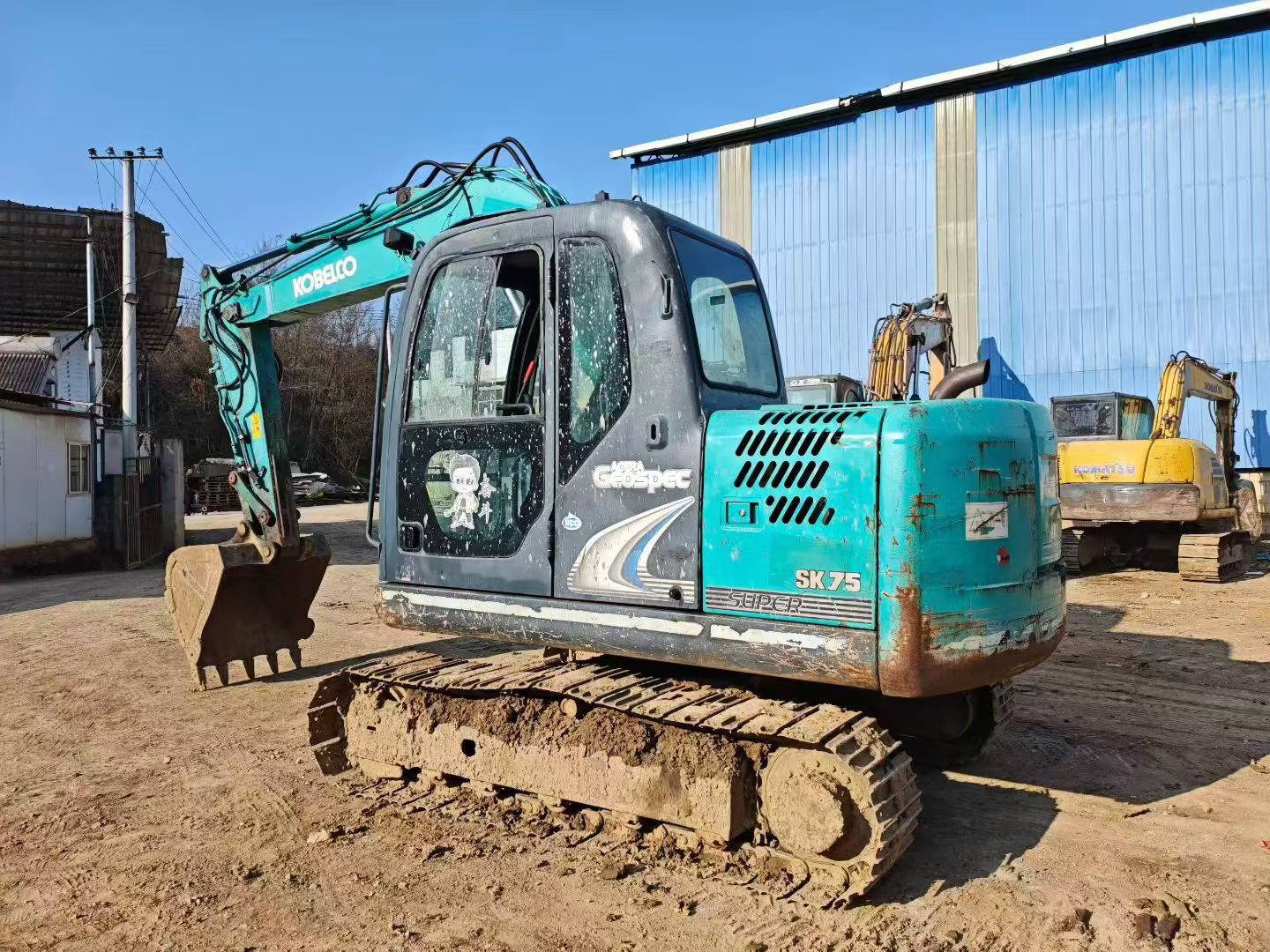

With a working weight of 7,000 kg and powered by a robust ISUZU AU4LE2X engine, this 2016 Kobelco SK75 excavator stands as a testament to durability. Built in Chengdu, it has proven its reliability over the years. Featuring a 4-cylinder, 2.179L displacement engine with a rated power of 41 kW at 2200 rpm, this machine is designed for tough jobs. Equipped with a backhoe bucket, it excels in excavation tasks, boasting a maximum digging depth of 4160 mm and a maximum digging radius of 6460 mm. The double variable displacement axial piston pump ensures efficient hydraulic performance, while the water-cooling system maintains optimal operating temperatures. Located in 贵州, this workhorse is ready to tackle your next project with precision and power.
| Specifications | Value |
|---|---|
| No. | 1003953 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

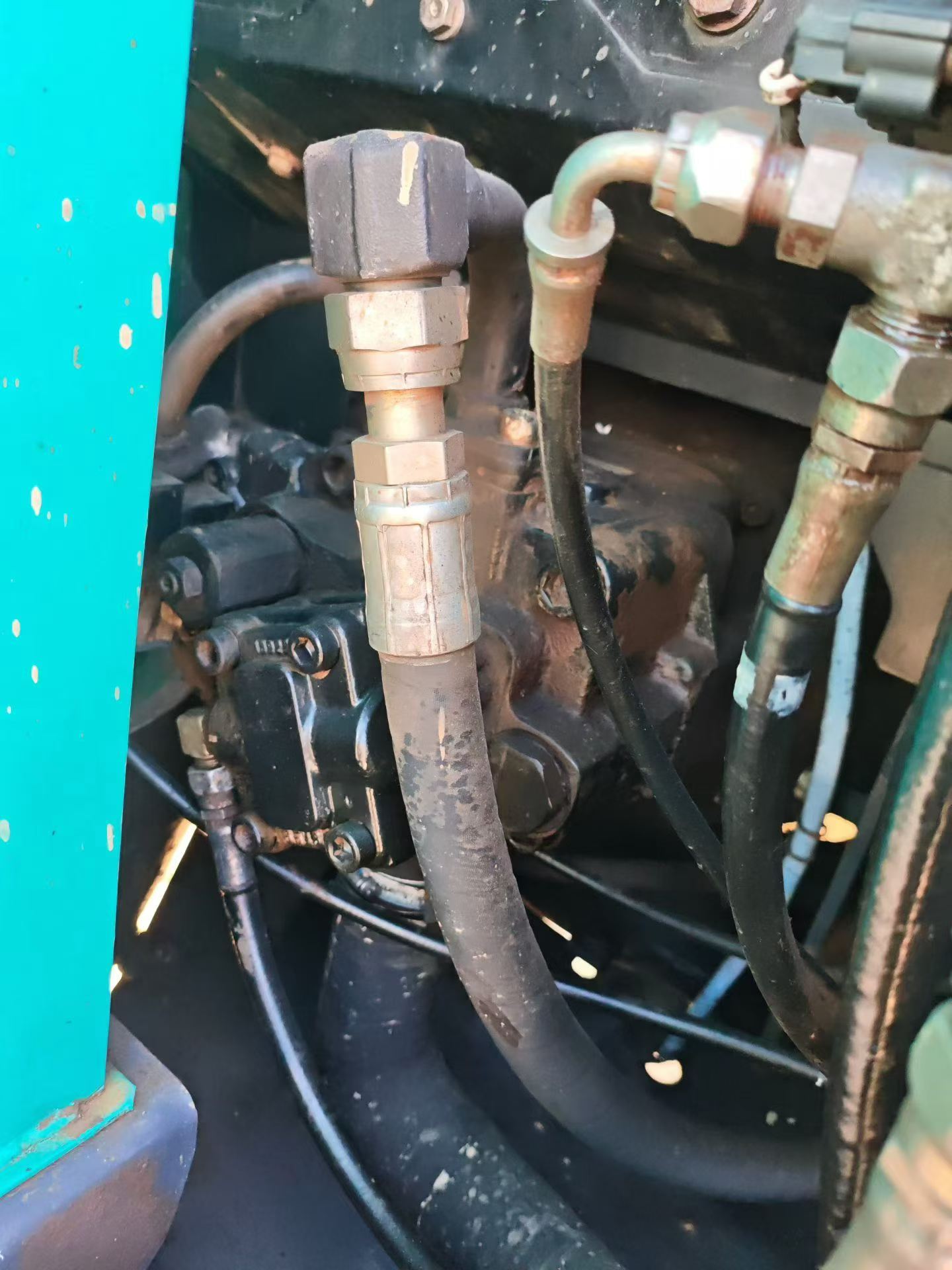

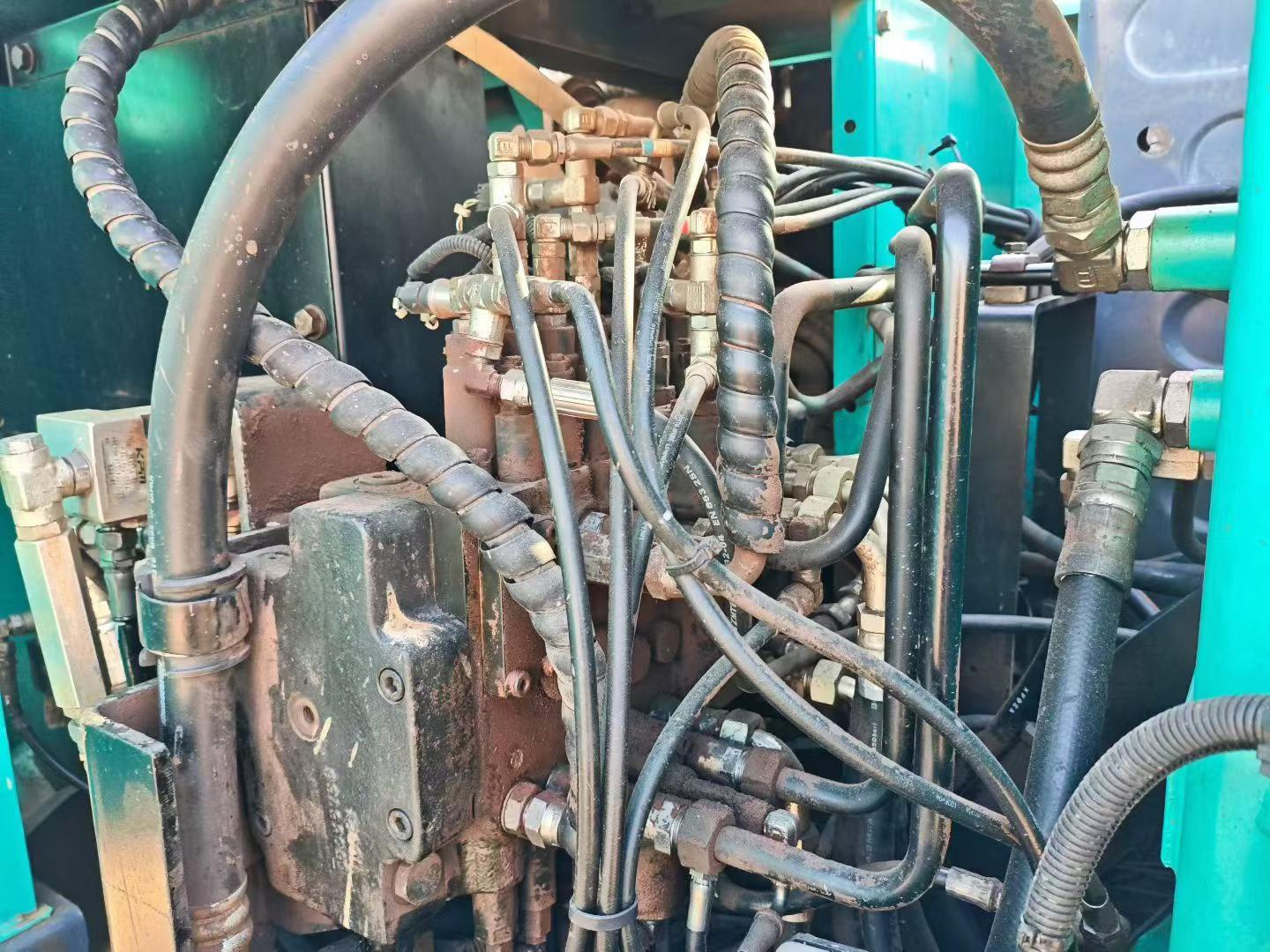

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
