Product Description

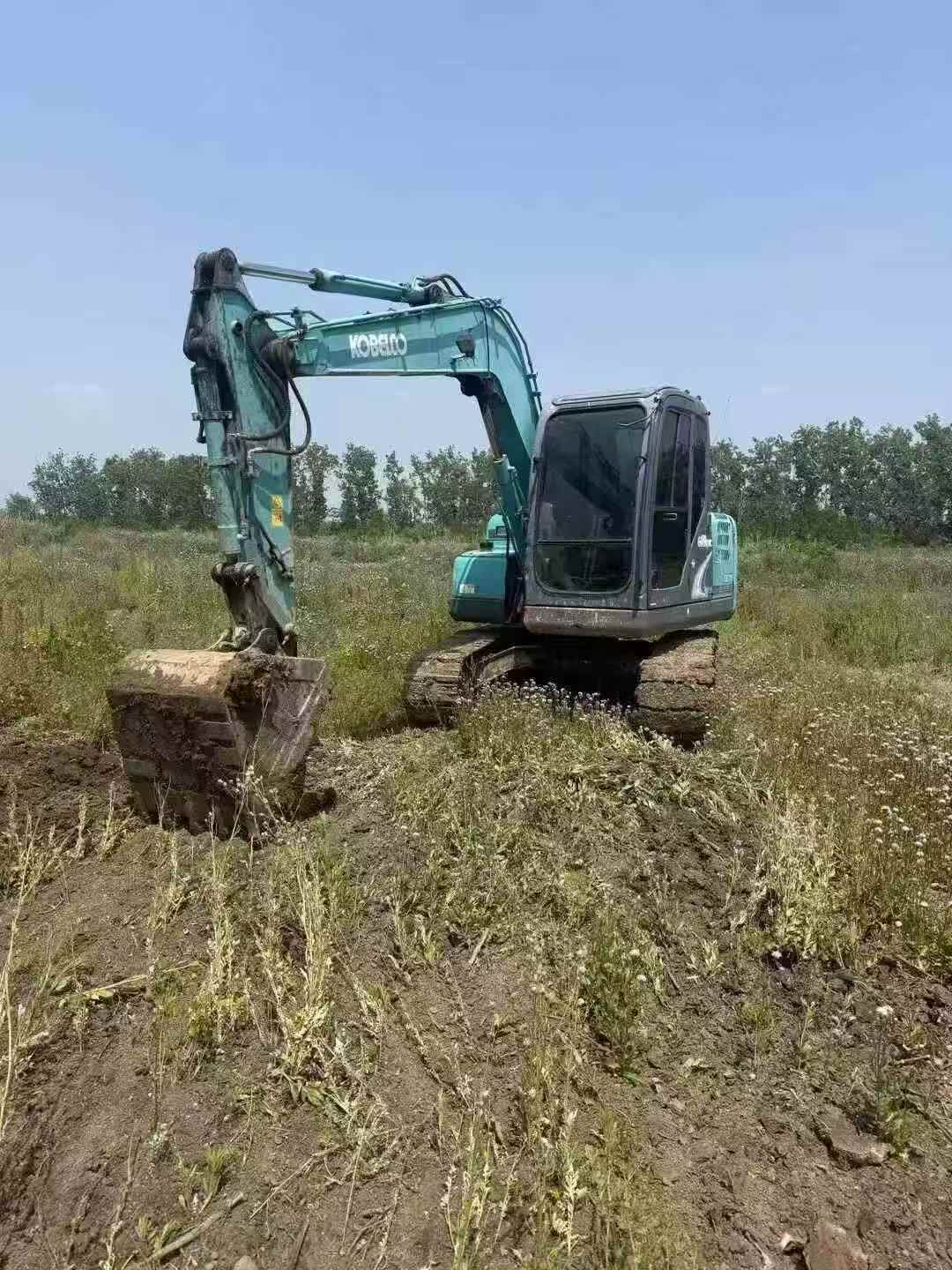

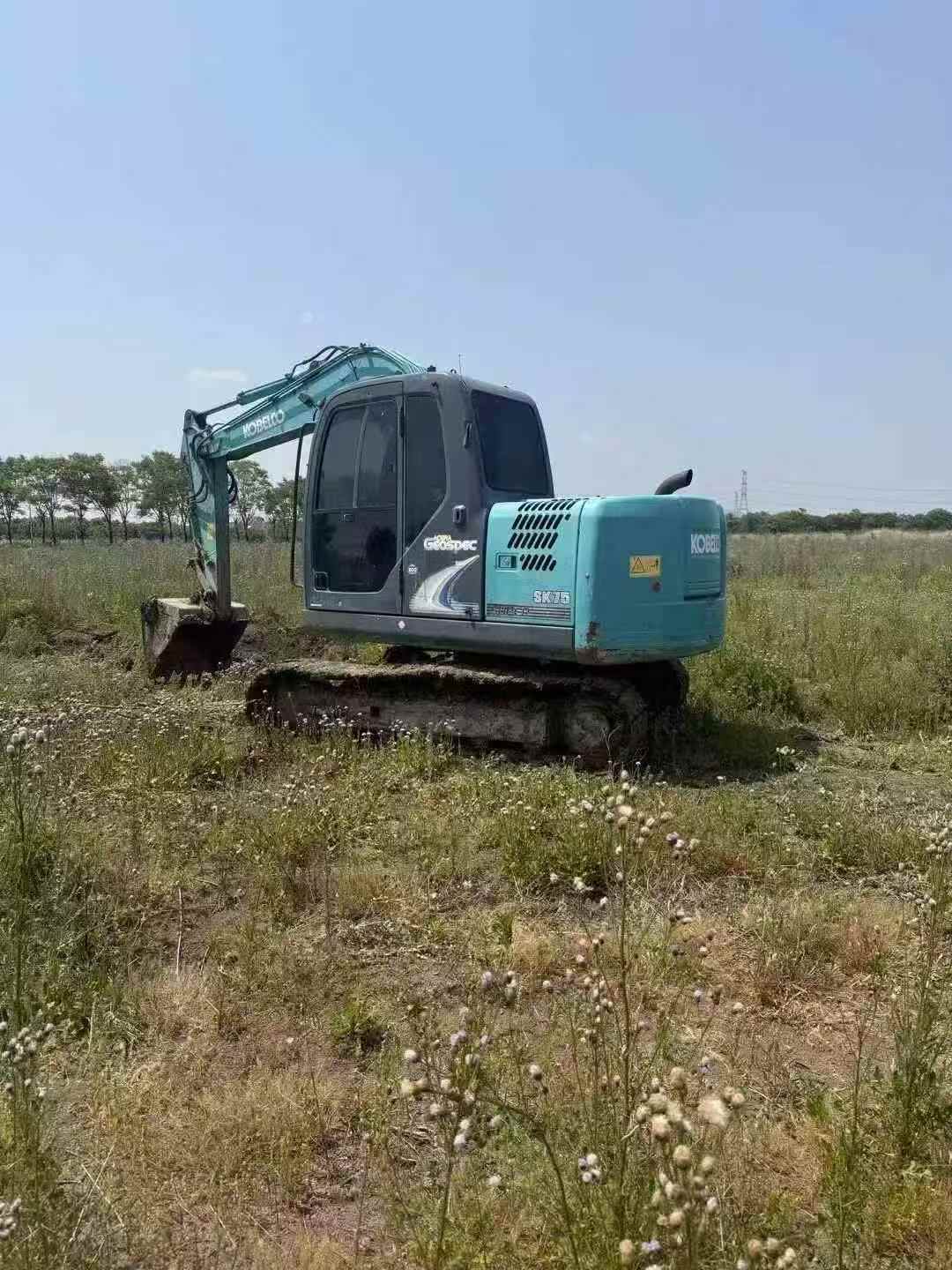

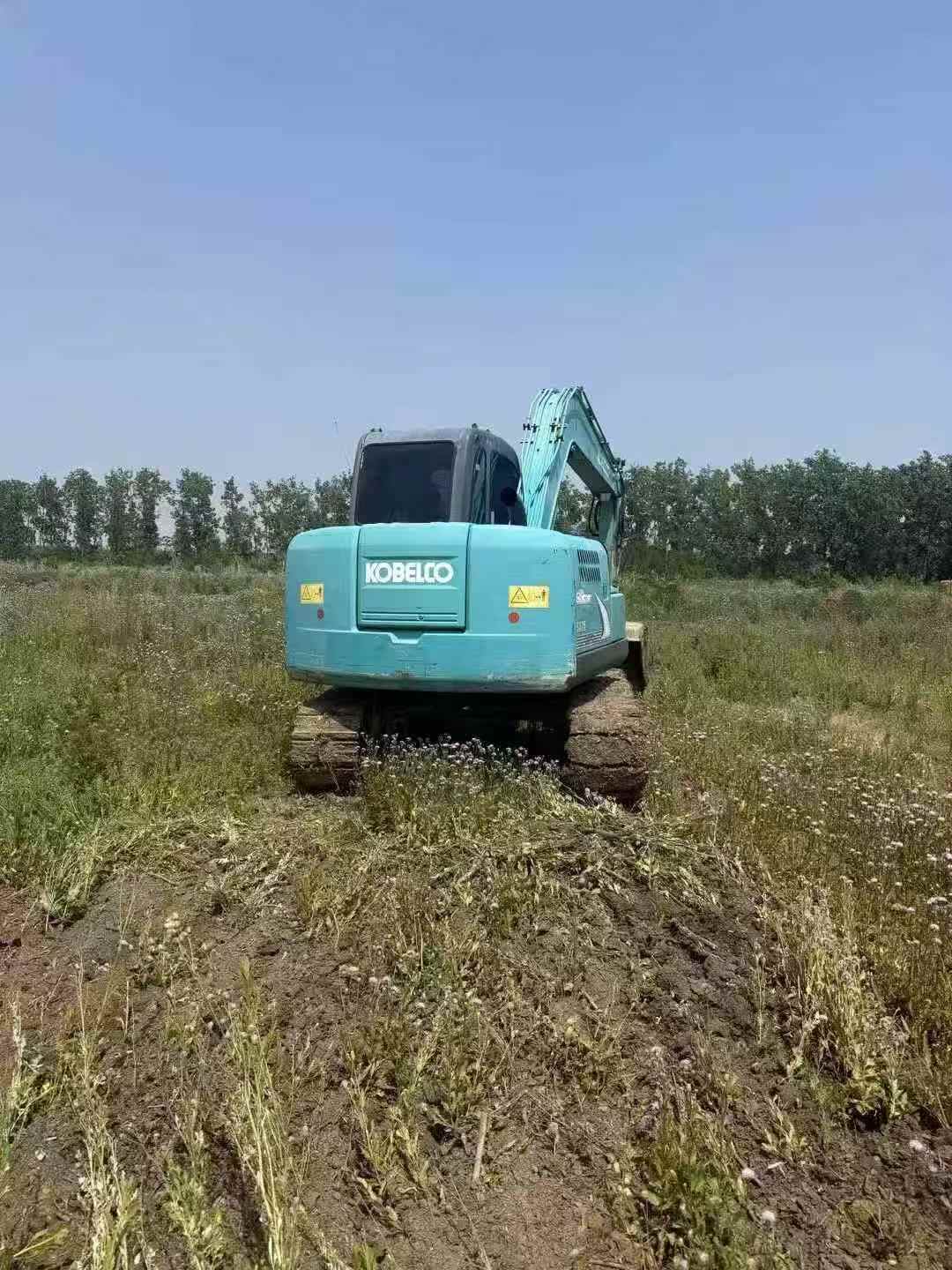

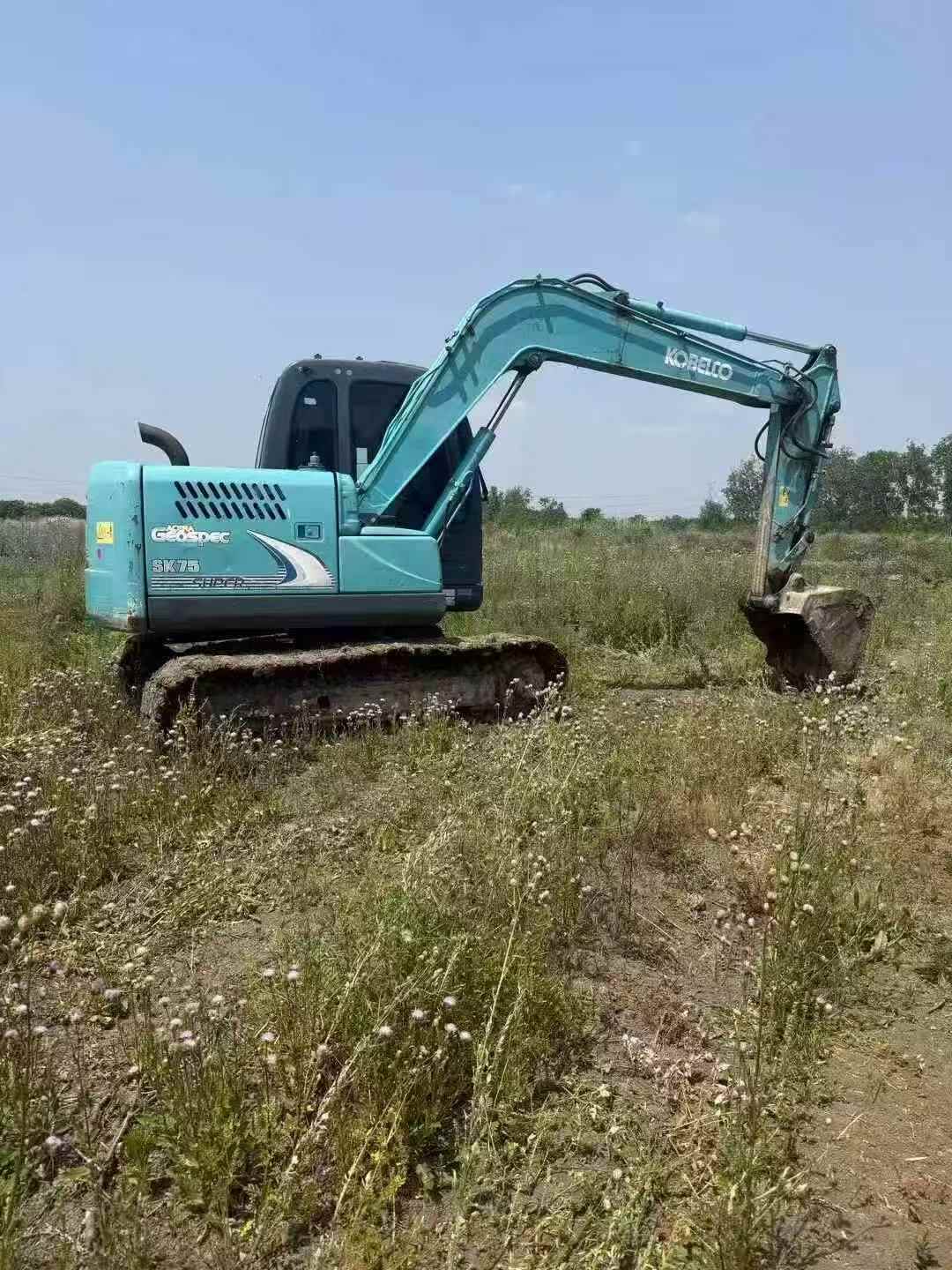

Ready to ship from Jiangsu, China — this 2016 Kobelco SK75 puts 7-ton excavator performance in your hands without the factory wait. Skip the lead times and get a proven machine on your site fast.

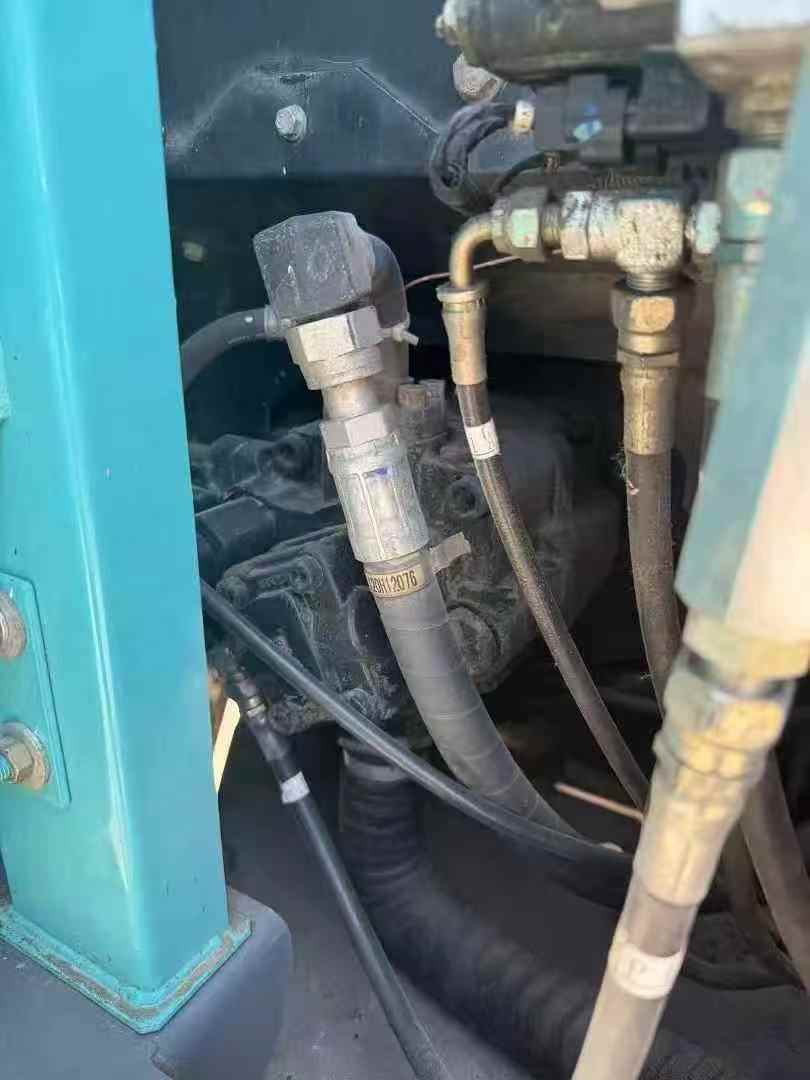

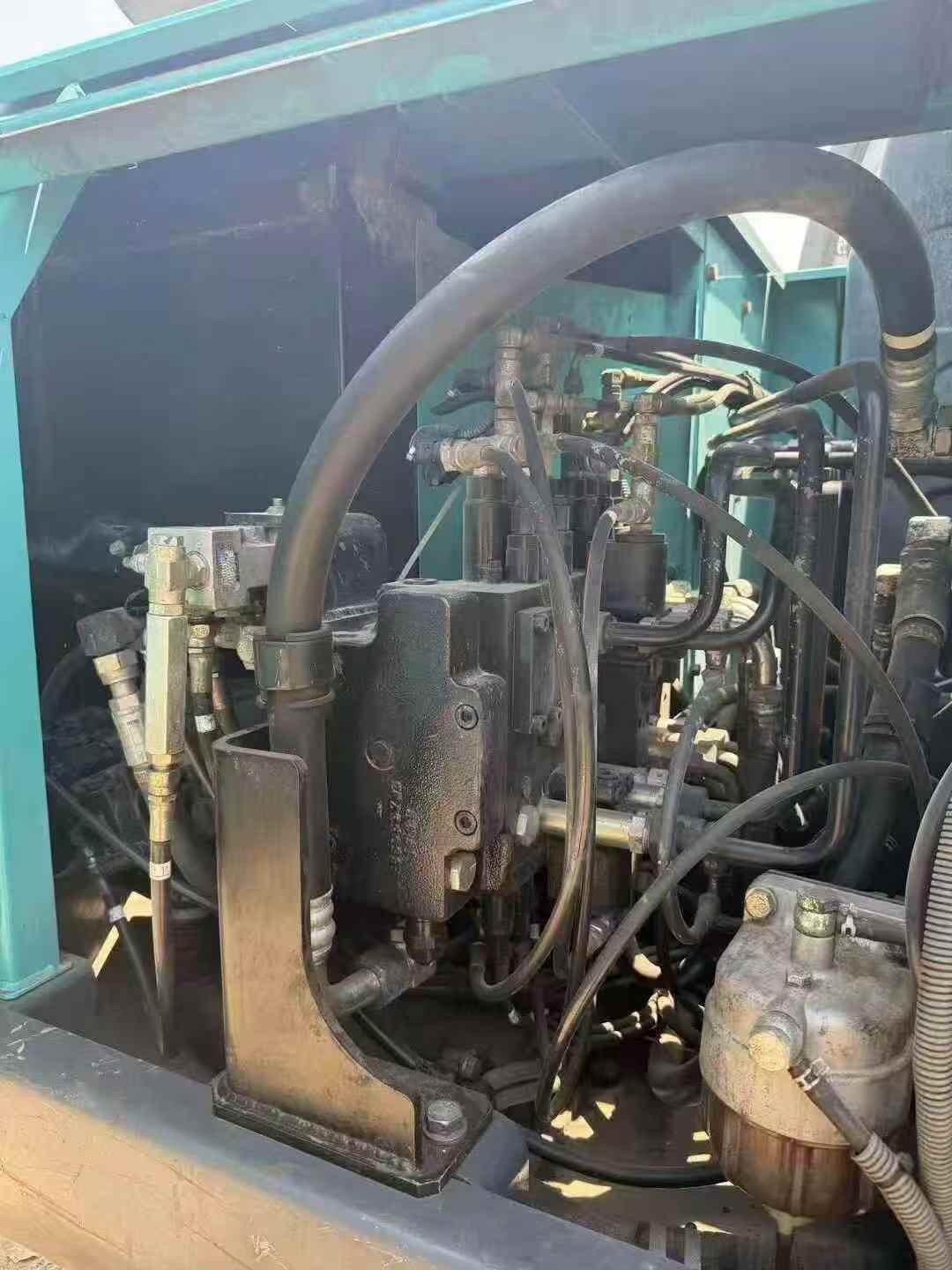

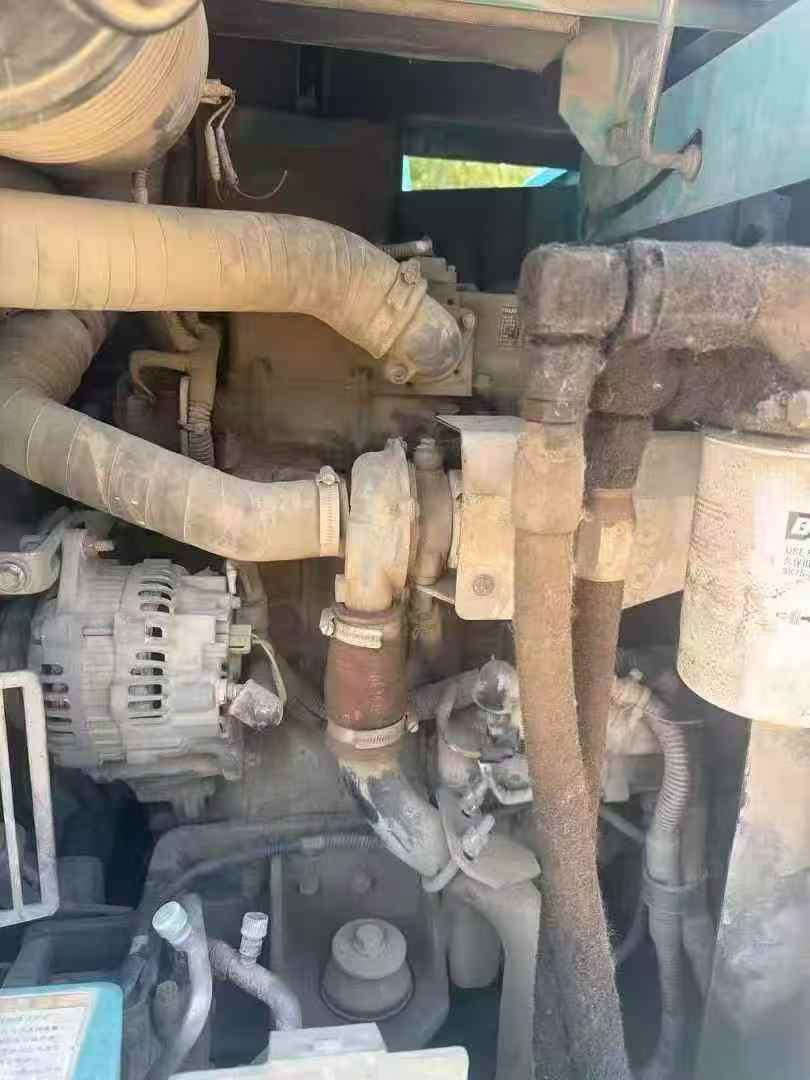

Powered by an ISUZU AU4LE2X 4-cylinder water-cooled engine producing 41 kW at 2,200 RPM, this compact excavator delivers reliable digging force through a double variable displacement axial piston pump system. Working hydraulic pressure reaches 29.4 MPa, backed by a 27.5 MPa travel circuit for confident performance across demanding terrain.
- Maximum digging depth: 4,160 mm
- Maximum digging radius: 6,460 mm
- Maximum excavation height: 7,390 mm
- Maximum unloading height: 5,330 mm
- Travel speed: 2.8 / 5.3 km/h (low/high)
- Fuel tank: 120 L | Hydraulic tank: 72 L
- Engine displacement: 2.179 L | 4 cylinders
Available now in Jiangsu for fast domestic or international deployment. Compact dimensions — 2,630 mm transport height, 1,290 mm rear swing radius — make logistics straightforward. Contact Fair Trade Machinery today to confirm availability and arrange shipping.
| Specifications | Value |
|---|---|
| No. | 1060047 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
