Product Description

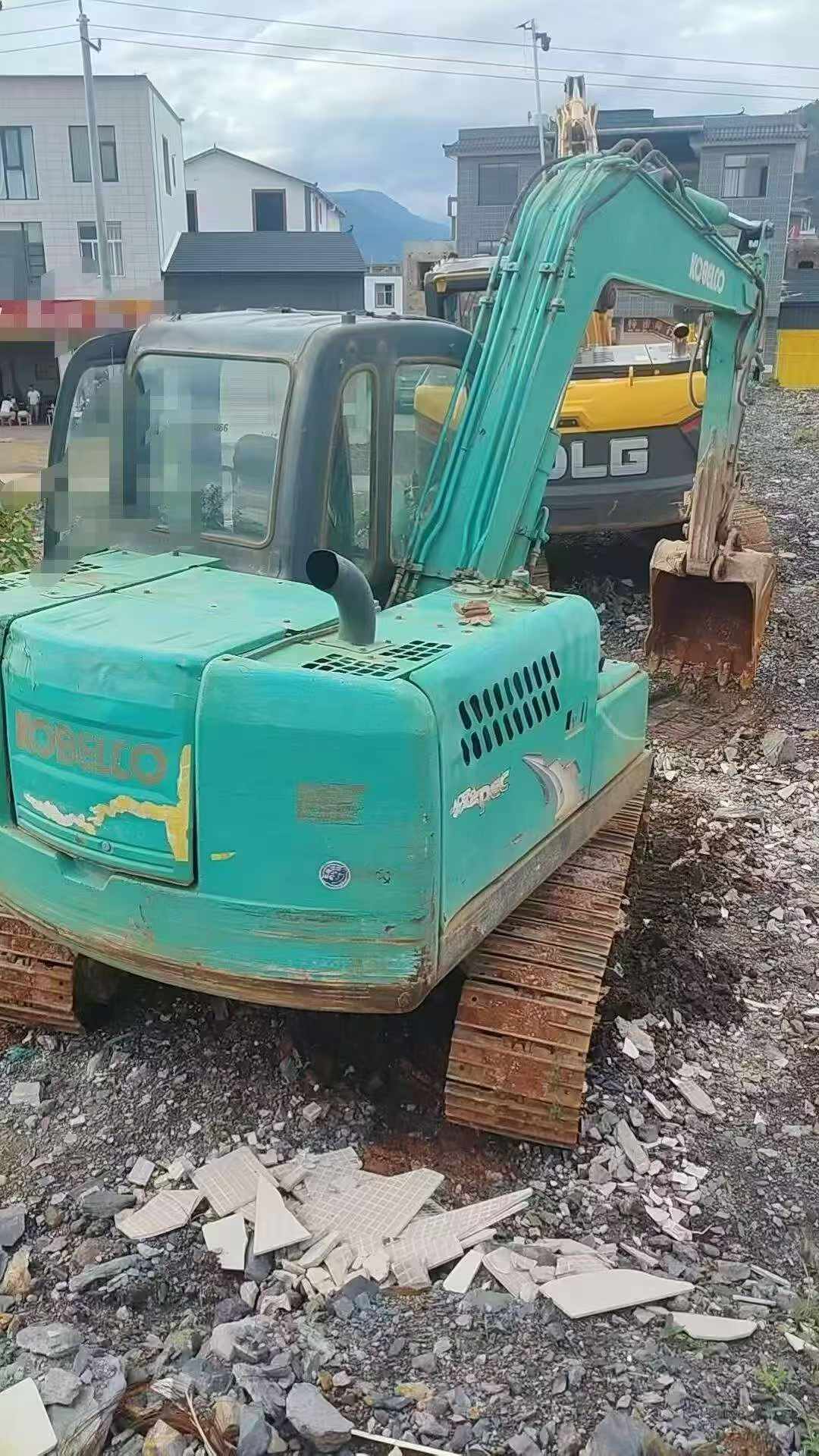

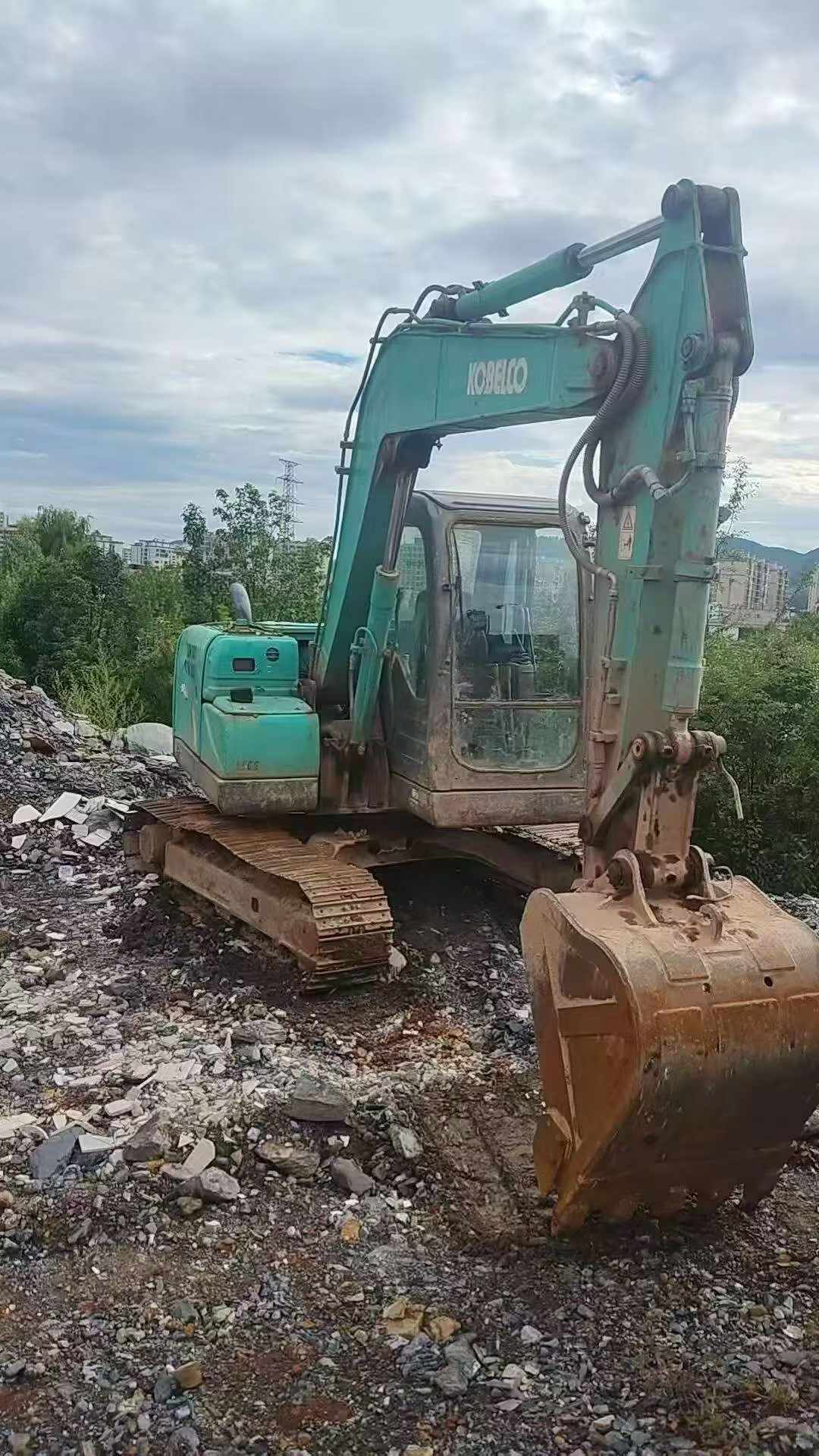

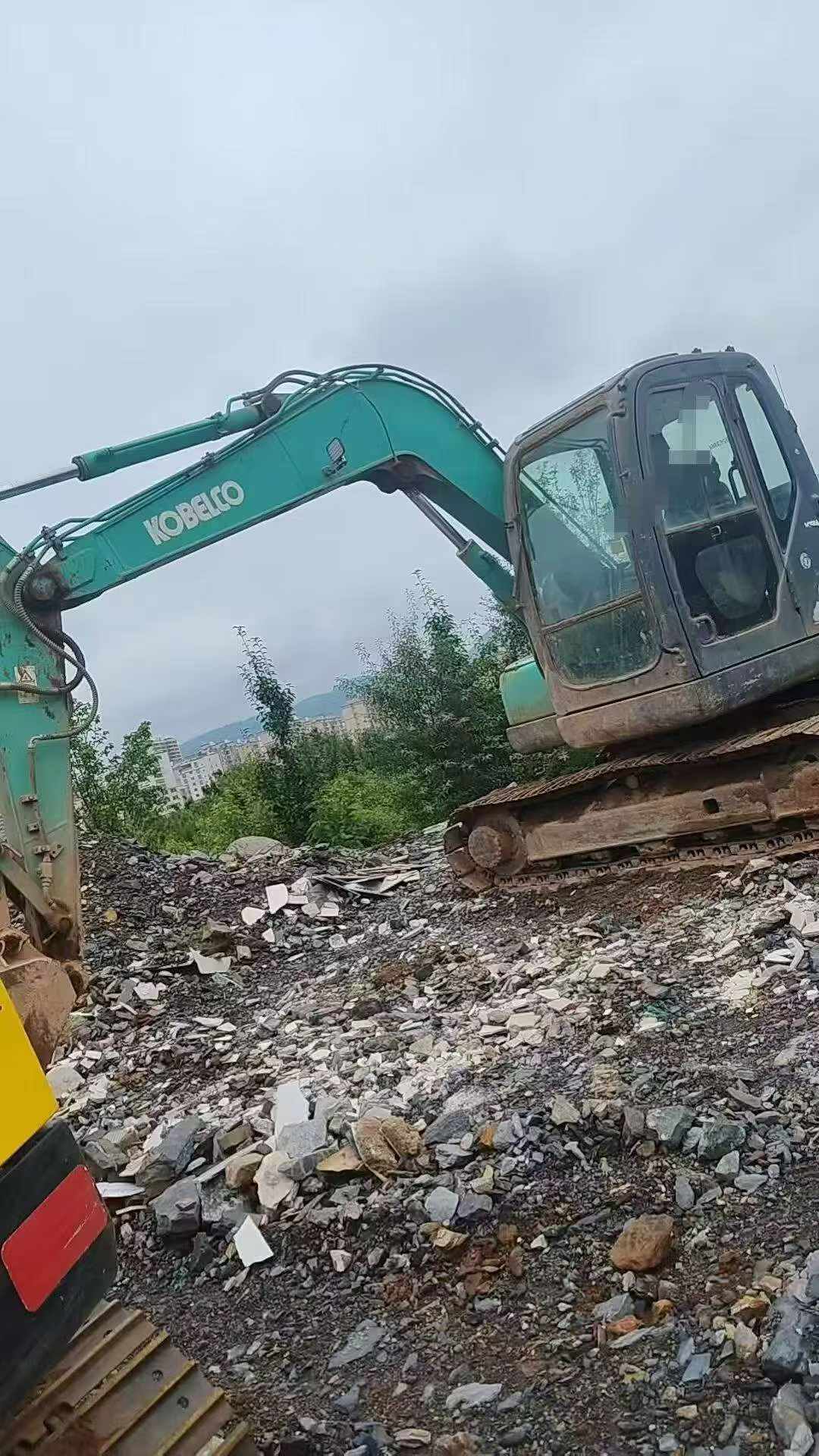

This 2016 Kobelco SK75 midi excavator is now available from our Sichuan, China location. With approximately 8 years of operational history, this machine represents a cost-effective solution for construction, landscaping, and utility projects requiring versatile performance in confined spaces.
The Kobelco SK75 is recognized for its 7.5-tonne operating weight and reliable hydraulic systems. This unit combines compact dimensions with sufficient digging depth and reach for diverse earthmoving applications. Kobelco's engineering ensures fuel efficiency and responsive controls, making it suitable for contractors seeking dependable used equipment.
- Year of Manufacture: 2016
- Model: Kobelco SK75
- Location: Sichuan Province, China
- Category: Midi Excavator
- Condition: Used, operational
Contact FairTradeMachinery for detailed specifications, current condition reports, and pricing information on this Kobelco SK75 excavator.
| Specifications | Value |
|---|---|
| No. | 1088916 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

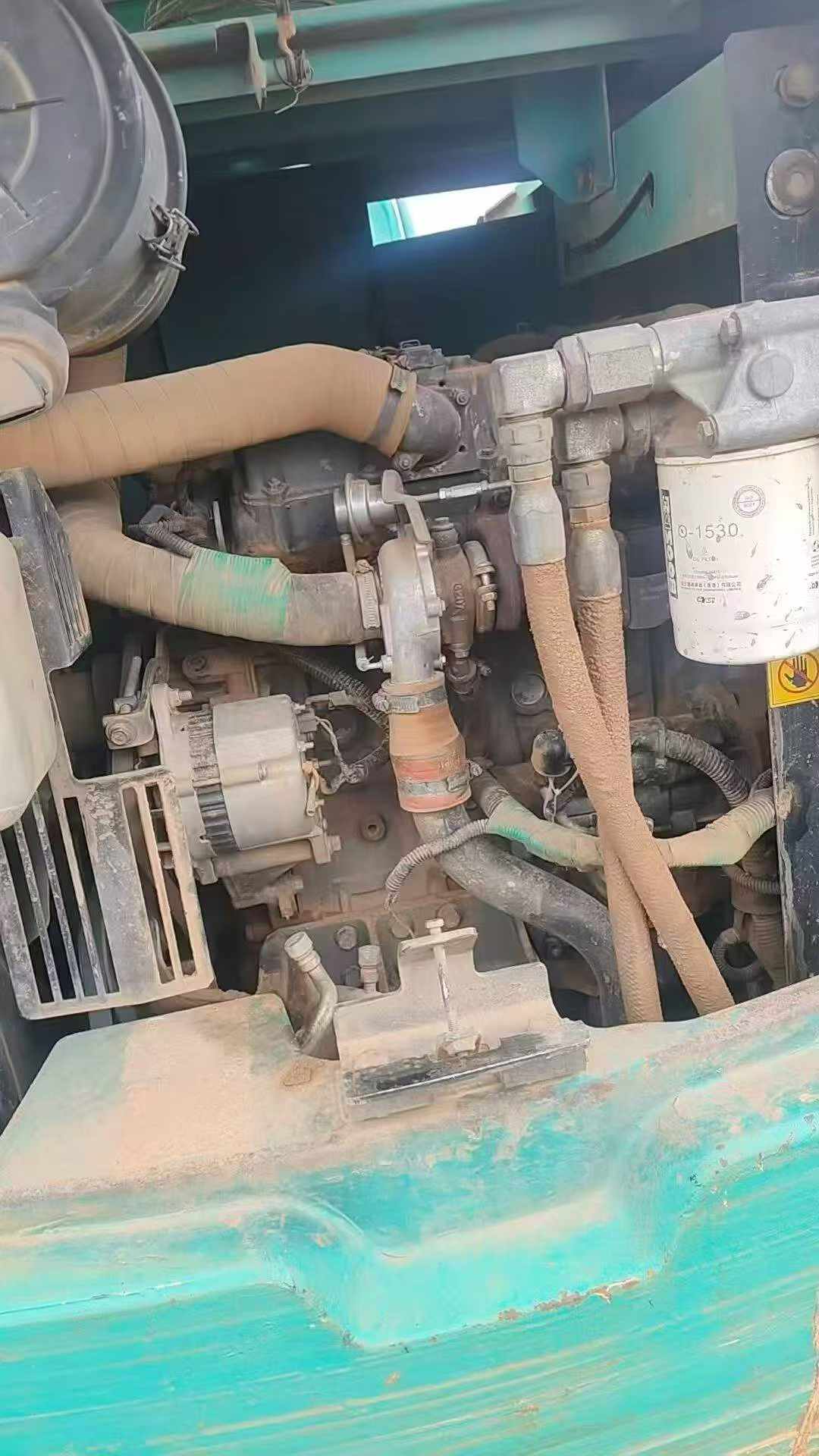

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
