Product Description

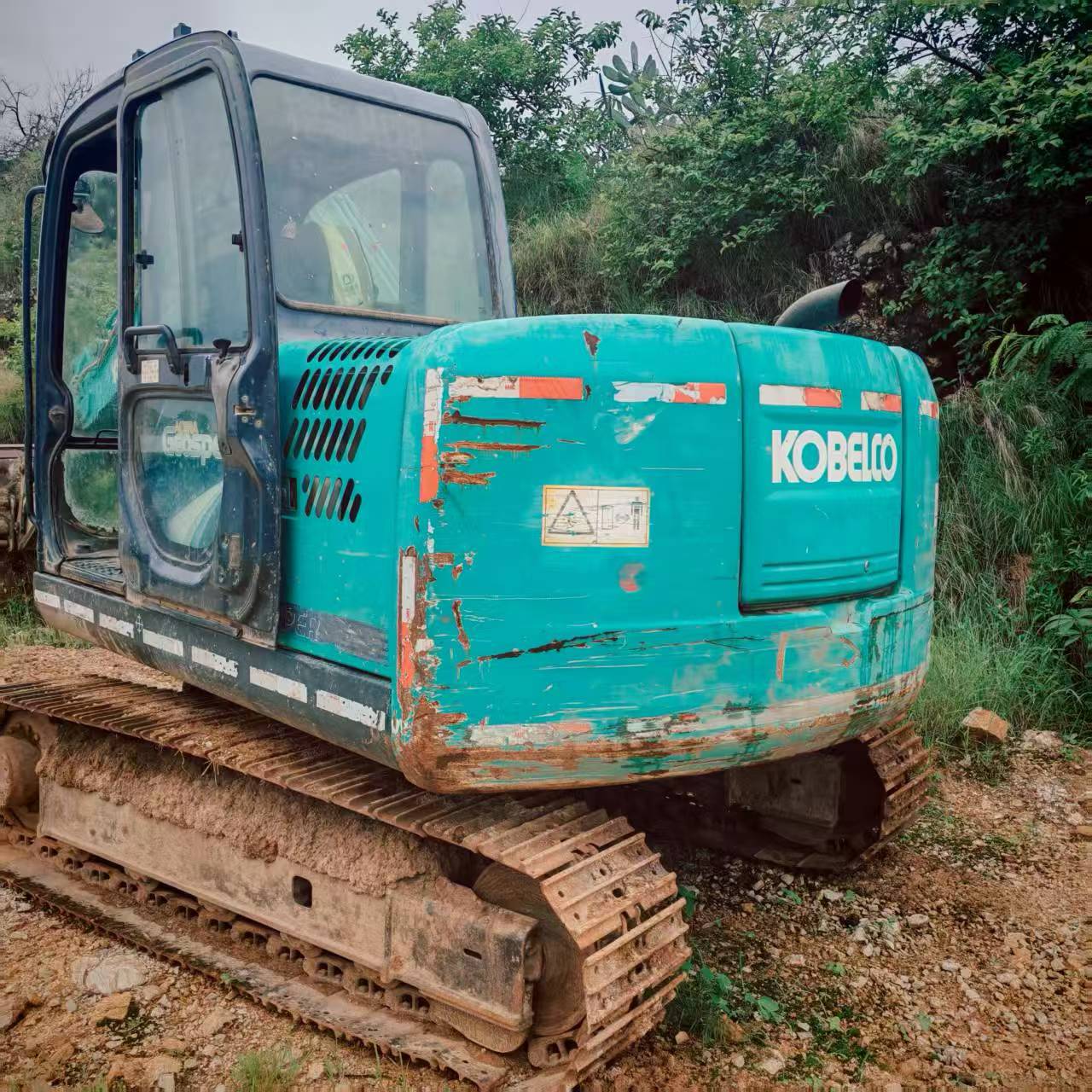

Discover the 2016 Kobelco SK75, a meticulously maintained excavator, available for your next project. This machine, located in Yunnan, China, has been under the care of one owner since its first operation, ensuring a reliable and consistent service history. Ideal for construction, excavation, and demolition tasks, the SK75 is known for its robust performance and durability. With its compact design, it offers excellent maneuverability, making it perfect for both small and large-scale projects. The machine's condition is exceptional, reflecting the high standards of maintenance and care throughout its operational life. Invest in quality and reliability with this well-preserved piece of equipment, ready to meet the demands of your next job.
- Year: 2016
- Brand: Kobelco
- Model: SK75
- Location: Yunnan, China
- Condition: Excellent, single owner
| Specifications | Value |
|---|---|
| No. | 1116058 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

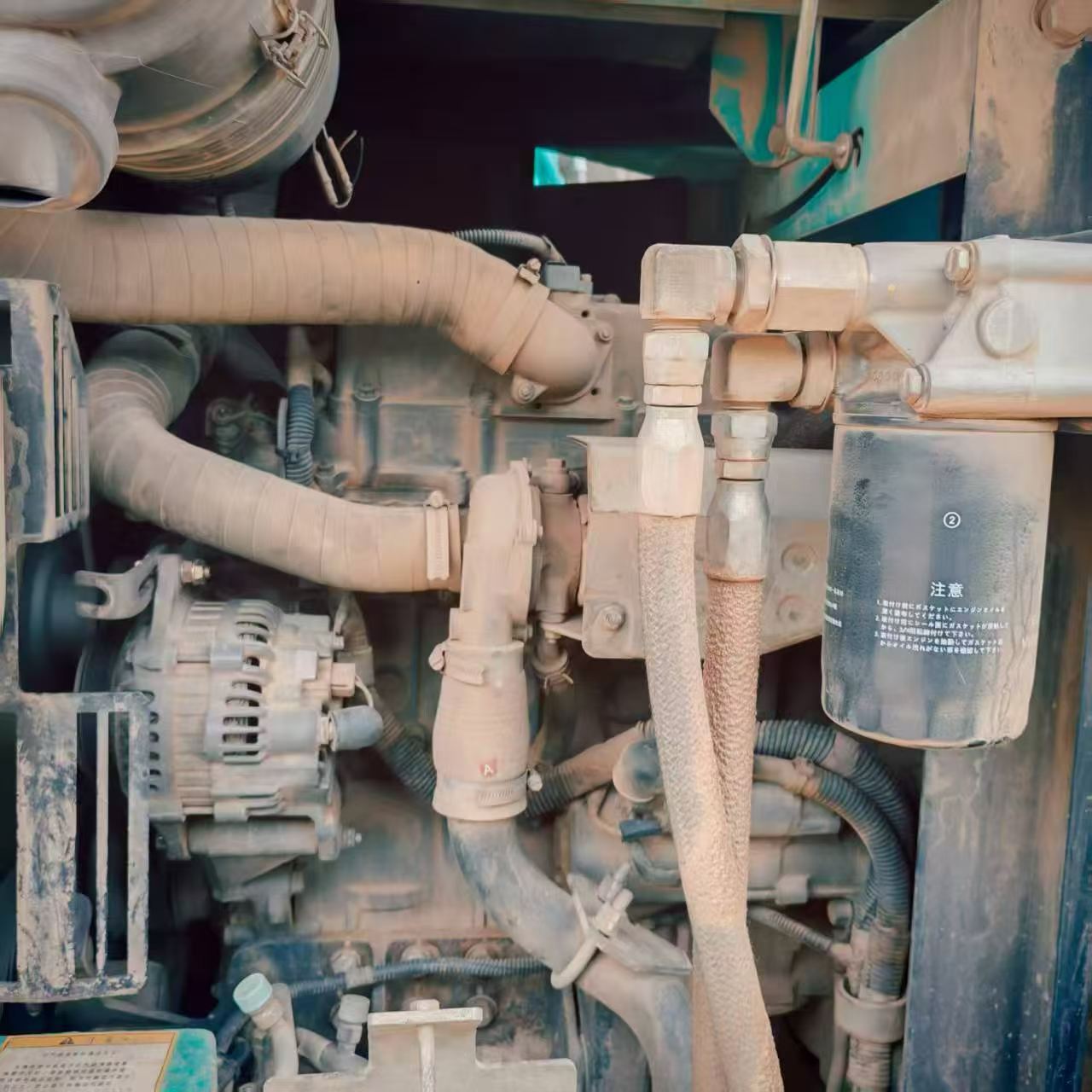

| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
