Product Description
With a robust 7-ton working weight, the 2016 Kobelco SK75 is a site-ready excavator designed for immediate deployment. Equipped with an ISUZU AU4LE2X engine, delivering 41 kW at 2200 rpm, this machine ensures reliable performance in various conditions. Ideal for digging, grading, and demolition tasks, it features a backhoe bucket and a double variable displacement axial piston pump, enhancing efficiency and control.
- Maximum digging depth: 4160 mm
- Maximum excavation height: 7390 mm
- Travel speed: 2.8/5.3 km/h
- Fuel tank capacity: 120 L
- Hydraulic system capacity: 120 L
Located in 四川泸州, this SK75 is ready to tackle demanding projects with its 2630 mm total transport height and 1760 mm minimum turning radius of the front working device, ensuring maneuverability and accessibility on any job site.
| Specifications | Value |
|---|---|
| No. | 993104 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |

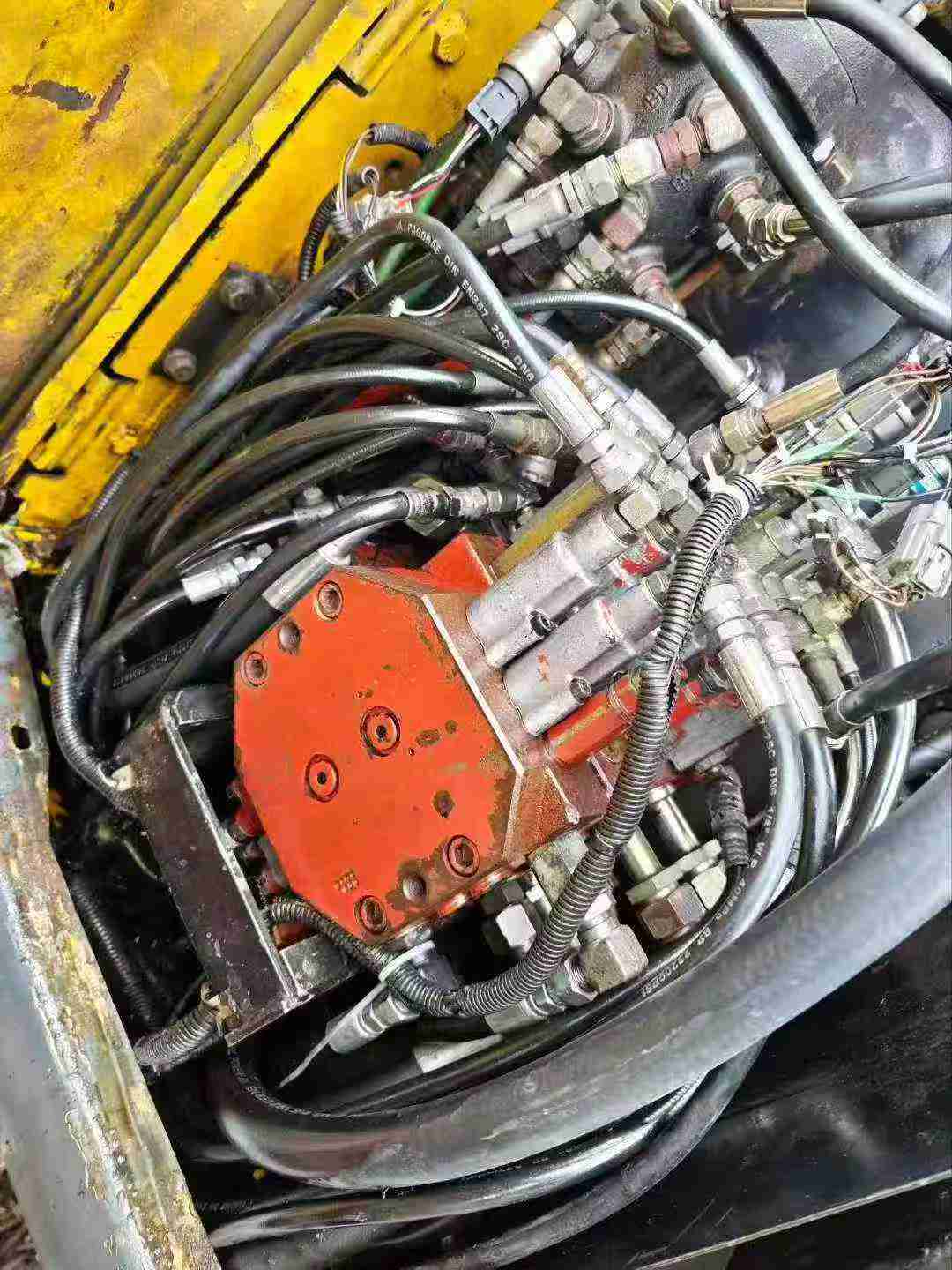

| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
