Product Description

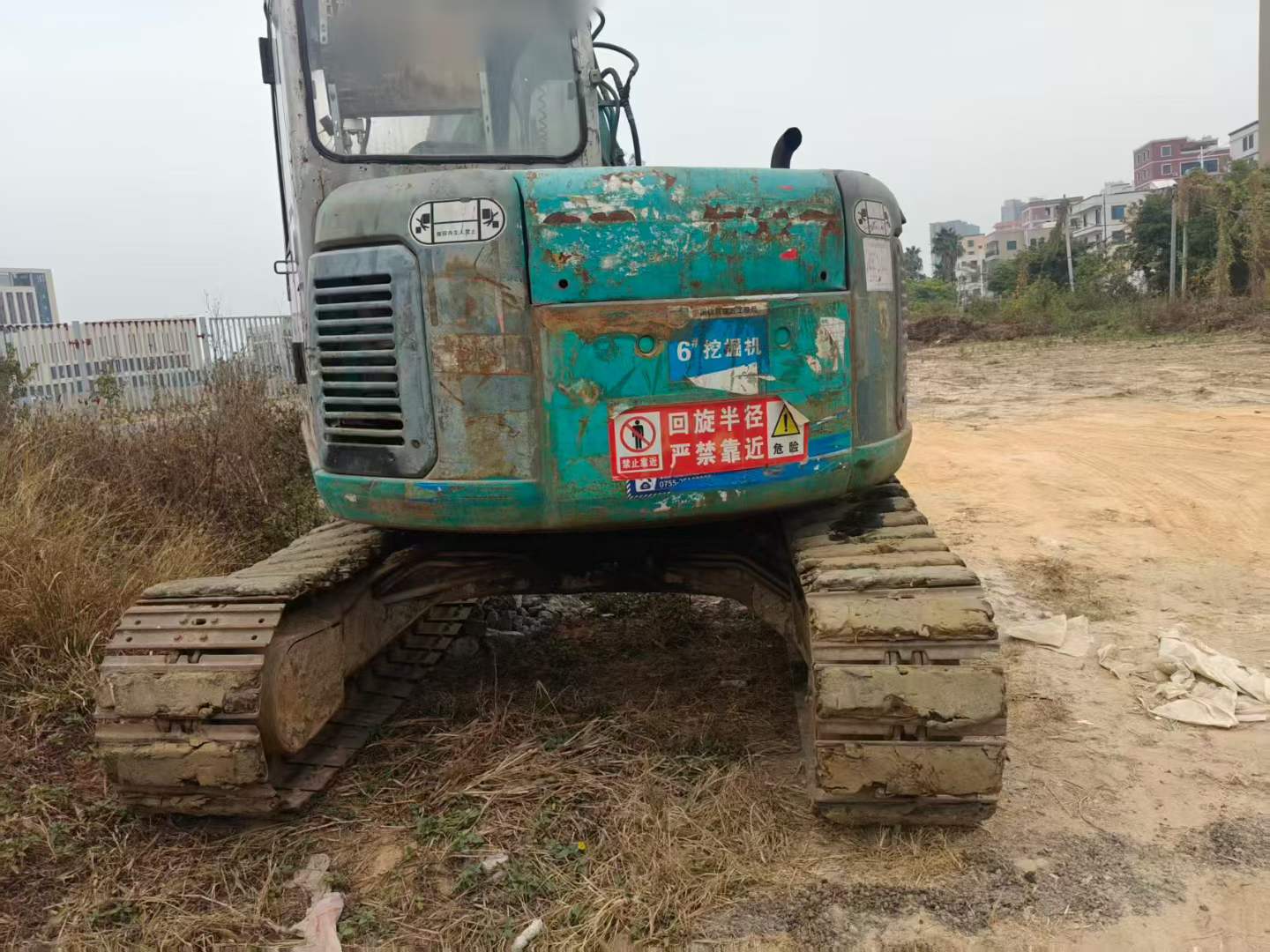

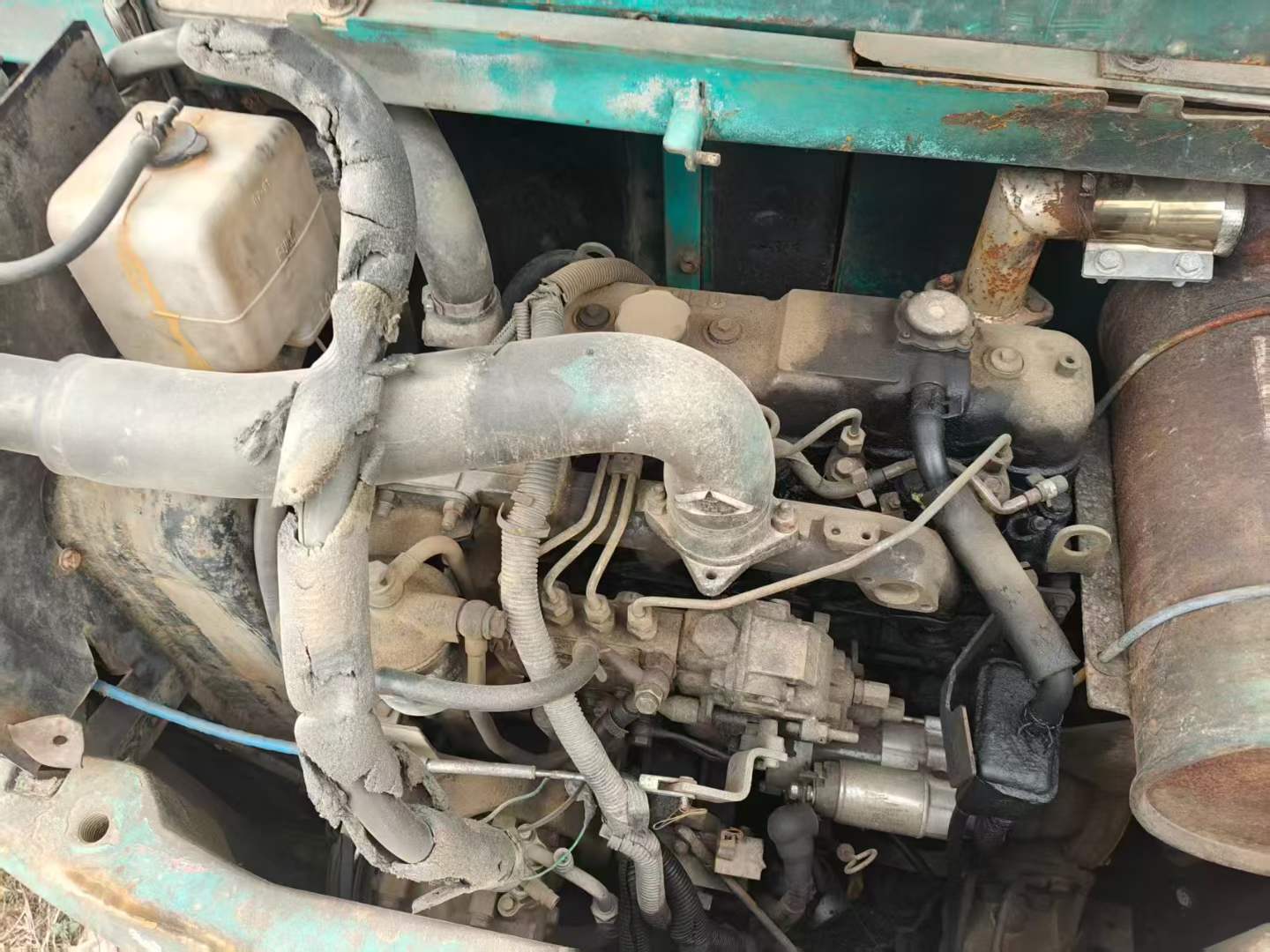

Strengthen your fleet capacity with this reliable 2016 Kobelco SK75 compact excavator, currently available in Maoming, Guangdong. Operating at 7 tons with a proven ISUZU AU4LE2X engine delivering 41kW at 2200 rpm, this machine provides consistent performance for contractors managing multiple job sites simultaneously. Water-cooled efficiency and a 2.179L displacement ensure dependable operation during extended shifts.

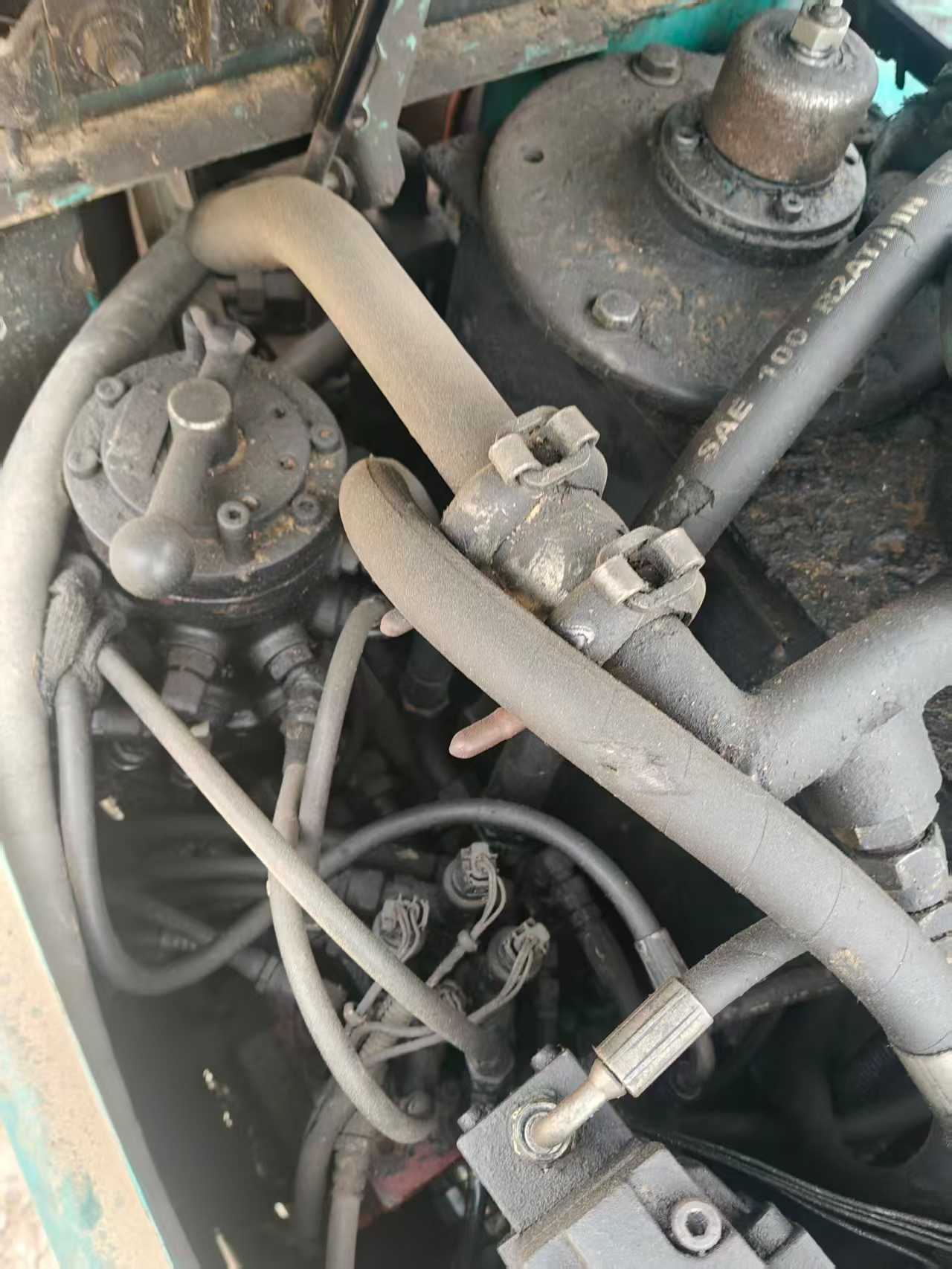

Engineered for versatility, this unit features a double variable displacement axial piston pump system with working hydraulic pressure reaching 29.4 Mpa. Maximum digging depth extends to 4160mm, while the 6460mm digging radius covers substantial work areas. The compact 2630mm transport height facilitates easy mobilization between projects, and dual travel speeds (2.8/5.3 km/h) optimize productivity across varied terrain.
- 7-ton working weight ideal for urban and confined spaces
- 120L fuel capacity minimizes refueling downtime
- 1760mm minimum turning radius for tight-access applications
- Joint venture quality with imported components
Add proven backup capacity to your operation. This SK75 integrates seamlessly into existing fleets, reducing equipment bottlenecks
| Specifications | Value |
|---|---|
| No. | 994628 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7000(approx) |
| Country of origin | Chengdu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU AU4LE2X |
| Rated power (kw/rpm) | 41/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Rotary hydraulic motor type | Axial piston motor |
| Traveling Hydraulic Circuit (Mpa) | 27.5 |
| Rotary Hydraulic Circuit (Mpa) | 14.5 |
| Control Hydraulic Circuit (Mpa) | 3.5 |
| Main pump type | Double variable displacement axial piston pump + pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 72 |
| Engine Oil changes (L) | 11 |
| Coolant (L) | 8.5 |
| Hydraulic System (L) | 120 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Minimum turning radius of front working device (mm) | 1760 |
| Back end turning radius (mm) | 1290 |
| Maximum digging radius (mm) | 6460 |
| Maximum digging depth (mm) | 4160 |
| Maximum excavation height (mm) | 7390 |
| Maximum unloading height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3450 |
| Maximum excavation radius of stop surface (mm) | 6300 |
| Maximum effective digging depth (mm) | 3800 |
| Travel speed (km/h) | 2.8/5.3 |
